Heavy Bay
Engineered Pallet Logistics
Certified Industrial Racking & High-Throughput Flow Configurations
High-yield cold-rolled Q235B structural steel systems built to European EN 15512, CE standards, and seismic stability metrics. Engineered for temperature-controlled facilities and mega-distribution warehouses.

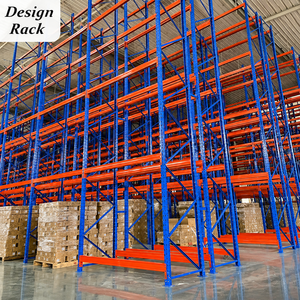

Heavy Bay
Q235B Steel
Textile/Roll
High Capacity
Sub-Zero -30°C
Dynamic Handling
Anti-Corrosion
Integrated Picking
2001
Year Established (25+ Yrs Exp)
30,000 m²
In-House Manufacturing Base
30,000 t
Monthly Steel Processing Volume
120+
Global Export Destination Ports
Technical Architecture
FIFO Pallet Racking Engineering: Gravity Dynamics & Structural Tolerances
In contemporary intralogistics, First-In, First-Out (FIFO) pallet flow racking systems—often referred to as dynamic live storage—provide the highest volumetric density while eliminating manual stock rotation errors. By utilizing an engineered pitch incline, precision roller tracks, and kinetic brake drums, pallets automatically advance from the loading face (rear) to the unloading face (front) exclusively driven by gravity.
As an ISO 9001:2015 and CE-certified manufacturer, HEDA Shelves engineers our FIFO structures to eliminate traditional failure points: runaway pallet impact, roller bed warping, and friction lockup. Below is the technical breakdown required for enterprise-grade warehouse procurement and municipal Civil Defense engineering verification.
Controlled Incline Dynamics
Every gravity roller bed is calculated between a 3.0% and 3.5% slope gradient depending on bottom-deck pallet morphology and gross pallet payload (up to 1,500 kg/pallet position).
- Centrifugal speed controllers installed every pallet length
- Constant travel speed maintained at ≤ 0.3 m/s
- Mechanical separators to absorb line pressure on the pick face
Material Yield Strength (Q235B)
Our uprights and boxed step beams are cold-rolled from high-tensile certified steel coils. Automated continuous punching guarantees micro-tolerance slot intervals without micro-fracturing.
- Tensile strength: 370–500 MPa, Yield point: ≥ 235 MPa
- Certified under European structural design standard EN 15512
- Deflection index strictly controlled to ≤ L/200 under full test loads
Environmental Surface Coatings
Fabricated for demanding cold-storage rooms (-30°C) as well as extreme hyperthermic coastal zones (+45°C to +50°C) with persistent dust and moisture index.
- Strict 10-step pickling and phosphating pre-treatment
- Automated electrostatic powder coating (60–80 μm thickness)
- RoHS compliant, non-toxic, non-chipping resin binders
Safety Engineering Note: True FIFO configurations generate massive combined static and kinetic forces. HEDA designs include integrated floor-bolted column upright protectors, anti-collapse rear netting, and heavy cross-bracing diagonals to neutralize torsional deflection under continuous deep-lane loading.
Data Matrix
Comparative Analysis: Racking Densities, Access Speeds & Turnover Economics
| Storage Topology | Rotation Principle | Floor Space Utilization | Throughput Velocity | Forklift Operating Travel | Typical Applications |
|---|---|---|---|---|---|
| Gravity FIFO Flow Racking | Strict FIFO (First-In, First-Out) | 80% – 85% (Ultra-Dense) | Very High (Separate Load/Unload) | Zero lane entry (Peripheral loading) | Perishables, Cold Chain, Pharmaceuticals |
| Radio Shuttle System | Dynamic (Selectable FIFO / LIFO) | 85% – 90% (Maximum Density) | High (Automated Cart Run) | Zero lane entry (Aisle staging only) | Beverage mega-distributors, High-volume batch |
| Standard Selective Racking | 100% Random Access (FIFO manual) | 35% – 40% (Aisle-Intensive) | Moderate (Single Pallet Select) | High (Forklift travels down each aisle) | Broad-SKU 3PL operations, Retail distribution |
| Drive-In Racking | Strict LIFO (Last-In, First-Out) | 70% – 75% (High Density) | Slow (Deep-bay entry required) | Very High (Risk of beam impact) | Bulk identical items, Seasonal non-perishables |
Industry Horizon
Future Procurement Trends in High-Density FIFO Storage Systems
Warehouse infrastructure procurement is migrating from commodity steel frames toward tightly integrated intralogistic engineering. Enterprise buyers should align tenders with these three macro trends:
1. Convergence of FIFO Gravity with Autonomous AMR/AGVs
Modern mega-fulfillment centers require racking that accommodates automated pallet tuggers. Front pickup apertures now demand millimeter-exact optical targets, laser-guided stops, and unified base-level pallet-centering guides to allow robotic forklifts to pick and place pallets without driver intervention.
2. Digital Twin Engineering & Pre-Permit FEA Simulation
Procuring entities increasingly reject basic hand calculations. Enterprise buyers now mandate full Finite Element Analysis (FEA) simulations confirming dynamic elastic strain, localized stress concentrations, and seismic frequency resonance under both full-load and unbalanced load scenarios before steel coil cutting begins.
3. Zero-Carbon Coatings & ESG-Driven Lifecycle Standards
International environmental benchmarks like RoHS and global green building certifications (such as LEED) require sustainable manufacturing. Factories must employ heavy-metal-free thermosetting polyester powders, closed-loop zero-effluent wastewater cleaning systems, and 100% recyclable cold-formed steel alloys.
Enterprise Integrity & Proven Execution
Why Tier-1 Contractors and Global Logistics Operators Partner with HEDA
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. controls the complete supply lifecycle—from initial raw steel cutting to deep-sea export packaging and on-site engineering assembly oversight.
Full-Chain In-House Production
No subcontracting. Our 30,000 m² facility features proprietary CNC steel slitters, automated punch lines, 16-roller cold-roll forming channels, and robotized seam welding setups.
30,000 Ton Monthly Throughput
Massive raw coil storage and continuous dual-track electrostatic coating lines allow us to fulfill multi-thousand pallet location orders with rapid turnaround.
Turnkey 2D CAD & 3D Modeling
Our dedicated structural engineering division delivers customized structural schematics, aisle optimization reports, and full 3D visual renderings within 24 to 48 hours.
Global Seaport Logistics Experience
Extensive experience shipping containerized pallet shipments to major terminals worldwide, including Jebel Ali, Dammam, Jeddah, Hamad, Sohar, and across European and African ports.
Procurement FAQ
Frequently Asked Engineering & Sourcing Questions
Essential guidance for warehouse managers, industrial equipment buyers, and structural consultants evaluating dynamic FIFO pallet racking.
What specific standards validate CE compliance for FIFO pallet racks?
CE Certification (No. 2435-CPR-8605159) validates that our racking structures comply with the European Construction Products Regulation (CPR). Structural design, loading deflection, and steel cross-sections follow EN 15512 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design) and EN 15635 for ongoing operational safety.
How does the system prevent runaway pallet velocity down long gravity lanes?
HEDA integrates magnetic or centrifugal speed-braking rollers at calculated intervals along each flow bed (typically every pallet length). As a pallet rolls over the brake roller, an internal planetary gear setup applies resistance proportional to pallet mass, keeping descent speed capped at a stable, controlled velocity of ≤ 0.3 m/s.
Can bottom-damaged or irregular wooden pallets be used on FIFO roller beds?
Broken, cracked, or excessively warped pallets can hang up on gravity rollers. For facilities handling mixed or variable pallets, we provide high-grade three-roller full-width heavy steel cylinder beds or specify slave pallets/steel pallet trays. Alternatively, an automated Radio Shuttle configuration eliminates roller dependency entirely.
What documentation do you provide for local Civil Defense and fire authority approvals?
We provide full structural package submittals: certified 2D CAD architectural plans detailing clear longitudinal and transverse flue spaces (ensuring unobstructed sprinkler operation), clear egress walkway dimensions, structural point load slab calculations, and official CE/ISO mill certificate test reports for review by your consulting engineer.
How does HEDA protect pallet racking against corrosion in hot, coastal, and cold-store conditions?
Prior to powder deposition, raw steel parts undergo a complete 10-step immersion cycle: degreasing, acid pickling, rinsing, and chemical phosphating to chemically bond the substrate. We apply an electrostatic powder finish cured at 200°C for durable adhesion. For high-humidity outdoor yards or blast freezers, hot-dip galvanized components are available.
What initial warehouse data is needed to generate a 3D layout and quotation?
Please provide: (1) Architectural CAD floor plan showing building columns, clear ceiling heights under roof trusses, and dock door locations; (2) Pallet dimensions (Length × Width × Total Height including load overhang); (3) Gross pallet weight (minimum and maximum); and (4) Forklift specifications including mast lift height and turning radius.
