At Guangzhou Heda Shelves Co., Ltd., we design, calculate, and fabricate robust pallet racking configurations in our 30,000 m² automated facility. Built from certified high-tensile structural steel (Q235B & Q355B), every beam and upright profile is precision-punched and cold-formed to absorb static loads, cyclic handling dynamics, and regional seismic criteria.
Whether you require 100% selective accessibility for high-SKU inventory or high-density automated shuttle lanes that optimize costly chilled cubic space in the Gulf region, our engineering team tailors beam levels, safety clearance, and floor anchorages directly to your material handling equipment.
Explore our complete range of certified racking configurations, engineered to maximize cubic storage density, SKU selectivity, and operational throughput.
Maximum Height

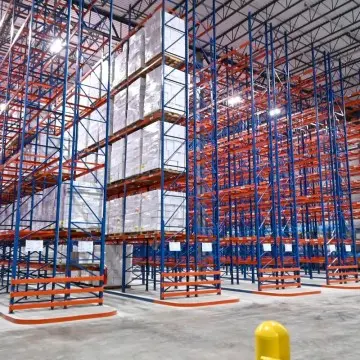

High-density variant of selective racking built to tight structural tolerances with aisles as narrow as 1.5–1.8m, delivering 100% pallet selectivity and heights up to 18 meters.
Specialized

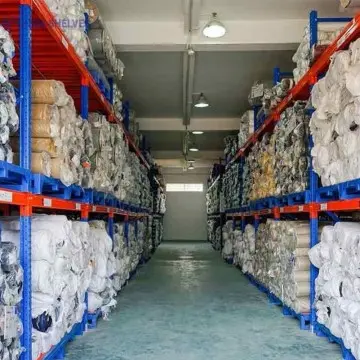

Custom-engineered cradle and saddle beam profiles built specifically for cylindrical coils, carpet rolls, industrial paper reels, textiles, and sheet metal coils.
Most Popular
The universal standard for FMCG distribution, retail supply chain, and general warehousing, providing unhindered direct access to every single pallet position.
High Density
Eliminates intermediate forklift operating aisles by storing pallets on continuous guide rails. Ideal for large uniform batches, cold storage facilities, and LIFO operations.
Strict FIFO
Utilizes inclined heavy-duty roller beds and brake controllers to glide pallets automatically from the rear loading face to the front discharge picking face via gravity.
Semi-Automated
A remote-controlled shuttle carrier runs underneath pallets along internal lane tracks. Forklifts never enter the deep lanes, substantially accelerating dispatch speed and safety.
Nested Carts
Pallets sit on nested wheeled carts that ride along inclined structural steel rails. Storing 2 to 6 pallets deep per lane offers high density without sacrificing SKU versatility.
Extended Reach

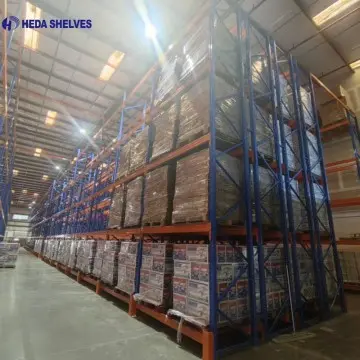

Stores pallets two deep in back-to-back configurations, cutting aisle count in half compared to standard selective setups. Operates smoothly with double-reach pantograph trucks.
Every warehouse has unique spatial constraints. Our in-house structural engineering department prepares precise technical drawings before steel manufacturing commences.
Share your architectural floor plans, ceiling clearance, and pallet specifications. Our engineers produce detailed 2D CAD layouts showing precise aisle widths, column flue spacing, and forklift turn radiuses.
We generate fully scaled 3D visual models and cross-sectional elevation perspectives to help warehouse managers, operations directors, and corporate stakeholders visualize storage density before sign-off.
From selective racking and high-density shuttle bays to mezzanine floors, column protectors, wire mesh decking, and load capacity safety signage, we deliver fully compliant warehouse systems under one contract.
Distributors, general contractors, and logistics operators partner with Guangzhou Heda Shelves Co., Ltd. for certified reliability, scalable output, and end-to-end technical oversight.
Specialized exclusively in industrial storage racking and automated warehouse logistics since 2001, completing projects across 120+ countries worldwide.
High-capacity cold-forming lines, automated laser profiling, and multi-line continuous powder coating systems guarantee consistent quality and rapid export schedules.
Comprehensive service spanning custom structural design, seismic calculation, high-precision manufacturing, container load optimization, and full installation support.
Over ten thousand projects delivered across cold stores, third-party logistics parks, automotive distribution, retail FMCG hubs, and chemical storage facilities.

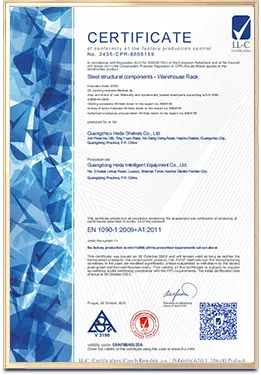

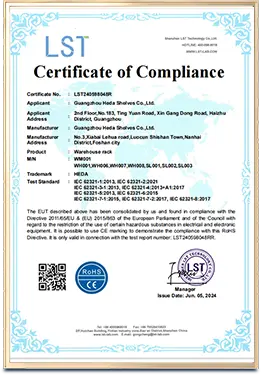

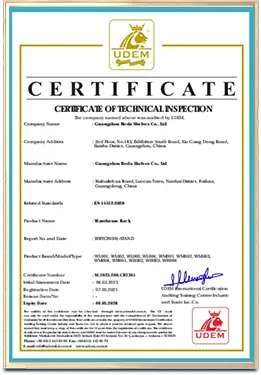

For large logistics investments, structural integrity and traceable compliance are non-negotiable. Guangzhou Heda Shelves Co., Ltd. manufactures in strict accordance with international quality and safety codes:
Explore how our customized pallet racking and industrial mezzanine systems solve real storage challenges around the globe.
High load capacity beams with customized drum supports and anti-corrosion coating finish.

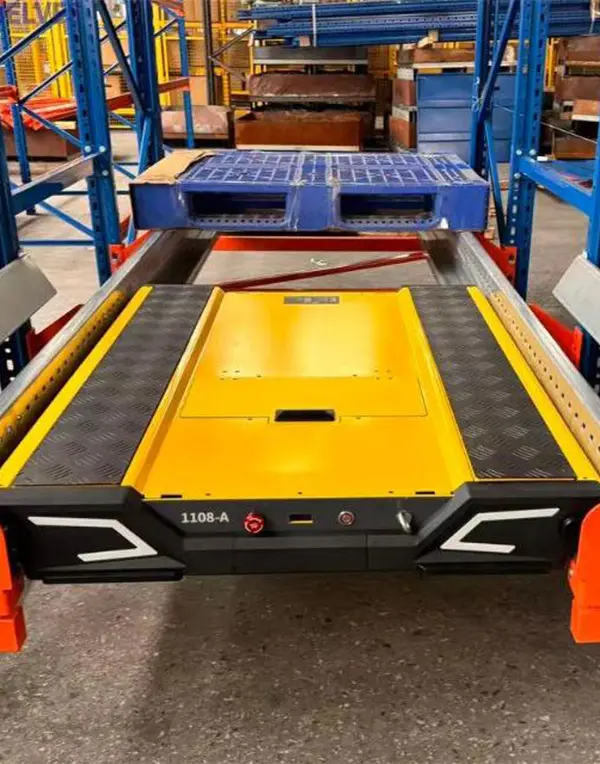

Semi-automated deep lane shuttle racking maximizing energy efficiency in -20°C freezer facility.

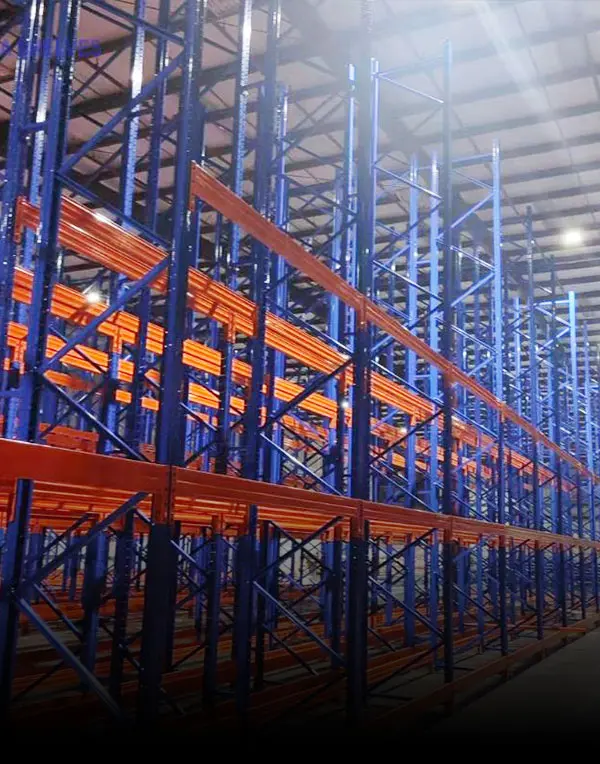

Integrated selective and push-back rack combination for rapid FMCG pallet dispatch.
Find clear, engineering-backed answers to the most common questions asked by supply chain managers and procurement officers.
Guangzhou Heda Shelves Co., Ltd. manufactures Selective Pallet Racking, Very Narrow Aisle (VNA) Racks, Drive-In/Drive-Thru Racks, Radio Shuttle Automated Systems, Push-Back Cart Racking, Gravity Pallet Flow Racks, Double-Deep Systems, and specialized roll/coil storage configurations. We can also combine multiple racking types within different functional zones of the same facility.
Standard heavy-duty selective racking beams are calculated and certified to support between 1,000 kg and 5,000 kg per beam level uniformly distributed load (UDL). High-density systems like Drive-in and Radio Shuttle racks are engineered for typical pallet loads of 1,000 kg to 2,500 kg per position.
Yes. All racking upright depths (e.g., 800mm, 1000mm, 1100mm, 1200mm), beam lengths (from 1,350mm up to 3,900mm+), safety row spacers, and wire mesh decking are custom-engineered to match your exact pallet dimensions (Euro, ISO, GMA, or oversized drums and machinery skids).
Our layouts are designed strictly around your material handling fleet: standard counterbalance trucks (3.5–4.2m aisles), reach trucks (2.7–3.0m aisles), or specialized VNA turret trucks and order pickers (1.5–1.8m aisles). If you haven't selected your forklift yet, our engineers will recommend the optimal match for your clear ceiling height.
All upright frames, beams, and accessories are packaged in protected, color-coded bundles labeled to match structural CAD assembly drawings. Every shipment includes comprehensive bilingual assembly guides and 3D schematics. Remote video engineer assistance is provided, and on-site supervisor dispatch is available for large-scale installations.
To provide an accurate layout and quotation within 24–48 hours, please provide: warehouse dimensions and clear height under roof obstacles, pallet dimensions (W x D x H) including load overhang, maximum pallet weight, SKU count, preferred forklift type/lift height, and the destination seaport.
