Industrial Shelving Systems Manufacturer & Supplier

Direct Factory Engineering

Engineered Steel Shelving for GCC Warehouses

Guangzhou Heda Shelves Co., Ltd. fabricates industrial shelving tailored for high-throughput logistics centers, automotive dealerships, 3PL facilities, and retail fulfillment centers across the Middle East. Every component is certified to CE and ISO 9001 standards, providing structural stability, rapid tool-free assembly, and adjustable shelf tiers.

200 – 1,000 kg / Layer

Certified uniform distributed load (UDL) capacities with safety factors complying with international storage standards.

Q235B Cold-Rolled Steel

Certified steel coil roll-formed with robotic precision, ensuring straight upright profiles without welding slag or stress distortion.

Corrosion & Heat Tested

Electrostatic thermoset powder coating cured at 200°C resists peeling, high humidity, and desert dust in coastal Gulf ports.

50 mm Adjustable Pitch

Boltless slotted and teardrop upright holes enable fast shelf reconfiguration as product inventory dimensions change.

Comprehensive Systems

Industrial Shelving Configurations

Select the optimal industrial shelving configuration based on your SKU volume, package dimensions, picking frequency, and available vertical warehouse height.

Heavy Duty

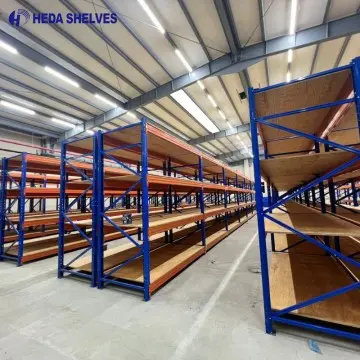

Heavy-Duty Longspan Shelving

Designed for hand-loaded, bulky, or irregularly shaped cargo. Built with robust step beams, boxed uprights, and heavy-duty shelf support ties that prevent beam rotation under heavy point loading.

Load Capacity: 500 – 1,000 kg / layer

Standard Span: 1,500 – 2,700 mm

Standard Depth: 500 – 1,200 mm

Decking Material: Steel / Wire Mesh / Wood

Interlocking safety pins secure beams to uprights to eliminate dislodgement during heavy cargo placement
Tool-free, boltless beam connection allows manual level adjustment in 50 mm increments
Can be integrated into multi-tier shelving mezzanines to double or triple vertical pick levels

Medium Duty

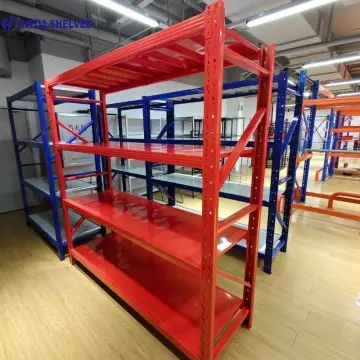

Light & Medium-Duty Boltless Shelving

The industry standard for automotive spare parts bins, electrical component stockrooms, retail backrooms, and manual order-picking lines requiring quick modular reconfiguration.

Load Capacity: 200 – 500 kg / layer

Standard Span: 1,000 – 2,000 mm

Standard Depth: 400 – 800 mm

Upright Pitch: 50 mm Butterfly Hole

Precision butterfly or rivet slot design ensures rapid assembly with only a rubber mallet
Pre-punched steel shelf panels with stiffening ribs underneath to eliminate center sagging
Clean aesthetic finish suitable for commercial parts counters and warehouse pick zones alike

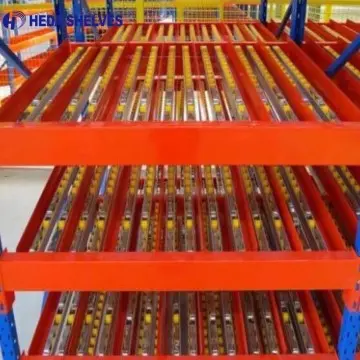

Carton flow dynamic gravity feed shelving

Dynamic FIFO

Carton Live Flow Shelving

Gravity-fed roller tracks carry cartons and plastic totes from rear replenishment aisles to front picking faces. Provides guaranteed First-In-First-Out inventory control for perishables and fast-turnover e-commerce SKUs.

Load Capacity: 300 – 800 kg / level

Bed Inclination: 3° – 5° Adjustable Slope

Roller Tracks: Durable Aluminum / Plastic Wheels

Operation: Strict FIFO Flow

Separates loading and picking traffic to remove pedestrian and forklift bottlenecks
Reduces travel time by up to 40% in high-volume piece-picking and fulfillment warehouses
Adjustable lane dividers keep diverse box sizes straight without jamming or drift

High Density

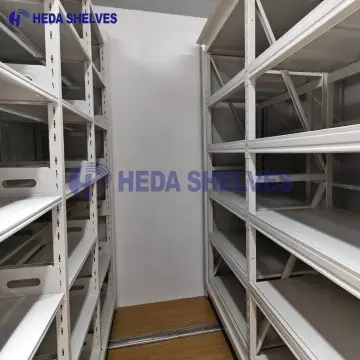

High-Density Mobile Compactor Shelving

Shelving units mounted on wheeled mobile carriages that glide on embedded floor tracks. Eliminates static access aisles so that a single movable aisle opens on demand, doubling storage density in the same footprint.

Drive Mechanism: Mechanical Hand-Crank / Electric

Floor Utilization: Up to 85% Space Efficiency

Safety Locks: Aisle Anti-Collapse Mechanisms

Applications: Archives, Tools, Spare Parts, Healthcare

Three-spoke reduction gear hand-crank allows 5,000 kg mobile carriage blocks to move with minimal physical effort
Centralized key locking secures high-value inventory, pharmaceuticals, and confidential records
Surface-mounted or floor-recessed track options prevent trip hazards in working zones

Engineering Specifications

Industrial Shelving Technical Matrix

Verify standard parameters for structural load calculations, component materials, and layout planning.

Shelving Category	Rated Load / Tier	Standard Upright Section	Beam / Shelf Profile	Available Depths	Access Method
Heavy Longspan Shelving	500 kg – 1,000 kg UDL	55×47×1.5 mm / 60×50×1.8 mm	P-Beam / Step Beam (60×40 – 80×50 mm)	600 / 800 / 1,000 / 1,200 mm	Manual / Order Picker Cart
Medium-Duty Shelving	300 kg – 500 kg UDL	50×37×1.5 mm Butterfly post	C-channel Step Beam (50×30×1.2 mm)	450 / 500 / 600 / 800 mm	Manual Picking
Light-Duty Boltless Shelving	150 kg – 250 kg UDL	38×38×1.2 mm Angle Post	Folded Edge Shelf with Ribs	300 / 400 / 500 / 600 mm	Hand-loaded Bin Sorting
Carton Flow Racking	300 kg – 800 kg / level	Structural Racking Columns	Roller Track Frame with Guide Rails	1,200 – 3,000 mm flow length	Rear Load / Front Pick (FIFO)
Mobile Compactor Shelving	80 kg – 120 kg / shelf	Cold-rolled Sheet Steel Upright	Modular Compartments with Base Carriage	400 / 600 / 800 mm per side	Single Moveable Aisle

Engineering Support

Complimentary Warehouse Design & Layout Services

We assist contractors, consultants, and procurement managers in optimizing storage square footage before fabrication begins.

Stage 01

CAD Warehouse Floor Plans

Submit your warehouse perimeter dimensions, clear ceiling heights, column grids, and access door locations. Our structural engineering team delivers optimized 2D CAD layouts within 24 to 48 hours, highlighting walkway clear widths, fire evacuation routes, and picking aisles.

Stage 02

3D Visualizations & Load Verification

We render high-resolution 3D models showing realistic equipment placement, vertical clearances, and tier elevations. Each design includes certified load deflection calculations ensuring compliance with international warehouse safety codes.

Stage 03

Customized GCC Port Delivery

All upright columns, beams, shelf panels, and accessories are packaged in container-optimized, export-grade wooden crates and steel-strapped bundles labeled to match project installation blueprints. Shipped directly to Jebel Ali, Dammam, Jeddah, Shuwaikh, or Hamad Port.

Manufacturing Leadership

Why Middle East Buyers Partner with HEDA

Experience, production capacity, and strict quality control certified to international standards.

Manufacturing Since 2001

Over two decades of dedicated research, structural calculation, and automated manufacturing in warehouse storage racks and industrial shelving systems.

30,000 Tons / Month Capacity

Spanning a 30,000 m² automated production facility equipped with high-speed roll-forming lines, laser profiling, and multi-stage powder coating chambers.

CE & ISO 9001 Certified

All structural designs, weld inspections, and cold-formed profile testing conform to CE-CPR standards and ISO 9001:2015 audited quality control.

Supplying 120+ Countries

Exporting thousands of TEU containers globally each year with full logistics documentation, packing lists, and assembly guidance for GCC customs clearance.

Project Case Highlights

Shelving Projects Delivered Worldwide

Review recent high-density industrial shelving installations engineered for heavy loads, high picking throughput, and harsh storage environments.

Medium Duty Shelving

Medium-Duty Shelving for General Storage Warehouse

Multi-tier modular boltless shelving layout organizing over 14,000 small hardware and carton SKUs with continuous pick aisles.

Rack supported mezzanine floor for manual picking warehouse

Shelving-Supported Mezzanine

Shelving Mezzanine for Fast-Mover Order Picking

Combined longspan shelving uprights with bar grating floors, creating 3 elevated picking levels without additional structural steel pillars.

Multi level mezzanine with reinforced shelving system

Automotive Logistics

Automotive Parts Multi-Tier Shelving Hub

Engineered with tire racks, hanging bar levels, and longspan shelving units tailored to varying automotive spare parts profiles.

Technical Q&A

Frequently Asked Questions

Answers to key technical, manufacturing, and logistic inquiries from overseas procurement teams.

What steel grade and surface finish are used for HEDA industrial shelving?

All HEDA industrial shelving systems are manufactured from high-strength Q235B cold-rolled steel. Components undergo automated 9-stage pre-treatment, including degreasing, pickling, and phosphating, followed by electrostatic epoxy-polyester powder coating cured at 180°C–200°C. For coastal installations in Dubai, Jeddah, or Dammam, pre-galvanized or hot-dip galvanized decking is available for enhanced corrosion resistance.

What is the maximum weight capacity of HEDA longspan shelving?

Standard longspan shelving levels accommodate uniform distributed loads (UDL) between 500 kg and 1,000 kg per shelf tier. Light-to-medium variants support 200 kg to 500 kg per level, and custom reinforced beam profiles can be calculated for spans up to 2,700 mm.

Can industrial shelving be reconfigured or expanded as warehouse needs change?

Yes. Our shelving features modular boltless connections with upright punching at 50 mm pitch increments. Shelves can be raised, lowered, added, or relocated without specialized tools or structural disruption. Add-on bays integrate directly with existing starter bays.

Can HEDA shelving integrate into multi-tier mezzanines?

Yes. Guangzhou Heda Shelves Co., Ltd. specializes in shelving-supported mezzanine systems where the upright columns carry both multiple tiers of shelving and intermediate steel walkway levels, tripling usable storage footprint without civil building expansion.

What is the export packaging standard for container shipments to GCC ports?

Uprights and beams are bundled with protective corrugated paper, edge protectors, and heavy-duty strapping over treated timber skids. Smaller hardware and accessories are packed in reinforced wooden crates or carton cases with clear labeling corresponding to the CAD installation diagrams.

Need a Tailored Shelving Layout & Quotation?

Send your warehouse drawings and cargo specifications to our engineering team. Receive a complimentary 2D CAD layout, 3D render, and factory-direct price quotation within 24 hours.
