Heavy-Duty Certified Industrial Racking Portfolio
Customized structural and teardrop pallet racks, cantilever racking, and automated storage solutions manufactured under ISO 9001:2015 and CE EN 15512 specifications.
Heavy Duty
Wholesale China Industrial Pallet Storage Rack Steel Warehouse Racking Adjustable Shelving
High-precision selective racking featuring cold-rolled Q235B upright profiles, 75mm beam adjustability, and 1,000–5,000 kg load capacity per layer.
Modular Post

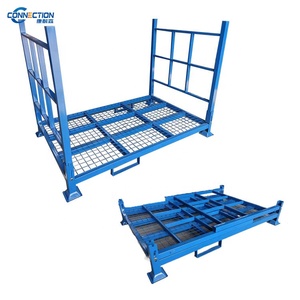

High Loading Capacity Steel Wire Mesh Pallet Foldable Stacking Rack Storage Tire Rack
Collapsible and stackable structural post pallet unit built with reinforced wire mesh base, ideal for automotive tyres, cylindrical bulk items, and dynamic freight handling.
Long Goods
Durable Heavy-Duty Industrial Shelving Unit Durable Adjustable Cantilever Arm Racks Racking System
Unobstructed front column engineering designed for lumber, steel tubes, piping, and extruded profiles. Load rated up to 1,500 kg per arm with single/double-sided masts.
Intelligent ASRS

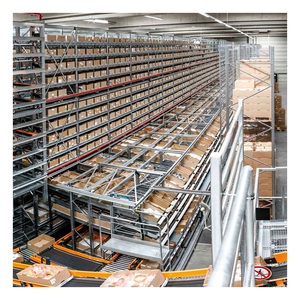

Customized Adjustable Intelligent Automation Picking Warehouse Storage Automated ASRS Warehouse Rack
High-precision upright racking engineered for high-bay stacker cranes and radio shuttle bots. Built to FEM 9.831 tolerances for automated 24/7 dark warehouse facilities.
Boltless Quick-Fit
Boltless Adjustable Heavy Duty Load-Bearing 500kg/Layer Steel Racks Shelving System
Rapid tool-less assembly shelving supporting 500 kg per shelf tier. Precision butterfly-hole punch column design optimized for manual distribution and e-commerce sortation.
RMI Standard
Warehouse Factory Storage Teardrop Pallet Racking System
North American market compatible teardrop connector geometry. Features auto-locking safety pins, 2-inch pitch adjustability, and full interchangeability with standard profiles.
High Density
Heavy Duty Drive-In Rack High-Density Pallet Racking System FILO/FIFO
Eliminates operating aisles to elevate warehouse volumetric utilization by up to 80%. Continuous rail support system engineered for homogenous stock and cold room operations.
Epoxy Coated
Yueyang Heavy Load Multi Layer Cold Rolled Steel Epoxy Powder Coated Industrial Racking
Industrial-grade multi-layer heavy storage racking treated through 10-stage automated pickling, phosphating, and thermo-cured epoxy coating for high-humidity coastal resistance.
Engineering Rigor, Metallurgical Quality & CE Compliance
Why structural steel grade selection, cold roll-forming tolerances, and FEA static simulations define safe warehouse operations across seismic zones and extreme climates.
Authoritative Manufacturing Direct from Guangzhou Heda Shelves Co., Ltd.
As an established global racking enterprise since 2001, Guangzhou Heda Shelves Co., Ltd. controls the complete fabrication lifecycle across a self-owned 30,000 m² production base. Employing over 300 experienced technical and mechanical engineering personnel, our factory delivers over 30,000 metric tons of custom heavy-duty storage structures monthly. Holding valid CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and full RoHS compliance, our systems are exported factory-direct to premier global distribution hubs across the UAE, Saudi Arabia, Qatar, Oman, North America, and Europe.
From heavy-duty selective beam configurations to complex rack-supported mezzanines and ASRS installations, our engineering team executes finite element structural analyses (FEA), static wind/seismic simulations, and free CAD/3D layouts ensuring smooth local approvals (including Middle East Civil Defense and international commercial insurance compliance).
Steel Grade Metallurgy (Q235B & Q355B)
Our upright columns and load beams use certified Baosteel/Shagang prime continuous-cast coils. Minimum tensile strengths of 370–500 MPa and elongation parameters exceeding 26% prevent brittle failure under seismic and dynamic forklift impact loads.
EN 15512:2020 Structural Limit Analysis
Fully compliant with European standard EN 15512:2020. Upright frames undergo rigorous stub-column compression and portal frame tests, ensuring a safety coefficient of 1.5 against beam deflection (stricter than L/200 under maximal uniform static pallet loads).
Harsh Environment & Coastal Shield
Engineered for high thermal swings (above 45°C) and salinity in coastal logistics ports. Multi-stage immersion pickling, automated phosphating, and electrostatic epoxy-polyester coatings (60–90μm) pass 500-hour ASTM B117 salt spray tests.
Technical Comparison: Heavy-Duty Industrial Racking Topologies
Evaluation matrix based on pallet access selectivity, floor footprint utilization, and forklift equipment requirements.
| Racking Topology | Space Utilization | Pallet Selectivity | Rotation Principle | Max Load / Bay | Ideal Handling Equipment | Suitability Rating |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Direct Access | FIFO (First-In, First-Out) | 15,000 kg | Standard Counterbalance / Reach Truck | Multi-SKU High Speed |
| Drive-In / Drive-Through | 70% – 85% | 20% – 30% Dense | FILO or FIFO | 20,000 kg | Reach Truck / Special Guide Forklift | Cold Storage / Bulk |
| Radio Shuttle Automation | 80% – 90% | Lane-Level Access | Both FIFO & LIFO | 25,000 kg | Automated Carrier + Forklift Loading | FMCG & Semi-Auto |
| Heavy Duty Cantilever | 50% – 60% | 100% Column Face | Open Matrix | 12,000 kg / Mast | Side Loader / Four-Directional Truck | Pipes, Steel & Timber |
| Automated ASRS High-Bay | 90% – 98% | 100% Computer-Controlled | Software Configured (WMS) | 35,000 kg+ | Automated Stacker Cranes (SRM) | Lights-Out Warehouses |
The 10-Step Quality-Controlled Production Flow
Full traceability from raw structural steel uncoiling to final container loading for damage-free maritime delivery.
Raw Steel QC
Spectrometer chemical check & mechanical tensile test on every mill coil batch.
Precision Slitting
CNC slitting lines trim strip widths to sub-millimeter tolerances.
Auto Punching
Continuous CNC multi-punching for pitch accuracy of teardrop & diamond holes.
Cold Roll-Forming
24-stage progressive forming rollers produce zero-residual-stress upright profiles.
Laser Beam Cut
Fiber lasers notch box beam ends and connection teeth with micrometric precision.
Robotic Welding
Multi-axis Panasonic robotic stations weld beam connectors with zero spatter.
Pretreatment Baths
Chemical dipping eliminates oil, scale, and provides dense zinc phosphate crystals.
Electrostatic Spray
GEMA automatic spray guns coat components evenly with lead-free epoxy powder.
200°C Bake Curing
Infrared curing tunnels polymerize the coating into a scratch-proof, high-gloss shell.
Container Packing
Palletized bundle packaging, tagged with barcode labels matching CAD assembly plans.
Future Procurement Trends in Global Intralogistics & GCC Supply Chains
How macro-economic shifts, regional giga-projects, and smart warehousing alter industrial racking investment criteria.
1. Shift to High-Bay Automation (ASRS & Shuttle)
Rising land costs and sovereign modern logistics initiatives (such as Saudi Vision 2030 Special Integrated Logistics Zones and UAE JAFZA expansion) have pushed ceiling heights from 8 meters to over 24 meters. Procurement teams increasingly specify racking structures engineered with tight column plumb tolerances (under 1/1000) capable of direct integration with Automated Storage and Retrieval Systems (ASRS) and pallet-running shuttle robots.
2. Thermal Efficiency & Cold-Chain Expansion
With food security imperatives and expanding pharmaceutical manufacturing in hot climates, refrigerated warehouse capacities are surging. High-density racking—specifically Radio Shuttle and Gravity Flow—is replacing selective layouts to minimize cubic meters of refrigerated air per stored pallet, reducing continuous electrical compressor consumption by up to 35% across cold storage facilities.
3. Decarbonization & Green Steel Certification
Multinational 3PLs and industrial distributors are enforcing ESG compliance on their racking supply chains. Procurement mandates now demand non-toxic, RoHS-compliant thermoset powder coatings devoid of volatile organic compounds (VOCs), alongside verified raw material sourcing from electric arc furnace (EAF) mills that significantly lower Scope 3 embedded carbon emissions.
Technological Advancements in Modern Storage Racks
The convergence of structural civil engineering with Internet-of-Things (IoT) real-time load telemetry.
IoT Strain & Overload Monitoring
Next-generation racking columns now incorporate wireless piezoelectric sensors embedded directly within critical upright baseplates. These sensors stream real-time static stress data to the warehouse management system (WMS), instantly alerting facility managers if an accidental forklift collision has weakened column integrity or if a bay exceeds permissible structural loads.
Modularity & Seismic Adaptability
Modern racking installations require fast adaptability to fluctuating SKU dimensions. Boltless teardrop designs and 75mm beam clip slots engineered with 5-hook connector jaws resist torsional twisting and high uplift forces without requiring hot-work welding, enabling layout reconfiguration without halting warehouse operations.
Anti-Corrosion Hybrid Polymers
To combat ambient conditions exceeding 50°C paired with 90% humidity in coastal Middle Eastern logistics zones, specialized dual-layer coating systems—combining zinc-rich primer with an exterior fluorocarbon or polyurethane epoxy topcoat—prevent micro-cracking and rust creep at punched connection nodes.
Industrial Pallet Storage Racks: Frequently Asked Questions
Direct answers to the critical engineering, customs clearance, and specification queries submitted by global procurement directors.
Request an Engineering-Grade Warehouse Layout & Factory Quote
Partner directly with an established manufacturer with over two decades of engineering excellence. Our structural engineers will generate comprehensive 2D CAD floor plans, 3D visual models, and complete bill-of-materials calculations tailored to your logistics facility.
