Engineered Light & Medium-Duty Shelving Systems
Precision roll-formed Q235B cold-rolled steel shelving units manufactured with automated punching tolerances of ±0.1mm, modular beam adjustability, and electrostatically cured anti-corrosion finishes.
Boltless Adjustable Heavy Duty 3000Kg/Layer Metal Shelves Garage Storage Racks
Blue Orange Custom Design Corrosion Protection Medium Duty Storage Racks

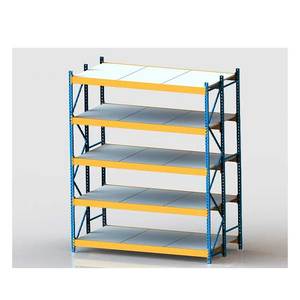

Industrial Warehouse Longspan Steel Storage Rack Medium Duty Stacking Shelves
KINDE 5 Tier Light Duty Boltless Rack Furniture Stacking Shelving Metal
Fast Shipping Steel Shelving Light Duty Stacking Racks & Shelves
Light Duty 4-Tier Steel Metal Storage Rack Shelves Corrosion Protected
Free 3D Design Light Heavy Duty Storage Shelf Racks Pallet Rack Units
Industrial Storage Racks Adjustable Steel Stacking Warehouse Shelves
Structural Integrity & Load Verification Criteria
Demystifying light-duty storage procurement: analyzing steel chemistry, structural safety coefficients, deflection thresholds, and European compliance mandates.
1. Metallurgical Formulation & Section Geometry Optimization
In industrial logistics and enterprise stockrooms, light-duty shelving frequently suffers structural degradation not because of excessive nominal static weight, but due to uneven dynamic point loading, localized stress concentrations, and inferior metallurgical quality. As an established global manufacturer, Guangzhou Heda Shelves Co., Ltd. specifies certified prime Q235B cold-rolled carbon steel coils (equivalent to European S235JR under EN 10025-2). Our steel profiles exhibit a minimum yield strength of 235 MPa and an ultimate tensile strength ranging from 370 to 500 MPa with an elongation coefficient exceeding 26%.
Unlike commoditized stamping workshops that utilize flat steel strips with basic right-angle bends, our automated continuous roll-forming lines introduce precision-stiffened omega-profile or multi-rib upright posts. The inclusion of secondary stiffener returns significantly elevates the section modulus (Wz) and moment of inertia (Iz), thereby preventing torsional buckling under critical eccentric loading scenarios.
| Component / Parameter | Standard Commercial Grade | HEDA Shelves Engineered Grade | Test Compliance Standard |
|---|---|---|---|
| Raw Steel Grade | Recycled Q195 / Mixed Scrap | Certified Prime Q235B Cold-Rolled | EN 10025-2 Verified |
| Punching Precision | ±0.8 mm (Manual Stamping) | ±0.1 mm (CNC Continuous Indexing) | CE 2435-CPR-8605159 |
| Surface Pretreatment | Solvent Wipe or Bare Rinse | 3-Stage Immersion Pickling & Phosphating | ASTM B117 500h Salt Spray |
| Coating Thickness | 35–45 μm (Dry Powder) | 70–90 μm (Electrostatic Thermoset) | ISO 2808 / RoHS Compliant |
| Beam Deflection Ratio | 1/100 to 1/150 Under UDL | Strict ≤ 1/200 Span Limit | FEM 10.2.02 / EN 15635 |
2. CE Marking and Structural Safety Mandates
Regulatory procurement across the European Union, the United Kingdom, and the Middle East (including UAE Civil Defense, Saudi SASO, and GCC logistics municipal codes) requires documented safety validation for warehouse shelving installations. Guangzhou Heda Shelves Co., Ltd. holds third-party verified CE Certification (Notified Body Certificate No. 2435-CPR-8605159), affirming conformity to European structural safety directives, alongside ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M, valid through 2027).
Our engineering calculation protocols rigorously abide by EN 15635 (Steel static storage systems – Application and maintenance of storage equipment). Every beam-to-upright connection features precision butterfly or rivet hooks that utilize gravitational wedge locking: as weight increases, the mechanical interlock tightens, completely eradicating joint sway without requiring volatile threaded fasteners that vibrate loose in seismic zones or near automated warehouse machinery.
Procurement Trends & Next-Gen Storage Evolution
How rapid e-commerce SKU diversification, omnichannel fulfillment, and intralogistics robotics are reshaping the procurement specifications of light-duty shelving.
1. High-Density Micro-Fulfillment Compatibility
Modern procurement managers are discarding fixed single-purpose shelving in favor of multi-tier, modular configurations capable of immediate integration into micro-fulfillment hubs. Shelving bays must accommodate standardized euro-containers, automated carton-flow channels, and multi-tier picking towers without structural re-engineering.
2. Hybrid AMR & Goods-to-Person (G2P) Synergy
The rapid proliferation of Autonomous Mobile Robots (AMRs) in middle-mile and e-commerce sortation facilities requires light-duty shelving systems with strictly calibrated lower clearance profiles, precise aisle dimensional tolerances, and high-contrast navigational barcodes etched directly onto electrostatic shelf lips.
3. Eco-Design, VOC-Free Finishes & Circularity
Environmental, Social, and Governance (ESG) compliance is transitioning from an enterprise option to a rigid procurement pre-qualification. Tier-1 buyers demand RoHS-certified heavy-metal-free thermoset powder coatings, 100% recyclable cold-rolled structural steel, and zero-welding field assembly to minimize carbon footprint across the operational lifecycle.
Engineering Analysis: Total Cost of Ownership (TCO) vs. Initial Capital Expense (CapEx)
Over a ten-year operational lifespan in high-throughput warehouse environments, cheap uncertified boltless shelving incurs maintenance and replacement costs that exceed the initial acquisition cost by 240% to 380%. Frequent upright deflection, chipped paint resulting in coastal rust bloom, stripped connector slots, and catastrophic tier collapses during manual loading result in costly inventory write-offs and occupational hazards. Procuring CE-certified, phosphated, and factory-engineered shelving reduces ongoing bay reconfiguration downtime by 65% and extends structural asset longevity beyond 15 years.
Guangzhou HEDA Shelves: Enterprise Strengths
Operating from our 30,000 square meter standardized production complex with over 300 experienced technical craftsmen, HEDA Shelves combines European precision manufacturing with direct export scale.
Free 2D CAD & 3D Modeling
Our in-house project engineering team delivers bespoke CAD warehouse floor plans and full-scale 3D photorealistic spatial layouts within 24–48 hours, fully coordinated with your forklift turning radiuses, building column grids, and egress regulations.
30,000 Tons Monthly Output
Equipped with 26 automated cold-roll forming production lines, CNC laser cutting centers, and robotic seam-welding cells, we reliably produce and export over 30,000 metric tons of certified storage racking and shelving monthly.
Verified CE & ISO Credentials
Fully certified under European Construction Products Regulation CE (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Systems (No. 18624Q00169R0M), and international RoHS environmental health standards.
Export Engineered Logistics
Over 10,000 completed installation cases worldwide. Bundles are flat-packed in high-density wooden crates with color-coded carton identification and pre-labeled piece markings to streamline customs clearance and field erection.
Our Proprietary 10-Step Production & Quality Protocol
Raw Steel Inspection
Spectrometric tensile and metallurgical chemical verification of incoming Q235B coils.
Precision Slitting
High-speed longitudinal shear decoiling to exact design width with zero burr tolerance.
CNC Punching
Continuous automatic upright slot punching with ±0.1mm indexing pitch consistency.
Cold Roll-Forming
Multi-station progressive roller dies shaping omega profiles and step beam contours.
Precision Cutting
Automatic laser-guided flying saw cutting to custom length dimensions.
Surface Deburring
Mechanical rotary tumbling and edge conditioning to prevent personnel handling hazards.
Robotic Welding
Shielded gas robotic seam welding for end-connectors, baseplates, and bracing joints.
Pickling & Phosphating
Full 3-stage chemical pre-treatment removing microscopic oxide scale for maximum paint adhesion.
Electrostatic Coating
Automated powder spray booth with 200°C curing oven providing 80μm durable film.
QC & Export Stacking
Load deflection testing, cross-hatch adhesion checks, and maritime container optimization.
Quality Assurance Seal of Conformity
Every outgoing container load is documented with mill test certificates, CE conformity declarations, and batch-traceable QC inspection reports provided directly to the procurement officer.
Frequently Asked Procurement Questions (FAQ)
Actionable answers to technical, regulatory, and logistics inquiries commonly posed by supply chain directors, industrial architects, and warehouse equipment buyers.
What is the technical distinction between nominal load capacity and Uniformly Distributed Load (UDL)?
How does CE Certification (No. 2435-CPR-8605159) protect industrial procurement managers?
What surface treatment is recommended for high-humidity coastal or tropical installations?
Can boltless light-duty shelving be reconfigured into multi-tier picking mezzanines?
What parameters are required for HEDA Shelves to engineer a free 3D CAD layout?
What packaging and export logistics standards are applied to overseas container shipments?
Ready to Optimize Your Warehouse Storage Footprint?
Collaborate directly with Guangzhou Heda Shelves Co., Ltd.'s senior application engineers. Receive factory-direct pricing, structural load calculations, and full 2D/3D CAD warehouse layout blueprints tailored precisely to your facility's operational throughput.
Engineering Consultation Checklist
Have your facility dimensions and load requirements ready for a verified CAD layout proposal within 24 hours.
