Featured Industrial Storage & Longspan Racking Systems
Discover our fully customizable, high-load manual and automated warehousing solutions. From cold-formed medium-duty open spans to automated gravity flow and extreme-load double-deep systems, our products comply with European safety directives and global seismic norms.
Customizable Boltless Steel Storage Double Deep Selective Pallet Racking

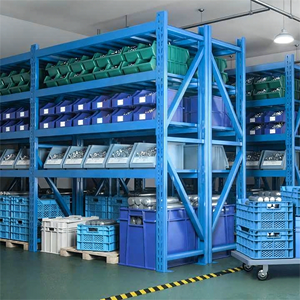

High Quality Durable Boltless Adjustable Industrial Metal Shelving Racks
Heavy Duty Warehouse Shelving Industrial Steel Storage Rack 500kg/Tier
Commercial Kitchen Wire Shelving Rack Multi-Tier Modular Storage Supplier

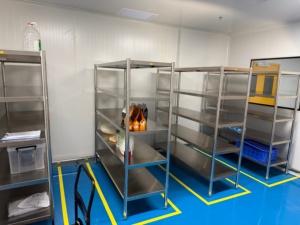

Heavy Duty SUS304 Stainless Steel Movable Shelving Rack with Casters
Gravity Carton Tilt Flow Rack Roller Tracks for Order Picking & Assembly
Bulk Tubular Subframe Fabrication Crossmember Carrier Pallet Platform
Cost Effective Factory Direct High-Capacity Logistics Storage Pallet Racking
Future Procurement Trends in Industrial Long Span Shelving
As warehouse real estate valuations soar and micro-fulfillment centers proliferate across urban epicenters, warehouse intralogistics are transitioning from static, monolithic racking installations to modular, dynamically reconfigurable, and automated manual-interaction ecosystems.
1. Hybrid AMR & Ergonomic Manual Picking Integration
Global supply chain logistics in 2026 and beyond mandate shelving footprints compatible with Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Long span shelving systems must now incorporate unified bottom clearance profiles, reinforced aisle end anchors, and anti-snag upright designs to allow collaborative human-robot order batching.
2. Structural Metallurgical Resilience & Micro-Alloys
Procurement directors increasingly demand certified cold-rolled structural steel (Q235B, Q355B, and high-tensile European standard S355JR). Utilizing micro-alloyed roll-formed omega upright profiles with multi-bend geometries provides up to 35% higher torsional stiffness while reducing overall deadweight, cutting ocean freight carbon footprint per bay.
3. Strict Compliance: CE EN 15512 & RMI Codification
International tender evaluation frameworks now heavily penalize unverified fabrication. Verification of structural yield limits via finite element analysis (FEA), validated under European standard EN 15512:2020 and RMI (Rack Manufacturers Institute) protocols, is now standard for corporate risk management and local Civil Defense warehouse approvals.
Long Span System Architectural Benchmarks
Compare our heavy-duty longspan and selective systems across dimensional tolerances, steel grading, and surface treatment regimes.
| System Parameter | Light-to-Medium Duty Long Span | Heavy-Duty Industrial Long Span | Selective Pallet / High-Bay Heavy Span |
|---|---|---|---|
| Standard Load per Tier (UDL) | 150 kg – 350 kg | 400 kg – 1,000 kg | 1,000 kg – 4,500 kg |
| Clear Beam Span (Length) | 900 mm to 1,800 mm | 1,500 mm to 2,700 mm | 2,300 mm to 3,900 mm |
| Upright Omega Section Depth | 55 mm × 47 mm (1.5mm thk) | 60 mm × 50 mm / 70 mm × 55 mm | 80 mm / 90 mm / 100 mm / 120 mm |
| Pitch Adjustment Step | 50 mm boltless teardrop/butterfly | 50 mm / 75 mm metric pitch | 75 mm / 76.2 mm interlocking claws |
| Decking Material Compatibility | Chipboard, Melamine, Zinc Shelf | Ribbed Galvanized Steel, Wire Mesh | Pallet Support Bars, Heavy Steel Plate |
| Pretreatment & Finishing | Electrostatic Powder (60-80μm) | Pickling, Phosphating, Epoxy Powder | Hot-Dip Galvanized / Heavy Epoxy |
| International Compliance | CE, RoHS Certified | CE, EN 15512, ISO 9001:2015 | FEM 10.2.02, CE 2435-CPR-8605159 |
Why Tier-1 Global Contractors Partner With Us
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. combines heavy automated fabrication with turnkey engineering design services, delivering cost efficiency and uncompromising quality assurance directly from China.
30,000 m² Integrated Facility
Our centralized facility houses automated CNC roll-forming lines, robotic welding arms, and proprietary multi-stage electrostatic powder coating spray tunnels delivering continuous 30,000-ton monthly capacity.
300+ Engineering & QC Staff
Over three hundred specialized technicians oversee every step, from ultrasonic raw-coil testing to welded connector bend checks and post-coating salt-spray corrosion chamber validations.
Complimentary 2D/3D & BIM Plans
We do not just fabricate steel—we engineer complete intralogistics flows. Share your building layout for complimentary CAD floor plans, structural deflection reports, and photorealistic 3D warehouse renderings within 24 hours.
Global Multi-Port Export Logistics
Experienced in high-density export packaging with heavy-gauge steel banding and protective corner brackets. Regular dispatches service Jebel Ali, Dammam, Rotterdam, Houston, Hamburg, and Melbourne without shipping-transit damages.
Frequently Asked Questions by Global Buyers
Clear, definitive technical clarifications addressing certifications, seismic engineering calculations, assembly mechanics, and logistics dispatch.
What European certifications validate your longspan and pallet racking?
Our manufacturing systems are certified under official CE Factory Production Control certificate No. 2435-CPR-8605159, in compliance with EN 1090-1 and EN 15512 execution standards. Furthermore, our environmental and quality protocols are certified to ISO 9001:2015 (No. 18624Q00169R0M) and RoHS directives.
How do your engineers calculate safe working loads (SWL) for varied beam spans?
Load ratings are calculated using finite-element modeling based on Uniformly Distributed Load (UDL) principles, keeping the maximum vertical beam deflection strictly below L/200 for shelf beam levels and L/250 for pallet load tiers, reinforced with a minimum safety factor of 1.50 over ultimate yield strength.
Can the racking uprights be customized for localized high-temperature and coastal environments?
Yes. In regions with elevated humidity and saline atmospheric conditions (such as the Persian Gulf, Red Sea, or Southeast Asian coastal corridors), we apply our 10-stage chemical immersion sequence—including hot pickling, zinc phosphating, and 80-micron outdoor-grade thermoset architectural powder coating—or supply continuous hot-dip galvanization.
What documentation is delivered with an international export order?
Every shipment includes mill test chemical certificates (MTC) for structural steel coils, bill of materials (BOM), CAD assembly step diagrams, beam level safety capacity placards, load testing certificates, and packing slips cross-referenced with component bundles for seamless on-site contractor erection.
