Heavy Duty Selective Pallet Racking System
100% Direct Access
Q235B / Q355B Steel
Max 4500kg/Beam
Explore Specifications
Engineering Portfolio & Selective Racking Systems
Tested for dynamic resilience, seismic equilibrium, and deflection tolerance under structural load limits.

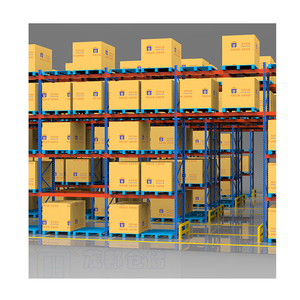

Single Deep Industrial Pallet Shelving
High Flexibility
Boltless Pitch 75mm
Anti-Corrosion Coated
Explore Specifications

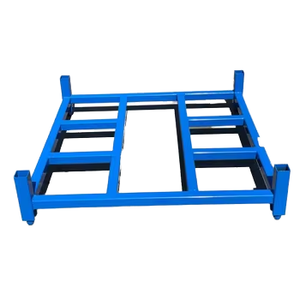

Modular Pipe Post Pallet Stacking Frame
High Reconfiguration
Dynamic Block Stacking
Up to 2000kg/Unit
Explore Specifications
Industrial Single Deep Selective Storage Rack
Narrow Aisle Fit
Safety Locking Pins
Dual Frame Anchors
Explore Specifications
Customized Foldable Single Pallet Stillages
Outdoor Powder Coat
Space-Saving Fold
Forklift Guiding Pockets
Explore Specifications
High-Speed Single Column ASRS Shuttle Rack
Automation Ready
Millimetric Tolerance
High Throughput Matrix
Explore Specifications

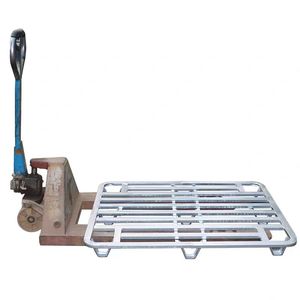

Single-Faced Heavy-Duty Euro Pallet System
Euro 1200x800 Form
4-Way Entry Support
Certified Welded Joints
Explore Specifications
Perimeter Wall Single-Sided Steel Pallet Rack
Single Bay Entry
Wall-Tie Stability
Heavy Seismic Stiffener
Explore Specifications
The Structural Dynamics of Single Pallet Racking: Engineering Insight
Single pallet racking (commonly specified as single-deep selective racking) serves as the backbone of modern logistics infrastructure where 100% selectivity, immediate accessibility, and high stock keeping unit (SKU) diversity take precedence over ultra-dense bulk stacking. Unlike block-stacked bulk storage or deep-lane systems (drive-in, push-back), a single pallet architecture guarantees that any pallet can be positioned and retrieved without shifting adjacent inventory.
From an engineering perspective, single pallet racking relies on precise static equilibrium. Every vertical column profile is rolled from certified structural carbon steel (conforming to EN 10025 specifications), cold-punched via automated continuous punch presses with a pitch tolerance under ±0.1mm, and bent through multi-pass roll formers to ensure superior structural rigidity under buckling forces. The horizontal load-bearing members—interlocking box beams or step beams—are equipped with multi-claw end connectors that secure into the upright columns, actively distributing dynamic deflection stresses under cyclic fork truck loading.
Engineering & Manufacturing Specifications
Verified mechanical properties complying with EN 15512, FEM 10.2.02, and CE certification criteria.
| Structural Component | Material Grade | Dimensional Range | Coating & Surface Chemistry | Compliance Standards |
|---|---|---|---|---|
| Upright Columns (Omega Profile) | Q235B / Q355B Hot-Rolled Strip | 80×60, 90×70, 100×70, 120×95 mm; Thickness: 1.5–2.5mm | Degreasing, Pickling, Phosphating + Electrostatic Epoxy (60-80μm) | CE 2435-CPR, EN 15512, ISO 9001:2015 |
| Load Beams (Box / Interlocking Step) | Q235B Certified Structural Coil | 80×50 to 160×50 mm; Wall Thickness: 1.5–2.0mm | Double-welded flanges with thermo-hardened polyester powder | FEM 10.2.02, ANSI MH16.1 Deflection 1/200 |
| Horizontal & Diagonal Bracing | Cold-Formed C-Channel Steel | C32×20 mm; Structural Bolted Connections | Corrosion-resistant passivated electro-galvanized or powder-coated | EN 15620 Tolerances Class 400 |
| Footplates & Shims | Heavy Structural Base Plates | 100×100 to 180×160 mm; Thickness: 4.0–8.0mm | Heavy hot-dip galvanized or epoxy primed; M12 Anchor Bolts | Seismic Anchor Criteria (Eurocode 8) |
Future Procurement Trends: 2026–2030 Structural Realities
How supply chain executives, warehouse directors, and EPC contractors are engineering future-proof racking assets.
⚡
1. Direct Integration with Autonomous Systems
The procurement landscape for single pallet racking has shifted permanently away from manual-only forklift operations. Future systems require sub-millimeter tolerances along both transverse and longitudinal axes to accommodate Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs).
Procurement teams are prioritizing CNC-punched uprights and laser-aligned beam levels to prevent automated optical sensor reading failures during high-speed pallet extraction cycles.
🛡️
2. Microclimate & Coastal Resilience
With massive supply chain expansions across hyper-arid, high-heat, and coastal logistics nodes (such as the GCC region, Southeast Asia, and Mediterranean ports), standard single-layer paints are obsolete. Racking procurement contracts now specify non-destructive adhesion testing, zinc phosphating, and electrostatic powder coatings resistant to 500+ hours of continuous salt-spray testing.
Specifying high-durability coatings lowers the Total Cost of Ownership (TCO) by eliminating repainting and structural rust inspection cycles.
📊
3. Real-Time Telemetry & Deflection Auditing
Leading warehouse operators are replacing reactive annual safety inspections with structural health monitoring (SHM). Modern single pallet systems are engineered with mounting channels for IoT strain gauges and LiDAR collision sensors positioned on aisle baseplates.
Procurement mandates enforce traceable steel mill certificates (MTCs) to correlate dynamic load data against certified elastic yield thresholds.
Evolutionary Trends: Next-Gen Racking Architecture
From static steel frames to reconfigurable, modular load-bearing infrastructure.
🔬
High-Strength Cold-Formed Steels
By transitioning from conventional hot-rolled mild steel to micro-alloyed, cold-reduced structural grades (such as Q355B and specialized micro-alloyed steels), modern single pallet systems reduce overall rack deadweight by up to 18% while sustaining a 25% higher plastic section modulus.
This allows higher clear beam levels in modern high-bay facilities without sacrificing deflection safety margins.
🔄
Modular Reconfigurability & Circularity
Supply chain velocity demands adaptive warehouse layouts. Modern rack design utilizes standardized 50mm and 75mm pitch increments, accompanied by standardized wedge connectors that require no hot work or field welding during beam relocations.
This enables fast structural modifications to accommodate changing SKU box heights and pallet footprints (e.g., Euro 1200×800 to GMA 48×40).
🌐
BIM & Digital Twin Virtualization
Racking structural systems are no longer engineered solely as standalone mechanical assemblies. Standard engineering workflows now provide Full-Level Building Information Modeling (BIM Level 2/3) Revit assets that directly integrate with industrial warehouse MEP, sprinkler layout, and fire suppression systems.
This eliminates expensive field rework and accelerates municipal regulatory approvals, including Civil Defense inspections.
Why Enterprise Global Buyers Partner with Us
Direct manufacturer capabilities engineered to guarantee structural integrity, compliance, and rapid turnaround.
🏭 30,000 m² In-House Production
Full manufacturing independence. Equipped with automated roll-forming lines, robotic welding arms, continuous shot-blasting, and automated powder coating facilities producing 30,000 tons monthly.
📜 Fully Verified CE & ISO Certification
Rigorous traceability. Holding CE Factory Production Control certificate 2435-CPR-8605159, ISO 9001:2015 quality management (Cert: 18624Q00169R0M), and full RoHS compliant finishing processes.
📐 Complimentary CAD & 3D Structural Layouts
Before purchase commitment, our structural engineers deliver complete 2D warehouse layout designs, flue space safety verifications, structural load calculation reports, and high-fidelity 3D renderings.
🚢 Container-Optimized Global Logistics
Heavy export packaging designed for ocean freight. Custom-bundled uprights and color-coded components tagged directly to your assembly blueprints to streamline local contractor installation at arrival.
⚙️ Comprehensive OEM / ODM Customization
Tailored structural section profiles, seismic-rated baseline plates, heavy column impact guards, and custom RAL polyester color powder coats customized to enterprise corporate standards.
🌍 120+ International Export Destinations
Deep familiarity with global logistics ports and harsh environment deployments—from Middle Eastern desert temperatures exceeding 45°C to coastal humidity and sub-zero cold chain operations.
Procurement & Engineering FAQ
Detailed technical, regulatory, and mechanical answers for warehouse operations and procurement directors.
What specific structural parameters validate your CE certification for pallet racking?
Our pallet racking systems are certified under CE Certificate No. 2435-CPR-8605159, adhering strictly to EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and EN 15620 (Tolerances, deformations and clearances). Every steel coil utilized undergoes tensile yield testing, chemical composition analysis, and Charpy impact tests. Compliance is maintained through documented Factory Production Control (FPC) procedures, third-party weld inspections, and continuous calibration of our computerized cold-bending profiles.
How is beam deflection calculated, and what safety factor is engineered into your load ratings?
Beam load calculations follow FEM 10.2.02 and EN 15512 standards. Maximum allowable vertical deflection is restricted to L/200 (where L equals the clear span between upright columns), ensuring that under 100% of the specified Uniformly Distributed Load (UDL), structural sagging never compromises lift truck tine entry or safety margins. Our structural connectors incorporate integrated 5-tooth cold-formed claws with automatic locking pins that withstand uplift forces exceeding 5,000 N per connector, eliminating accidental dislodgement during pallet handling.
Can single pallet racking be configured for seismic zones or sub-zero cold storage facilities?
Yes. For seismic installations, our structural design team conducts finite element analysis (FEA) and site-specific response spectrum calculations in accordance with Eurocode 8 or local building codes. We engineer heavier baseplates (up to 12mm thickness), high-ductility anchor bolts (M12 to M16 chemical or mechanical anchors), and reinforced horizontal-to-diagonal spine bracing. For sub-zero cold chain environments down to -30°C, we utilize high-toughness steel grades tested for low-temperature impact resistance to eliminate cold-shortness risks, coated with low-temperature cure epoxy-polyester formulas that retain elasticity without micro-cracking.
What environmental surface pretreatment is applied to prevent corrosion in humid or coastal logistics parks?
Our steel fabrication features an automated, multi-stage chemical pretreatment line consisting of alkaline degreasing, multi-stage water rinsing, acid pickling to eliminate mill scale, and iron/zinc phosphating to create an inert crystalline conversion layer. Components are dried in a circulating thermal chamber prior to entering the automated electrostatic powder spray booth. A 60–80 micron layer of thermosetting polyester-epoxy hybrid powder is applied and cured at 180°C–200°C. This ensures high scratch hardness, chemical resistance against battery acid vapors, and resistance to coastal salt-mist environments.
What warehouse dimension and material handling data do you require to generate layout calculations?
To provide a detailed CAD floor plan, static load calculation, and cost quotation, we require: (1) Architectural CAD floor plan showing building column grid, internal clear height under rafters, and fire sprinkler/duct clearances; (2) Pallet specifications including width, depth, overall height (including cargo overhang), and maximum gross weight per pallet; (3) Pallet bottom entry type (2-way, 4-way, perimeter base, or Euro skid); (4) Material handling equipment (forklift type, turning radius, maximum mast elevation, and minimum aisle width requirements); and (5) Local regulatory requirements such as required flue spaces and rack aisle egress dimensions.
Ready to Engineer Your High-Efficiency Warehouse Storage System?
Consult directly with our structural engineering team. Receive customized 2D/3D layouts, structural calculation reports, and factory-direct volume pricing within 24 business hours.
Contact Us
