800kg/Layer
High-Performance Logistics Inventory
Precision-Engineered Heavy Duty Storage Pallet Racking Systems
Direct manufacturer supply of industrial-grade modular racking, boltless shelving, AGV-compatible matrices, and automation robotics tailored for high-density international warehouses.

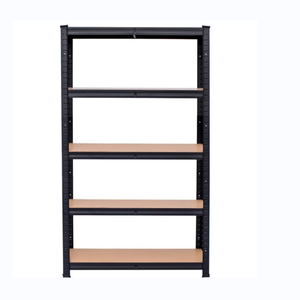

Boltless Fast-Assembly
Industry 4.0 Robotics

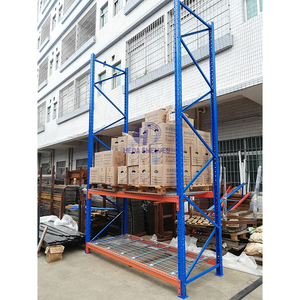

High Vertical Bay

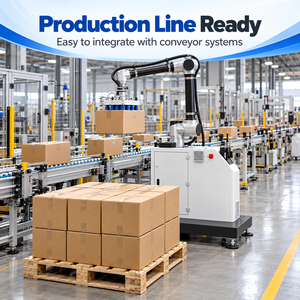

Automated Palletizer

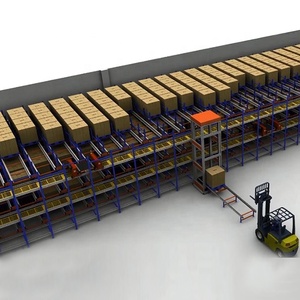

High Density Shuttle

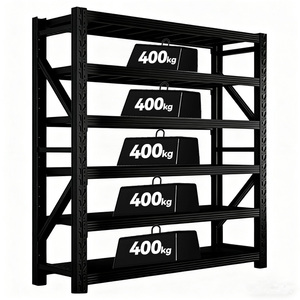

Modular Heavy Duty
Multi-Purpose Workshop
Global Manufacturing Excellence
Why Tier-1 Logistics Hubs Rely on Our Stacking Systems
Combining 25+ years of European structural standard engineering, automated smart manufacturing, and robust export-ready logistics handling across 120+ destination countries.
Traceable CE & ISO Quality
Fabricated under fully accredited CE No. 2435-CPR-8605159 and ISO 9001:2015 frameworks. Rigorous ultrasonic weld inspections and cold-roll yield testing guarantee total compliance with European safety criteria.
Complimentary 3D & CAD Layouts
Our structural engineers formulate free 2D CAD spatial schematics, beam deflection assessments, and photorealistic 3D warehouse simulations before cutting, accelerating local municipal and insurer reviews.
Harsh Climate Surface Chemistry
Every beam undergoes continuous pickling, chemical degreasing, and zinc phosphating prior to thermoplastic electrostatic powder coating. Optimized to resist 45°C+ coastal humidity, dust storms, and heavy condensation cycles.
Turnkey Containerized Export
Pallet components are bundled into color-coded modules with QR-coded packing manifests mirroring installation drawings, driving rapid mechanical erection across GCC and worldwide industrial sites.
2001
Established Engineering Origin
30,000 t
Monthly Manufacturing Throughput
30,000 m²
Modern Production Facilities
10,000+
Delivered Industrial Facilities
Procurement Intelligence Whitepaper
Emerging Procurement Trends & Next-Gen Stackable Pallet Racks
A critical technical evaluation of evolving warehouse automation interfaces, cold-chain density, and structural lifecycle management for international procurement authorities.
1. Convergence with Autonomous Mobile Robots (AMR/AGV)
Traditional selective racking is shifting toward hybrid robot-accessible topologies. Modern procurement specifications dictate rack vertical upright clearances that accommodate LiDAR vision sensors, robotic end-of-arm docking baselines, and vibration-dampened baseplates capable of enduring frequent, high-torque micro-movements without structural fastener fatigue.
2. Total Cost of Ownership (TCO) & Modular Reusability
Global logistics hubs operate within high-turnover leasing conditions. Enterprise buyers prioritize modular, boltless, bolt-adjustable stanchions featuring uniform 50mm punching pitches over welded stationery bays. This modularity allows multi-tier expansion, re-profiling for changing SKU packaging sizes, and zero-loss operational disassembly.
3. Cold-Chain Optimization & Sub-Zero Metallurgical Stability
With chilled food and biomedical cold storage demanding high energy density, radio shuttle racking and high-bay gravity flow racking lead procurement demand. Structural cold-rolled steels are chemically treated with low-temperature impact resilience alloys to eliminate brittle fracture risks at temperatures beneath -30°C.
Comparative Matrix: Contemporary Industrial Racking Architectures
| Racking Architecture | Space Utilization | SKU Selectivity | Automation Readiness | Primary Industrial Use-Case |
|---|---|---|---|---|
| Selective Pallet Racking | 40% - 50% | 100% (Direct Access) | Manual / Reach Trucks / VNA | General 3PL, Multi-SKU Retail, Pharma |
| Radio Shuttle Automation | 75% - 85% | High Batch / Channel Selectivity | Semi-to-Fully Automated | Cold Storage, Beverage, Seasonal Buffer |
| Drive-In / Drive-Through | 65% - 75% | LIFO / Bulk Channel | Forklift Intensive | Raw Material Warehousing, Homogeneous Goods |
| AMR / AGV Hybrid Matrix | 60% - 70% | Dynamic Intelligent Picking | Full Lights-Out Automation | E-commerce Sortation, Micro-Fulfillment Hubs |
Procurement Advisory
Frequently Asked Questions on Pallet Rack Sourcing
Comprehensive engineering, regulatory, and logistics answers addressing high-priority procurement inquiries for international project deployments.
What verifiable documentation verifies CE certification compliance for your pallet racking?
Our pallet racking systems are officially certified under CE Certificate No. 2435-CPR-8605159, adhering to European standards EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and EN 15635. Each export consignment includes a Declaration of Performance (DoP), factory mill test certificates (MTC) detailing steel chemical composition (Q235B/Q355B), and mechanical yield strength verification.
How does your surface treatment withstand severe coastal humidity and desert heat?
All upright columns and load beams complete a proprietary 10-step surface finishing regimen. This includes high-pressure automated shot blasting, chemical degreasing, multi-stage acid pickling, and industrial phosphating to create an impenetrable crystalline bond. We subsequently apply an outdoor-grade thermosetting polyester powder coating baked at 200°C, offering superior salt-spray corrosion resistance across harsh coastal GCC hubs like Jebel Ali, Jeddah, and Khalifa Port.
What engineering variables are required to generate an accurate warehouse 3D and CAD layout?
To construct your complimentary CAD layout and structural load calculations, our technical engineering office requires:
(1) Architectural site drawings highlighting clear height under ceiling purlins, slab loading capacity (kN/m²), and column grid coordinates;
(2) Pallet specifications including overall dimensions (e.g., 1200x1000mm or 1200x800mm), overhang margins, and maximum gross load weight;
(3) Material handling equipment (MHE) parameters detailing forklift mast height, right-angle stacking aisle requirements, and turning radius metrics;
(4) Fire suppression sprinkler drop clearances and ambient operating temperatures.
Can your racking designs meet municipal Civil Defense and insurer structural reviews?
Yes. Our engineers generate standardized engineering submission packets delineating longitudinal and transverse flue spaces, egress exit corridor allowances, seismic safety bracing configurations, and frame column protector arrays. These structural documents correlate directly with regional building safety requirements, including Middle Eastern Civil Defense and international fire safety standards (NFPA 13).
What are the lead times, container packaging, and shipping configurations for overseas projects?
Standard production leads range between 15 and 25 working days driven by our 30,000-ton monthly capacity. For transoceanic safety, structural uprights are nested with shock-absorbing corrugated separators, beams are strapped in high-tensile steel banded bundles with protective corner-angle caps, and smaller accessories (row spacers, anchor bolts, drop-pins) are crated in seaworthy, fumigated wooden cases to guarantee zero transit warping.
Ready to Engineer Your Optimized Warehouse Facility?
Connect directly with our senior structural engineering team. Submit your warehouse floor plan, pallet dimensions, and operational throughput targets to receive a custom 2D/3D layout design, complete structural calculation report, and a competitive direct-from-factory quote.
