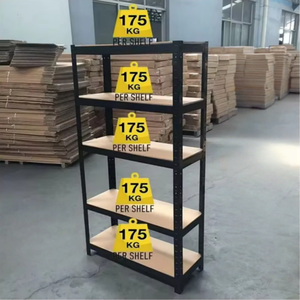

5 Tier Boltless Shelving Heavy Duty Rack Workshop Storage Unit

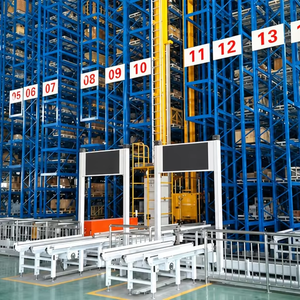

AS/RS Automated Storage Retrieval High Bay Pallet Racking

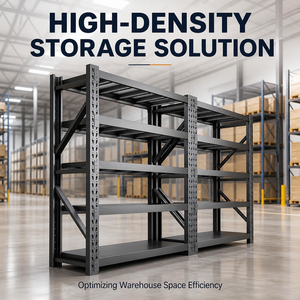

Industrial Longspan Shelving Starter & Add-on Racks

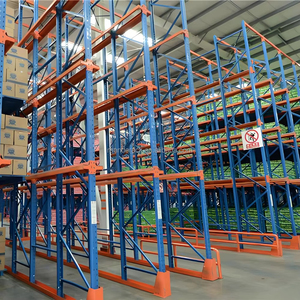

Drive Through / Drive-In Heavy Duty Pallet Rack System
High Density Cold-Rolled Gravity Pallet Flow Racking
Industrial 5-Layer Corrosion Protected Boltless Steel Rack

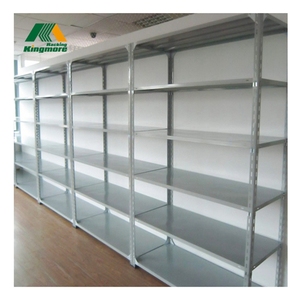

Custom Warehouse Storage Boltless Longspan Light-Duty Rack
5-Layer Adjustable Carton Flow Picking Rack System
The Technical Reality of CE Certification in Industrial Stacking & Pallet Racking
Demystifying structural European Norms (EN 15512, EN 15620, EN 1090-1) and how rigorous factory production control safeguards high-density supply chain infrastructures.
In modern industrial logistics, procuring warehouse racking systems is no longer a simple transactional purchase of formed cold-rolled steel. For enterprise EPC contractors, supply chain directors, and facility safety auditors, pallet racks constitute critical load-bearing steel building structures. In structural failure scenarios, racking collapses result not merely in significant financial inventory write-offs, but in cataclysmic human safety hazards and regulatory operational suspensions. Therefore, when evaluating a CE certified stacking pallet racks exporter, procurement professionals must move beyond marketing claims and scrutinize exact compliance under the European Construction Products Regulation (CPR 305/2011/EU) and relevant European standards.
1. Deconstructing the CE Marking Architecture: EN 15512 vs. EN 1090
A legitimate CE mark stamped on pallet racking and modular stacking rack frames involves rigorous multi-stage physical testing and verified engineering calculation methodologies. Unlike non-regulated domestic storage racks, heavy-duty racking exported to regulated international jurisdictions (including the European Union, the GCC region, and major Commonwealth logistics hubs) must conform to stringent technical guidelines:
EN 15512: Limit State Analysis
Governs the structural design principles for adjustable pallet racking. Mandates limit-state design principles, accounting for perforated upright section properties, torsional buckling, and semi-rigid beam-end connector moment resistance.
EN 15620: Deflection & Tolerances
Defines exact operational clearances, installation alignments, and vertical deformation limits (typically span/200 for manual picking up to span/300 for automated crane and shuttle interfaces) under full working load.
EN 1090-1 / EN 1090-2 (EXC2)
Specifies Factory Production Control (FPC) procedures, certified welding qualifications (ISO 3834), and raw steel mill traceability for structural steel components, providing certified Declaration of Performance (DoP).
Under CE certificate authorization (such as Guangzhou Heda Shelves Co., Ltd.'s CE Certification No. 2435-CPR-8605159), each upright profile section, baseplate thickness, and locking mechanism undergoes verified stub column compressive tests, upright frame shear tests, and beam end connector bending tests. This eliminates structural guessing and guarantees predictable finite element performance under dynamic seismic and operational loads.
2. Structural Mechanics of Stacking Pallet Racks (Post Pallets & Manuracks)
Stacking pallet racks—frequently designated as post pallets, manuracks, or portable stacking frames—present unique structural demands compared to floor-anchored selective racking. In stacking configurations, loads are transmitted axially through removable steel corner columns into target conical cups or nesting targets. The critical mechanical failure modes encompass:
- Eccentric Axial Compression: Deviations in column alignment when stacking 3, 4, or 5 units high induce secondary bending moments (P-Delta effects) that cause frame buckling if yield stress limits are miscalculated.
- Cup-to-Pin Joint Rotation: The rotational stiffness of the interlocking nesting foot determines overall lateral stability during seismic events or accidental forklift nudging.
- Base Decking Fatigue: Under concentrated point loads from wooden pallet skids or bulk containers, cold-formed base channels must resist local web crippling and permanent plastic hinge deformation.
As an authoritative exporter, HEDA Shelves engineers our stacking frames using high-tensile Q235B and Q355B structural steel, cold-formed on multi-station continuous roll-forming lines. This ensures precision geometric tolerances within ±0.5mm across all locking pins and nesting collars, preventing column tilt and structural resonance during high-density multi-tiered stacking.
Structural Engineering & Application Matrix
| Racking System Architecture | Applicable Standards | Aisle Access Model | Space Utilization | Typical Payload / Level | Primary Industrial Application |
|---|---|---|---|---|---|
| Portable Stacking Pallet Racks | EN 1090-2, ISO 9001 | Block Stacking / Open | 70% – 85% Density | 1,000 – 2,500 kg | Seasonal storage, bulk agricultural produce, automotive fabrications, temporary overflow yards |
| Adjustable Selective Pallet Rack | EN 15512, EN 15620 | 100% Direct Selectivity | 40% – 50% Density | 1,000 – 4,500 kg | High-turnover 3PL hubs, multi-SKU FMCG fulfillment, retail distribution centers |
| Drive-In & Drive-Through Racks | EN 15512, FEM 10.2.07 | LIFO / FIFO Lanes | 80% – 85% Density | 1,000 – 2,000 kg | Cold storage warehousing, beverage bottling plants, bulk uniform SKU stockpiling |
| Gravity Pallet Flow Racks | EN 15512, FEM 10.2.06 | Strict FIFO Gravity Fed | 85% – 90% Density | 500 – 1,800 kg | Perishable foods, pharmaceuticals, date packing, date-sensitive consumer goods |
| Automated High Bay (AS/RS) | EN 15620 (Class 100-200) | Automated Stacker Crane | 90% – 95% Density | 1,000 – 3,000 kg | Smart megawarehouses, automated dark factories, ultra-high-bay cold chains (up to 40m) |
Future Procurement Trends & Racking Technology Forecast (2025–2035)
How global warehousing disruptions, ESG mandates, automation tolerances, and harsh-climate durability requirements are reshaping capital equipment sourcing.
International supply chain leaders are currently navigating volatile macroeconomic pressures: elevated commercial real estate land acquisition costs, increasing seismic and weather-related disruptions, labor shortages, and aggressive net-zero carbon directives. Over the next decade, international procurement for industrial storage systems is pivoting away from low-cost, low-tolerance commodity metal toward technologically integrated, flexible, and environmentally verified assets.
Trend 1: Modular Scalability & Circular Logistics
Fixed racking footprints are being supplemented by demountable, portable stacking pallet racks. Companies expanding into temporary leased distribution parks prioritize storage equipment that can be collapsed, flat-packed at a 4:1 volume ratio, and redeployed across regional facilities without slab anchor damage.
Trend 2: Automation & AMR Interface Readiness
As autonomous mobile robots (AMRs) and automated forklift guided vehicles (AGVs) dominate modern facilities, dimensional stability becomes paramount. Racks must exhibit deflection under full payload of less than 1/300 without frame twist, preventing optical laser sensor trip errors on automated guided carriers.
Trend 3: Climate-Resilient Surface Engineering
From extreme desert ambient temperatures (+48°C) in the GCC industrial zones to saline coastal conditions in Jebel Ali and high-humidity tropical sites across Southeast Asia, powder coating must withstand intense thermal expansion cycles without micro-fissuring or delamination.
3. Green Steel Sourcing and Embedded Carbon Accounting
With corporate Scope 3 emissions reporting becoming compulsory under European CSRD (Corporate Sustainability Reporting Directive) and international sustainability frameworks, procurement departments are demanding Environmental Product Declarations (EPDs) from steel fabricators. High-volume exporters must utilize cold-rolled steel derived from electric arc furnace (EAF) scrap recycling routes or documented blast furnace optimization programs. Guangzhou Heda Shelves Co., Ltd. responds to this transition through RoHS-compliant, non-toxic thermoset polyester powder finishes that eliminate volatile organic compound (VOC) outgassing, ensuring full compliance for food storage, pharmaceutical cleanrooms, and eco-certified facilities.
4. Finite Element Analysis (FEA) Simulation in Layout Engineering
Prior to steel cutting and profile roll forming, modern procurement workflows mandate digital validation. By deploying advanced parametric 3D Finite Element Analysis (FEA), HEDA Shelves simulates load vectors across complex asymmetric loading patterns, forklift dynamic impact scenarios (5kN horizontal front-end impact checks per EN 15512), and regional seismic spectral accelerations. Clients receive comprehensive engineering packages including floor slab point-load calculations, anchor bolt tension/shear computations, and approval-ready CAD packages suitable for municipal Civil Defense and property insurance approval.
Why Global Enterprise Sourcing Teams Rely on HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. delivers direct factory engineering, ISO 9001 certified quality systems, and massive scalable capacity from South China to 120+ countries.
Integrated 10-Step Proprietary Manufacturing Quality Control
Every beam, column profile, diagonal brace, and interlocking post cup manufactured at HEDA Shelves progresses through a linear, tightly audited 10-phase production sequence. By maintaining 100% in-house manufacturing, we eliminate subcontracting variances and ensure that every container leaving Guangzhou adheres to international tender specifications.
End-to-End Export Logistics & Middle East / European Port Connectivity
A primary failure point in heavy equipment procurement is container transit damage caused by improper ocean packaging. HEDA Shelves utilizes dedicated heavy-duty steel framing skids, polyethylene protective wrap, edge-corner bevel buffers, and color-coded bundle labeling corresponding directly to field CAD erection schematics. Our logistics operations maintain continuous direct container liner departures from Guangzhou Port, Nansha, and Shenzhen Port to global destinations including:
- United Arab Emirates: Jebel Ali Port (Dubai), Khalifa Port (Abu Dhabi)
- Kingdom of Saudi Arabia: King Abdulaziz Port (Dammam), Jeddah Islamic Port
- Qatar, Oman, Kuwait, Bahrain: Hamad Port, Port of Sohar, Shuwaikh Port, Khalifa Bin Salman Port
- European & International Hubs: Rotterdam, Antwerp, Hamburg, Felixstowe, Valencia, Long Beach, Singapore
