Precision-Engineered Industrial Shelving & Racking Systems
Manufactured strictly with high-tensile Q235B and Q355B cold-rolled structural steel, optimized for dynamic seismic stability, maximum pallet loading capacities, and automated warehousing workflows.
Engineering Authority, Structural Compliance & Factory Capabilities
Direct factory procurement eliminates supply chain arbitrage while securing end-to-end structural certification under rigorous European and international building standards.
Integrated Design-to-Fabrication Quality Control
Operating from our modern 30,000 square meter facility with more than 300 experienced technical and manufacturing professionals, we manage every engineering phase under one roof. Our state-of-the-art infrastructure integrates continuous high-precision cold-roll forming mills, CNC continuous multi-station punching, automated robotic welding cells, and industrial electrostatic powder coating lines.
Unlike standard market resellers, our direct engineering department calculates static load capacities, seismic baseplate resistance, and dynamic deflections using proprietary Finite Element Analysis (FEA) compliant with EN 15512:2020, FEM 10.2.02, and RMI (Rack Manufacturers Institute) guidelines.
- Traceable Mill Certification: Certified primary structural coils sourced directly from ISO-audited mills with verified EN 10204 3.1 chemical and tensile test sheets.
- Advanced Pretreatment Metallurgy: Continuous acid pickling and multi-stage iron phosphating prevent subsurface oxidation before high-adhesion powder coating.
- Verified Seismic Safety: Custom baseplate anchoring configurations calculated for ground accelerations ($a_g$) up to 0.40g in seismic zones worldwide.
Warehouse Structural Shelving & Racking Performance Comparison
Evaluate load bearing dynamics, space utilization factors, and automated materials handling compatibility across commercial storage topologies.
| Storage Configuration | Space Utilization | Selectivity | Max Load Rating (per Beam/Shelf) | Standard Structural Profile | Primary Compliance Codes |
|---|---|---|---|---|---|

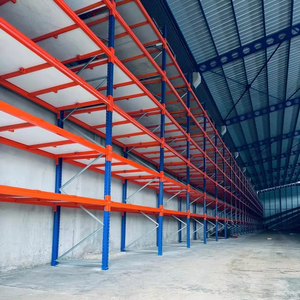

| Selective Pallet Racking | 40% – 50% | 100% Direct Access | 1,000 kg – 5,000 kg UDL | Omega Column / Box Beams | EN 15512, FEM 10.2.02, CE |
| Drive-In / Drive-Through | 65% – 75% | LIFO / FIFO Restricted | 1,000 kg – 2,000 kg per pallet | Heavy Uprights + Cantilever Arms | EN 15620, AS 4084, ISO 9001 |
| Semi-Automated Radio Shuttle | 75% – 85% | High-Throughput Deep Lane | 1,500 kg per pallet position | High-Precision Formed Guide Rails | CE Machinery Directive, EN 528 |
| Heavy-Duty Cantilever Racks | 50% – 60% | 100% for Oversized Cargo | 500 kg – 3,000 kg per arm | Hot-Rolled I-Beam / Formed C-Channel | AISC 360, EN 1993-1-1 |

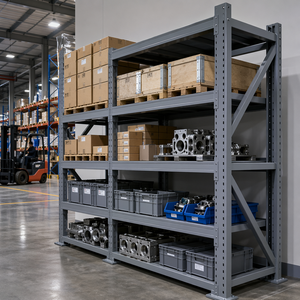

| Industrial Longspan Shelving | 55% – 65% | 100% Manual Hand-Loaded | 300 kg – 1,000 kg per shelf | Step Beams with Steel/Wire Decking | FEM 10.2.06, RoHS Compliant |
| Multi-Tier Mezzanine Floors | 100% – 200% Floor Multiplier | Modular Multi-Level | 300 kg – 1,200 kg / m² Floor Area | Structural I-Beams / Cold-Form C/Z | EN 1090-2 Execution Class 2 |
Future B2B Procurement Trends in Industrial Storage Systems
Strategic analysis of shifting supply chain dynamics, total cost of ownership (TCO) benchmarks, and regulatory mandates reshaping capital expenditure decisions.
Technological Trends & Next-Generation Shelving Systems
How automation, advanced metallurgy, and harsh environment coatings are defining the next decade of warehouse infrastructure.
Complimentary 3D CAD & Structural Space Planning
A poorly configured warehouse layout costs tens of thousands of dollars annually in inefficient forklift travel, damaged merchandise, and underutilized vertical cube space. Our in-house design engineering department develops full 2D spatial layouts and photorealistic 3D parametric models tailored to your exact facility dimensions.
We analyze turning radii for reach trucks, counterbalance forklifts, and VNA turret trucks, establishing optimal aisle widths, flue space compliance, and emergency egress routing. Every design layout includes detailed beam capacity calculation schedules to guarantee full confidence from local building consultants, Civil Defense officials, and structural insurers.
- Turnkey Space Optimization: Vertical space utilization increased by up to 140% using custom-height multi-tier shelving and narrow-aisle pallet configurations.
- Civil Defense Safety Submissions: Drawings formatted with precise aisle clearances, emergency exit corridors, and ESFR sprinkler penetration depths.
Frequently Asked Questions by Industrial Storage Buyers
Direct technical answers addressing structural certification, metallurgy, installation tolerances, and overseas containerized shipping logistics.
Our CE Certification (No. 2435-CPR-8605159) is substantiated by physical destruct-testing conducted in accordance with EN 15512:2020. This includes stub column compression tests, beam end connector shear and bending moment tests, upright frame horizontal shear testing, and continuous cyclic fatigue loading. Full European execution conformity is verified by third-party notified auditing bodies.
Every raw steel component goes through an automated continuous pretreatment cycle consisting of high-pressure degreasing, industrial acid pickling, rust passivation, and dense iron-phosphate micro-crystallization. We apply architectural-grade electrostatic polyester powder baked at 180°C–200°C, achieving dry film thicknesses of 70–90 microns. For extreme open yards, hot-dip galvanized finishes complying with ISO 1461 are provided.
In strict conformance with FEM 10.2.02 and EN 15512 standards, our structural load beams are calculated not to exceed a vertical deflection limit of L/200 for standard pallet loads, or L/300 for automated shuttle systems and brittle inventory applications, where $L$ is the clear span distance between uprights. Each pair of beams includes high-tensile safety locking pins rated to resist upwards dislodgement forces of 5 kN.
Our export packing department utilizes heavy steel-strapping on rigid wooden skids with high-impact plastic corner protectors. Upright frames are separated with micro-foam buffering sheets, while beams are nested on custom pallets with waterproof stretch wrapping and desiccant packs. Components are bundled and color-coded with itemized container stowage tags matching the CAD assembly guide, ensuring fast on-site unloading and minimal sorting time.
Yes. Operating fully automated CNC continuous profile roll-forming and punching lines, we provide standard 50 mm, 75 mm, and 76.2 mm (3-inch) pitch adjustments. We support full custom engineering, including bespoke steel deck thicknesses, specialized drum cradles, wire mesh decking, and corporate brand colors matched accurately to standard RAL powder codes.
We provide a comprehensive engineering dossier with every project shipment. This includes formal mill test certificates (MTC 3.1), 2D CAD layouts showing exact aisle clear widths, 3D structural perspective renderings, finite element deflection reports, floor slab anchor loading specifications, and stamped European CE & ISO 9001:2015 declarations of conformity suitable for civil defense authorities and underwriters.
