Heavy-Duty Warehouse Racking & Material Handling Equipment
Constructed from high-tensile structural steel (Q235B and Q355B) and manufactured under strict EN 15512, RMI, and AS 4084 engineering tolerances. Explore our export-grade storage configurations optimized for logistics hubs, cold chain terminals, and automated fulfillment operations.
Adjustable High-Speed Storage Racks Shelving Systems Pallet Car Auto Shuttle Racking System For Warehouse

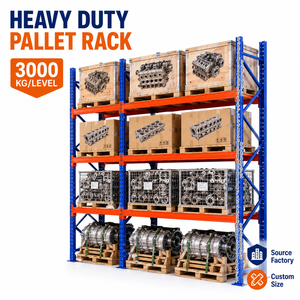

3000KG Heavy Duty Warehouse Shelf Rack for Pallet and Carton Storage 4 Levels for Pallet Storage

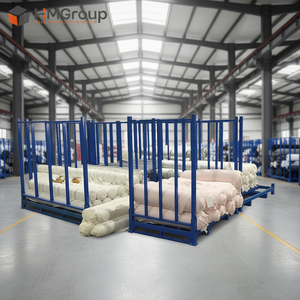

Customized Heavy Duty Warehouse Metal Stacking Portable Fabric Rolls Storage Post Pallet Racks

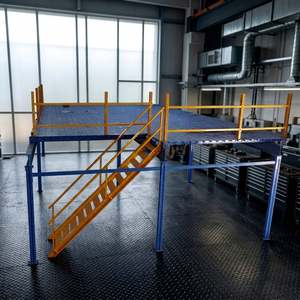

Industrial Mezzanine Racking System Lit Mezzanine Double Industrial Platforms Warehouse Mezzanine Floor System
NOVA Cold Room Heavy Duty Steel Rack Logistics Equipment Warehouse Gravity Pallet Flow Racking
Steel Warehouse Rack Systems Storage Steel Warehouse with Shelving Units and Steel Stairs for Warehouse

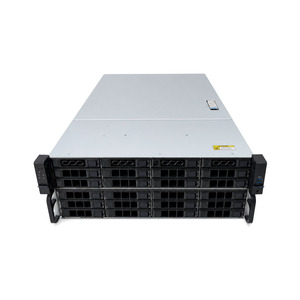

Custom Rackmount Storage Server Chassis 12 Bay LFF Hot Swap Drive Sheet Metal Enclosure OEM
Selective Pallet Single Sided Ibeem Pvc Pipe Storage Cantilever Rack
Structural Integrity, Material Metallurgy & Global Safety Compliance
Industrial racking is not merely slotted steel; it is a critical building structure subjected to dynamic forklift impacts, complex live floor loads, and regional seismic accelerations. Selecting the best custom pallet racking manufacturer requires deep verification of finite element analysis (FEA), raw material metallurgy, and international code compliance.
1. High-Tensile Certified Steel Metallurgy
At our Guangzhou manufacturing base, raw steel coils are sourced strictly from premier tier-one mills such as Baosteel and Shougang. We primarily fabricate using Q235B (yield strength ≥ 235 MPa) and premium Q355B low-alloy high-strength steel (yield strength ≥ 355 MPa). Upright columns and heavy-duty load beams are cold-rolled via continuous automatic CNC roll-forming machines without thermal deformation. Every heat of steel undergoes spectrographic chemical analysis and tensile yield testing to guarantee that elongation values exceed 21%, ensuring superior ductility during unanticipated forklift impacts or extreme seismic shifts.
Anti-Corrosion Durability: All fabricated components undergo a comprehensive 10-stage pre-treatment cycle consisting of chemical degreasing, acid pickling, surface conditioning, micro-porous phosphating, and deionized water rinsing before receiving an electrostatic thermoset epoxy-polyester powder coating cured at 180°C–200°C.
This automated surface treatment yields a uniform dry film thickness (DFT) of 60 to 90 microns, achieving over 500 hours of continuous neutral salt spray resistance (ASTM B117 compliance). For harsh environments such as coastal logistics hubs in Dubai, Dammam, and Jeddah, or refrigerated food lockers operating at -30°C, we provide hot-dip galvanized finishes complying with ISO 1461, eliminating micro-cracking and zinc peeling risks.
2. Global Structural Calculation & Seismic Engineering
Every industrial warehouse project begins with finite element stress distribution modeling in ANSYS and SAP2000. Our structural engineering department, comprising over 30 certified civil and mechanical engineers, calculates dead loads, live pallet loads, wind loads (for rack-supported buildings), and seismic base shear forces in accordance with:
- European Standard EN 15512:2020: Steel static storage systems - Adjustable pallet racking systems - Principles for structural design.
- American RMI (Rack Manufacturers Institute) MH16.1: Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks.
- Australian Standard AS 4084-2023: Steel storage racking seismic and operational load requirements.
- CE Structural Compliance (EN 1090-1 / EN 1090-2): Traceable factory production control (FPC) with CE Certificate No. 2435-CPR-8605159.
Beam-to-column connectors are engineered with multi-tooth safety claw locks, preventing accidental beam dislodgement under upward forklift tines. Column bases feature laser-cut baseplates anchored into the building slab via high-tensile wedge expansion anchors or chemical adhesive studs, distributing high punch loads to preserve concrete slab integrity.
| Racking Architecture | Typical Steel Grade | Max Load per Level | Floor Space Utilization | Inventory Access Rule | Target Logistics Sector |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B | 1,000 kg – 4,500 kg | 40% – 45% (Standard Aisles) | 100% Direct Selectivity | General 3PL, FMCG, Retail Hubs |
| Radio Shuttle System | Cold-Rolled Q355B | 500 kg – 1,800 kg | 75% – 85% (High Density) | Batch FIFO / LIFO Automated | Cold Stores, Beverage, Bulk Food |
| Gravity Pallet Flow | Galvanized & High-Grade Steel | 800 kg – 1,500 kg | 65% – 75% (Gravity Rollers) | Strict FIFO First-In-First-Out | Dairy, Pharmaceuticals, Perishables |
| Structural Mezzanines | Q355B Hot-Rolled I-Beams | 300 kg – 1,200 kg / m² | 200% – 300% (Vertical Multi-Tier) | Manual Cart / Conveyor Picking | E-commerce, Garment, Automotive Parts |
| Heavy Cantilever Racks | Hot-Rolled H-Beams | Up to 3,000 kg / Arm | Open Lateral Span | Crane / Side-Loader Access | Steel Pipes, Lumber, PVC Extrusions |
Future Procurement Trends in Industrial Warehouse Storage
As commercial land costs escalate globally and labor dynamics shift toward automation, warehouse procurement directors are transforming static storage assets into flexible, technology-driven ecosystems. Understanding these four mega-trends ensures maximum capital return across a 20-year operational lifecycle.
1. Convergence of Racking with Autonomous Intralogistics (AGV & AMR)
Static storage racks are rapidly being adapted to interface directly with Autonomous Mobile Robots (AMR), Automated Guided Vehicles (AGV), and automated 4-way pallet shuttles. Modern procurement specifications demand millimeter-level tolerances in beam leveling, rail deflection limits of less than 1/800, and integrated photoelectric sensor reflective brackets. Procurement managers are prioritizing manufacturers capable of co-engineering structural steel frames that sync seamlessly with modern Warehouse Management Systems (WMS) and automated stacker cranes (ASRS).
2. Total Cost of Ownership (TCO) Over Initial Capital Expenditure
Leading global buyers across Europe, the Americas, and the GCC no longer purchase pallet racking based solely on metric-ton steel price. Purchasing frameworks now evaluate lifecycle damage resistance, powder coating longevity, structural reconfigurability, and container cube utilization during shipment. Factory-direct sourcing from China with modular slotted beam connectivity reduces on-site installation labor costs by up to 35% and permits non-destructive warehouse relocation or vertical tier expansion as inventory evolves.
3. Stringent Environmental ESG Standards & Low-Carbon Manufacturing
Enterprise procurement mandates increasingly dictate environmental product declarations (EPD) and RoHS compliance. The industrial racking sector is transitioning away from solvent-based wet paints toward zero-VOC electrostatic powder coatings and closed-loop water treatment phosphating systems. By reducing carbon emissions during coil rolling and optimizing beam gauge thickness via advanced structural geometry rather than raw steel mass, sustainable racking designs directly assist corporations in fulfilling Scope 3 carbon reduction metrics.
Technological Developments Reshaping Warehouse Storage Engineering
Finite Element Simulation & Digital Twin BIM Modeling
Traditional static calculations based on 2D assumptions are being replaced by dynamic 3D Building Information Modeling (BIM) and non-linear bucking analysis. At our factory, every customized rack structure is verified under full-load seismic oscillation simulations. We supply engineering consultants with Revit (.RFA) and IFC files directly integrated with warehouse sprinkler head coordinates, flue spaces, and forklift aisle turning radiuses, completely de-risking Civil Defense approvals before steel fabrication commences.
Intelligent High-Bay Cold Storage Specialization
Because chilled and blast-freezer floor space costs 3 to 5 times more to operate than ambient warehouses, high-density compact storage is mandatory. Technological advancements in low-temperature steel chemistry eliminate brittle-fracture risks at temperatures down to -30°C. Cold-chain racking now combines radio shuttle automation with gravity roller brakes, ensuring zero forklift travel inside chilled chambers to conserve costly thermal energy.
Multi-Tier Mezzanines Driving Cross-Border E-Commerce
The global surge in SKU varieties driven by cross-border retail and quick-commerce requires hybrid storage architectures. Rack-supported mezzanine platforms utilize the warehouse's vertical cube height, combining heavy pallet reserves on lower tiers with high-density hand-picking shelving on second and third decks. Integrated spiral chutes, cargo lifts, and live roller conveyors enable pickers to fulfill thousands of split-case orders per hour without ground-level traffic bottlenecks.
Modular Post Pallet & Flexible Stacking Systems
Fixed racking can limit operational agility in seasonal industries such as agricultural harvest storage, tire distribution, and raw textile rolls. The industry is rapidly adopting heavy-duty portable stacking racks (post pallets). These units feature removable corner posts, enabling four-to-five-high warehouse stacking when loaded, and nested 80% volume reductions when empty, freeing immense floor acreage during off-peak periods.
Why Global Tier-1 Contractors Choose Our Guangzhou Factory
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into an international benchmark for warehouse storage solutions. Operating our own 30,000 square meter intelligent manufacturing center, we maintain end-to-end quality jurisdiction from raw structural coil slitting to container stuffing.
Certified Quality Assurance
Fully compliant with ISO 9001:2015 quality management (Certificate No. 18624Q00169R0M) and European CE Factory Production Control (No. 2435-CPR-8605159). Tensile, coating thickness, and weld tests conducted per heat lot.
Free 2D CAD & 3D BIM Design
Our senior intralogistics architects generate optimized 2D layout blueprints, forklift traffic simulations, and photorealistic 3D warehouse renderings within 24–48 hours, fully tailored to your SKU matrix and clear building height.
30,000 Tons Monthly Capacity
With 24 advanced continuous roll-forming lines, automated laser cutting tables, and robotic welding gantries, our 300+ technical personnel guarantee strict project milestone delivery without sub-contractor delays.
Container-Optimized Export Packing
Components are bundled with steel strapping, impact-absorbing corrugated foam wraps, and color-coded structural labels matching installation drawings. Shipped seamlessly to Jebel Ali, Dammam, Jeddah, Hamburg, Long Beach, and beyond.
Frequently Asked Questions for Sourcing Directors & Warehouse Engineers
Clear, technically rigorous answers covering structural deflection criteria, slab loading, regional fire defense compliance, and custom export packing protocols.
Plan Your Next Warehouse Expansion with Direct Factory Engineering
Consult with our engineering team today to receive a complimentary warehouse storage audit, custom 2D/3D CAD space optimization plan, and transparent factory-direct pricing tailored to your logistics requirements.
Direct factory response within 2 business hours • Strict CE / ISO 9001 compliance • Turnkey global export
