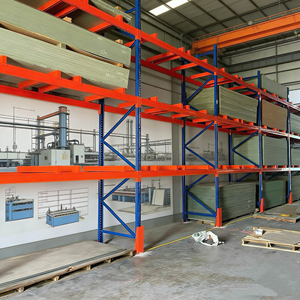

Heavy Duty 5 Layer Iron Stacking Outdoor Galvanized Warehouse Metal Pallet Shuttle Rack Adjustable
Easylink Customized Steel Spray Type Powder Coated Pallet Rack for Warehouse Storage for Outdoors
Direct Factory 2000kg Load Pallet Storage Rack High-Density 5 Layer Drive-In Rack for Warehouse Iron Free Metal Layout Design
Huisen Factory Supply Adjustable Logistic Racking System Selective Heavy Duty Pallet Rack
Direct Factory Metal Free Layout Design High-Density Drive-In Pallet Storage Rack for Warehouse Steel Narrow Lane Rack High Iron
Heavy Duty Industrial Storage Warehouse Rack Selective Pallet Racking Shelves
Engineering White Paper: External Pallet Racking Structural Integrity & Corrosion Science
Deploying heavy-duty pallet racking systems in an external or open-air yard environment introduces extreme structural and metallurgical challenges that standard indoor warehouse specifications cannot address. In an unconditioned exterior environment, racking structures cease to be mere static interior fixtures; they become free-standing, wind-exposed structural frames subject to continuous dynamic meteorological loads, ultraviolet radiation degradation, thermal expansion cycles, and atmospheric corrosivity classifications ranging from C3 (urban/industrial moderate) to C5-M/C5-I (marine and aggressive industrial coastal) per ISO 12944.
As China’s leading industrial rack manufacturer and global exporter, Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) engineers outdoor storage infrastructure using cold-formed structural steels such as high-tensile Q235B and Q355B, manufactured under strict compliance with EN 15512, ANSI/RMI MH16.1, and AS 4084. Engineering outdoor racks requires a complete redesign of the safety factors: upright profiles must withstand wind-induced lateral shear, baseplates must prevent overturning through oversized chemical anchors, and all horizontal structural members must incorporate drainage apertures to eliminate internal water retention.
Engineering Insight: The Aerodynamic Bluff-Body Phenomenon in Pallet Yards
When pallet loads wrapped in stretch film are stored outdoors, they transform into massive wind-blocking sails. Wind pressure vectors calculated per Eurocode 1 (EN 1991-1-4) or ASCE 7-22 demonstrate that lateral wind shear can exceed the seismic design forces in many geographical regions. Structural calculation at HEDA Shelves integrates localized gust velocity ($q_p$), aerodynamic shape factors ($c_f$), and live load windward/leeward pressure differentials to prevent progressive collapse.
Surface Protection Metallurgy: Hot-Dip Galvanizing (HDG) vs. Architectural Duplex Coatings
Corrosion protection is the foundational determinant of the lifecycle return on investment (ROI) for external racking. Standard indoor electrostatic powder coating with a typical 60–80 µm dry film thickness (DFT) will rapidly develop micro-fissures and edge creep when exposed to solar UV cycles, dew cycles, and airborne chlorides, resulting in structural wall thinning within 24 to 36 months.
| Corrosion Protection Method | Standard Compliance | Coating Thickness (DFT) | Corrosivity Class (ISO 12944) | Outdoor Service Life | Ideal Application Environment |
|---|---|---|---|---|---|
| Hot-Dip Galvanizing (HDG) | ISO 1461 / ASTM A123 | 70 – 100 µm (500–710 g/m²) | C4, C5-I, C5-M (Aggressive) | 25 – 40+ Years | Coastal ports, petrochemical yards, open mine sites |
| Duplex Marine Coating (E-Coat + TGIC) | ISO 12944-5 High Durability | 120 – 160 µm Composite | C3 to C4 (Industrial) | 15 – 20 Years | Urban yards, logistics parks, branded corporate facilities |
| Pre-Galvanized Coil (Sendzimir) | EN 10346 (Z275) | 18 – 22 µm (275 g/m²) | C2 to C3 (Mild) | 5 – 8 Years | Canopy-covered outdoor bays, low-humidity inland yards |
| Standard Warehouse Powder Coat | Internal Standard | 60 – 80 µm | C1 to C2 (Indoor Only) | < 2 Years (Not Recommended) | Strictly climate-controlled indoor warehouses |
For critical infrastructure, Hot-Dip Galvanizing per ISO 1461 remains the global benchmark. The molten zinc bath process at 450°C creates metallurgical iron-zinc alloy layers ($\Gamma, \delta, \zeta$) harder than the base steel itself, topped by a ductile pure zinc ($\eta$) outer layer. Even if struck by rough-terrain forklift tines, zinc provides sacrificial cathodic protection, self-healing scratches by forming an insoluble, protective patina of zinc carbonate ($Zn_5(OH)_6(CO_3)_2$).
Future Procurement Trends: Smart Sourcing & Global Supply Chain Dynamics
Procurement directors and EPC contract managers across North America, Europe, Australia, and the GCC (Saudi Arabia, UAE, Qatar) are fundamentally rethinking their external storage strategies. High industrial real estate land lease prices, coupled with skyrocketing indoor warehouse construction costs (exceeding $1,200 to $1,800 per square meter in Tier-1 logistics hubs), have accelerated the shift toward yard densification.
TCO Over CAPEX Prioritization
Global procurement teams evaluate Total Cost of Ownership rather than ex-factory sticker price. Upfront investment in ISO 1461 galvanization eliminates regular maintenance repaint cycles, yielding a 42% TCO savings over 15 years.
Pre-Engineered Canopy Integration
Procuring rack-clad buildings (clad-rack structures) where the racking uprights directly support roofing canopies and rainwater management gutters without independent building columns, saving 30% in steel erection costs.
Standardization & Modular Reusability
Purchasers specify standardized 75mm or 50mm pitch punch configurations with universal teardrop or European diamond slot profiles to enable multi-facility redeployment and rapid cross-project scalability.
Technological Innovations Reshaping External Material Handling
External racking is no longer confined to static timber storage or raw scrap staging. Modern industrial yards integrate high-throughput automation and structural telemetry that mirror advanced indoor fulfillment centers.
Ruggedized Semi-Automated Shuttles
Integration of IP67 sealed radio shuttle carriers with cold-start lithium-titanate batteries capable of operating reliably in ambient temperatures from -30°C to +55°C amid blowing desert sand and torrential rain.
Zinc-Aluminum-Magnesium (ZAM) Alloys
Transition toward next-generation ZAM coated structural steels (containing 3% Mg and 11% Al). ZAM provides cut-edge self-healing rates 4x superior to conventional continuous zinc coatings, drastically reducing rust at punched slots.
IoT Structural Health Monitoring
Wireless solar-powered strain gauge sensors, tilt indicators, and accelerometers mounted to critical upright splices transmit real-time deflection and collision alert telemetry directly to facility management software dashboards.
