Engineered High Bay Rack Systems & Heavy-Duty Structural Equipment
Precision-manufactured from high-tensile structural steel (Q235B / Q355B) conforming strictly to FEM 10.2.02, EN 15512, and ANSI/RMI MH16.1 international load safety standards.
High Bay Selective Pallet Rack 5-Layer System

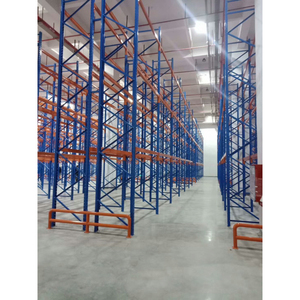

Blue-Orange High Bay Heavy Duty Racking
Steel Structure High Bay Sorting & Storage Warehouse
Smart High Bay Warehouse AS/RS Industrial Racking
Four-Way Shuttle Pallet AS/RS Storage System
Automated High-Bay Cold Storage (-25℃ to 0℃)
Xeon 4214R 12-Core 2U Rack Data Controller
Heavy-Load High-Bay Double-Face HDPE Pallet
World-Class Steel Fabrication & Engineering Pedigree
Total vertically integrated production ensures uncompromised quality assurance, full compliance traceability, and direct OEM/ODM cost competitiveness.
Certified Quality Control
Holding official CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and RoHS compliance. Every batch undergoes ultrasonic weld and tensile yield verification.
Complimentary 3D CAD / BIM
Senior structural engineers deliver complete 2D layout drafting, 3D renderings, and BIM models within 24 to 48 hours to streamline architectural coordination and Civil Defense approvals.
10-Stage Precision Line
Raw coil steel cutting, automated 50-ton hydraulic CNC punching, precision continuous roll-forming, robotic welding, hot chemical pickling/phosphating, and automated powder coating.
Container Export Packaging
Pre-sorted, steel-banded, and foam-wrapped bundles indexed directly to structural assembly blueprints, eliminating on-site sorting friction at global seaports and logistics yards.
Engineering White Paper: High Bay Structural Integrity & Load Dynamics
As global distribution hubs undergo radical modernization to mitigate escalating real estate costs, the demand for high bay rack storage systems extending from 12 meters to over 40 meters has surged. Unlike conventional light-duty storage shelving, high bay racking operates at the intersection of civil structural engineering and precision machinery. These installations bear extraordinary dynamic loads from high-speed Automated Guided Vehicles (AGVs), stacker cranes, and very narrow aisle (VNA) man-up turret trucks.
1. Material Science and Yield Stress Thresholds (Q235B vs. Q355B)
Structural performance hinges primarily upon the chemical composition and cold-forming behavior of the coil steel. Certified Chinese manufacturers utilize premium hot-rolled carbon steel coils sourced from tier-one mills such as Baosteel and Shougang Group. While Q235B (yield strength ≥ 235 MPa) satisfies intermediate vertical loadings under 12 meters, ultra-tall high bay and automated AS/RS installations demand Q355B micro-alloyed steel (yield strength ≥ 355 MPa, tensile strength up to 510 MPa) to restrict upright buckling and cross-aisle sway within sub-millimeter tolerances.
| Engineering Parameter | Standard Selective High Bay | Narrow Aisle (VNA) High Bay | Automated AS/RS High Bay |
|---|---|---|---|
| Operating Height Ceiling | 8,000 mm – 15,000 mm | 12,000 mm – 18,000 mm | 18,000 mm – 42,000 mm |
| Aisle Clear Width | 3,000 mm – 3,800 mm | 1,600 mm – 1,900 mm | 1,350 mm – 1,550 mm |
| Floor Flatness Tolerance | DIN 18202 Table 3, Line 3 | DIN 18202 Line 4 / VDMA 15251 | VDMA 15251 / FEM 9.831 (Superflat) |
| Frame Deflection Limit | 1/200th of clear span | 1/350th of clear span | 1/500th (Strict FEM 10.2.02 standard) |
| Sprinkler Strategy | Ceiling ESFR or 1 in-rack tier | Multi-level in-rack vertical barriers | Full-height vertical and horizontal in-rack |
| Handling Equipment | Reach Truck / Counterbalance | VNA Man-up / Man-down Turret | Fully Automated Stacker Crane / Shuttle |
2. Seismic Damping, Dynamic Resonances, and Floor Slab Anchor Mechanics
Under seismic conditions (governed globally by Eurocode 8, ASCE 7, or GB 50011), high bay structures experience acute overturning moments. To counter ground acceleration, our engineers configure heavy-duty 5-claw or 6-claw cold-stamped connector hooks with high-tensile locking pins that possess an anti-shear capacity exceeding 18.5 kN per connection. Baseplates are enlarged and secured into superflat concrete slabs using chemical wedge anchors or post-installed undercut anchors, ensuring dynamic force dissipation into the building foundation without frame joint degradation.
Future Procurement Trends in High Bay Storage (2025–2030)
Actionable intelligence for Chief Procurement Officers, Supply Chain Directors, and General Contractors navigating next-generation warehouse infrastructure investments.
1. Transition to 4-Way Shuttle Architecture
Global procurement is rapidly pivoting away from rigid, single-crane stacker aisles toward agile 4-Way Radio Shuttle AS/RS. Shuttles decouple horizontal transport from vertical hoisting, enabling modular scalability where fleets can be enlarged flexibly without redesigning the primary structural high bay steel framework.
2. Clad-Rack (Rack-Supported) Construction
Rising civil construction and roofing steel costs have popularized "Clad-Rack" facilities. In this configuration, the high bay storage rack serves directly as the structural skeleton carrying the roof and external wall sandwich panels, slashing project lead times by 25% and delivering immense capital expenditure savings.
3. Green Steel & Zero-VOC Coatings
Global Fortune 500 ESG mandates require verifiable embodied carbon disclosures. Tier-one Chinese manufacturers have embraced closed-loop powder recovery systems, zero-VOC heavy-metal-free electrostatic finishes, and recycled scrap-ratio tracing to guarantee seamless customs clearability in regulated jurisdictions.
Technological Innovations Revolutionizing High Bay Warehousing
Cryogenic Thermal Preservation Engineering
Cold-chain logistics operations handling biologicals, frozen poultry, and dairy require high-density storage functioning seamlessly down to -30°C. Standard structural steel undergoes brittle failure at sub-zero temperatures. Our specialized cryogenic high bay uprights leverage low-phosphorus, low-sulfur steel formulations that retain critical Charpy V-notch impact toughness (≥ 27 Joules at -20°C). Furthermore, proprietary anti-condensation profile drainage grooves prevent destructive intra-channel frost accumulation.
Real-Time IoT Structural Telemetry & Deflection Monitoring
The cutting edge of intelligent warehouse engineering integrates passive strain gauges and wireless displacement sensors embedded directly into high bay load-bearing beams. Connected through low-power industrial edge-compute hubs (such as our WMS/WCS rackmount controllers), these sensors continuously monitor beam deflection, micro-shifts in upright plumbness, and unintended forklift collision impacts, triggering predictive safety alerts before structural failures can occur.
Frequently Asked Questions on High Bay Rack Procurement
Detailed engineering answers to critical operational, structural, and international shipping inquiries.
