Engineered Industrial Racking Systems Portfolio
Constructed from prime high-tensile Q235B and Q355B cold-rolled steel, each system is calibrated for precision load-bearing integrity, high cubic space utilization, and integration with automated material handling fleets.

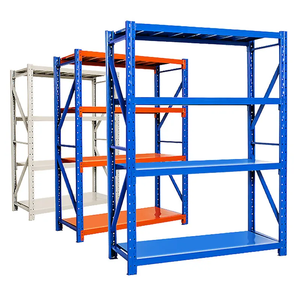

Factory Custom Adjustable Storage Shelves Heavy Duty Shelving Unit Rack
Engineered with step-beam connectivity and 50mm pitch adjustability, suitable for mixed SKU picking zones, distribution buffers, and multi-tier manual pick towers.
Customized Heavy Duty Steel Pallet Racking System
The gold standard for selective storage offering 100% immediate pallet access, robust upright frame triangulation, and compliance with FEM 10.2.02 and EN 15512 safety codes.
Heavy Duty Metal Storage Pallet Rack Industrial Shelving
Reinforced box beams with integrated security locking pins provide high moment resistance against dynamic forklift impact in high-velocity transit cross-dock centers.
CE ISO Certified Direct Sales Pallet Storage Rack Heavy Duty Shelving
Fabricated with automated robotic welding lines to ensure defect-free penetration welds at load-bearing connectors, meeting rigorous structural engineering audit protocols.
Industrial Steel Fabric Roll & Cylinder Storage Pallet Racking
Equipped with custom cradles, saddle brackets, and roll stoppers specifically optimized for carpet rolls, textiles, non-wovens, and cylindrical raw materials.
Cold Rolled Steel Anti-Corrosion Bolt-Free Powder Coated Shelving
Nine-stage pickling and phosphating surface treatment prevents rust under coastal humidity and variable temperature distributions. Boltless butterfly-hole assembly accelerates deployment.
High-Capacity Industrial Pallet Shelves Heavy Steel Rack
Designed for heavy machinery parts, tooling fixtures, and automotive stamping dies. Custom upright baseplates ensure uniform slab load distribution and anchoring safety.
Prefab Custom Warehouse Industrial Storage Sheds & Rack Buildings
Integrated rack-supported building structures where racking frames serve as primary structural roof and wall purlin supports, dramatically reducing civil engineering construction costs.
Engineering Rigor & Metallurgical Compliance
Industrial racking failure risks operational paralysis, severe inventory write-offs, and human life safety liabilities. Below is the technical anatomy behind selecting superior Chinese steel racking manufacturers.
Steel Grade & Yield Strength
We source certified Prime Hot-Rolled Coils (HRC) converted through cold roll-forming into Q235B and high-yield Q355B. Yield strengths reach 355 MPa with minimum elongation percentages exceeding 21%, guaranteeing ductile behavior rather than brittle catastrophic failure under dynamic overload.
- Traceable mill test certificates with every production batch
- Carbon equivalent composition strictly controlled for welding
- Cold roll-formed geometry with internal stiffening ribs
Beam-to-Column Moment Connection
The stability of a selective racking frame relies primarily on rotational beam-end stiffness. Our patented multi-claw connectors with integral safety locks prevent accidental dislodgement from upward forklift mast shocks while preserving structural framing squareness under asymmetric loads.
- 3-claw and 4-claw cold-stamped forged end connectors
- Automated beam seam laser welding eliminating cold-lap defects
- Tested in accordance with EN 15512 Annex A connection tests
Anti-Corrosion Surface Finishing
For aggressive coastal microclimates (such as Dubai JAFZA, Dammam, and Singapore), standard wet spray paints break down rapidly. Our multi-stage automated pretreatments involve hot degreasing, zinc phosphate conversion coating, and electrostatic cure-bonded thermoset powders.
- 60–90 μm uniform cured film thickness
- Neutral Salt Spray (NSS) test exceeding ASTM B117 parameters
- Hot-dip galvanized (HDG) zinc bath options for sub-zero freezer hubs
| Racking Architecture | Pallet Density Index | Selectivity (%) | Optimal Application Scenario | Typical Forklift Interface | Automation Compatibility |
|---|---|---|---|---|---|
| Selective Pallet Racking | Baseline (1.0x) | 100% Direct | Fast FMCG, High-SKU 3PL Distribution | Counterbalance, Reach Truck | AMR / AGV Ready |
| Drive-In / Drive-Through | High (2.4x) | 15–20% (LIFO/FIFO) | Bulk Raw Materials, Cold Room Storage | Reach Truck, Deep-Mast Trucks | Manual Guided |
| Radio Shuttle Automation | Ultra-High (3.2x) | Up to 40% (Batch) | Beverage Distribution, Deep Freeze (-28°C) | Standard Counterbalance at Aisle End | Semi-Auto / AS/RS |
| Very Narrow Aisle (VNA) | Very High (1.9x) | 100% Direct | High-Ceiling Logistics Hubs (Up to 18m) | Turret Truck, Wire/Rail-Guided VNA | WMS Wire Guided |
| Multi-Tier Mezzanine | Volumetric (3.0x Floor) | 100% Hand Pick | E-Commerce Fulfilment, Auto Spares Pick Towers | Vertical Reciprocating Conveyor (VRC) | Conveyor / Tote AMR |
Future Procurement Trends in Industrial Storage
As smart logistics expands across Southeast Asia, North America, Europe, and the Middle East GCC corridors, racking is transitioning from static steel uprights to the critical backbone of automated supply chains.
Total Cost of Ownership (TCO) vs Capital Outlay
Procuring warehouse racks based solely on FOB price per kilogram consistently introduces hidden downstream costs. Inaccurate deflection calculations trigger beam sag, requiring premature decommission, while irregular frame geometries cause sensor trip faults on robotic shuttles.
Forward-thinking supply chain directors evaluate procurement on a 15-year lifecycle basis: steel metallurgy consistency, beam upright deflection ratios (1/200 vs 1/300 under full load), and the vendor's ability to guarantee bolt-hole stamping pitch accuracy under ±0.5 mm tolerances across 100-container programs.
Robotic AMR & Shuttle System Convergence
High labor turnover and soaring urban square-foot rental rates are driving a massive pivot away from human-driven forklifts toward Autonomous Mobile Robots (AMRs) and automated 4-way pallet shuttle matrices. Racking structures must now be engineered with stringent millimeter-tolerance rail alignments.
Future-ready storage grids require integrated sensor stops, dynamic deflection dampers, and laser-aligned guide tracks that prevent autonomous shuttle stall-outs in high-throughput omni-channel e-commerce fulfillment operations.
Seismic Engineering & NFPA Fire Compliance
International building codes (including IBC, Eurocodes, and Saudi Building Code SBC 301) mandate precise seismic engineering. Upright baseplate design must anchor securely into the concrete slab to absorb cyclic ground accelerations without frame shear failure.
Additionally, modern warehouse insurance requires strict compliance with NFPA 13 sprinkler penetration standards. Longitudinal and transverse flue spaces (minimum 75 mm to 150 mm) must be structurally locked via rigid row spacers and heavy-duty wire mesh decking.
Our 10-Step Zero-Defect Manufacturing Protocol
To guarantee international project execution, every batch passes through a closed-loop quality system within our 30,000 m² Guangzhou production facility.
Direct Factory Authority & Export Excellence
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as one of China's premier heavy-duty warehouse storage rack manufacturers and exporters. Operating from an expansive 30,000 m² production base in Guangzhou with over 300 experienced engineering and fabrication specialists, we generate a sustained monthly capacity exceeding 30,000 metric tons of structural storage systems.
We do not operate as middle-tier trading agencies; our clients work directly with senior structural calculations engineers. Every project includes comprehensive 2D CAD spatial plans, 3D photorealistic BIM visualisations, slab dynamic loading calculations, and container-optimized packing matrices that reduce sea freight volumetric waste by up to 22%.
From the industrial free zones of Dubai (Jebel Ali), Abu Dhabi (Khalifa Port), and Riyadh dry ports to major distribution corridors across Southeast Asia, Africa, Europe, and the Americas, our export logistics teams orchestrate smooth customs, sea-freight bundling, and bilingual on-site installation supervision.
Core Competency Blueprint
In-House Structural Engineering
Finite Element Analysis (FEA) testing guarantees upright profile moment capacities and beam deflection limits prior to metal roll-forming.
Seismic and GCC Environmental Hardening
Specialized paint formulations resist high solar radiation, sand abrasion, and saline moisture in Middle Eastern logistics parks.
Modular OEM & ODM Custom Fabrication
Complete flexibility on upright cross sections (80, 90, 100, 120, 140 mm), custom branding colors, and bespoke material attachments.
Pre-Sorted Labeled Container Loading
Numbered component bundles match your CAD installation blueprint directly, reducing warehouse setup time by up to 35%.
Frequently Asked Questions by Industrial Buyers
Clear, authoritative technical answers addressing building approvals, shipping economics, steel specifications, and layout engineering.
What engineering inputs are required to produce a free 2D/3D warehouse racking layout?
- Building CAD drawing (.dwg) or detailed architectural floor plan including column grids, clear height under roof joists, and emergency exit door positions.
- Pallet dimensions & weights: Depth × Width × Height (including overhang) and maximum gross weight per loaded pallet.
- Material handling equipment (MHE) profile: Forklift model, turning radius (Aisle Width requirement Ast), maximum mast lift height, and top-reach mast derating.
- Environmental specifics: Ambient temperature, cold-store parameters, local seismic zone codes, and municipal fire sprinkler configurations.
How do Chinese steel racking standards (GB) compare to EN 15512, FEM, and ANSI/RMI MH16.1?
How are racking shipments protected against sea-freight corrosion and rough ocean handling?
- Upright frames and beams are nested with heavy-gauge corrugated paper separators and wrapped in multi-layer stretch film with edge corner guards.
- All bundles are banded with high-tensile steel straps onto wooden dunnage or custom steel skids to facilitate smooth forklift container destuffing.
- Small accessories (bolts, safety pins, baseplates, shims) are sealed inside heavy wooden cases with vapor-phase corrosion inhibiting (VCI) desiccants.
Can HEDA Shelves racking systems support Civil Defense and municipal fire department approvals?
What is the realistic factory lead time and shipping duration for high-bay projects?
- Southeast Asia (Singapore, Port Klang, Bangkok): 5–10 days
- Middle East GCC (Jebel Ali, Dammam, Hamad): 18–25 days
- European Main Ports (Rotterdam, Hamburg, Felixstowe): 28–35 days
- North American West Coast (LA, Long Beach): 16–22 days
What support is provided for local mechanical installation and assembly?
- Comprehensive 3D step-by-step installation manuals and bolt torque specifications.
- Clear part-marking tags matching container packing lists and CAD framing codes.
- Remote video conference technical support with our engineering desk during erection phases.
- For mega-logistics hubs or complex structural mezzanine platforms, we can deploy experienced installation site supervisors to guide local labor on-site.
Accelerate Your Warehouse Capacity Today
Connect directly with our structural engineering team. Receive an optimized 2D/3D warehouse layout, detailed load-bearing calculation, and factory-direct price quotation within 24 hours.
