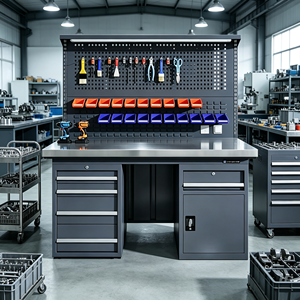

Featured Industrial Warehouse Racking & Workstation Systems
Factory-direct high-density warehouse storage systems, heavy-duty slotted configurations, and cold-formed pallet racking engineered to CE, ISO 9001, and EN15512 global structural compliance standards.
Engineering Metallurgy & Structural Architecture of Slotted Angle Racks
In-depth technical analysis for global warehouse project planners, procurement directors, and civil structural engineers evaluating slotted angle racking profiles and high-bay hybrid systems.
Q235B Cold-Rolled Carbon Steel
Precision cold-forming processes ensure an optimum yield strength (≥235 MPa) and ultimate tensile strength up to 510 MPa. Standard commercial stamped profiles suffer from micro-fracturing along bend radii; our CNC roll-forming lines maintain molecular grain uniformity across heavy gauge steel profiles from 1.5mm up to 3.2mm.
Tri-Hole Modular Slotted Punching
Engineered with high-tolerance computerized stamping dies, our slotted angle steel uprights feature continuous 50mm and 75mm multi-point teardrop and round slot combinations. This enables lightning-fast vertical pitch modification without structural compromise, maximizing volumetric efficiency across multi-tier manual pick zones.
Corrosion Pretreatment & Finishing
Components undergo automated 8-stage pre-treatment, including spray pickling, phosphate rust passivation, and electrostatic epoxy-polyester powder thermosetting (60–90 μm thickness). For maritime, humid, or sub-zero logistics operations, hot-dip galvanization is integrated, delivering ASTM A123 1000-hour salt spray resistance.
Industrial Slotted Angle vs. Heavy Pallet vs. Rivet Boltless Racking
Compare mechanical tolerances, seismic resilience, assembly turnaround, and investment matrices to select the optimal intralogistics framework.
| Evaluation Parameter | Industrial Slotted Angle Rack | Heavy-Duty Pallet Racking | Boltless Rivet / Longspan Shelving |
|---|---|---|---|
| Target Application | Manual order picking, workshop tools, light/medium industrial archives | Heavy palletized unit loads, forklift operations, high-bay automated centers | Hand-loaded medium SKU cartons, retail stockrooms, e-commerce fulfilment |
| Load Capacity Per Tier | 100 kg – 450 kg uniformly distributed load (UDL) | 1,000 kg – 4,500 kg per beam pair (UDL) | 200 kg – 800 kg per shelf tier (UDL) |
| Structural Connection | Precision bolting via corner gusset plates & high-tensile hardware | Teardrop / claw connector with auto-locking safety pins | Interlocking teardrop rivet sockets without fasteners |
| Adjustability Pitch | Continuous 50mm / 75mm slotted matrix flexibility | 50mm / 75mm vertical pitch adjustment | 38mm / 50mm slot pitch variation |
| Customization & Reconfiguration | Maximum: field-cuttability, DIY mezzanine framing, workbench transformation | Engineered strictly according to warehouse civil CAD specifications | Moderate: shelves reconfigured quickly by hand without tooling |
| ROI & Capital Expenditure | Lowest initial CapEx; outstanding durability in harsh environments | Moderate CapEx per pallet slot; high vertical cube utilization | Low CapEx; lowest installation and labor costs |
Future Procurement & Technological Trends in Industrial Racking (2025–2030)
How automation convergence, circular steel supply chains, and environmental resilience are reshaping enterprise intralogistics specifications globally.
Hybrid AGV / AMR Integration
Procurement models are moving toward autonomous mobile robot (AMR) compatibility. Static slotted racks are being re-engineered with rigid baseplate anchors, reinforced ground runners, and optical fiducial marker plates to accommodate robotic underside clearance and automated tugger extraction.
Extreme Climate Metallurgy
With accelerating logistics investment across the GCC, Africa, and Southeast Asia, procurement managers demand coatings certified for extreme microclimates. Thermoset powder formulations must withstand temperatures exceeding 45°C, thermal cycling shock, airborne particulates, and high relative humidity without chalking, flaking, or delaminating.
BIM & Digital Twin Compliance
Enterprise engineering contracts now require complete Building Information Modeling (BIM) files prior to purchase order confirmation. Slotted angle and pallet rack systems are fully mapped in 3D CAD platforms to verify clear aisle widths, NFPA-13 fire sprinkler flue apertures, and seismic base anchors against regional civil safety codes.
Why HEDA Shelves Leads China’s Racking Manufacturing Industry
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a 30,000 m² smart fabrication campus backed by fully integrated, in-house quality control workflows.
300+ Dedicated Specialists
Our in-house technical department includes senior structural engineers, CAD/SolidWorks drafters, and cold-roll fabrication veterans dedicated to end-to-end production integrity.
CE & ISO 9001 Certified
Fully certified under CE (No. 2435-CPR-8605159), ISO 9001:2015 quality assurance (No. 18624Q00169R0M), and RoHS compliance for international bidding tenders.
One-Stop Customization
Full OEM & ODM production for specialized slot patterns, cold room galvanization, custom RAL colors, and project-specific beam load profiles.
Global Export Packing
Standardized container bundle grouping with heavy-gauge poly-strapping, moisture-barrier films, and corner guards labeled for clear on-site erection.
Industrial Slotted Angle Racking: Engineering FAQ
Authoritative answers to the most common structural, load-capacity, and logistic questions raised by global EPC contractors and procurement managers.
What steel grade and structural standard does HEDA Shelves utilize for slotted angle racks? +
How do you calculate the maximum safe load capacity for slotted angle configurations? +
Can slotted angle racking systems be utilized in multi-tier industrial mezzanines? +
What surface finish prevents rust in extreme industrial, marine, or cold chain settings? +
What project parameters are required to receive a formal 3D layout and quotation? +
What lead times and container loading efficiencies can global buyers expect? +
Transform Your Warehouse Volumetric Efficiency Today
Connect with our senior engineering team to receive a free, comprehensive warehouse layout design, structural load calculation report, and factory-direct export quote within 24 hours.
