Engineered Heavy-Duty Industrial Racking Portfolios
Precision cold-roll-formed storage architectures fabricated strictly in compliance with international seismic design, RMI standards, and FEM 10.2.02 codes. Sourced directly from our state-of-the-art Guangzhou manufacturing plant.
OEM ODM Heavy Duty Pallet Racking System AU Standard
Engineered to meet rigorous Australian AS 4084:2023 structural standards. Built with heavy-gauge Q235B upright frames, adjustable 75mm beam increments, and seismic baseplates for bulk 3PL operations.
Heavy Duty Q235B Steel Warehouse Storage Rack
High-tensile structural cold-formed box beams matched with heavy-duty column profiles. Designed for hyper-scale logistics centers handling heavy non-standard skids and high-cube industrial racking layouts.

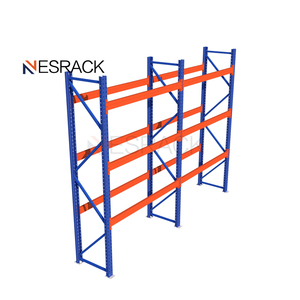

Multirack Pallet Racking & Heavy-Duty Stacking Shelving
Integrated dual-function selective pallet frame featuring intermediate wire mesh or steel panel decks. Rated at 2000kg UDL per bay for mixed-mode pallet staging and lower-tier split-case manual picking.
Industrial Teardrop Pallet Rack System 3000kg Capacity
Fully compatible with North American teardrop configurations. Precision stamped punch hole pitch on 2-inch centers with integrated spring-loaded safety pins for rapid beam repositioning and rock-solid lateral stiffness.
Heavy Duty Radio Shuttle High-Density Storage Racking
Ultra-dense autonomous pallet shuttle architecture. Deep-lane rails facilitate motorized carrier travel up to 1.1 m/s via RF remote control. Slashes forklift operating hours and eliminates internal rack collisions in FMCG hubs.
High-Capacity Adjustable Steel Pallet Racking System
Engineered for dynamic inventories. Featuring proprietary 3-lug and 4-lug cold-stamped beam connectors, electrostatic powder-coated uprights, and customized row spacers to build stable single or double-deep layouts.
High-Bay Selective Pallet Rack with Guide Rail Integration
Optimized for vertical clearances up to 16 meters. Incorporates bottom-mounted mechanical or inductive wire guidance rails for narrow-aisle (VNA) turret trucks, yielding up to 60% higher volumetric floor utilization.
Aluminum FIFO Gravity Flow Rack Rail System
Continuous dynamic flow beds driven by heavy-duty cylindrical rollers and integrated eddy-current centrifugal speed controllers. Guarantees automated First-In, First-Out replenishment for pharmaceutical and food cold chains.
Comparative Engineering Data: System Selection Matrix
Direct technical trade-off comparison designed to assist warehouse project engineers, procurement consultants, and facility architects in pinpointing ideal floor loading, aisle clearances, and throughput dynamics.
| Racking Architecture | SKU Selectivity | Floor Space Efficiency | Typical Loading / Level | Forklift Aisle Clearances | Inventory Rotation | Relative CAPEX Index |
|---|---|---|---|---|---|---|
| Standard Selective Rack | 100% Direct Access | Moderate (35%–40%) | 1,000 kg – 4,500 kg | 3,000 mm – 3,500 mm | FIFO or LIFO | Low / Baseline |
| Narrow Aisle (VNA) High-Bay | 100% Direct Access | Superior (55%–65%) | 1,000 kg – 3,500 kg | 1,650 mm – 1,900 mm | FIFO or LIFO | Moderate-High |
| Drive-In / Drive-Through | Low (Bulk SKU only) | High (60%–70%) | 800 kg – 2,000 kg | Dedicated Entry Lanes | Strict LIFO (FIFO Drive-Thru) | Cost-Efficient |
| Radio Shuttle Automation | Semi-Continuous Density | Maximum (75%–85%) | 500 kg – 2,500 kg | Single Transfer Aisle | Software Selectable FIFO/LIFO | Medium-High |
| Gravity Pallet Flow | High Per-Lane Density | Maximum (70%–80%) | 500 kg – 1,800 kg | Split Load / Unload Faces | Automated Gravity FIFO | Specialized Investment |
| Teardrop System (US Spec) | 100% Direct Access | Standard (35%–45%) | 1,500 kg – 3,500 kg | 3,000 mm – 3,300 mm | Universal Pick Access | Baseline Compatible |
Structural Deflection Compliance Guarantee
All load-bearing beams produced at Guangzhou Heda Shelves are calculated against maximum elastic deflection limits of L/200 under nominal Safe Working Load (SWL), tested in accordance with EN 15512 and ANSI MH16.1 protocols. Our upright profiles achieve structural safety factors of ≥1.65 based on cold-formed yield strength analysis.
Why Global Tier-1 Contractors Source From HEDA Shelves
Operating directly out of our integrated 30,000 square meter production facility in Guangzhou, China, we remove trading markups and communication barriers through direct engineering-to-factory collaboration.
20+ Years Manufacturing Mastery
Established in 2001, we have mastered heavy industrial roll-forming and structural engineering across 10,000+ completed installations worldwide.
30,000 Metric Tons Monthly Scale
Guaranteed supply chain resilience with automated multi-roll mills and continuous punching lines, delivering rapid lead times for giga-warehouse schedules.
Complimentary 2D/3D BIM & CAD Design
Our 300+ technical staff model your pallet throughput, forklift turning radius, and building column grids into complete 3D structural drawings before you commit.
Verifiable International Accreditations
Fully verified with CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Certification No. 18624Q00169R0M, and RoHS heavy-metal compliance.
Full In-House Engineering & Export Packaging Integrity
Unlike trading intermediaries, Guangzhou Heda Shelves Co., Ltd. controls the metallurgy, cold-roll forming, automated robotic welding, and anti-corrosion pre-treatment processes under a single Quality Management System. Each structural beam and upright is engineered from certified primary steel coils (Baosteel and Shougang mills), assuring uniform wall thickness, zero internal residual stress, and high ductility essential for seismic and dynamic loading applications.
To eliminate sea transit rust and transit vibration de-lamination, our export packaging department utilizes protective bubble wraps, structural steel channel dunnage, high-tensile steel banding, and corner protectors that match long-haul oceanic shipping requirements across Middle East ports (Jebel Ali, Dammam, Jeddah), European hubs, and the Americas.
CE Certified (EN 1090)
Cert No. 2435-CPR-8605159
ISO 9001:2015 Accredited
Cert No. 18624Q00169R0M
Our Proprietary 10-Step Manufacturing Workflow
Total vertical integration ensures dimensional micro-tolerances (≤0.5mm) and robust paint finish resilience across our 10 continuous production phases.
Future Procurement Trends in Industrial Warehousing
How global procurement heads and supply chain officers are realigning capital expenditure to navigate automation, green logistics standards, and macroeconomic disruptions.
Direct Transition from Static to Semi-Automated Densification
Rising industrial real estate leasing rates are forcing warehouse operators to abandon standard 3-meter selective aisles. Sourcing is pivoting toward radio shuttle systems and high-bay clad racks where building envelopes are formed directly onto the racking structure.
Scope-3 Green Steel Certification Mandates
Tier-1 European and North American developers now require comprehensive Carbon Footprint Disclosures (EPD). Procuring low-carbon electric arc furnace (EAF) steel and zero-solvent powder formulations has shifted from optional CSR to hard tender prerequisite.
AMR & AGV-Ready Structural Precision Tolerances
Autonomous mobile robots demand ultra-flat floor and racking verticality tolerances (±1.0mm per 10m height). Modern procurement specifies strict plumbness compliance under full operational load to eliminate automated optical scanner misalignment.
Anti-Corrosive Coatings for Extreme Climates
With massive logistics hubs expanding across GCC coastal zones and sub-zero cold chain facilities, buyers are standardizing on hot-dip galvanization and hybrid epoxy-polyester coatings capable of surviving 1,000+ hours of ASTM B117 salt spray testing.
Product Development & Technological Evolutions
Analyzing the metallurgical shifts, dynamic modeling paradigms, and smart IoT structural health monitoring revolutionizing modern warehouse steel fabrication.
Advanced Micro-Alloy Cold-Formed Steels
Transitioning from standard Q235B carbon steel to high-strength low-alloy (HSLA) variants such as Q355B and S420. By optimizing cross-sectional profile geometry with multiple stiffening ribs, frame load capacity increases by 28% while reducing deadweight steel consumption by up to 14%.
Nonlinear FEA Dynamic & P-Delta Analysis
Replacing simplified 2D static load models with advanced 3D nonlinear finite element analysis (FEA). Simulating second-order P-Delta effects, sway stiffness, and beam-to-column semi-rigid joint behavior allows precise seismic dampening design in earthquake zones.
Embedded Structural Health Monitoring (SHM)
Integrating wireless optical fiber Bragg grating (FBG) strain gauges and triaxial acceleration sensors directly into primary upright bases. Facility managers receive real-time alerts regarding forklift impact energy, beam over-deflection, and foundational settlement shifts.
Frequently Asked Questions for Global Procurement Teams
Clear, technically rigorous answers addressing seismic compliance, structural slab calculations, port customs packaging, and third-party validation.
