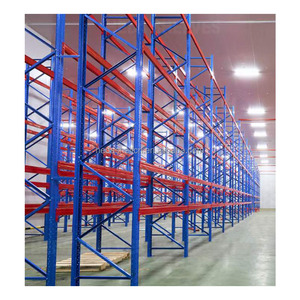

Industrial Commercial Shelving Warehouse Heavy Duty Racking Warehouse Storage Rack Systems
Engineered for medium-to-heavy manual loading profiles. Features upright column perforations at standard increments with robust step-beam connectors.
Featured Longspan Shelving & Industrial Racking Units
Precision cold-formed from high-yield structural steel, our longspan racking architectures deliver adjustable tier pitches, superior distributed load margins, and seamless adaptability for multi-tier or stand-alone warehouse setups.

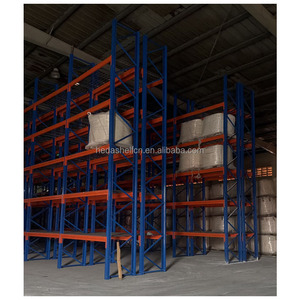

Wholesale Heavy Duty Racking System Steel Storage Shelves, Customized Warehouse Pallet Rack Factory Direct Supply
Industrial heavy-duty steel shelf decks providing structural rigidity for bulk carton and semi-pallet manual picking applications.

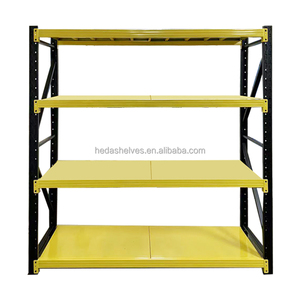

Heda Manufacturer Metal Storage Shelves Heavy Duty Adjustable Steel Garage Shelving Long Span Industrial Warehouse Racks
Versatile longspan configuration suitable for maintenance facilities, high-bay spare part depots, and industrial workshop racking.

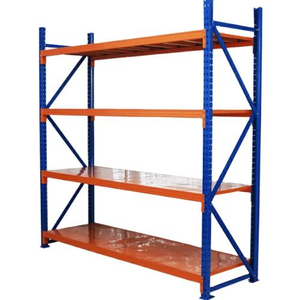

Warehouse Storage Racks 4-Layer Factory Long Span Industrial Steel Adjustable Durable Storage Shelves Racking
Pre-configured 4-level racking framework with electrostatic powder-coated protective finish, designed for fast drop-in shelf assembly.

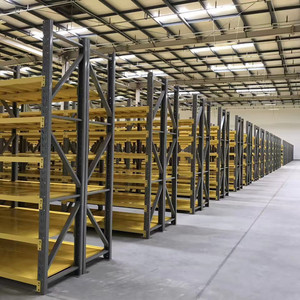

5-Layer Industrial Metal Storage Shelves Adjustable Warehouse Racking Long Span Factory Storage Racks Steel Material
Maximizes vertical cubic capacity for small-box e-commerce distribution. Fully compatible with wire mesh decking or steel panel inserts.

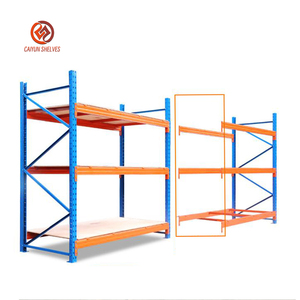

Industrial Stacking Heavy Duty Long Span Shelving Estanteria Storage Metal Shelf Rack for Warehouse
Heavy gauge steel build offering superior rigidity under continuous pick-and-pack duty cycles. Ideal for automotive and FMCG goods.

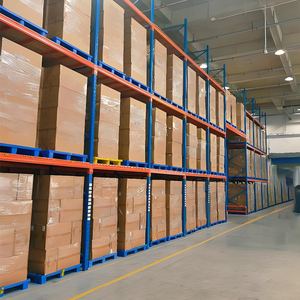

Long Span Heavy Duty Pallet Rack 1000kg-4000kg Capacity Cold Rolled Steel Powder Coated Adjustable Heavy Gauge Steel Racking
Engineered for combined pallet storage and hand-picking levels, handling extreme unit loads up to 4000kg per bay safely.

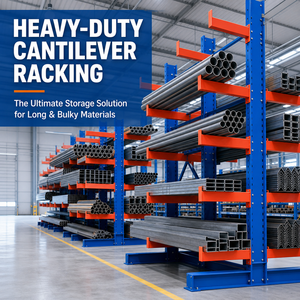

Large Span Safe Reliable OEM Custom Cantilever Rack for Industrial Warehouse Lumber Plastic Profile Long Steel Tube Organizing
Specialized open-front storage solution eliminating frontal column obstructions to accommodate structural tubing, pipes, and timber packs.
2001
Established Year
30,000 m²
Modern Production Hub
30,000 t
Monthly Steel Output
120+
Countries Exported
Industrial Longspan Racking: Engineering Rigidity, Load Dynamics & Structural Safety
As warehouse square footage costs continue to escalate internationally, supply chain directors and facility planners are compelled to rethink traditional floor layouts. Longspan shelving bridges the critical operational void between light-duty slotted angle shelving and heavy-duty industrial pallet racking. Engineered specifically for manual handling, medium-to-bulk storage, and split-case distribution, longspan systems deliver high clear spans without the visual or spatial obstructions presented by intermediary bracing posts.
At the core of an enterprise-grade longspan installation is structural steel integrity. Utilizing high-tensile, cold-rolled structural steel coils (Q235B equivalent), our computerized roll-forming lines continuously stamp, profile, and cold-form upright columns and step beams. Upright frames are engineered as stiffened open omega profiles, distributing compressive axial stresses evenly across baseplates anchored directly to industrial reinforced concrete slabs. Beam-to-column connections rely on precision-tapered connector lugs with mechanical safety drop-pins, virtually eliminating dislodgement risks during aggressive warehouse replenishment cycles.
| System Category | Standard Clear Span (mm) | Load Capacity per Level | Decking Material Options | Optimal Material Handling Strategy |
|---|---|---|---|---|
| Standard Longspan Type A | 1200 mm – 1800 mm | 200 kg – 400 kg UDL | Steel drop-in panels, 18mm Plywood | Manual carton pick, e-commerce order fulfillment |
| Heavy Longspan Type B | 1800 mm – 2400 mm | 500 kg – 800 kg UDL | Pre-galvanized ribbed panels, Wire mesh | Bulk packaging, automotive spares, machine parts |
| Integrated Mezzanine Longspan | 1500 mm – 2200 mm | 300 kg – 600 kg + walkway loads | Drop-over steel decking with mesh backstops | Multi-tier manual consolidation, vertical order picking |
| Longspan Cantilever Hybrid | Custom cantilever arms | Up to 3,000 kg total arm load | Open arm or continuous timber deck | Structural tubing, lumber bundles, long PVC conduits |
Surface treatment constitutes another decisive pillar of reliability. Standard painted finishes routinely chip under daily inventory friction, leading to corrosion hot-spots in non-climate-controlled storage warehouses. To provide long-term durability, all components undergo a strict 10-stage pre-treatment regimen including chemical degreasing, acid pickling, and micro-crystalline phosphating prior to the electrostatic deposition of epoxy-polyester thermoset powder coatings. The cured finish exhibits superior resistance to impact cracking, chemical abrasives, and regional ambient humidity.
Strategic Sourcing Analysis
Future Procurement Trends in Industrial Warehousing Systems
Forward-looking supply chains are transitioning from short-term transactional sourcing to data-backed, modular storage architectures designed for longevity, high modularity, and automated integration.
Hybrid Automation Compatibility
Modern longspan systems are increasingly pre-engineered to interface with Autonomous Mobile Robots (AMR) and Goods-to-Person (GTP) picking shuttles, requiring tighter tolerances and structural deflection ratios (L/200 or better).
Total Cost of Ownership (TCO) Prioritization
Procurement directors are shifting emphasis away from rock-bottom spot steel prices toward structural lifespan, certified load guarantees, container-optimized nesting geometry, and rapid boltless installation architectures.
Certified Regulatory Conformance
International risk insurers and municipal fire authorities enforce stringent guidelines regarding clear aisle widths, flue space compliance, and seismic dampening. Verifiable CE (EN 15512) and ISO certifications have become non-negotiable prerequisites.
Manufacturing Evolution
Technological Evolution: Smart Roll-Forming & Surface Metallurgy
From laser-guided CNC multi-station profiling to environmentally neutral pre-treatments, our automated factory in Guangzhou represents the latest generation of structural storage fabrication.
Automated Continuous Roll-Forming
Eliminating internal residual stresses through progressive 18-stage cold-roll stamping, guaranteeing straightness deviation under 1.5mm per 10 meters on long upright structures.
High-Resistance Polymer Finishes
Transition to low-cure thermosetting powder resins coupled with nanotech zirconium oxide pretreatments, boosting cross-hatch adhesion and surpassing 500-hour salt spray benchmark testing.
BIM & Parametric CAD Modeling
Every customized client longspan proposal is backed by parametric structural finite element analysis (FEA), calculating real-world seismic drift and live slab reaction loads before manufacturing.
Why Partner With Us
Enterprise Competence & Direct Factory Advantages
Guangzhou Heda Shelves Co., Ltd. combines more than two decades of structural racking production with end-to-end design, strict quality controls, and international logistical management.
20+ Years Industry Heritage
Established in 2001, our engineering team has designed and delivered storage installations across logistics, automotive, chemical, and retail operations in over 120 global markets.
30,000 m² In-House Production
Fully vertically integrated facility in Guangzhou featuring automated roll-forming machines, laser tube profiling lines, robotic welding stations, and continuous powder coating loops.
30,000 Tons Monthly Output
Mass production capabilities allow us to support high-volume regional distribution tenders while keeping lead times reliable and raw material costs competitively managed.
Traceable CE & ISO 9001 Standards
Certified under CE No. 2435-CPR-8605159, ISO 9001:2015 No. 18624Q00169R0M, and RoHS guidelines. We maintain comprehensive mill test certificates and full structural calculation sheets.
Free 2D CAD & 3D Visual Layouts
Our experienced structural engineers review your architectural floor plans to return turnkey CAD layout proposals and 3D renderings, speeding up stakeholder approvals.
Global Export & Custom Packing
Every shipment is packed with protective banding, edge guards, and systematically coded bundle labels mapped directly to step-by-step installation guides.
Procurement Knowledge Base
Frequently Asked Questions for Longspan Racking Buyers
Clear, engineer-level answers addressing technical specifications, structural capacities, international export logistics, and on-site assembly.
Q. What distinguishes industrial longspan shelving from selective pallet racking?
Longspan shelving is specifically engineered for non-palletized manual hand-loading or split-case carton storage. While pallet racking typically spans 2300mm to 3600mm to support multi-ton palletized loads via forklift, longspan shelving utilizes lighter, high-rigidity step-beam profiles and solid shelf decks (steel panels, wire mesh, or timber) to support 200kg to 800kg per level with 100% direct picking access.
Q. How do you verify and calculate Uniformly Distributed Load (UDL) capacities?
Our load capacities are engineered in accordance with EN 15512 specifications using finite element analysis (FEA) and empirical destructive testing. UDL assumes the operational payload is evenly distributed across the clear span of the shelf beam. Safety pins on each beam-to-column connector lock prevent accidental uplift, maintaining a safety design factor of at least 1.5 to 2.0 under continuous operational load.
Q. Can longspan systems be engineered into multi-tier mezzanines?
Yes. Longspan upright frames can be structurally extended upwards to support intermediate multi-tier cat-walks or mezzanine walkways. This rack-supported configuration can double or triple usable floor surface area without requiring external building structural renovations, serving as an effective solution for high-density manual order sorting hubs.
Q. What anti-corrosion finishes are available for high-humidity or cold environments?
All our longspan components undergo mechanical shot blasting, multi-stage acid pickling, and phosphating followed by an electrostatic epoxy-polyester powder coating cured at 180°C–200°C. For extreme humidity, outdoor canopies, or sub-zero blast freezer conditions, we supply continuous hot-dip galvanized finishes or pre-galvanized cold-formed steel coils that meet international anti-corrosion standards.
Q. What building information is required to receive a comprehensive CAD layout and quotation?
To prepare an accurate engineering layout, our team needs: (1) Architectural floor drawings indicating column grids, clear heights, and door locations; (2) Unit carton dimensions and weight profiles; (3) Preferred shelf tier heights and target vertical levels; and (4) Your required target shipping port and timeline. We typically return a 2D CAD plan and a detailed 3D proposal within 24 to 48 hours.
Q. How are longspan components packaged for long-distance container freight?
Upright frames are bundled flat with structural steel strapping and edge-protecting angle paper, while step beams are palletized on custom wood cradles with anti-friction wrapping. All component bundles are clearly marked with item codes corresponding directly to the provided assembly blueprint, ensuring rapid on-site sorting and straightforward installation.
Optimize Your Warehouse Density with HEDA Longspan Racking
Partner directly with an established China racking manufacturer. Request our comprehensive industrial product catalog, verify our structural technical specifications, and receive a customized warehouse CAD layout tailored directly to your facility.
