Featured Warehouse Picking & High-Density Storage Racks
Engineered to eliminate picking bottlenecks, optimize micro-fulfillment cycle times, and maximize vertical cubic capacity. Explore our structural steel picking configurations developed for heavy industrial throughput and automated distribution.
25+
Years Engineering Expertise
30,000 m²
Self-Owned Factory Floor
30,000 t
Monthly Structural Output
120+
Global Export Markets
Industry Whitepaper
Engineering Dynamics: The Evolution of Picking Racking Architecture
In an era of compressed fulfillment SLA windows, multi-channel distribution, and rising industrial real estate costs, picking racking is no longer static shelving—it is the mission-critical kinetic infrastructure of modern intralogistics.

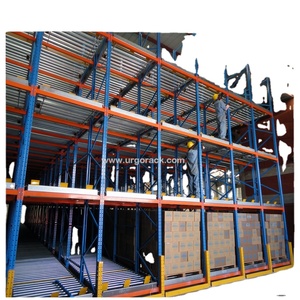

Static vs. Kinetic Gravity Flow
Traditional static manual picking racking creates severe picking congestion when SKU velocity spikes. By integrating precision roller tracks angled between 2.5° and 3.5°, picking lines achieve self-replenishing FIFO material flows.
This separates stocking technicians from order picking staff, reducing intra-aisle forklift hazards and elevating pick-face ergonomic efficiency by up to 42%.
Pick-to-Light (PTL) Integration
Manual picking accuracy degrades sharply during peak operational shifts. Next-generation picking racking designs incorporate optical busbar trunking, LED directional indicators, and acknowledgement buttons connected directly to Warehouse Management Systems (WMS).
This eliminates paper pick lists, reducing training time for temporary staff to under 30 minutes while slashing picking error rates down to 0.02%.
Vertical Lift Modules (VLM) & AMR Synergy
As vertical warehouse clearances exceed 12 meters, automated Vertical Lift Modules (VLM) and Autonomous Mobile Robot (AMR) shelf-carrier integrations represent the definitive future of order fulfillment.
Our VLM structures use micro-processor controlled extractor trays that present items directly to the ergonomic waist-height picking window, recovering 85% of standard floor footprint.
Procurement Decision Matrix
Picking Racking Engineering Specifications Matrix
Select the ideal mechanical structure based on payload dynamics, SKU profile, and order picking operational methodologies.
| Racking System Type | Typical Payload / Shelf | Picking Velocity | Stock Rotation | Optimal Industry Application |
|---|---|---|---|---|
| Gravity Flow Roller Racks | 150 – 800 kg / level | Very High (Continuous) | Strict FIFO | Pharmaceutical, FMCG, Cold Store Processing |
| Digital Pick-to-Light (PTL) | 100 – 400 kg / level | Ultra High (Guided) | Dynamic / Batch | E-Commerce Micro-Fulfillment, Electronics |
| Heavy Duty Longspan Shelving | 300 – 1,000 kg / level | Medium to High | Flexible | Automotive Aftermarket, Heavy Machinery Spares |
| Rack-Supported Mezzanines | 300 – 800 kg / m² | High (Multi-tier) | Zone Picking | Garments, Retail Distribution Hubs, 3PL |
| Automated VLM Modules | 250 – 750 kg / tray | Maximum (Automated) | System Directed | Precision Tooling, High-Value Aerospace Components |
Strategic Sourcing Insights
Future Procurement Trends in Industrial Picking Systems (2025–2030)
What international procurement directors, supply chain VPs, and warehouse EPC contractors must evaluate when selecting Tier-1 manufacturing suppliers in China.
High-Tensile Cold-Rolled Steel (Q235B vs Q355B)
Procurement teams are moving away from standard commercial cold-rolled sheets toward high-yield Q355B steel for upright profiles. The higher yield strength allows for reduced dead-weight profile designs while increasing overall carrying capacity and seismic resistance ratings under FEM 10.2.02 and RMI standards.
Advanced Pretreatment & Anti-Corrosion
With cross-border multi-climate deployments—ranging from high-humidity coastal hubs like Jebel Ali and Dammam to sub-zero cold chain depots—procurement specifications now mandate complete pickling and phosphating lines prior to automated electrostatic epoxy powder coating to guarantee zero micro-flaking.
Container Packing Density & Direct Modular Assembly
Rising oceanic freight volatility has made container packing optimization critical. Modern picking racking lines are engineered around precision teardrop, butterfly, or diamond pitch punch-holes that eliminate on-site welding, fit exact 40HQ internal cubic envelopes, and allow rapid boltless installation.
Factory Direct Advantages
Why Global Supply Chains Trust Guangzhou HEDA Shelves
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. delivers full-lifecycle manufacturing, custom structural engineering, and direct overseas turnkey supply.
30,000 m² In-House Production
Equipped with automated continuous roll-forming lines, automated column punching machines, robotic beam welding cells, and industrial curing ovens capable of delivering 30,000 tons monthly.
Free 2D CAD & 3D BIM Layouts
Our in-house structural engineers evaluate clear ceiling heights, slab deflection limits, forklift turning radiuses, and pallet loads to supply detailed engineering schematics within 24 to 48 hours.
Verified CE & ISO 9001:2015
Full international certification (CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 No. 18624Q00169R0M, and RoHS Compliance), meeting strict tier-one audit and civil defense compliance requirements.
Proven Across 120+ Countries
Turnkey project references across the UAE (Jebel Ali, Khalifa Port), Saudi Arabia (Riyadh, Dammam, Jeddah), Southeast Asia, Africa, and Europe with full export container bundling and overseas assembly guidance.
Procurement FAQ
Frequently Asked Questions: Sourcing Picking Racks from China
Everything technical procurement managers and facility planners need to know before issuing a purchase order.
What are the key technical parameters required to quote a picking racking system?
To provide an exact structural calculation and quotation, we require: (1) Warehouse architectural drawings indicating column grid locations, usable clear height under truss, and obstacle clearances; (2) Unit load parameters including carton/tote or pallet dimensions (W x D x H) and maximum gross weight; (3) SKU velocity metrics (pick frequency per hour); (4) Material handling equipment (manual carts, order pickers, or reach trucks) and aisle width specifications; and (5) Regional environmental conditions (seismic ratings, coastal salt spray, or sub-zero cold room environments).
How does your factory ensure structural steel load-bearing safety?
Every picking racking system engineered by HEDA Shelves undergoes rigorous Finite Element Analysis (FEA) compliant with international design codes (EN 15512, FEM 10.2.02, and RMI standards). Raw steel coils undergo spectrometer chemical verification and tensile yield testing. Completed uprights and box beams are tested on hydraulic load-deflection test stands to guarantee a minimum structural safety factor of 1.5 to 1.65 under full working loads.
What surface treatment is utilized to prevent rust in high-humidity or cold climates?
All components undergo a complete 9-stage automated chemical pretreatment process consisting of degreasing, acid pickling to eliminate mill scale, and zinc phosphating to create an impenetrable crystalline conversion layer. Components are then finished with electrostatic epoxy-polyester powder coating cured at 180°C–200°C. For severe coastal environments or sub-zero cold storage facilities, hot-dip galvanizing (HDG) to ASTM A123 standards is available.
Can picking racking be retrofitted with Pick-to-Light (PTL) or automated roller conveyors later?
Yes. Our standard medium and heavy-duty picking shelving profiles feature universal 50mm/75mm upright pitch punching with pre-machined cable transit channels and accessory clipping slots. This modular architecture allows clients to deploy cost-effective static manual picking racks today, and seamlessly mount flow roller tracks, electronic PTL light displays, or front-facing conveyor runways as fulfillment volumes scale without replacing structural frames.
What are your export shipping terms, lead times, and on-site installation support?
Standard production lead time ranges between 15 and 25 working days depending on order tonnage. We support FOB, CIF, CFR, and DDP terms with direct shipping out of Guangzhou, Shenzhen, or Foshan ports. Cargo is packed using corrugated strapping, bubble wrap protective wrapping, and heavy-gauge steel cradles numbered to correlate directly with included 3D installation blueprints. For major projects, we provide remote video installation guidance or dispatch certified project managers to oversee local contractor assembly.
