Direct-from-Factory Small & Modular Pallet Racking Systems
Modern material handling operations demand more than standard catalog shelving. As spatial footprints tighten and high-velocity micro-fulfillment centers proliferate, sourcing certified Q235B structural pallet racks directly from Tier-1 Chinese manufacturers eliminates distributor markups while securing certified structural resilience.
2001
Established Manufacturing Baseline
30,000m²
Continuous Automated Facility
30,000t
Monthly Cold-Forming Capacity
120+
Direct Export Partner Countries
Technical Analysis: What Classifies High-Integrity Small Pallet Racking?
In global supply chain lexicon, "Small Pallet Racking" refers to compact selective footprints, short-depth bays (such as 36x18 inch modules), low-profile teardrop bays, and intermediate tier racks handling unit loads between 500 kg to 3,000 kg per level. While massive automated high-bay distribution centers dominate media attention, small and medium enterprises (SMEs), automotive service centers, cold rooms, and urban dark stores depend critically on smaller modular pallet frames that can be reconfigured rapidly without civil structural modification.
From an engineering standpoint, Chinese manufacturing standards have undergone massive precision evolution. Rather than using generic structural angle irons, top-tier manufacturers employ high-tensile Q235B cold-rolled steel coils. The metallurgical composition ensures optimum yield strength (235 MPa) paired with elongation capacity exceeding 26%, preventing brittle fracturing during high-impact forklift docking or seismic vibrational loading.
| Racking Architecture | Typical Load Rating | Steel Grade & Gauge | Surface Treatment Standard | Primary Operational Best Fit |
|---|---|---|---|---|
| Compact Selective Pallet | 1,000 - 3,000 kg / Tier | Q235B Cold-Formed (1.5 - 2.5mm) | Phosphated Electrostatic Polyester Powder (60-80μm) | Fast-moving mixed SKUs with 100% direct picking accessibility. |

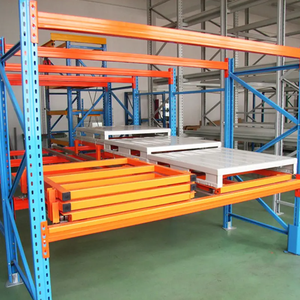

| Push-Back Nested Carts | 1,000 - 1,500 kg / Pallet | Structural Channel + Heavy Roller Track | Pre-treated Epoxy-Poly Hybrid Anti-Wear Coating | Medium rotation, 2-to-6 deep high density LIFO cold storage. |
| Gravity Pallet Flow (FIFO) | 500 - 1,200 kg / Lane | Reinforced Upright + Steel Brake Rollers | Galvanized Rollers + Baked Poly Finish | Perishable items, date-sensitive pharmaceuticals & food logistics. |
| Modular Light-Bay (36"x18") | 300 - 800 kg / Shelf | Stamping Interlock Cold Steel (1.0 - 1.5mm) | Scratch-Resistant Micro-Textured Powder Coat | E-commerce bin storage, automotive parts picking, hardware stores. |
Market Projections & Forward Trends
Procurement & Technological Trends in Small Pallet Racks (2025–2030)
Global logistics directors are pivoting away from rigid, permanent storage installations. Procurement strategies are adjusting to three distinct market forces:

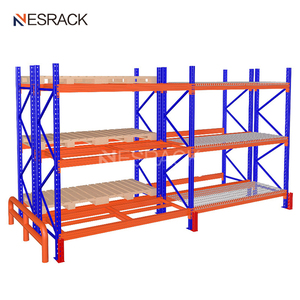

1. Boltless Hybrid Interlocking
Traditional nuts-and-bolts configurations are being phased out in small pallet rack segments. The market demands toolless 50mm and 75mm pitch connection knuckles featuring auto-locking safety pins, slashing field assembly man-hours by up to 45% during warehouse commissioning.
2. AMR & AGV Floor Compatibility
Small pallet racks are increasingly acting as pick stations for autonomous mobile robots. Footplate designs now feature flush-embedded anchor sleeves and recessed base profiles to avoid sensor blinding and wheel interference along automated robotic transit corridors.
3. Severe Climate Anti-Corrosion
With industrial expansion across the GCC, coastal Southeast Asia, and Latin America, basic spray paint is obsolete. Procurement specifications mandate complete multi-stage pre-treatment (pickling, phosphating) and heavy-duty thermosetting powder formulations resistant to extreme heat and saline exposure.
Manufacturing Excellence
Direct Factory Advantages: Engineering Since 2001
Guangzhou Heda Shelves Co., Ltd. provides factory-direct structural integrity without third-party trading intermediation.
Rigorous Traceable Certification
Every production run adheres strictly to certified ISO 9001:2015 quality frameworks (Cert No. 18624Q00169R0M) and European CE directives (No. 2435-CPR-8605159). Tensile coupon tests, weld seam micro-examinations, and coating salt-spray verifications accompany export documentation.
Full 10-Step Automated Production
Manufacturing operations run completely in-house across 30,000 m²: Raw Material Slitting → Precision CNC Punching → Cold Bending → High-Frequency Roll Forming → Surface Polishing → Robotic Welding → Pickling & Phosphating Pretreatment → Electrostatic Powder Curing → Palletized Export Bundling.
Zero-Cost 2D CAD & 3D Modeling
Before cutting a single beam, our engineering desk translates your architectural building drawings into optimized spatial layouts. We verify aisle turning radii, calculate point load distributions against slab psi tolerances, and supply permit-ready 3D renders matching regional fire defense codes.
Procurement Clarity
Small Pallet Racking Procurement FAQ
Essential answers compiled by structural engineers and export logistics specialists for overseas buyers.
Q1: How do I determine whether my warehouse needs small selective racking or cantilever racks?
Selective pallet racks are engineered for palletized uniform cubic loads (e.g., 1200x1000mm or 1200x800mm EUR pallets) accessed frontally. If your facility stores non-palletized, long-span profiles such as PVC piping, structural steel beams, timber planks, or aluminum extrusions, an open-front cantilever rack eliminates column interference and optimizes storage density.
Q2: What container loading factor can be expected when ordering small pallet racks from China?
Because pallet uprights and box beams possess high length-to-weight ratios, racking generally cubes out before hitting gross container weight limits. In a standard 40ft High Cube (40HC) container, our customized nesting strapping protocols typically fit 22 to 26 metric tons (approx. 65-68 CBM) of packaged uprights and nested beams, minimizing overseas ocean freight costs per storage location.
Q3: Can custom beam colors and upright depths be fabricated without large MOQ penalties?
Yes. Operating our own automated roll forming and powder coating lines allows us to accommodate custom RAL color codes (e.g., corporate blue uprights with orange beams) and non-standard bay depths (such as 36x18 inch or custom 600mm deep mini-racks) with commercial MOQs starting from standard consolidated project runs.
Q4: How is steel surface rust prevented during long ocean transit across high-humidity zones?
All structural components pass through industrial pickling to strip scale, followed by iron-phosphating to create a microscopic crystal barrier. Electrostatic polyester powder is cured at 180°C–200°C. Finished bundles are wrapped in scratch-resistant polyethylene film, corner-protected with cardboard angle guards, and secured onto steel skids.
Request Your Custom Engineering CAD Layout & Quote
Send your warehouse dimensions, ceiling clear heights, and expected pallet weights. Our engineering team will produce a 2D floor plan layout, 3D visual render, and detailed bill of materials within 24 hours.
