Factory-Direct Pallet, Cantilever & Flow Racking Systems
Manufactured in Guangzhou, China, our dynamic flow beds, heavy-duty pallet systems, and cantilever configurations undergo rigorous FEA structural analysis and continuous quality auditing for global warehousing operations.
Engineering White Paper: Span Track Dynamic Flow Racks vs. Static Pallet Storage
In modern supply chain engineering, order picking accounts for over 55% of total warehousing operational expenditure. Traditional static pallet shelving and longspan racking enforce unproductive operator travel times, known across logistics studies as deadhead transit. Span track flow racking—frequently categorized under carton flow racking, roller track gravity systems, and dynamic wheel beds—converts conventional static pallet rack bays into continuous, self-replenishing, gravity-fed picking faces.
By mounting structural aluminum or galvanized steel track lanes outfitted with low-friction polycarbonate or extruded steel skate wheels directly onto existing step beams or structural box beams via drop-in hanging brackets, warehouses achieve strict First-In, First-Out (FIFO) stock rotation. When an order selector removes the front SKU carton from the discharge face, behind-the-scenes cartons instantly advance by pure gravitational force along an engineered 3° to 5° pitch incline. This completely separates stocking labor from order fulfillment pick faces, mitigating operational collisions and optimizing picking density up to 300% compared to static shelving.
| Evaluation Parameter | Guangzhou HEDA Heavy Span Track Flow | Conventional Wheel-Bed Flow | Static Selective Shelving |
|---|---|---|---|
| Track Construction & Material | Heavy-duty galvanized steel C-channel / Extruded Aluminum | Stamped sheet-metal pan with plastic snap wheels | Static steel shelf plates / wire decking only |
| Point Load Capacity | Up to 150 kg/m linear track (High-Impact Rollers) | 40 - 60 kg/m (Susceptible to rim fracturing) | Uniform static rating only (no rolling resistance) |
| Inventory Rotation Compliance | Guaranteed Automatic FIFO (Separate load & pick aisles) | Variable FIFO (Prone to carton skewing & jams) | Typically LIFO / Manual inventory shuffling |
| Drop-in Retrofit Compatibility | Universal clip brackets fit step, box, and structural beams | Requires proprietary hanger brackets & shims | N/A (Fixed structural weldment or hook-in) |
| Pick Face SKU Density | +250% denser split-case throughput | +120% density | Baseline benchmark |
| Harsh Climate Resistance | Phosphated & electrostatic coated, suited for 45°C+ heat | Standard indoor zinc plating (oxidizes rapidly) | Standard paint (prone to scratching & flaking) |
Engineering span track flow lanes requires calculated kinematic balancing: the gradient slope angle must overcome the carton friction coefficient without causing carton collisions that damage fragile retail merchandise. Guangzhou Heda Shelves Co., Ltd. incorporates end-stop impact dampers, integrated knuckle-track picking trays for ergonomic visual picking, and customized lane guides that prevent packaging deviation under continuous dynamic descent.
Future Sourcing & Procurement Trends in Flow Racking
Global logistics procurement managers in the Middle East (UAE, KSA, Qatar), North America, and Europe are transitioning from disconnected static racking to modular, sensor-equipped gravity replenishment ecosystems.
1. AMR & AGV Replenishment Compatibility
Future fulfillment centers are designing rear load aisles for Autonomous Mobile Robots (AMRs). Span track assemblies are now manufactured with zero-clearance rear load funnels and optical sensors that signal automated inventory carriers when reserve levels dip below threshold.
2. Cold Chain & Coastal Corrosion Specification
In high-growth cold chain zones such as Dubai Industrial City and Riyadh Logistics Zone, buyers specify hot-dip galvanization and electrostatically applied anti-microbial thermoset coatings to withstand condensation, aggressive sub-zero humidity, and airborne coastal saline ingress.
3. Direct Retrofit & Circular Supply Chains
Instead of scrapping structural teardrop or box-beam pallet racks during automation overhauls, procurement teams are demanding modular drop-in span tracks that instantly convert existing selective pallet bays into high-efficiency pick modules without slab re-anchoring.
Global Flow Rack Industry Evolution: Pick-to-Light & High-Throughput Fulfillment
The velocity of e-commerce SKU proliferation has driven flow rack design into the smart intralogistics era. Modern China best span track suppliers are integrating low-voltage digital light channels, pick-to-voice indicators, and dynamic lane dividers directly into the track extrusion. This eliminates order selection errors, achieving picking accuracy rates of 99.98%.
Furthermore, weight-optimized high-impact polymer skate wheels are replacing heavy pressed-steel wheels for split-case handling. Engineered with self-lubricating acetal resin bearings, these rollers achieve smooth travel even at low inclination angles (down to 2.5°), protecting soft corrugated cartons from bottom crease buckling and avoiding roller jamming across long continuous runs.
Guangzhou HEDA Shelves: China’s Premier Racking Factory
Operating an advanced 30,000 square meter fabrication facility with 300+ technical personnel, HEDA Shelves sets the benchmark for factory-direct warehouse storage engineering.
Certified Quality Control
CE Certified (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and strict RoHS adherence across raw steel and surface coatings.
Free 2D CAD & 3D Modeling
Our senior structural team delivers bespoke CAD layout plans, clear height deflection calculations, and photorealistic 3D warehouse simulations before order sign-off.
Civil Defense Ready
All drawings provide precise seismic load ratings, calculated sprinkler flue space clearances, and egress aisle dimensions tailored for GCC and EU statutory approvals.
Optimized Sea Export Packing
Every bundle is bundled with protective interleaving, barcoded to match architectural site erection drawings, ensuring frictionless sorting at major regional seaports.
Our 10-Step In-House Precision Manufacturing Line
From prime cold-rolled steel coils to automated powder curing, every component is fabricated entirely under one roof at our Guangzhou production campus.
1. Raw Materials Inspection
2. Precision Steel Cutting
3. Automated Punching
4. Cold Bending Forming
5. Profile Roll Forming
6. Surface Polishing
7. Beam Robotic Welding
8. Pickling & Phosphating
9. Electrostatic Coating
10. QC & Export Loading
International Field Deployments & Case Studies
Discover how multinational distribution hubs maintain structural resilience under demanding throughput, extreme ambient heat, and intensive 24/7 operating cycles.
Chemical & Petrochemical Industrial Storage
Engineered corrosion-resistant upright profiles with integrated containment decking and high-load capacity pallet flow lanes for aggressive chemical barrel management.
High-Velocity E-Commerce Fulfillment Center
Multi-tier picking platform integrating 480 span track carton lanes, multiplying split-case selection speeds while cutting walking fatigue by 42%.
Regional Auto Parts Re-Export Facility

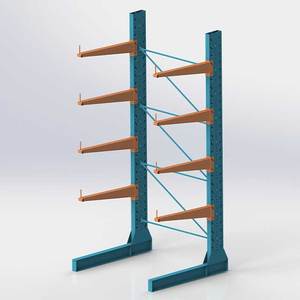

Combination of cantilever racks for long exhaust pipes and span track gravity lanes for rapid sorting of thousands of aftermarket components.
International Standards & Quality Approvals
Procurement teams, third-party structural inspectors, and insurance underwriters require documented traceability. Our factory operates under validated European and global accreditations.
CE Certification
No. 2435-CPR-8605159
ISO 9001:2015 Quality
No. 18624Q00169R0M
RoHS Environmental
Heavy Metal-Free Finishes
Structural Safety Audit
Third-Party Deflection TestedFrequently Asked Questions on Span Track & Flow Racks
Essential technical answers for warehouse directors, industrial architects, and global procurement specialists.
Can span track flow lanes be retrofitted into our existing pallet racks without beam replacement?
How do you calculate the optimal incline slope angle and avoid carton damage?
How does HEDA Shelves ensure corrosion protection in extreme heat and coastal humidity?
What structural data is required to provide a free 2D CAD layout and structural quotation?
Do your engineering layouts support Civil Defense, OSHA, and insurance compliance?
What are the sea freight lead times and packaging specifications for international delivery?
Accelerate Your Order Picking Speeds & Maximize Storage Density
Connect directly with HEDA Shelves senior storage system engineers. Request a free custom 2D/3D warehouse CAD design, structural load calculation, and factory-direct quotation tailored to your operational specifications.
