China Best Storage Racking System Manufacturers & Factory

Global Benchmark in High-Density Pallet Racking, AS/RS Engineering, Mezzanine Floors, and Custom Logistics Warehousing Solutions Built Under Rigid European Standard Protocols

Engineered Structural Excellence

Featured Heavy-Duty Warehouse Storage Racks

Precision-fabricated utilizing certified Q235B and high-yield alloy steels, cold-roll formed, and protected by advanced electrostatic powder coat systems for cold stores, mega distribution hubs, and automated depots.

Jracking Industrial Warehouse Racks Shelves EU Standard Pallet Rack System for Cold Room

Jracking EU Standard Pallet Rack System for Cold Room

Sub-zero powder coating, corrosion-resistant, high floor-to-ceiling clearance stability.
Product Details →

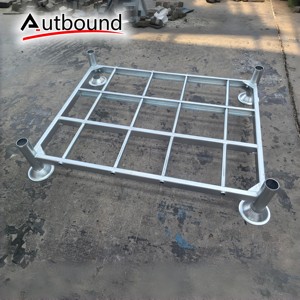

Heavy Duty Q235 Steel Post Pallet Stackable Storage Racks With Shelf

Heavy Duty Q235 Steel Post Pallet Stackable Racks

Modular stackability, bulk storage handling, detachable structural posts for freight optimization.
Product Details →
High Density 5 Layer Heavy Duty Radio Shuttle Racking Automated Pallet Storage System

High Density 5-Layer Radio Shuttle Pallet Racking

Semi-automated deep lane shuttle carriage, FIFO/LIFO compatible, severe footprint reduction.
Product Details →
Heavy Duty Industrial Adjustable Single Sided Cantilever Rack

Heavy Duty Adjustable Industrial Cantilever Rack

Engineered for long-span stock: steel tubes, timber, bar stocks, up to 3000kg/arm load rated.
Product Details →

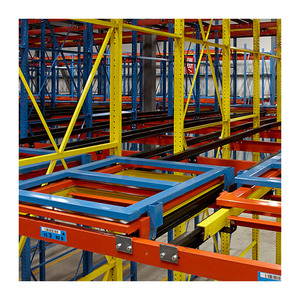

Mracking Push Back Pallet Racking System for Sale Customizable Back to Back

Customizable Push Back Gravity Cart Pallet System

Telescopic rolling carriers, high lane selectivity, dynamic gravity feed without internal aisle driving.
Product Details →
Foldable Durable Metal Steel Powder Coated Warehouse Storage Detachable Heavy Duty Roll Fabric Pallet Stacking Rack

Foldable Heavy Duty Fabric Roll Stacking Rack

Space-collapsible frame, specialized textile roll cradles, reinforced corner socket brackets.
Product Details →
Custom Adjustable Anti-Rust Storage Metal Stacking Racks Pallet Racking System Steel Shelving VNA Racking Narrow Aisle Rack

Very Narrow Aisle (VNA) Heavy Duty Pallet Rack

High-density vertical profiling up to 15m, wire/rail guidance compatibility, high turnaround yield.
Product Details →
SHUNLI SL-AS004 China Factory Customized Heavy Duty Automated AS&RS Pallet Stacking Rack Alloy Steel 500kg-1500kg Capacity OEM

SHUNLI Automated AS/RS Stacking High-Bay Rack

Fully integrated automated retrieval, robotic stacker crane interface, alloy steel engineering.
Product Details →
25+
Years Engineering Pedigree
30,000 m²
Advanced Production Facility
30,000 t
Monthly Cold-Forming Capacity
120+
Countries Deployed Globally
Engineering Whitepaper & Insights

Global Procurement Trajectory: The Next Decade of Storage Racking

An authoritative evaluation of macro-supply chain developments, structural metallurgic shifts, and high-density intralogistics procurement demands.

Modern global logistics facilities are moving rapidly away from passive static storage toward active, volumetric-efficient, and technologically coordinated distribution infrastructures. As industrial land values surge across North America, Europe, the GCC, and Southeast Asia, warehouse developers can no longer afford the structural footprint waste common to legacy wide-aisle configurations. Industrial storage procurement has transitioned from buying isolated steel profiles to procuring integrated structural assets designed around finite element analysis (FEA), dynamic load factors, and automation readiness.

Contractors, supply chain executives, and distribution facility engineers today balance severe operating demands: volatile SKU proliferations, shortened order lead times, and the urgent demand to build vertically. In this comprehensive procurement overview, our engineering teams break down the critical procurement vectors transforming the heavy-duty racking manufacturing industry.

1. Semi-Automated Migration

Facilities are replacing classic Drive-In systems with intelligent Radio Shuttle Pallet Racks. Shuttles eradicate forklift collision risks in deep tunnels while increasing volumetric utilization rates up to 85%.

2. High-Bay AS/RS Growth

Industrial racking is moving vertically up to 40 meters. Automated Storage and Retrieval Systems (AS/RS) demand millimetric vertical tolerances, high-yield cold-formed alloy steel, and rigid deflection mitigation.

3. Cold Chain Specialization

With chilled storage energy expenses skyrocketing, high-density configurations (push-back, dynamic pallet flow, automated deep lane) engineered to prevent cold air stagnation are essential procurement mandates.

4. High-Yield Metallurgy

Global engineers demand traceable Q235B and Q355B micro-alloy cold-rolled profiles treated with multi-stage phosphating and anti-corrosive electrostatic powder coatings capable of withstanding severe operating environments.

Structural Analysis: Advancements in Racking Design Standards

To meet stringent global building and seismic safety codes—such as RMI (Rack Manufacturers Institute) in the Americas, FEM 10.2.02 across Europe, and AS4084 in Australia—modern manufacturing has evolved from basic roll-forming lines to robotic multi-axis CNC punching and automated cold-roll forming stations. Upright profiles must display continuous uniform cross-sections with exact center-line punch patterns, allowing dynamic modularity while sustaining column load capacities exceeding 25,000 kg per bay.

The strategic deployment of 3D structural beam calculation modeling ensures that connector jaws (such as 3-claw or 4-claw cold-stamped connectors) produce exceptional moment connection rigidity under maximum static and seismic dynamic loading. Simultaneously, beam deflection standards are engineered beyond standard limits (often exceeding L/200 down to L/300) to ensure smooth integration with automated optical sensors deployed by automated guided vehicles (AGVs) and shuttle units.

Manufacturing Prowess

Why International Enterprises Source Factory-Direct From Us

With over two decades of technical manufacturing experience, our Guangzhou fabrication base delivers full-scale project coordination, from bespoke CAD floor designs to on-site assembly supervision.

Strict Quality Certifications

Fully compliant with CE certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management standards (No. 18624Q00169R0M), and complete RoHS material compliance across all coatings and alloy substrates.

Complete 10-Stage In-House Fabrication

No sub-contracting risks. Raw coil inspection, precision laser cutting, CNC punching, profile roll forming, polishing, automated welding, pickling/phosphating, and powder baking occur wholly on our 30,000 m² factory floor.

Full Container Export Optimization

Expert export packing engineers bundle uprights and beams with heavy-gauge corrugated edge guards, water-resistant stretch films, and custom palletizing labels tied directly to project CAD installation schematics.

Complimentary 2D CAD & 3D Renderings

Every industrial project begins with custom engineering calculations. Our layout specialists analyze pallet footprint, fork truck turning radiuses, flue clearances, and sprinkler envelopes before steel processing starts.

Severe Environment Durability

Specialized powder-coat bake cycles prevent chipping under coastal humidity, desert salt-air ingress, or harsh -30°C blast freezer refrigeration, proven over 10,000 successful warehouse rollouts.

Dedicated Project Engineering Support

Direct communication with certified structural engineers. We provide comprehensive installation manuals, digital step-by-step assembly guides, and available on-site deployment managers for high-bay projects.

Procurement Knowledge Hub

Frequently Asked Questions by Industrial Racking Buyers

Critical considerations regarding raw steel selection, fire compliance, seismic calculation, and international shipping protocols.

What specific technical data is required to generate an accurate warehouse layout quotation?
To prepare an exact structural calculation and 2D/3D CAD proposal, our engineers require: (1) Architectural floor plan showing column locations, roof beam clear heights, building doors, and obstructions; (2) Pallet specifications including width, depth, total loaded height, and maximum payload weight; (3) Forklift fleet details (mast lift height, outer turning radius, aisle clearance demands); (4) Desired SKU rotation policy (FIFO vs. LIFO); and (5) Environmental operating parameters (ambient temperature, cold storage status, or local seismic zone ratings).
How do Chinese steel grades Q235B and Q355B correlate to international racking standards?
Q235B is an industry-standard structural carbon steel matching European S235JR and American ASTM A36, offering excellent weldability, ductility, and high cold-formability—ideal for standard pallet rack beams and bracing. For higher column loads or ultra-high AS/RS installations, we utilize Q355B (equivalent to European S355 / ASTM A572 Grade 50), which yields higher tensile strength, enabling taller upright columns without excessive structural steel weight.
How are warehouse racking systems certified for fire protection and Civil Defense inspections?
Our engineering layouts explicitly integrate longitudinal and transverse flue spaces (typically 75mm to 150mm) to ensure sprinkler water penetrates stacked pallets quickly during an emergency. We provide detailed load notices, upright frame deflection analyses, row spacer placements, and safety barrier calculations that local engineering consultants can submit directly to fire departments, insurers, and municipal building authorities.
What surface treatment techniques ensure longevity in humid, tropical, or cold storage conditions?
Prior to finishing, every profile passes through an automated multi-stage immersion process including chemical degreasing, acid pickling, rust removal, and zinc phosphating. We then apply lead-free electrostatic epoxy-polyester powder coats cured at 180°C–200°C. For aggressive environments—such as marine yards, outdoor cantilever racking, or sub-zero food freezers with constant condensation—we provide hot-dip galvanization according to ISO 1461 standards.
What is the typical production lead time and international container shipping procedure?
Standard custom production ranges from 15 to 25 days depending on project tonnage. Components are bundled into container-length steel cradles with protective cushioning to prevent abrasions at sea. Beams are nested back-to-back, upright frames can ship flat-packed or pre-assembled based on container cost calculations, and clear piece-part marks link each bundle to the provided CAD assembly manual.
Can customized mezzanine platforms integrate on top of existing pallet racks?
Yes. We manufacture both rack-supported mezzanine systems (where the heavy-duty upright frames directly support overhead structural beams, joists, and steel decking) and freestanding structural steel mezzanines supported by heavy H-columns. This approach doubles or triples floor capacity for fulfillment and carton picking without requiring costly concrete building expansions.

Ready to Optimize Your Warehouse Capacity?

Connect with our senior storage layout engineers today. Receive a comprehensive structural calculation, customized 2D/3D CAD warehouse layout design, and direct factory pricing tailored to your logistics requirements.

Send an Inquiry
