High Density

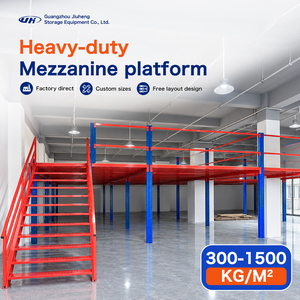

Multi Tier Warehouse Mezzanine Rack Heavy Duty Steel Platform
300-1000 kg/m²
Multi-Level
Custom Decking
Enterprise Solutions
Engineered Industrial Storage Systems Catalog
Custom structural engineering, high-strength cold-rolled steel (Q235B / Q355B), and durable powder-coated finishes engineered for high-throughput fulfillment hubs, harsh climate zones, and distribution facilities.
High Density
Fast Assembly
Wholesale Easy Assembly Storage Shelving for Garage & Warehouse
150-300 kg/Tier
Boltless Clip
Powder Coated
Medium / Heavy

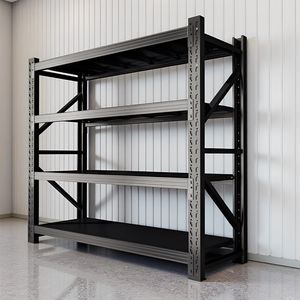

Heavy Duty Powder Coated Metal Warehouse Storage Shelf
300-500 kg/Tier
Adjustable Pitch
Anti-Corrosion
Core Racking
Industrial Storage Pallet Racking System for Logistics Hubs
1000-4000 kg/Level
Q235B Upright
Civil Defense Ready
NSF Standard
4 Layer NSF Certified Heavy Loading Capacity Steel Metal Shelf
800 lbs/Layer
NSF Sanitary
Chrome / Zinc
Specialized

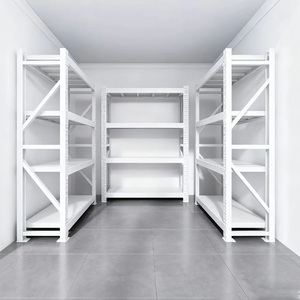

5/6 Layer Material Handling Heavy Duty Battery Box Rack
Heavy Concentrated Load
5/6 Layers
Acid-Resistant Coat
Anti-Corrosion
Adjustable Steel Freestanding Anti-Corrosion Utility Storage Rack
Light/Medium Duty
Rust Protection
Modular Uprights
Custom OEM
Customized Medium-Duty Warehouse Steel Metal Shelf Rack
200-800 kg/Level
Custom RAL Color
OEM Package
Technical Benchmark: Global Engineering Specifications & Structural Tolerances
As global distribution operations scale, purchasing warehouse storage systems from China has shifted from simple commoditized price shopping to strict structural engineering evaluations. Tier-1 logistics projects must comply with rigorous international safety and engineering standards, including EN 15512:2020 (European Racking Code), RMI ANSI MH16.1, and stringent local civil defense fire safety guidelines.
When engineering high-bay pallet racking and heavy-duty mezzanine platforms, steel ductility, yield point precision, and profile roll-forming integrity dictate the lifecycle longevity of your installation. Raw material sourcing directly impacts the ultimate load safety factor. High-grade suppliers utilize continuous coil sheet from certified mills (such as Baosteel or Shougang), adhering to Q235B or high-yield Q355B grades tested for uniform tensile modulus and minimal yield deflection.
Comparative Structural Matrix for Industrial Racking Systems
| Storage Racking System | Optimal SKU Profile | Floor Utilization | Direct Accessibility | Primary Handling Asset |
|---|---|---|---|---|
| Selective Pallet Racking | High SKU diversity, dynamic picking | 35% - 40% | 100% immediate access | Counterbalance, Reach Trucks |
| Drive-In Racking | Low SKU count, bulk batch storage | 60% - 75% | Filo / Lane Dependent | Counterbalance, Narrow-Mast Reach |
| Radio Shuttle Automation | High volume, medium/low SKU count | 70% - 85% | FIFO / LIFO programmable | Autonomous 4-Way Shuttle + Lift |
| Multi-Tier Mezzanine | Manual picking, carton flow, e-com | 150% - 250% (vertical) | 100% manual picking access | Conveyors, Vertical Lifts, Carts |
| Cantilever Racks | Pipes, structural timber, profiles | Customized | 100% linear front-load | Side Loaders, Heavy Forklifts |
Modern procurement directors must also scrutinize surface pre-treatment. Industrial racking in humid coastal zones (such as the Gulf Cooperation Council ports of Jebel Ali, Dammam, and Khalifa Port) faces severe premature corrosion if pre-treatment is substandard. Guangzhou Heda Shelves applies a 10-step surface passivation regimen featuring automated shot blasting, chemical pickling, and zirconium-based phosphating prior to epoxy-polyester electrostatic powder deposition baked at 200°C. This ensures a coating thickness exceeding 60–80 microns, passing 500-hour neutral salt-spray testing with zero blister delamination.
Market Evolution
Future Procurement Trends in Warehouse Storage (2025–2030)
Strategic purchasing managers are adjusting specifications to accommodate semi-automation, ESG structural mandates, and rapid climate shifts.
1. Semi-Automated Shuttle Hybridization
Traditional static drive-in racking is increasingly replaced by radio shuttle deep-lane channels. Buyers minimize forklift impact damage by letting automated runners handle pallet retrieval in 20-pallet-deep tunnels.
- Reduces forklift fleet fuel and maintenance overhead by 35%
- Optimized for chilled and deep-freeze logistics (-25°C rating)
- Dual operational switching: FIFO and LIFO capability
2. Cold-Formed High-Tensile Steel Integration
Environmental policies and rising oceanic shipping freight rates are driving demand for thinner, high-yield cold-formed steel alloys (Q355B/S350GD). Engineered beam designs retain structural stiffness while reducing deadweight.
- Cuts overall structural tonnage shipped per container by 12–18%
- Lower carbon footprint through reduced raw material consumption
- Tighter dimensional hole-pitch tolerances with CNC servo roll mills
3. Fire Compliance & Flue-Space Engineering
Insurers and municipal authorities (Civil Defense, NFPA 13 regulations) now mandate verified transverse and longitudinal flue spaces, sprinkler clearance integrations, and heavy-duty wire-mesh decking.
- Integrated beam drop-in shelf stops preventing pallet over-travel
- Engineered waterfall wire decks preventing combustible fire spread
- Certified dynamic deflections within 1/200th of beam length
Manufacturing Frontier
Technological & Design Evolution in Racking Systems
Precision manufacturing techniques now guarantee structural stability under dynamic live loads.
3D Parametric CAD & FEA Modeling
Finite Element Analysis (FEA) simulates local buckling stresses on upright perforation patterns before mass roll-forming begins.
Continuous Roll Forming Lines
Automated punch-and-roll lines press diamond and teardrop slots on 50mm, 75mm, or 76.2mm centers with zero cumulative linear error.
Robotic Mig Connector Welding
Robotic arms execute gas shielded weld seams connecting connector claw plates to box/step beams with full penetration guarantees.
Container Packing Engineering
Bundled components are color-coded, steel-banded, and shrink-wrapped with dedicated dunnage to avoid transit rubbing and abrasion.
Enterprise Trust
Guangzhou HEDA Shelves: Verified Supplier Strengths
Direct manufacturer reliability supported by verifiable accreditations, international logistics coordination, and localized engineering support.
Traceable Accreditations
Full regulatory compliance backed by CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and certified RoHS surface testing for coatings and raw steel materials.
Full In-House Infrastructure
Our dedicated 30,000 square meter factory campus in Guangzhou houses 300+ technical personnel, operating 10 specialized production steps from raw steel cutting to automated electrostatic coating.
Free Engineering & 3D Modeling
Every proposal is backed by complimentary 2D AutoCAD floor distribution diagrams, forklift turning-radius aisle simulation, and full 3D renderings to facilitate municipal civil approvals.
Global Port Routing Direct
Regular export departures to global ports including Jebel Ali & Khalifa Port (UAE), Dammam & Jeddah (KSA), Hamad (Qatar), Sohar (Oman), Shuwaikh (Kuwait), as well as EU, African, and Southeast Asian terminals.
Proven Track Record: 10,000+ Projects
Successfully completed over 10,000 warehouse projects worldwide, spanning complex multi-level mezzanine racking for Kenya, heavy chemical storage in Ghana, and auto parts hubs in Thailand.
Installation & Assembly Guidance
Numbered bundle shipping, comprehensive assembly drawings matching container pack lists, remote video engineering conferences, and on-site supervisor dispatch for complex multi-tier platforms.
Procurement Clarity
Frequently Asked Questions on Importing Warehouse Racking
Direct technical answers addressing the concerns of overseas project managers, supply chain directors, and structural contractors.
What engineering data is required to generate an accurate warehouse racking design and quote?
To produce an optimized CAD proposal and structural calculation, our engineering department needs: (1) Architectural building layout (DWG or PDF) noting internal column grids, entry docks, and obstructions; (2) Clear under-beam height; (3) Unit pallet specifications (Width × Depth × Height including cargo overhang); (4) Maximum gross weight per pallet; (5) Forklift technical specifications including minimum right-angle aisle turning width, mast lowered height, and maximum lift reach; (6) Operational temperature conditions (ambient, cold store, or hazardous).
How does HEDA ensure rack integrity and coating resistance in high-temperature or humid environments?
Racking components face rapid oxidation in high-humidity coastal zones (such as Dubai, Jeddah, or Southeast Asia) if surface preparation relies solely on simple degreasing. All HEDA components undergo an intensive 10-step pre-treatment cycle consisting of acid pickling, ultrasonic descaling, and chemical phosphating to neutralize mill scale. Subsequently, thermosetting TGIC-free epoxy-polyester powder is electrostatically applied and cured in 200°C convection ovens. For external lumber yards or corrosive chemical installations, hot-dip galvanized (HDG) steel options certified to EN ISO 1461 are provided.
Do your structural drawings and load calculations satisfy Civil Defense and local authority inspections?
Yes. Our engineering submissions document precise longitudinal and transverse flue spaces, calculated aisle widths according to local NFPA 13 sprinkler guidelines, upright anchor hole engineering, seismic baseplate sizing, and statutory safe working load signs (SWL). These documents can be integrated by your local architectural consultant to obtain municipal civil defense permits.
What is the standard production cycle and how are container shipments packed to prevent transit damage?
Standard fabrication for custom projects (2 to 10 40-foot High Cube containers) takes 15 to 25 business days. Because ocean freight presents risks of scratching and salt exposure, upright frames and long beam bundles are packed with protective corrugated wrap, plastic strapping bands, corner protectors, and timber dunnage blocks. Every bundle contains cross-referenced SKU tags matching the engineering CAD erection drawing for immediate on-site sorting.
What certifications do HEDA Shelves storage solutions carry for vendor registration?
HEDA Shelves products hold verified European CE Certification (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Accreditation (Registration No. 18624Q00169R0M, valid through June 2027), and RoHS compliance documentation. Certificates and factory mill test records (MTRs) for raw steel coils are available for your tender submission file.
What installation assistance and structural warranties are provided upon delivery?
Every project is backed by a 5-year structural warranty against manufacturing defects under certified operating loads. We supply comprehensive bilingual 3D exploded assembly diagrams, detailed anchor torque recommendations, and step-by-step video tutorials. For large multi-tier platform installations or shuttle racking systems, we can deploy factory-trained site supervisors to manage your local labor team.
Accelerate Your Warehouse Capacity with Factory-Direct Engineering
Connect directly with our senior racking structural designers. Submit your floor dimensions and load parameters today to receive a comprehensive 2D CAD floor plan, 3D rendering, and itemized factory-direct quotation within 24 hours.
