Explore our flagship drive-through, drive-in, cantilever, and automated heavy-duty storage configurations. Each system is engineered to FEM 10.2.02 and EN 15512 standards to optimize cubic capacity while preserving structural safety.
Multi-layer structural upright frame with custom cantilever support arms. Built for bulk storage rooms and batch cold-chain inventory.
True FIFO dual-aisle access racking. Electrostatic epoxy powder finish ensures anti-corrosion protection in high-humidity zones.
Motorized cantilever pull-out drawer shelving for sheet metal, heavy dies, and dense industrial tooling retrieval operations.
Designed for export logistics across Southeast Asia, the Middle East, and the Americas. High deflection resistance with modular beam connectors.

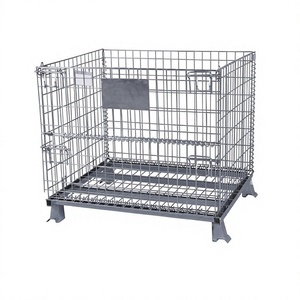

Collapsible galvanised steel wire containers. Stackable 4 tiers high to convert dead floor area into dynamic bulk buffer storage.
Aesthetic retail display shelving blending cold-rolled solid steel structural posts with melamine timber panels for pharmacies and supermarkets.
Boltless longspan shelving engineered for manual parcel carton picking, e-commerce fulfillment centers, and industrial garage inventories.

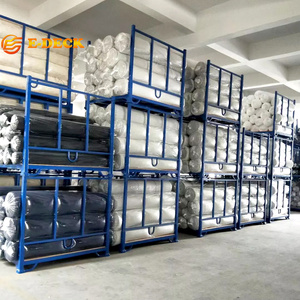

Detachable post manurack stacking stills customized for carpet, textiles, and cylindrical roll goods. Moveable by counterbalance forklifts.
In contemporary mega-distribution logistics, the choice between Drive-In Pallet Racking and Drive-Through Pallet Racking fundamentally governs warehouse throughput velocity, inventory degradation risk, and overall building footprint efficiency. While both configurations eliminate conventional forklift handling aisles by permitting equipment to physically navigate within structural storage tunnels, their kinematic principles differ critically:
Drive-In Racking operates on a Last-In, First-Out (LIFO / FILO) logic, utilizing a unified access aisle for both loading and pallet retrieval. Conversely, Drive-Through Racking implements independent ingress and egress access aisles located on opposing sides of the storage block. This architectural orientation enforces a strict First-In, First-Out (FIFO) material rotation.
Structural Calculation Note: Because Drive-Through structures lack the rigid vertical diagonal bracing frame located at the rear of traditional Drive-In blocks, lateral and longitudinal stability must be re-engineered via heavy overhead portal ties, top-tier cross plan bracing, and widened column base plates with double anchor pins.
By decoupling loading trucks from picking operations, drive-through systems eliminate internal forklift bottlenecks in high-velocity cold chains, chemical storage facilities, and fast-moving consumer goods (FMCG) packaging centers.
| Operational Metric | Drive-Through Racking | Drive-In Racking | Selective Pallet Rack |
|---|---|---|---|
| Stock Rotation | Strict FIFO | Strict LIFO | Random / 100% Selective |
| Volumetric Efficiency | Up to 75% Floor Utilization | Up to 85% Floor Utilization | 35% - 45% Floor Utilization |
| Aisle Requirement | Dual Aisle (Front + Back) | Single Aisle (Front Face) | Multiple Narrow/Wide Aisles |
| Overhead Portal Bracing | Required (Continuous Span) | Standard Back Bracing | Standard X-Bracing Towers |
| Throughput Bottlenecks | Low (Simultaneous Put/Pick) | Moderate to High | Zero (Independent Aisles) |
| Pallet Load Capacity | 500 - 1800 kg / Position | 500 - 1800 kg / Position | 500 - 2500 kg / Level |
How Fortune 500 logistics directors, 3PL aggregators, and EPC cold-storage contractors optimize Total Cost of Ownership (TCO) through strategic manufacturer relationships in China.
Tier-1 Chinese pallet rack manufacturers maintain direct procurement agreements with major state steel mills (such as Baosteel, Shougang, and Ansteel). Sourcing directly from high-capacity factories with over 30,000 tons of monthly throughput provides tier-1 pricing stability, certified mill test certificates (MTC 3.1), and eliminates the 18% to 35% margin markups added by regional trading intermediaries.
Global buyers are shifting away from generic catalogue racking toward application-specific structural calculations. Sourcing decisions now require finite element analysis (FEA) verified under FEM 10.2.02, EN 15512, and RMI MH16.1 specifications, ensuring that cold-formed profiles withstand seismic ground accelerations ($S_s, S_1$) in earthquake-prone regions like Latin America, the Pacific Rim, and the Mediterranean.
With cold-storage facility construction surging across the Middle East, Southeast Asia, and Europe, procurement executives mandate anti-corrosion finishes capable of surviving continuous thermal cycling (-30°C to ambient humidity). The industry standard has migrated from basic single-pass wet paint to fully automated 10-stage zinc-phosphating followed by thermosetting electrostatic polyester-epoxy powder curing at 200°C.
While traditional Drive-Through pallet racking delivers exceptional volumetric space utilization, its structural vulnerability stems from human forklift operators entering narrow pallet channels. Driver fatigue, tight mast clearances, and repetitive high-reach cycles can elevate structural impact risk on upright columns and cantilever load rails.
Leading Chinese manufacturers like HEDA Shelves are pioneering hybrid retrofit engineering: converting existing static drive-through upright configurations into Semi-Automated Radio Shuttle Channels.
Throughput Multiplication: By installing precision-formed galvanized guide rails inside the drive-through lanes, a remote-controlled lithium-powered shuttle moves pallets up to 1.2 m/s. The forklift remains outside the rack array, eliminating upright collision damage and accelerating cycle times by over 240%.
This hybrid approach serves as an operational bridge for logistics hubs preparing for autonomous mobile robots (AMRs) and automated storage and retrieval systems (AS/RS), allowing modular warehouse upgrades without full structural tear-downs.
Full metallurgical traceability from raw hot-rolled steel coils to container export packaging. Controlled under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 standards.
Technical, regulatory, and logistics answers addressing real-world drive-through racking design and procurement challenges.
Connect with our senior logistics structural engineering team in Guangzhou. We calculate slab load distributions, provide comprehensive 2D CAD layout drawings, and issue factory-direct wholesale pricing tailored to your exact SKU profile and forklift fleet.
