Featured Industrial Warehouse Storage Systems
Discover factory-direct, heavy-duty industrial storage racks, mezzanines, and stackable modular racking configurations engineered from certified Q235B/Q355B high-tensile structural steel for rigorous warehousing environments.

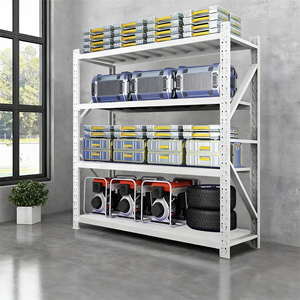

Industrial Storage Racks Adjustable Steel Metal Stacking Racks Warehouse Storage Shelves Shelving Unit Light Duty Rack
Heavy Duty Powder Coating Forklift Portable Stackable Steel Fabric Roll Pallet Racking
Industrial Heavy Duty Storage Shelves Systems Stacking Units Metal Rack Warehouse Steel Pallet Racking
Selective Pallet Rack Q235B Steel Steel Storage Rack Storage Shelving Beam Shelves Warehouse Adjustable
Factory Heavy Duty Storage Rack Warehouse Pallet Racking System From China Supplier
5 Layer Industrial Storage Shelving Racks Heavy Duty Adjustable Boltless Rivet Rack Corrosion Protection Warehouse Powder Coated

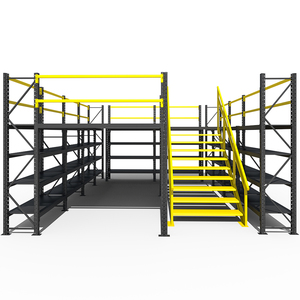

Steel Mezzanine Floor Mezzanine Floors Platform Mezzanine Floor Rack For Warehouse Storage Industrial Heavy Duty Warehouse Rack
Structural Load Dynamics & Metallurgical Specifications
A deep dive into finite element analysis (FEA), hot-rolled versus cold-formed steel mechanical performance, and precision load path distribution across modern distribution centers.
Cold-Formed High-Yield Q235B/Q355B Profiles
Industrial storage racks are structurally vulnerable to column buckling under combined torsional and axial compressive loads. Utilizing high-grade continuous coil steel with minimum yield strengths exceeding 235 MPa to 355 MPa guarantees structural resilience. Through computerized continuous cold-bending rolling mills, our upright profiles maintain uniform thickness tolerances within ±0.05mm, preventing structural micro-cracking along perforation borders.
FEA-Verified Beam Connector Claw Interfaces
Structural load transfer hinges on the moment-resisting semi-rigid connection between beam claws and omega upright columns. Through 3-prong and 4-prong heavy-gauge stamped connection hooks, gravitational shear forces translate directly into axial load paths. Our proprietary connector profiles demonstrate a 28% reduction in rotational deformation during cyclic seismic and forklift impact load evaluations compared to traditional boltless pins.
Surface Pretreatment & Anti-Corrosion Chemistry
Accelerated salt-spray tests highlight the risk of subsurface oxidation in humid coastal warehouses. We deploy an automatic 10-stage automated wash sequence combining deep degreasing, zinc-phosphate micro-crystalline bath conditioning, and electrostatic thermosetting epoxy-polyester powder baking at 200°C curing temps. The resulting 60-80μm dry film thickness resists chemical mist, oil seepage, and scratching from industrial pallets.
| Racking Topology | Standard Steel Grade | Rated Capacity | Selectivity Factor | Recommended Application Spectrum |
|---|---|---|---|---|
| Selective Pallet Racking | Q235B Cold-Formed Steel | 1,000 – 4,500 kg / Tier | 100% Direct Access | High-turnover SKU distribution centers, retail fulfillment, FMCG |
| Heavy-Duty Stacking Racks | Q235B Welded Tubular Steel | 1,000 – 2,500 kg / Unit | Batch Selectivity (LIFO) | Seasonal overflow storage, fabric rolls, irregular automotive components |
| Light-Duty Boltless Shelving | SPCC / Q195 Cold-Rolled Sheet | 100 – 300 kg / Level | 100% Manual Hand-Pick | E-commerce bin storage, spare parts retail, archival and tool rooms |
| Structural Mezzanine Floor | Q355B / H-Section Hot-Rolled | 300 – 1,200 kg / m² | Full Zonal Multi-Tier | Overhead picking galleries, warehouse office integration, returns processing |
Future Procurement Trends in Industrial Storage (2025-2030)
Navigating global supply chain shifts, rising real estate costs per square meter, and the integration of automated guided vehicles into static storage frameworks.
Convergence of Static Racks with AMR & AS/RS
Procurement teams are shifting away from standalone manual racking toward infrastructure designed for automated integration. Modern selective and deep-lane racking systems must support millimeter-accurate floor track installations, sensor-guided autonomous mobile robots (AMRs), and tight vertical plumb tolerances (under 1/1000 deflection) necessary for automated cranes and four-way shuttle carriers.
Ultra-High Clearances and Vertical Space Optimization
Driven by skyrocketing land acquisition prices and stringent industrial zoning regulations across North America, Europe, and GCC logistics hubs, the modern warehouse is growing taller. Average procurement clear heights have risen from 8 meters to over 14 meters. Buyers now require single-piece roll-formed upright columns up to 12-16 meters to eliminate splice-joint structural fatigue under dynamic loading.
Traceable Green Steel & Life-Cycle Durability
ESG directives and Scope 3 carbon emission disclosures are actively changing procurement audits. Enterprise buyers require factory-direct partners capable of supplying mill test certificates (MTC), recycled steel content verification, and VOC-free, heavy-metal-free thermosetting powder coatings that pass international green logistics compliance requirements.
Why Global Buyers Partner with Our Factory
Guangzhou Heda Shelves Co., Ltd. delivers integrated warehouse racking engineering since 2001, providing complete production sovereignty under one 30,000 square meter roof.
Free Engineering CAD & 3D Digital Twins
Every facility features unique column grids, slab load limitations, and overhead sprinkler configurations. Our 300+ engineering team provides certified 2D CAD layouts and photorealistic 3D structural simulations before production starts, ensuring complete alignment with local civil defense safety requirements, egress codes, and pallet clearance regulations.
30,000-Ton Monthly Production Scaling
With multiple precision cold-roll lines, high-speed CNC punching presses, and dedicated automated robotic welding cells, our factory easily handles complex multi-thousand-ton logistics tenders. We control project timelines from raw steel coil slitting to palletized container stuffing, insulating buyers from standard market supply bottlenecks.
Complete Export Logistics & Installation Guidance
Supplying projects across 120+ countries, including critical hubs like Jebel Ali, Dammam, Rotterdam, and Los Angeles, all bundles are packed with protective steel dunnage and tagged with QR-linked assembly schematics. We provide continuous remote video engineering support and deploy experienced site supervisors for multi-level structural mezzanines.
Our 10-Stage Controlled Quality Production Workflow
Industrial Shelving Procurement FAQs
Key structural, commercial, and operational questions answered directly by our factory structural engineering department.
How do you verify the seismic and load-bearing safety of custom racking systems? +
Every industrial storage solution engineered at our facility undergoes finite element analysis (FEA) based on FEM 10.2.02, RMI (Rack Manufacturers Institute), and EN 15512 structural specifications. When calculating load allowances, our engineers compute the dead load, live pallet payload, seismic acceleration coefficients specific to your geographic zone, and horizontal wind or forklift impact variables. Certified Mill Test Certificates (MTC) detailing the physical tensile strength and chemical composition of raw Q235B/Q355B coils are supplied with every order.
What is the standard production lead time for full container-load (FCL) orders? +
For standard catalog configurations—including selective pallet racking and boltless light-duty shelving—standard lead times range between 15 to 20 business days from signed engineering shop drawings. Highly customized architectural mezzanine platforms, heavy-duty post pallets, or non-standard powder coat finishes (such as custom corporate pantone matching) typically require 25 to 30 production days, fully supported by our 30,000-ton monthly manufacturing scale.
How do powder coatings perform against high humidity, coastal air, and temperature swings? +
Our automated finishing lines utilize an industrial 10-stage acid pickling and phosphating pre-wash before applying electrostatically charged thermosetting polyester powder. This generates cross-linked surface protection with a minimum thickness of 60–80 microns, passing 500-hour neutral salt spray tests. For extremely corrosive outdoor yard storage, high-salinity coastal ports, or cold storage walk-ins (-30°C), hot-dip galvanized (HDG) steel configurations conforming to ISO 1461 are provided.
Can you provide architectural drawings for local building permit and civil defense approvals? +
Yes. Our engineering division produces fully dimensioned 2D structural AutoCAD schematics complete with longitudinal flue spaces, transverse pallet separation gaps, aisle turning radiuses, dead load slab bearing computations, and egress emergency walkway clearances. These drawing packs are structured specifically for third-party engineering consultants, civil defense inspectors, and municipal building permit offices.
What initial data is required from our engineering team to generate a free layout quotation? +
To produce an optimized 2D/3D floor layout plan, please provide: 1) Architectural building layout drawings indicating column spacing, clear overhead ceiling height, and fire exit placements; 2) Pallet specifications including overall dimensions (L × W × H) including product overhang, maximum gross weight, and pallet entry style; 3) Material handling equipment (forklift) turning radius, maximum mast reach height, and type; and 4) Temperature parameters (ambient vs. refrigerated storage).
