Adjustable Beam
Industrial Heavy-Duty Steel Multi-Level Adjustable Storage Shelves Racking
Powder Coated
Multi-Level
Q235B Steel
View Specifications
Enterprise Product Portfolio
Featured Industrial Racking & Pallet Handling Systems
Explore our certified industrial racking lines built at our 30,000 m² Guangzhou production facility. Every assembly is precision-engineered from high-yield Q235B/Q355B structural steel to maximize floor space volumetric efficiency and withstand demanding dynamic cycle profiles.
Adjustable Beam
Longspan Rack

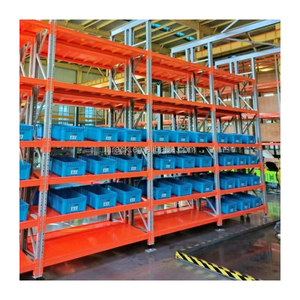

Orange And Light Grey Storage Racks Pallet Racking Long Span Shelf
Bolt Assembly
Dual-Tone Finish
Versatile Loading
View Specifications
High Density
Steel 5-Layer Drive-In Pallet Storage Rack Warehouse Storage Shelf
LIFO Channel
Space Maximize
Cold-Ready
View Specifications
Bolt-Free

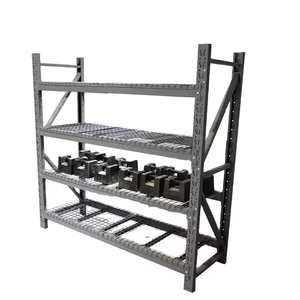

Wide Span Bolt Free Shelving Industrial Shelving Storage Racking
Rapid Assembly
Modular Bays
Manual Picking
View Specifications
High-Rise VNA
High-Rise Heavy Duty Beam Racking 10-15m Tall for Logistics Center
10-15m Height
VNA Compatible
Heavy Stacking
View Specifications
Dynamic FIFO
Q235 Steel 2000kg Capacity FIFO Storage Gravity Pallet Flow Rack
2000kg / Pallet
Gravity Rollers
Strict FIFO
View Specifications
Custom Fabricated
Customized Heavy-Duty Industrial Rack 5-Layer Metal Storage Shelf
Custom Pitch
Heavy Duty
Impact Resistant
View Specifications
Safety Component
Galvanized Wire Mesh Deck 2500lb 3 Channel Waterfall Step Decking
2500lb Rating
Hot-Dip Galv
Sprinkler Compliant
View Specifications
Technical Architecture
Kinematic & Structural Principles of Movable Pallet Racking
Movable pallet racking (motorized mobile racking) solves the primary operational bottleneck of conventional static warehouse infrastructure: fixed access aisles that consume up to 60% of actionable warehouse cubage. By mounting heavy-duty racking superstructures onto electronically driven mobile bases that traverse precision-leveled embedded steel rails, warehouses consolidate multiple static aisles into a single, dynamically summoned operating aisle.
| Storage Architecture | Floor Space Utilization | Direct SKU Accessibility | Floor Slab Deflection Tolerance | Cold-Store Energy Efficiency | Relative CapEx / Pallet Position |
|---|---|---|---|---|---|
| Standard Selective Racking | 35% – 42% | 100% Immediate | Standard DIN 18202 (±5mm) | Low (Large footprint to chill) | Baseline (1.0x) |
| Drive-In Racking (LIFO) | 60% – 70% | 15% – 20% (Lane blocked) | Standard Industrial | Moderate (High risk of damage) | 1.3x – 1.6x |
| Double Deep Racking | 45% – 52% | 50% (Requires pantograph) | Standard Industrial | Moderate | 1.2x – 1.4x |
| Radio Shuttle Racking | 70% – 82% | High per channel (LIFO/FIFO) | Precision level required | High (Dense footprint) | 2.2x – 2.8x |
| Motorized Movable Pallet Racking | 85% – 92% | 100% On-Demand Access | DIN 18202 Class 3 Guided Rails | Ultra-High (>45% Energy Savings) | 2.4x – 3.2x (Fastest TCO Payback) |
Mechanical Kinematics & Drive Systems
Movable racking carriages are powered by synchronized helical-geared electric motor blocks mounted along the carriage length. Dual flanged forged steel wheels (42CrMo alloy) distribute static and dynamic wheel loads evenly across embedded guide and running rails. This design prevents localized concrete fatigue, rail delamination, or structural racking rack sway during acceleration and deceleration cycles.
Active Optoelectronic Safety Shielding
Modern movable pallet racking requires rigorous safety adherence to EN 15095 and CE machinery directives. Systems incorporate continuous infrared longitudinal light curtains across aisle entrances, ground-level mechanical trip bars, ultrasonic proximity detection, and redundant PLC emergency braking systems that stop multitone mobile blocks instantly upon detecting an obstruction.
Thermal Management in Cold Storage
In cold stores operating between -25°C and -35°C, real estate and electrical refrigeration represent massive operational costs. Movable racking reduces refrigerated cubage requirements by up to 50% compared to static racking. Special low-temperature IP65 lubricants, heating coils inside PLC drive panels, and cold-form steel grades (Q355D/E) eliminate brittle fracture risks in sub-zero environments.
Enterprise Manufacturing Authority
Why Tier-1 Global Procurement Teams Partner with HEDA Shelves
Headquartered in Guangzhou with more than two decades of dedicated manufacturing excellence since 2001, Guangzhou Heda Shelves Co., Ltd. is an established global leader in warehouse storage systems, cold-room dynamic solutions, and automated intralogistics racking.
2001.
Established Year
25+ years of pure-play intralogistics engineering
30,000m²
Factory Footprint
Fully integrated roll-forming & coating facilities
30,000t
Monthly Capacity
Continuous steel processing & export throughput
120+
Export Markets
Turnkey projects across GCC, Europe, and Americas
Free Engineering CAD & 3D Modeling
Our in-house design engineering department generates custom structural calculations, building column grid clearances, slab load distributions, and high-fidelity 3D renderings before raw coil slicing starts.
Certified Quality & Compliance
HEDA holds European CE certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management accreditation (No. 18624Q00169R0M, valid to 2027), and RoHS environmental compliance testing reports.
Anti-Corrosion Surface Chemistry
Prior to electrostatic powder coating, components undergo an automated multi-stage chemical wash, pickling, and phosphating sequence, guaranteeing salt-spray endurance, impact resistance, and zero film flaking.
Export Packing & Installation Guidance
Container shipments are color-coded, bundled, and labeled to match installation blueprints for ports worldwide (Jebel Ali, Dammam, Rotterdam, Houston, Santos), supported by video and on-site engineering supervision.
Factory Traceability
HEDA 10-Step Precision Production Methodology
Every beam, carriage chassis, and roll-formed upright is produced in-house under strict ISO 9001:2015 tracking, ensuring zero defect propagation from raw steel coil to finished modular installation.
Step 01
Raw Materials
Certified prime Q235B & Q355B coils with chemical composition & tensile verification.
Step 02
Precision Slitting
High-speed automated CNC decoiling and longitudinal slitting to exact section widths.
Step 03
Column Punching
Continuous hydraulic CNC punch press creating teardrop/diamond holes at precise 50/75mm pitches.
Step 04
Cold Bending
Multi-roller cold rolling mills progressively forming omega upright profiles without stress cracking.
Step 05
Profile Forming
Precision roll-forming of box beams, step beams, and structural movable carriage side-rails.
Step 06
Deburring & Polishing
Automated edge grinding and surface smoothing to remove burrs and weld splatter.
Step 07
Robotic Welding
Robotic multi-axis CO₂ gas-shielded fillet welding of connector claws and carriage brackets.
Step 08
Pickling & Phosphating
Complete chemical submersion removes scale and rust, generating an anti-corrosive phosphate bond.
Step 09
Powder Coating
Swiss Gema electrostatic powder spray booth curing at 180°C–200°C for durable exterior finishes.
Step 10
QC & Ocean Bundling
100% laser tolerance checks, heavy-duty seaworthy crating, and export container stowage.
Innovation Trajectory
Technological & Engineering Trends Shaping Movable Racking
As intralogistics shifts toward lights-out automation and software-governed material handling, movable pallet racking systems are transitioning from isolated electro-mechanical units into deeply integrated smart warehouse modules.
WMS / WCS Dynamic Predictive Aisle Opening
Traditional mobile racking relied on manual button presses or radio remotes operated by forklift drivers. The emerging standard integrates carriages directly with the facility’s Warehouse Management System (WMS) through industrial IoT gateways. By analyzing incoming pick lists and inbound staging buffers, the WCS orchestrates aisle-opening cycles before the forklift operator reaches the storage zone, eliminating cycle latency.
Regenerative Braking & Smart Microgrids
With sustainability targets and energy pricing shaping modern logistics real estate, next-generation mobile carriages feature regenerative Variable Frequency Drives (VFDs). The kinetic energy produced during carriage deceleration is converted back into electrical power and fed into local DC storage grids, yielding up to 28% net electrical energy conservation across high-turnover cold storage facilities.
Autonomous Mobile Robot (AMR) Synergy
The convergence of mobile racking and Autonomous Mobile Robots (AMRs) or Automated Guided Forklifts (AGFs) represents the forefront of modern intralogistics. Utilizing ultra-reliable industrial 5G and optical safety beacons, moving carriages coordinate aisle clearance with autonomous reach trucks, eliminating manual forklift operations in extreme cold or oxygen-depleted fire-suppressed vaults.
Strategic Sourcing Guide
Future Procurement Trends for Global Industrial Supply Chains
Industrial supply chain executives and warehouse infrastructure developers face rising urban land prices, escalating construction timelines, and heightened volatility in structural steel pricing. Modern international procurement strategies reflect several key shifts.
Brownfield Densification over Greenfield Capex
Acquiring and permitting new logistics land near metropolitan corridors has grown cost-prohibitive. Global logistics operators increasingly deploy movable pallet racking inside existing brownfield facilities to instantly double storage capacity without incurring the capital expense, civic approvals, and multi-year delays of new facility construction.
Direct-from-Source OEM Engineering Procurement
Procurement teams are cutting intermediary distribution markups by working directly with qualified manufacturing sources in China like HEDA Shelves. Direct-from-source relationships provide direct access to structural engineering teams for customized CAD designs, faster revision turnarounds, transparent raw material indices, and dedicated container-level shipment sequencing.
Lifecycle TCO Modeling & Environmental Metrics
Tender assessments now prioritize Total Cost of Ownership (TCO) over bare initial purchase price. In cold chain facilities, the 45% reduction in cooling volume achieved by high-density movable racking typically delivers complete ROI amortization within 22 to 34 months through ongoing utility and operational power savings.
Procurement Due Diligence
Frequently Asked Questions (FAQ)
Detailed answers covering floor slab flatness tolerances, structural calculations, international standards, and site commissioning for logistics managers and procurement directors.
What concrete slab specifications and floor flatness are required for movable racking?
Movable racking relies on embedded guide and running rails cast into the floor slab. Slab construction must comply with DIN 18202 (typically Class 3 or Class 4 surface tolerance) or TR34 Free Movement specifications. Floor flatness must not exceed ±2mm across a 2-meter straightedge. HEDA supplies precision-leveling rail brackets and technical documentation so your general contractor can accurately cast channels during initial pours or cut retrofit trenches into existing slabs.
How does movable racking compare in pick cycle throughput against static selective racking?
In standard selective racking, multiple forklifts can access parallel aisles simultaneously. Movable racking operates with a single shared aisle per block (or dual aisles in larger zoned systems), with typical carriage traversal times of 25 to 45 seconds to open a new aisle. For ultra-fast retail item picking, movable racking can create operational bottlenecks; however, for medium-velocity SKUs, bulk reserve storage, raw materials, and cold storage applications, the 85%+ volumetric density gains far outweigh traversal times.
What fail-safe procedures apply during power outages or system shutdowns?
HEDA systems incorporate redundant safety protocols. Each motorized mobile base includes a manual mechanical clutch disengagement mechanism, allowing individual bases to be shifted via hand cranks or backup tugger systems during extended power outages. Systems can also be configured with auxiliary diesel generators or battery-backed UPS arrays to maintain automated aisle functionality during power grid transitions.
Which international seismic and structural engineering codes do your systems fulfill?
Our systems comply with European FEM 10.2.02 and EN 15512 standards, American RMI (Rack Manufacturers Institute) MH16.1 specifications, and Australian AS 4084 guidelines. For high-seismic regions (such as coastal areas, Japan, New Zealand, or Chile), our structural engineers incorporate top-tie seismic bracing, heavy-duty floor anchorages, and carriage anti-tip interlocks to safeguard against dynamic seismic forces.
Can movable racking operate in deep sub-zero cold storage facilities down to -30°C?
Yes. Cold chain storage is one of the most common applications for movable pallet racking. Cold-store specifications include synthetic low-temperature lubricants, built-in heating elements for motor gearboxes and PLC control enclosures to prevent condensation, IP65 sealed enclosures, and high-tensile impact-resistant steel grades (Q355D/E) tested against low-temperature ductile-to-brittle transitions.
What documentation and technical support are supplied for international export projects?
Every export shipment includes comprehensive 2D CAD architectural plans, load capacity signage, electrical wiring schematics, and bilingual installation manuals. We provide remote video engineering support throughout assembly and can dispatch experienced site commissioning supervisors for high-density movable racking and multi-tier structural mezzanine projects worldwide.
Accelerate Your Warehouse Intralogistics Project
Connect directly with HEDA Shelves' technical engineering department in Guangzhou. Send us your architectural floor plan, ceiling clear height, pallet dimensions, and SKU parameters to receive a complimentary custom 3D layout design and structural cost analysis within 48 business hours.
