ASRS / High-Speed
Factory-Direct Heavy Racking Portfolio
Engineered Heavy-Duty Storage & Material Handling Systems
Constructed from certified Q235B and Q355B cold-rolled structural steel, our high-density rack modules accommodate dynamic material handling profiles, ranging from micro-load automated picking cells to heavy-payload industrial tooling bays.
Boltless Series
Heavy Tooling
Space Multiplier
Pallet Stacking
Line Interfacing

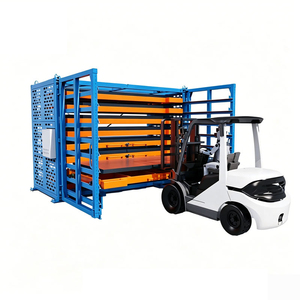

Sheet Extraction
Specialty Unit
2001
Established Since
30,000 m²
Production Plant Floor
30,000 t
Monthly Steel Output
120+
Export Destinations
Strategic Intralogistics Whitepaper
Procurement Shifts & Industrial Trends in Global Racking Systems
Modern warehousing requires structural engineering that integrates seamlessly with digital fleet systems, climate vulnerabilities, and space economics.
⚙
ASRS & Automated Shuttle Integration
Static storage has given way to dynamic intralogistics. Pallet racking is no longer procured as an isolated frame, but as a rigid structural chassis for automated shuttles, 4-way deep-lane carriers, and AMR navigation. Tight beam deflection limits (1/200th to 1/300th) are now standard engineering criteria to guarantee automated crane sensor alignment.
☁
High-Bay Volumetric Densification
Skyrocketing industrial square-meter rental costs in distribution hubs across Dubai, Riyadh, Antwerp, and Chicago have forced footprints upward. Vertical clear heights are pushing beyond 15–24 meters. This shift drives demand for rack-clad buildings, VNA (Very Narrow Aisle) systems, and multi-tier structural mezzanines that avoid concrete footprint expansion.
☘
Climatic & Anti-Corrosion Engineering
Global procurement teams now focus heavily on surface chemistry. In high-temperature, humid coastal facilities, standard single-coat paint degrades quickly. Industrial buyers now specify continuous pickling, zinc phosphating pre-treatments, electrostatic powder coatings, and hot-dip galvanization (HDG) for cold-chain facilities operating down to -30°C.
Factory Technical Standards
Engineering Verification Matrix & Specification Thresholds
| Racking Type | Primary Material | Standard Payload Capacity | Operational Aisle Clearances | Corrosion Protection | Target Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B Cold-Rolled Steel | 1,000 – 4,500 kg / level | 3,000 – 3,500 mm (Counterbalance) | 60–80μm Electrostatic Powder | FMCG, 3PL Distribution, Direct Access |
| Radio Shuttle System | Q355B Heavy Tensile Steel | 500 – 1,800 kg / pallet | Single Entry Transfer Corridor | Zinc Phosphated + Epoxy Polymer | Cold Storage, Beverage, High-Volume SKU |
| Heavy Cantilever Rack | Hot-Rolled Structural H-Beam | 800 – 3,000 kg / arm | Dynamic (Side-Loader / Reach) | Hot-Dip Galvanized / Outdoor Powder | Steel Pipes, Lumber, Extrusions, Rebar |
| Rack-Supported Mezzanine | Roll-Formed Box / Upright | 300 – 1,200 kg / m² | Standard Pedestrian & Pallet Jack | Abrasion-Resistant Baked Enamel | E-Commerce Picking, Multi-Tier Fulfillment |
| Automated Mini-Load ASRS | Calibrated High-Precision Steel | 30 – 100 kg / tote cell | 900 – 1,100 mm (Crane Mast) | Pre-Galvanized + Architectural Coat | Electronics, Automotive Parts, Pharma |
Manufacturing Rigor
Certified 10-Stage In-House Production Flow
From raw coil sourcing to container pack-out, our 30,000 m² Guangzhou facility enforces zero-defect quality control across every beam and upright.
01
Steel Coil Inspection
Tensile yield, chemical composition, and thickness tolerance audits on prime structural coils.
02
Precision CNC Slitting
Laser and continuous slitting ensuring edge accuracy within 0.1mm tolerance bands.
03
CNC Column Punching
Multi-station automated stamping dies providing accurate 50mm and 75mm pitch diamond hole patterns.
04
Continuous Roll Forming
Multi-roller cold rolling lines that form upright profiles without residual wall stress.
05
Profile Box Beam Interlock
Automated dual-C profile interlocking and high-frequency beam seaming for maximum torsional stiffness.
06
Automated Robotic Welding
Multi-axis robotic arms weld beam connectors with zero spatter and consistent throat penetration.
07
Acid Pickling & Phosphating
Automated immersion line stripping surface scale and depositing a rust-inhibiting phosphate crystal coat.
08
Electrostatic Powder Line
Uniform curing ovens baking durable epoxy-polyester coatings with high impact resistance.
09
Load Deflection QA Verification
Destructive and hydraulic deflection batch testing conducted according to EN 15512 standards.
10
Containerized Sea-Export Packing
Numbered corrugated bundles wrapped to match CAD layout erection sequences, ready for ocean transit.
Audit-Ready Reliability
International Accreditations & Factory Engineering
Guangzhou Heda Shelves Co., Ltd. delivers engineered racking solutions supported by verifiable test documentation, simplifying Civil Defense approvals, building permits, and underwriter sign-offs worldwide.
☑
CE Factory Certification
Full conformance under certificate No. 2435-CPR-8605159, certifying that load-bearing elements comply with EN structural steel manufacturing and safety directives.
⚖
ISO 9001:2015 Management
Quality management under certificate No. 18624Q00169R0M (valid through June 2027), ensuring strict batch traceability from raw material heats to finished frames.
⚂
RoHS Environmental Directives
Verified free of restricted hazardous substances across all powder-coat resins, phosphate solutions, and surface finishes, ensuring complete safety in food and pharma distribution hubs.
Buyer Due Diligence
Frequently Asked Questions for B2B Racking Procurement
What engineering variables must be provided to generate an accurate 2D CAD layout and 3D simulation?
To produce an installation-ready layout, our engineering team requires: (1) Architectural DWG drawings detailing clear height under beams, floor flatness tolerance, column grids, and egress doors; (2) Pallet specifications (length, width, total height including pallet, and maximum weight per unit); (3) Material handling fleet specifications (mast height, aisle clearance requirements, turning radius); and (4) Throughput requirements (FIFO vs. LIFO, daily pallet cycles).
How does the factory protect structural integrity against salt air, humidity, and chemical vapor corrosion?
Our components undergo a multi-stage pre-treatment wash consisting of degreasing, acid pickling to eliminate mill scale, and zinc phosphating. This forms a crystalline barrier that secures our electrostatic epoxy-polyester powder coat. For open-air yards, coastal ports, or corrosive environments, we supply hot-dip galvanized components with zinc coatings exceeding 85 microns.
What structural deflection standard does the factory use to calculate beam and upright capacities?
Our engineering calculations follow both FEM 10.2.02 and EN 15512 specifications. Maximum allowable beam deflection under safe working load (SWL) is designed not to exceed 1/200th of the clear horizontal span (L/200) for standard forklifts, and 1/300th (L/300) for high-bay narrow-aisle or automated crane configurations.
Can HEDA Shelves coordinate project submittals for local municipal, civil defense, or insurance audits?
Yes. We provide complete submittal packages that include certified CAD floor plans, load-per-upright calculations, point load foot-plate pressure figures, seismic anchor shear specifications, and sprinkler flue space allocations to satisfy local building authorities and insurance carriers.
What are the typical manufacturing lead times and ocean logistics packaging standards for international projects?
Standard fabrication takes 15 to 25 business days depending on tonnage and custom color requirements. Components are packed in color-coded, labeled bundles that match the installation drawing sequence. They are banded with heavy polyester strapping and cushioned with cellular edge protectors to avoid transit vibration wear inside shipping containers.
Design Your Warehouse Storage Infrastructure
Submit your warehouse CAD drawings, pallet dimensions, and operational throughput targets. Our engineering department will return an optimized 2D layout, 3D structural visualizer, and a full Bill of Materials within 24 hours.
