Engineering Authority: The Technical Anatomy of Modern Selective Racking

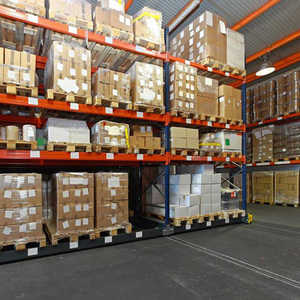

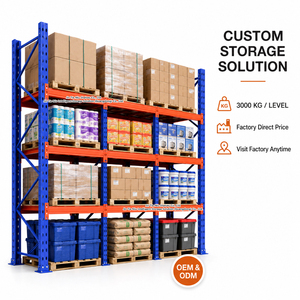

Selective pallet racking represents the global benchmark for industrial warehousing where complete inventory selectivity is non-negotiable. Unlike high-density systems such as Drive-In or Push-Back that enforce LIFO (Last-In, First-Out) material rotation, a meticulously configured selective rack system permits direct access to every single pallet position simultaneously. For 3PL distribution networks, retail replenishment hubs, cold-chain operations, and manufacturing plants with diverse SKU profiles, selective racking forms the foundational backbone of logistics velocity.

As a leading Chinese selective rack factory and primary direct exporter, our manufacturing standard adheres strictly to European FEM 10.2.02 (Design of Static Steel Pallet Racking) and American RMI MH16.1 specifications. Achieving operational longevity in demanding warehouse environments requires precise engineering across three critical structural vectors: structural steel yield integrity, roll-formed profile geometry, and moment-resisting beam-to-column connections.

Core Structural Components & Metallurgy

A high-performance selective rack relies on cohesive load transmission down to the concrete warehouse floor slab. Our factory-controlled fabrication ensures tight dimensional tolerances across every sub-assembly:

1. Cold-Formed Upright Columns: Manufactured through an advanced multi-stage automated roll-forming line. Upright columns feature an omega-profile cross-section with multiple stiffening ribs along the web and flanges. This multi-bend geometry dramatically increases torsional stiffness and column resistance to lateral buckling. Punching intervals are engineered precisely at 50mm or 75mm (and standard 76.2mm pitch) to enable quick vertical adjustment of beam levels to match changing pallet heights.

2. Interlocking Boxed Step Beams: Roll-formed from dual C-profile sections welded together via automated continuous seam welders, creating a structurally rigid closed tubular box beam. The integrated top step allows flush insertion of wire mesh decks, steel drop-in shelves, or cross-pallet support bars. Each beam end is fitted with a 3-claw or 4-claw cold-stamped connector that wraps securely around the upright column, establishing a rigid semi-rigid joint that absorbs rotational and shear forces caused by forklift impacts.

3. Heavy-Duty Baseplates and Seismic Anchorages: Upright frames are anchored to industrial concrete floors using high-tensile wedge expansion bolts or heavy chemical adhesive anchors. Floor baseplates are engineered with thickness ratings from 6.0mm to 12.0mm depending on site seismic requirements (IBC/Eurocode 8), spreading dynamic vertical loads safely across the warehouse floor slab.

Global Sourcing Analysis & Future Procurement Trends (2025–2030)

The global intralogistics supply chain is undergoing profound structural shifts. Procurement directors and supply chain engineers evaluating Chinese selective rack factories are no longer comparing mere FOB steel prices per ton. Modern procurement strategies are governed by Total Cost of Ownership (TCO), material sustainability, and alignment with automated materials handling machinery.

Furthermore, digital twin pre-engineering has eliminated field-assembly bottlenecks. By submitting warehouse CAD schematics, clear heights under the ceiling beam, and forklift turning radii upfront, overseas buyers receive complete 3D structural simulations, verified load calculations, and FEA (Finite Element Analysis) reports prior to production line scheduling.

Technological & Product Innovations in Selective Racking Systems

While the exterior profile of selective pallet racking appears classic, internal metallurgical refinements and manufacturing robotics have modernized its engineering parameters. Forward-thinking Chinese exporters have driven continuous innovation across key performance categories:

High-Yield Cold-Rolled Micro-Alloy Steels: By incorporating micro-alloyed carbon steel grades engineered with trace vanadium and niobium elements, modern selective racking components deliver heightened yield strength without brittleness. This metallurgical stability prevents fracture risks in deep-freeze cold storage facilities running down to -30°C, a frequent failure point for generic commercial steel.

Thermally Fused Electrostatic Polyester Powder Systems: Moving beyond simple solvent spraying, fully automated vertical coating lines employ corona-discharge electrostatic powder application followed by a 20-minute polymerizing bake at 200°C. The resulting 60-to-80-micron epoxy-polyester shell provides extreme surface hardness, resisting chemical abrasion, forklift scuffing, and atmospheric moisture in compliance with ASTM cross-hatch adhesion standards.

Integrated Column & Row-End Impact Mitigators: Warehouse column damage primarily occurs within the lowest 400mm from turning forklifts. Modern selective racking configurations integrate heavy-duty 4.5mm wrap-around column protectors, floor-mounted bull-nose corner guards, and continuous aisle run-end tubular crash barriers anchored directly into the slab, transferring impact forces away from the critical load-bearing uprights.

Factory-Direct Infrastructure: 10-Step Controlled Manufacturing Workflow

Guangzhou Heda Shelves Co., Ltd. operates a specialized 30,000 m² heavy-machinery production complex. With an active engineering staff exceeding 300 technical specialists, every stage of selective rack production is maintained under rigid ISO 9001:2015 quality surveillance, ensuring that every container arriving at Jebel Ali, Jeddah, Dammam, Rotterdam, or Long Beach meets pristine design tolerances.

Enterprise Advantage: Certified Engineering for Global Logistics Giants

Since 2001, our specialized selective rack facility has supplied over 10,000 completed intralogistics projects across 120+ countries. Choosing a vetted Chinese direct manufacturing partner allows warehouse planners to bypass middleman markups while securing custom OEM/ODM production adaptability.
