Heavy Duty Warehouse Pallet Racking & Attic Mezzanine Systems
Integrated structural platforms combined with heavy-duty selective uprights to maximize vertical warehouse cubic capacity up to 300%.
Product Engineering Matrix
Featured Industrial Storage & Warehouse Racking Solutions
Discover high-density, precision-engineered storage equipment built to rigorous global load tolerances (FEM, EN, RMI, CE). From automated AS/RS pallet handling to multi-tier mezzanine frameworks, our certified manufacturing lines serve international logistics nodes, e-commerce distribution centers, cold chain facilities, and heavy industrial yards.

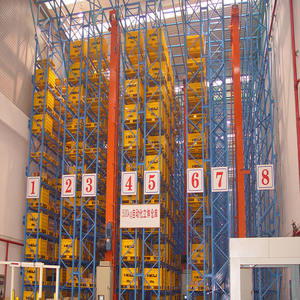

ASRS Automated Storage & Retrieval Warehouse Pallet Racks
High-precision stacker-crane compatible automated racking channels designed for dark warehouses, cold chain preservation, and intense SKU turnover.
Heavy-Duty Drive-In Steel Pallet Racking for Dense Storage
Continuous lane configurations eliminating dedicated forklift corridors; perfect for uniform FMCG product lines and temperature-controlled facilities.
Industrial Long Span Shelving & Metal Storage Estanteria
Versatile, bolt-free step-beam metal storage shelves for medium-to-heavy manual loading, distribution fulfillment, and parts bins.
Custom Heavy-Duty 300kg/Tier 4-Layer Garage Metal Storage Racks
Modular industrial-grade black powder-coated framework built for maintenance bays, small enterprise depots, and high-density archive storage.

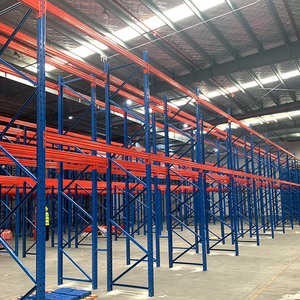

Factory-Direct High-Load Pallet Racks (Export Certified)
Certified cold-rolled structural steel beam racks engineered for Southeast Asian (Vietnam, Thailand, Malaysia) & GCC logistics specifications.
YZ Adjustable Heavy-Duty Steel Shelving & Industrial Storage
Fully customizable multi-layer upright pitch designs tailored for multi-commodity cross-docking, spare parts distribution, and raw materials.
Industrial Boltless 4-Tier Picking Shelving & Storage Rack
Rapid-assembly interlocking profile shelves ideal for fast-moving retail picking lines, carton-level packing, and spare parts logistics.
Manufacturer Credentials
Why Global Procurement Directors Choose HEDA Shelves
Since 2001, Guangzhou HEDA Shelves Co., Ltd. has operated at the intersection of metallurgical structural engineering, automated logistical precision, and direct-to-port global supply chain execution.
Fully Integrated In-House Manufacturing
Unlike trading entities, we anchor all manufacturing within our 30,000 m² Guangzhou production complex, processing over 30,000 tons of high-yield steel coil monthly. By mastering automated roll-forming, laser profiling, and welding under strict ISO 9001:2015 controls, we guarantee direct-from-source price benefits, sub-millimeter punching accuracy, and complete batch traceability.
Free Structural CAD & 3D Digital Twin Layouts
Every industrial project begins with structural calculation optimization. Our 300+ engineering team provides free 2D CAD engineering schematics and 3D virtual simulations within 24–48 hours. We verify turning radii, clear height clearances under trusses, beam deflection tolerances (1/200 standard), and floor slab load spreads before raw metal ever touches the forming machines.
Traceable International Certifications
Our solutions withstand stringent third-party scrutiny and municipal compliance inspections worldwide. We hold verifiable CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management certification (No. 18624Q00169R0M), and comprehensive RoHS environmental surface finishing compliance, simplifying site approvals with local fire departments, Civil Defense, and underwriters.
Heavy-Duty Surface Pretreatments
Operating in harsh environments requires robust protection. Our structural components undergo chemical pickling, zinc phosphating, and electrostatic epoxy powder curing at 200°C. This multi-stage finish prevents atmospheric oxidation, corrosion, and micro-cracking across high-humidity coastal hubs, desert environments, and sub-zero cold-storage freezers (-30°C).
Container-Optimized Export Packing
Damage-free transoceanic transit is guaranteed through precision packing regimes. Beams and upright frames are strapped with steel banding, bubble wrap buffers, and designated lifting points. Every bundle is tagged with QR-indexed piece marks mapped directly to the supplied installation guide, reducing unloading and staging labor costs by up to 35%.
Lifecycle Project Management & Support
From initial structural consultation to long-term lifecycle performance, HEDA supports contractors and warehouse directors with comprehensive engineering packages. Our technical specialists provide full calculation files, certified video-guided installation supervision, and dispatched on-site engineering supervisors for multi-level structural mezzanines and ASRS assemblies.
Precision Manufacturing
Standardized 10-Stage Steel Production Process
Maintaining dimensional accuracy across multi-tier uprights and heavy box beams requires continuous in-line quality assurance.
Stage 01
Raw Material Q235B/Q355B Testing
Stage 02
Precision CNC Slitting & Cutting
Stage 03
Automated Continuous Upright Punching
Stage 04
High-Precision Cold Roll Forming
Stage 05
Profile Straightening & Sizing
Stage 06
Robotic Welded End Connectors
Stage 07
Shot Blasting & Surface Polishing
Stage 08
Acid Pickling & Phosphating
Stage 09
Electrostatic Epoxy Powder Curing
Stage 10
Full CMM QC & Export Staging
Industry White Paper
Warehouse Storage Racking: Future Procurement Dynamics & Structural Trends
Global supply chain pressures, land costs, and automated logistics are reshaping industrial storage infrastructure. Below is an engineering overview of structural trends, metallurgical specifications, and multi-tier procurement strategies.
The Shift Toward Verticalization & High-Cube Systems
With industrial real estate costs climbing across prime trade hubs—including Dubai’s JAFZA, Riyadh’s integrated logistics parks, and European logistics corridors—procurement strategies are pivoting away from low-density floor footprint expansions. Warehouses are maximizing vertical cubic storage through high-bay configurations extending beyond 12 to 18 meters.
This trend demands higher tensile structural steel (e.g., Q355B micro-alloyed profiles) offering increased yield strength without excessive frame self-weight. Narrow Aisle (VNA) designs and multi-tier rack-supported platforms are steadily replacing standard selective systems, effectively doubling operational capacity within unchanged building footprints.
Convergence of Automation, Shuttles, and Modular Racking
Static storage is increasingly giving way to semi-automated and automated intralogistics ecosystems. Radio Shuttle Pallet systems and Automated Storage and Retrieval Systems (AS/RS) are experiencing rapid adoption among FMCG, chemical, and cold-chain distributors seeking to mitigate rising labor overheads and minimize lift-truck impacts.
Modern racking designs must meet tighter deflection criteria (under EN 15620 / FEM 9.831 tolerances) to ensure robotic shuttles, optical sensors, and automated guided vehicles (AGVs) navigate channels without error. Structural racking is no longer passive steelwork; it is a foundational mechanical interface for automated distribution.
Sustainable Procurement: Green Powder Coatings & Lifecycle Durability
Environmental standards are increasingly shaping international tenders. Modern racking projects prioritize closed-loop, solvent-free electrostatic powder coating lines with full wastewater treatment and zero volatile organic compound (VOC) emissions, complying fully with EU RoHS and REACH mandates.
Beyond compliance, lifecycle durability has become an essential metric. High-durability finishes minimize abrasive wear, chipping, and corrosive deterioration in high-cycle fulfillment centers. Selecting pre-treated, phosphated, and oven-cured racking components reduces total cost of ownership (TCO) by prolonging structural integrity across multi-decade service lifespans.
Seismic Engineering & Cold Chain Resiliency
International logistics corridors frequently cross geologically active zones or extreme climate regimes. Engineering calculations must account for dynamic seismic wave propagation (RMI MH16.1 and Eurocode 3 standards) using structural baseplate anchors and back-to-back portal bracing.
Simultaneously, the global expansion of perishable supply networks requires racking capable of continuous duty in deep-freeze environments (-25°C to -30°C). Structural components must resist cold embrittlement through validated impact-toughness ratings, specialized low-temperature powder resins, or continuous hot-dip galvanization.
Procurement Knowledge Base
Frequently Asked Questions for Sourcing Storage Racking
Key structural, logistics, and compliance details to help warehouse operators, project contractors, and procurement professionals navigate custom racking orders.
What engineering data is needed to design a custom warehouse layout?
To generate an optimized 2D CAD layout and 3D architectural rendering, our design team requires:
- Building Architectural Schematics: Overall interior dimensions, clear eaves height under roof trusses, column locations and grid spacing, access door positions, and floor slab specifications.
- Pallet & Unit Load Specifications: Pallet dimension (L × W × H, including load overhang), gross weight per pallet position, and pallet entry orientation (2-way vs. 4-way entry).
- Handling Equipment Details: Forklift model, maximum lifting height, turning radius (Aisle width requirements / Ast), and mast collapse height.
- Inventory Dynamics: Target SKU counts, throughput velocity, inventory rotation preferences (FIFO vs. LIFO), and local seismic design parameters.
How does HEDA guarantee steel structural safety and load-bearing integrity?
All HEDA racking systems are engineered and tested in accordance with international design standards (FEM 10.2.02, EN 15512, and RMI). We exclusively source certified structural hot-rolled and cold-rolled steel coils (Q235B and Q355B grades) from premier domestic mills.
Each roll-formed column profile features multiple stiffening ribs to counteract torsional buckling. Prior to shipment, structural weld joints undergo rigorous dye-penetrant inspection and physical testing, ensuring safety factors consistently range between 1.5 and 1.65 under uniformly distributed loading (UDL).
Can HEDA racking layouts meet local Civil Defense, fire safety, and insurance guidelines?
Yes. Our structural drawings are developed with fire protection and local regulatory compliance in mind. We incorporate longitudinal and transverse flue spaces (typically 75 mm to 150 mm) between back-to-back pallet rows, ensuring unobstructed vertical discharge for ceiling-level Early Suppression Fast Response (ESFR) sprinkler heads.
Additionally, we integrate wire mesh decking, drop-in pallet support bars, row spacers, column protector shields, and heavy-duty tubular aisle end barriers. These detailed specifications allow your local consulting engineers to submit drawing packages smoothly to municipal authorities, Civil Defense departments, and insurance underwriters.
What surface treatment is best for high-humidity, marine, or cold-storage environments?
For standard interior logistics facilities, our multi-stage electrostatic epoxy polyester powder coating provides resilient scratch and impact protection. Before coating, parts pass through automated hot-alkali degreasing, acid rust removal, water rinsing, and zinc phosphating to maximize bond strength.
For external yards, high-salinity coastal logistics zones, or corrosive chemical environments, we recommend Hot-Dip Galvanizing (HDG) conforming to ASTM A123 / ISO 1461, achieving a minimum zinc coating thickness of 65–85 μm. For cold chain applications (-20°C to -30°C), our specialized low-temperature powder coating maintains elasticity and adhesion without micro-fissuring or embrittlement under thermal contraction.
What installation and field support do you offer for international projects?
Every export shipment includes a complete documentation pack: comprehensive 2D erection plans, 3D exploded connection details, parts lists, and piece-mark identification tags. We provide step-by-step video installation workflows and direct engineering video conference support.
For large-scale projects, high-bay automated installations, and multi-tier mezzanine floors across the GCC, Southeast Asia, Africa, and the Americas, HEDA can dispatch certified bilingual project engineers directly to your site to oversee unloading, alignment, structural anchoring, and final load certification.
Plan Your Storage Project with HEDA's Engineering Team
Send us your warehouse CAD drawings, site dimensions, or equipment specifications. Our structural team will deliver a customized 2D/3D layout, load-capacity profile, and factory-direct quotation within 24 hours.
