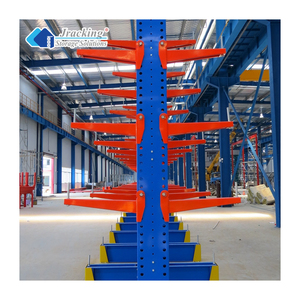

Cantilever Rack
Free 3D Design
Fireproof Safety
Modular Shelving
Stackable Stillage
Server Enclosure
Engineering Principles of Gravity Feed Pallet Racking Systems
Gravity feed pallet racking—also known internationally as pallet flow racking or dynamic live storage—is an unpowered, high-density storage methodology operating on pure kinetic gravity. Engineered with precision incline beds, centrifugal speed retarders, and separation safety mechanisms, it delivers strict First-In, First-Out (FIFO) pallet rotation while reducing warehouse transit aisles by up to 60%.
The roller bed pitch is precisely calculated between 2.5° and 4.0° (typically 3.5% nominal slope) depending on pallet construction (timber Euro-pallets, GMA pallets, or ribbed HDPE plastic skids). This controlled incline guarantees smooth self-starting glide velocity without risking pallet runaway or line jamming.
To eliminate impact energy during continuous lane accumulation, heavy-duty planetary brake rollers are integrated at intervals of 1 pallet position. As a descending pallet exceeds 0.25 m/s, centrifugal internal shoes or contactless magnetic eddy dampers engage to restrict pallet speed to an ultra-safe 0.15–0.3 m/s.
At the discharge face, immense cumulative back-pressure builds behind the lead pallet. Our patented automatic mechanical separator disengages the leading pallet from subsequent loads in the queue. The forklift picks the load pressure-free, preventing mast tip-over, wood splintering, and operator safety hazards.
| Storage System Type | Space Utilization | Stock Rotation Method | Energy Consumption | Throughput Velocity | Pallet Access Ratio |
|---|---|---|---|---|---|
| Gravity Feed (Pallet Flow) | 85% - 90% (Maximum) | Strict FIFO (100%) | 0 kWh (Pure Gravity) | Ultra High (Dual Aisle) | 100% at picking face |
| Selective Pallet Racking | 35% - 40% (Low) | FIFO or LIFO | Forklift dependent | Moderate (Aisle congestion) | 100% Selective |
| Drive-In Racking | 65% - 75% (Medium-High) | LIFO Only | Forklift deep travel | Low (Forklift risks) | Last pallet only |
| Push-Back Cart Racking | 70% - 75% (Medium) | LIFO (2–6 pallets deep) | Push force dependent | Moderate | Lane front only |
| Radio Shuttle Racking | 80% - 85% (High) | FIFO or LIFO | Battery powered shuttle | High (Automated carrier) | Front SKU lane |
Future Procurement Trends & Technological Evolutions
Modern distribution logistics is undergoing rapid transformation driven by carbon neutrality mandates, supply-chain cold-room expansion, and automated guided vehicles (AGV/AMR). Inquire how gravity feed systems are adapting to Tier-1 automated hubs.
With corporate ESG targets demanding reductions in kilowatt-hour consumption, warehouse engineers are replacing motorized accumulation roller conveyors with 100% passive gravity flow lines. In multi-tier consolidation and dock-staging lanes, gravity systems consume zero operational electrical power, delivering measurable Scope-2 carbon footprint mitigation.
In cold logistics hubs throughout Saudi Arabia, UAE, Europe, and North America, building refrigerated cubic volume costs five times more than ambient space. Pallet flow racking condenses 10,000 pallet positions into minimum chilled cube space while preventing thermal dissipation through high-speed separated loading and retrieval aisles.
Next-generation gravity feed configurations are integrating optical sensor beams and electromagnetic end-stops that dock directly with autonomous counterbalance forklifts and AGVs. The precision mechanical separation ensures that robotic forks lift pallets without sensor false-triggers or lane drag disruptions.
The integration of micro-piezoelectric energy harvesting rollers allows gravity flow lanes to self-power wireless inventory sensors. These detect real-time lane occupancy, descent speeds, and thermal friction warning signs, feeding inventory data straight into SAP or Oracle Warehouse Management Systems without external cabling.
Traditional zinc-plated steel rollers are being supplemented with noise-dampening composite polyurethane jackets and food-grade stainless roller shafts. This material advancement slashes decibel levels inside enclosed packing zones from 82 dB down to under 58 dB, complying with stringent OSHA warehouse health and safety rules.
E-commerce fulfillment centers are increasingly commissioning integrated high-bay pallet gravity racking on top levels for bulk pallet reserves, dropping directly into pick-to-light carton flow beds on lower levels. This vertical gravity cascade achieves unmatched micro-fulfillment speed during peak shopping events.
Guangzhou HEDA Shelves Co., Ltd. - Manufacturing Supremacy
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a specialized steel profiling workshop into an internationally benchmarked storage racking giant, serving over 120 countries with comprehensive design, production, and installation guidance.
We source certified prime cold-rolled coil steel directly from Baosteel and Shougang. Every upright post and box beam profile undergoes automated multi-stage roll-forming and CNC high-precision column punching for exact pitch alignment.
To resist 45°C+ summer temperatures and humid, saline air in coastal maritime ports such as Dubai, Jeddah, Dammam, and Jebel Ali, all components pass through chemical pickling, degreasing, and phosphating before receiving electrostatic epoxy powder coating at 200°C.
HEDA Shelves products hold verified CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Certification (No. 18624Q00169R0M, valid until 2027), and RoHS environmental compliance, ensuring effortless local Civil Defense approvals.
Our in-house design engineering department of 300+ technical personnel provides free preliminary warehouse layout proposals, static finite element structural analyses, and realistic 3D renderings within 24 hours of receiving building drawings.
Racking shipments are bundled with heavy-duty protective wrap and steel strappings, with individual components clearly barcoded and tagged to correspond directly with CAD installation blueprints for rapid on-site erection by local contractor crews.
From customized beam connector clips, dual-flange heavy duty upright profiles, fire sprinkler cutouts, and custom RAL colour schemes, we tailor manufacturing parameters to match exact project tender specifications without intermediary markups.
