High-Density Heavy-Duty Racking Systems
Heavy-duty industrial rack structures fabricated with certified Q235B/Q355B structural steel, custom-calculated for live warehouse floor loadings from 1,000 kg to beyond 4,000 kg per tier.

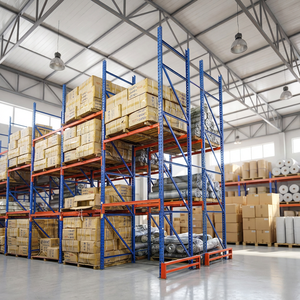

Engineering Fundamentals of Heavy Duty Racking Design & Manufacturing
Modern distribution nodes require racking frameworks that deliver structural equilibrium under extreme dynamic conditions. As an established Chinese heavy-duty industrial racking manufacturer with over two decades of technical production, Guangzhou Heda Shelves Co., Ltd. builds engineered assemblies tailored to structural dynamics, thermal differentials, and heavy seismic specifications.
Structural Integrity Note: All cold-formed racking assemblies must comply strictly with EN 15512 (Steel Static Storage Systems) and ANSI MH16.1 specifications. Cold-rolled structural columns undergo Finite Element Analysis (FEA) to confirm minimum safety factor thresholds (>1.65) under dead, live, and seismic seismic-acceleration spectra.
Material Metallurgy & Cold-Roll Profiling Precision
Structural stability begins with prime coil chemistry. Racking upright columns are roll-formed exclusively from certified Q235B and higher tensile Q355B low-alloy carbon structural coils, offering yield strengths between 235 MPa and 355 MPa. The forming mill controls cold roll curvature within millimetric tolerances, preventing residual torsional stresses across the profile webbing.
Unlike light commercial shelving, heavy-duty industrial racking requires advanced continuous punching configurations (50mm or 75mm pitch diamond/teardrop holes) designed to distribute load transfers directly into heavy steel box beams or step beams. Dual-lug and multi-prong connector joints secure beam-to-column integration, counteracting unseating forces caused by rough forklift maneuvering.
| Racking Architecture | Typical Load Rating (kg/Tier) | Floor Space Utilization | Forklift Compatibility | Ideal Application Sector |
|---|---|---|---|---|
| Selective Pallet Racking | 1,000 – 4,500 kg | 35% – 40% | Counterbalance, Reach Trucks | Fast-moving multi-SKU retail, 3PL logistics |
| Very Narrow Aisle (VNA) | 1,000 – 3,000 kg | 55% – 65% | VNA Turret Man-Up Trucks | High-bay e-commerce fulfillment hubs |
| Drive-In / Drive-Through | 800 – 2,000 kg | 65% – 75% | Reach Trucks (Internal Entry) | Homogeneous bulk commodities, raw ingredients |
| Radio Shuttle Automation | 1,000 – 2,500 kg | 75% – 85% | Automated Shuttles + Standard MHE | Cold storage, frozen distribution (-25°C to -30°C) |
| Heavy Duty Cantilever | 1,500 – 5,000 kg/Arm | Variable / Open Front | Side Loaders, Multi-Directional MHE | Extrusions, steel rebar, timber & construction |
Anti-Corrosive Chemical Pretreatment for Extreme Working Environments
Industrial warehousing operations, particularly in coastal, sub-tropical, or chemical-intensive regions, subject structural steel components to aggressive atmospheric degradation. Inadequate coatings invite oxidation that compromises vertical load capacities.
Our production facilities maintain an automated continuous 9-stage surface treatment line. Steel components are completely degreased, descaled, pickled with controlled acid concentrations, and neutralized with zinc phosphating. This chemically bonds a microscopic crystalline matrix to the raw steel, providing over 500 hours of continuous salt-spray resistance before electrostatic thermosetting epoxy-polyester powder coating (70–90 microns). For high-humidity cold stores and external bulk yards, full hot-dip galvanization to ASTM A123/ISO 1461 guarantees multi-decade protection without peeling.
Market Evolution
Future Industrial Racking Procurement & Technology Trends
Global warehouse footprints are transitioning from static storage sheds into dynamic, hyper-dense logistics engines. Supply chain procurement directors must factor these technology shifts into multi-year capital plans.
1. Transition from Static to Semi-Automated Racking
Rising land valuations and labor overheads are driving procurement away from pure selective racking toward pallet shuttle systems and automated mobile bases. Semi-automated configurations double cubic density while slashing forklift transit times within aisles.
2. Decoupled Modular Racking & Multi-Tier Platforms
Multi-level rack-supported mezzanine floors and modular long-span integrations are becoming standard in regional fulfillment centers. Warehouses maximize the entire clear height (up to 15m+) by blending bulk lower pallet bays with upper-tier manual carton picking decks.
3. Dynamic Stress Sensors & Real-Time Deflection Monitoring
Next-generation installations are beginning to embed strain sensors and column deflection indicators. By feeding real-time stress data into digital warehouse management systems (WMS), operators detect overloaded bays and structural forklift impacts before structural failures occur.
Direct Manufacturing Authority
Why Enterprise Buyers Partner with HEDA Shelves
Combining 25+ years of production excellence with rigorous internal quality control, we eliminate third-party intermediaries to provide certified industrial storage direct from our Guangzhou factory floors.
30,000 m² Advanced Manufacturing
Equipped with continuous automated roll-forming lines, computerized multi-station stamping presses, and robotic gantry welders producing over 30,000 metric tons monthly.
Traceable International Certifications
Rigorous quality compliance backed by CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Systems (No. 18624Q00169R0M), and strict RoHS raw material audits.
Free 2D CAD & 3D Engineering Layouts
Our structural engineering department generates full spatial design layouts, deflection calculations, and 3D architectural renders within 24 to 48 hours for immediate permitting.
Global Container Logistics Precision
Engineered bundle strapping and numbered component palettes optimized for container stuffing. Exports dispatched to over 120 countries with comprehensive installation guidance.
Strategic Procurement Knowledgebase
Frequently Asked Questions on Industrial Racking Sourcing
Key technical, commercial, and engineering questions addressed by our industrial structural teams to streamline your vendor evaluation.
What are the key technical parameters required to generate an accurate racking layout and load calculation?
To provide precise structural calculations and compliant CAD layouts, our engineering team requires:
- Facility Blueprint: Architectural CAD drawing with column spacing, ceiling truss clearances, dock doors, lighting, and fire sprinkler line levels.
- Pallet Profile: Dimensions (Length × Width × Height including product overhang) and maximum gross weight per pallet.
- Material Handling Equipment (MHE): Make and model of forklifts, maximum mast lift elevation, turning radius, and minimum right-angle aisle stacking widths.
- Environmental Loads: Local seismic hazard zoning coefficients and warehouse ambient operating temperatures (ambient, chilled, or -30°C deep freeze).
How do factory-direct China manufacturers guarantee structural steel grade authenticity and load integrity?
Guangzhou Heda Shelves validates raw material integrity by procuring prime steel coils solely from certified state-owned domestic mills with full Mill Test Certificates (MTC). Every heat number undergoes mechanical tensile verification and spectral chemical testing. Furthermore, physical beam and column sub-assemblies undergo destructive load-deflection destructive tests to verify compliance with EN 15512 safety deflection thresholds (span/200 standard).
How does the factory protect overseas shipments against marine corrosion and physical transit deformations?
Long-haul ocean container transit exposes structural steel to humidity cycles and shifting stresses. All our vertical upright frames and horizontal load beams are tightly bundled using high-tensile polyester strapping, wrapped in high-density polyethylene (HDPE) protective film, and fitted with thick corrugated edge guards. Smaller brackets, bolts, baseplates, and hardware are crated in seaworthy, fumigated solid wooden boxes clearly cataloged against the assembly packing manifest.
Can HEDA Shelves drawings satisfy local building codes, fire authority, and insurance regulations?
Yes. Our structural engineers produce comprehensive 2D CAD floor plans, elevation profiles, flue space diagrams (longitudinal and transverse flue allowances for ceiling sprinkler penetrations), load placarding notices, and anchor bolt embedment depths. These engineering schematics are formatted for straightforward review by local civil defense authorities, building inspection bodies, and industrial insurance underwriters.
What is the operational difference between Powder Coating and Hot-Dip Galvanization for industrial storage?
Electrostatic epoxy-polyester powder coating (70–90 μm) provides a clean, chemically durable, impact-resistant finish optimal for interior logistics facilities, dry retail distribution, and ambient manufacturing spaces. In contrast, Hot-Dip Galvanization involves immersing pickled steel elements into a 450°C molten zinc bath, forming a metallurgical alloy bond (65–85 μm) that will not chip or rust, making it indispensable for open-air yards, coastal ports, and sub-zero blast freezers.
