Pteris Miniload High Speed ASRS Shuttle System
Ultra-dynamic automated miniload and single-column shuttle racking system delivering rapid retrieval cycle times for ultra-dense item operations.
Engineered Storage Portfolio
Precision Heavy-Duty & High-Density Pallet Rack Systems
Direct factory manufacturing for global supply chain operators, distribution centers, and high-throughput automated warehouses.

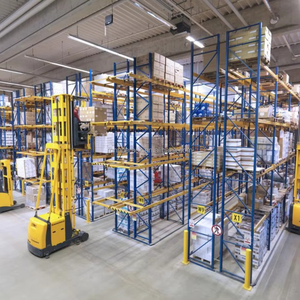

Galvanized VNA Very Narrow Aisle Racking
Euro-spec very narrow aisle pallet racking engineered with hot-dip galvanized finishes and floor-guided systems for maximized vertical cubing.

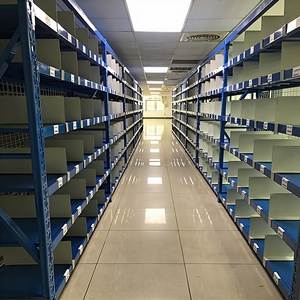

Medium Duty 4-Level Wide Span Shelving
Versatile boltless industrial storage shelving with interlocking step beams, flexible tiered heights, and high surface resistance against abrasive freight.
Heavy Duty Butterfly-Hole Storage Shelving
Certified 250kg-500kg per level powder-coated modular racks utilizing precision butterfly punched uprights for fast, tool-free manual warehouse reconfiguration.
High-Bay VNA Capacity-Maximizing Pallet Rack
Designed for high-density logistics footprints, compressing aisle allowances to 1.6m-1.8m while retaining uninterrupted 100% selective pallet reachability.
1000kg/Layer Cold Storage Heavy Pallet Rack
Cryogenic-grade structural steel compositions formulated to resist brittle ductile transition and thermal contraction cracking down to -30°C freezer operations.
Stainless Steel Cleanroom Racks & Brackets
Laser-cut, passivated, and polished 304/316 structural sheet components designed for pharmaceutical hygienic processing and sterile parts warehousing.
Custom Long Span Boltless Industrial Shelving
Fully customizable industrial long span shelves optimized for manual case-picking, e-commerce sortation tiers, and multi-tier mezzanine floor integration.
Architectural Engineering & Development Trends in Modern Racking
The international supply chain is navigating an era defined by skyrocketing real estate valuations, stringent occupational safety regulations, and rapid fulfillment mandates. As a tier-1 China wholesale pallet rack systems manufacturer and exporter, our engineering whitepaper analyzes the structural transition of modern racking: shifting away from traditional low-density static storage toward intelligent high-bay configurations, hybrid automated shuttle systems (ASRS), and cold-chain dynamic modules.
"Structural integrity in modern high-bay racking systems requires deep FEM (Finite Element Method) modeling, strict compliance with EN 15512:2020 and RMI MH16.1 guidelines, and anti-seismic beam-to-column connector lock mechanics designed to withstand extreme dynamic loading."
High-Yield Steel Metallurgy
We source certified Q235B and Q355 high-tensile cold-rolled coils from China's primary state-owned steel mills, guaranteeing consistent yield strength, weldability, and impact resilience across temperature variances from -30°C to +55°C.
Automated Upright Roll-Forming
Continuous computer-controlled roll-forming lines execute multi-stage profiling with inline continuous CNC punching. This maintains beam slot tolerances under ±0.5mm across unbroken 12-meter continuous vertical upright profiles.
Pretreatment & Anti-Corrosion
An 8-stage automated pre-treatment immersion process (degreasing, pickling, nano-ceramic silane conversion) precedes electrostatic epoxy-polyester powder baking at 200°C, delivering 80-120μm dry film thickness exceeding 500h salt spray resistance.
Global Procurement Trends: What Major Distribution Centers Demand (2025–2030)
Procurement directors and EPC logistics contractors are transitioning from buying catalog shelving to specifying integrated cubic storage ecosystems. Forward-looking procurement strategies prioritize the following criteria:
1. High-Density Automation Integration (ASRS & Radio Shuttle)
With warehouse labor shortages and rising facility rental rates globally, operators are replacing conventional selective racking with semi-automated radio shuttle lanes and fully automated single/double mast crane ASRS racking. This shift doubles volumetric storage efficiency while slashing pallet retrieval turnaround cycles by up to 60%.
2. Strict Seismic & Dynamic Cyclic Loading Verifications
Tenders across the Middle East (GCC Vision 2030 projects), Latin America, and Southeast Asia now mandate verified non-linear seismic analysis. Structural baseplates, heavy frame anchors, and safety locking pins must be calculated against simulated earthquake harmonics and seismic accelerations up to Zone 4 standards.
3. Thermal Energy Efficiency in Cold Chain Warehousing
Cold chain operators face punishing power costs. Pallet racking in refrigerated and deep-freeze logistics must achieve maximum cubic density to minimize refrigerated volume per stored SKU. Specialized steel formulations and micro-crack-free powder formulations prevent steel embrittlement in temperatures down to -30°C.
4. Container Packing Engineering & Fast-Track Site Erection
High ocean container freight tariffs require optimized maritime packaging. Modern exporters bundle components with custom nesting techniques, labeled color-coded staging bundles, and detailed 3D installation blueprints to minimize site handling times and eliminate transit friction.
Why Work With HEDA Shelves: Enterprise Strengths & Factory Capabilities
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into one of China's most trusted manufacturers and exporters of heavy-duty pallet racking, industrial shelving, and multi-tier mezzanine floors. We provide turnkey services ranging from initial floor plan consultation to complete installation support for logistics operators across 120+ countries.
30,000 m² Advanced Production Base
Equipped with robotic welding units, automated continuous punch lines, CNC profile roll-formers, and dual electrostatic coating tunnels generating over 30,000 tons of monthly fabricated steel capacity.
Traceable Global Quality Certifications
Our complete manufacturing pipeline conforms to ISO 9001:2015 Quality Management standards (Cert No. 18624Q00169R0M), CE Factory Production Control (Cert No. 2435-CPR-8605159), and RoHS environmental standards.
Free 2D CAD & 3D Photorealistic Design
Our in-house structural engineers produce complete CAD floor layouts, dynamic clearance models, and structural load calculations tailored to your forklift fleet and local civil defense codes prior to contract signing.
Proven Middle East & Global Export Focus
Deep domain expertise shipping direct to major international ports including Jebel Ali (UAE), Dammam & Jeddah (KSA), Hamad (Qatar), Houston (USA), and Rotterdam (EU) with labeled shipping bundles matching assembly drawings.
Full OEM / ODM Custom Engineering
Custom upright pitch (50mm/75mm), beam cross sections, customized RAL color matching, and corrosive environment adaptations (such as hot-dip galvanizing and high-grade stainless steel fabrication).
Turnkey Lifetime Structural Support
Every shipment is accompanied by comprehensive assembly documentation, structural deflection tables, remote engineer video support, and on-site engineering supervision for complex industrial mezzanine platforms.
Industrial Pallet Racking Procurement FAQ (Buyer's Guide)
Direct answers to technical, commercial, and engineering questions posed by warehouse managers, EPC contractors, and international procurement specialists.
What technical parameters are required to calculate an accurate warehouse pallet racking quotation?
To provide precise structural calculations and load-bearing configurations, our engineering team requires: (1) Architectural warehouse CAD drawings showing column grid locations, overhead sprinkler clearances, door portals, and floor slab load capacity; (2) Pallet specifications (width × depth × height including cargo overhang) and maximum gross weight per pallet; (3) Forklift fleet details including maximum lift mast height, turning radius, aisle width requirements, and mast collapsed height; (4) Total SKU profiles and required inventory turnover mode (FIFO vs. LIFO).
How do HEDA rack systems ensure structural safety in high-risk seismic zones?
All structural frameworks are engineered following FEM 10.2.02 and RMI specifications. For seismic active zones, we utilize heavy-duty gusseted baseplates anchor-bolted into reinforced concrete slab foundations, heavier cold-rolled upright profile gauges (up to 2.5mm or 3.0mm thickness), and high-moment connection 3-claw or 4-claw beam connector locks equipped with safety drop pins rated to prevent vertical beam dislodgment under dynamic ground vibrations.
What is the difference between selective pallet racking, VNA, and radio shuttle racking?
Selective pallet racking uses 3.0m–3.5m aisles for standard reach trucks, providing 100% pallet accessibility with lower cubic space utilization. Very Narrow Aisle (VNA) compresses aisles to 1.6m–1.8m by using guided turret trucks, boosting storage density by 40–50% while maintaining 100% selectivity. Radio Shuttle racking uses remote-controlled motorized shuttles inside continuous pallet channels, eliminating forklift aisles inside the rack block for maximum high-density storage of bulk, low-SKU goods.
How does your surface coating protect steel against corrosion in coastal and cold-chain conditions?
We use an automated multi-stage pre-treatment wash consisting of alkaline degreasing, surface conditioning, hot water rinsing, and silane ceramic conversion. This is followed by thermosetting electrostatic epoxy-polyester powder coating cured at 200°C. For harsh environments (such as outdoor yards, coastal logistics zones in the GCC, or chemical warehouses), we offer continuous hot-dip galvanizing per EN ISO 1461, providing zinc coatings thicker than 65μm for permanent rust prevention.
Can HEDA Shelves drawings assist in local civil defense and fire department approvals?
Yes. Our engineering drawings provide certified structural load charts, flue-space dimensions (transverse and longitudinal fire flue gaps matching NFPA 13 sprinkler guidelines), egress aisle dimensions, and certified steel yield properties. These comprehensive layout packages can be submitted directly by your local civil engineering or fire safety consultants to satisfy regional regulatory requirements.
What are your manufacturing lead times and international ocean shipping arrangements?
Standard production lead times are typically 15 to 25 working days from CAD sign-off and deposit receipt, depending on steel tonnage and finish specifications. We coordinate container loading directly at our factory (20GP, 40HQ, 45HQ, and open-top containers) using wooden battens, protective bubble wrap, plastic strapping, and labeled bundles to prevent transit scuffing during ocean transport.
Transform Your Warehouse Storage Efficiency Today
Connect directly with our senior structural logistics engineers. Send your warehouse floor plan and SKU data to receive a complimentary 2D CAD layout, 3D visualization, and competitive factory-direct quote.
