Procurement Whitepaper
High-Yield Warehouse Racking: Strategic Sourcing & Structural Integrity
In modern industrial logistics, static floor footprints yield diminishing economic returns. Selecting an integrated manufacturing partner for industrial racking units requires verifying metallurgical purity, cold roll-forming tolerances, anti-corrosive electro-coating resilience, and compatibility with international fire safety codes. Discover engineering data, life-cycle evaluations, and direct manufacturer solutions below.
Technical Specifications
Structural Load Rating & Configuration Matrix
Compare standard structural classes, floor efficiency indicators, and retrieval dynamics across our exported pallet racking lines.
| Racking Architecture | Space Utilization | Standard Load Capacity | Stock Inventory Rotation | Target Material Handling Unit |
|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% Floor Density | 1,000 kg – 4,500 kg / beam level | 100% Selectivity (FIFO) | Standard Counterbalance / Reach Truck |
| Drive-In / Drive-Through | 65% – 75% High Density | 800 kg – 1,800 kg / pallet slot | LIFO / FIFO Strict Batching | Narrow Counterbalance Truck |
| Radio Shuttle Automation | 80% – 85% Maximum Density | 1,000 kg – 2,000 kg / pallet | Autonomous FIFO or LIFO | Electric Shuttle Carrier + Lift |
| Gravity Flow Racking | 70% – 80% Live Dynamic | 500 kg – 1,500 kg / pallet position | Strict FIFO Self-Feeding | Gravity Roller Track & Speed Controllers |

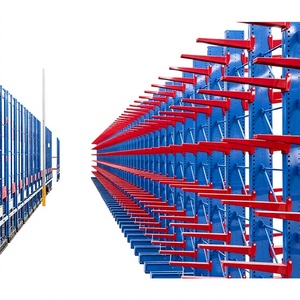

| Cantilever Racks | Linear Open Footprint | 300 kg – 3,000 kg / cantilever arm | Immediate Free-Form Access | Side Loader / Multi-Directional Truck |
25+
Years Manufacturing Experience
30,000 m²
Factory Facility Footprint
30,000 t
Monthly Production Output
120+
Global Export Destinations
Strategic Procurement Analysis
Emerging Warehouse Sourcing & Procurement Trends
Enterprise procurement managers are moving beyond upfront FOB rates, focusing heavily on total lifecycle asset durability, integration with automatic guided vehicles (AGVs), and geopolitical supply chain diversification.
⚙
1. Steel Volatility Hedging & Factory Integration
Global logistics operators now bypass third-party trading intermediaries to partner directly with primary Chinese manufacturers. Mill-scale sourcing of certified Q235B and Q355B coil steel with verified heat-treatment documentation mitigates price spikes and ensures structural yield strengths matching BS EN 15512 parameters.
🚀
2. Cold Chain & Controlled-Atmosphere Expansion
The global surge in biologics, FMCG cold logistics, and prepared meals demands systems that maintain steel ductileness under sub-zero thermal stresses down to -30°C. High-density radio shuttle frameworks and heavy-duty structural steel mezzanines reduce cold cubic dissipation by upwards of 40% compared to loose block stacking.
🔧
3. Pre-Engineered Seismic & Fire Certification
Local industrial zoning laws—such as Middle East Civil Defense, American RMI guidelines, and European CE harmonized directives—mandate upfront dynamic structural calculations. Procurement teams now require full 2D layout engineering, finite element analysis (FEA), and flue space validation prior to port dispatch.
R&D Roadmap
Architectural Trends: The Next Generation of Pallet Storage
As micro-fulfillment centers, dark warehouses, and high-bay facilities proliferate, physical storage units are evolving from passive metal structures into active, sensor-enabled intralogistics nodes.
⚡
High-Bay AS/RS Integration
Vertical warehouse clear heights now frequently surpass 24 to 40 meters. Automated Storage and Retrieval Systems (AS/RS) require tighter roll-forming tolerances on upright columns (down to ±0.5mm), eliminating deflection risks when high-speed automated crane lifters operate at multiple Gs of lateral acceleration.
🖊
Automated Robotic Shuttle Interfacing
Semi-automated deep lane pallets are rapidly converting to fully autonomous four-directional shuttle infrastructure. Upright punch slots and runner beams are engineered with precision optical indexing marks, allowing sensor-equipped rovers to achieve sub-millimeter position accuracy.
🛡
Nano-Polymer Anti-Corrosion Coatings
Traditional liquid dip paints are obsolete in high-value installations. Next-generation multi-stage pickling, zinc-phosphating pretreatment, and electrostatic thermosetting polyester powder coatings prevent micro-fissuring and rust creep even in extreme coastal humidity and aggressive chemical environments.
Factory Traceability
The 10-Step Heavy Duty Industrial Production Standard
Total quality oversight across our 30,000 square meter Guangzhou production campus guarantees dimensional compliance, weld penetration, and uniform powder film thickness across each project container.
STAGE 01
Raw Materials
Certified high-tensile Q235B/Q355B coils with mill test certificates.
STAGE 02
Laser & Shearing
High-precision automated CNC shearing to minimize metal burrs.
STAGE 03
CNC Punching
Continuous hydraulic stamping of beam hook holes and teardrop profiles.
STAGE 04
Roll Forming
Progressive cold roll-forming with multi-pass roller lines.
STAGE 05
Profile Forming
Precise interlocking boxed beams and structural omega profiles.
STAGE 06
Surface Polishing
Mechanical de-burring and edge smoothing for safety.
STAGE 07
Robotic Welding
Automated carbon dioxide gas shielded robotic welding.
STAGE 08
Pre-Treatment
Submersion acid pickling, rinsing, and chemical phosphating.
STAGE 09
Powder Coating
Electrostatic powder cure baked at 200°C for durable adhesion.
STAGE 10
QC & Packing
Strict destructive testing, bundle tagging, and export cradling.
Manufacturer Authority
Why Enterprise Buyers Partner with HEDA Shelves
Combining over two decades of technical racking fabrication with specialized export project delivery to more than 120 nations worldwide.
🏢
Tier-1 Manufacturing Scale & Fast Turnaround
Operating a dedicated 30,000 square meter intelligent manufacturing plant in Guangzhou staffed by more than 300 experienced technical professionals. With a production output reaching 30,000 tons per month, large-scale multi-bay distribution center builds can be completed, containerized, and dispatched on accelerated delivery timelines without subcontracting risks.
📍
Complimentary 2D / 3D Engineering & Layout Optimization
Avoid configuration bottlenecks before a single piece of steel is cut. Our engineering department develops comprehensive structural calculations, AutoCAD architectural floorplans, and photorealistic 3D warehouse simulations free of charge, tailored to your exact forklift turning radiuses, building column grid layouts, and pallet weights.
📜
Verifiable International Accreditations (CE, ISO, RoHS)
HEDA Shelves products carry audited CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Accreditation (No. 18624Q00169R0M), and environmental RoHS test certifications. All structural calculation dossiers align with international safety criteria, enabling seamless approvals with municipal regulators and facility insurance underwriters.
🚢
Global Export Experience & Dedicated GCC Distribution
From custom packaging designed to prevent ocean freight transit abrasion to detailed part numbering aligned with step-by-step installation blueprints, we have successfully completed over 10,000 warehouse projects. Active weekly export routes link our production hub directly to key ports worldwide including Jebel Ali, Khalifa, Dammam, Jeddah, Hamad, Sohar, and Shuwaikh.
Purchasing FAQ
Frequently Asked Questions: Global Pallet Racking Procurement
Authoritative technical answers to key logistics, quality assurance, and project coordination questions raised by supply chain executives.
What engineering variables must be provided to receive an accurate structural layout and quotation?
To prepare an accurate CAD blueprint, structural load calculation, and formal quotation, our engineering department requires: (1) Warehouse architectural drawings detailing clear ceiling height below roof purlins, column grids, fire shutter locations, and floor flatress tolerances; (2) Pallet specifications including overall dimensions (W×D×H including goods overhang) and maximum gross weight per pallet; (3) Operational SKU metrics, daily stock turnover volume, and FIFO/LIFO handling guidelines; (4) Forklift specifications, particularly mast lift height, collapsed mast height, and right-angle stacking aisle turning clearances.
How do you ensure powder coat adhesion and corrosion resistance in humid or extreme coastal environments?
Our surface finishing line relies on a rigorous 5-stage pre-treatment regimen. Before applying electrostatic coating, raw steel parts undergo alkaline degreasing, clean water rinsing, acid rust descaling (pickling), and chemical micro-crystalline phosphating. This chemically bonds a stable conversion layer onto the steel, preventing moisture undercut. High-grade electrostatic polyester powder cures at 180°C–200°C, producing a resilient 60–90 micron barrier that protects steel members in coastal and high-humidity climates. Optional hot-dip galvanizing is also available for unconditioned external yards and sub-zero cold storage facilities.
How are container loads arranged to eliminate cargo damage during deep-sea transport?
Structural racking uprights and horizontal beams are dense and heavy, requiring specialized export packing methods. Uprights are strapped into reinforced timber crating with protective corner buffers to prevent flange deformation. Beams are bundled with non-slip separators to protect powder coat finishes. Accessories such as baseplates, anchor bolts, row spacers, and safety locking pins are sorted into marked wooden crates. Each shipping unit displays durable moisture-resistant tags matching the on-site installation drawings, making customs de-vanning and phased job site assembly straightforward.
What third-party quality certifications and material traceability documents do you provide?
Every commercial order can be supplied with mill test certificates confirming raw steel chemical composition and tensile elongation. Our manufacturing operations comply with ISO 9001:2015 quality frameworks, CE certification (No. 2435-CPR-8605159), and RoHS directives. Full load-deflection test records (conforming with FEM 10.2.02 and EN 15512 safety limit standards) can be supplied alongside seismic anchor design calculations for regulatory verification and municipal safety clearances.
Do you provide technical assembly support and on-site engineering supervision?
Yes. Every container delivery includes clear exploded isometric assembly diagrams, bill-of-materials piece counts, torque setting tables, and safety lock checklists. For international customers, our engineering team provides high-definition video walkthroughs and dedicated remote engineering support to assist local installation contractors. For complex automated radio shuttle setups or multi-level rack-supported mezzanine platforms, we can dispatch bilingual project engineers to the job site to oversee vertical plumbing, anchoring, beam leveling, and commissioning handoff.
Modernize Your Industrial Warehouse Footprint Today
Submit your facility dimensions, floor layout files, or racking requirements. Our senior storage system engineers will prepare a complete structural design, CAD layout, and factory-direct quotation within 24 hours.
