Safety Component

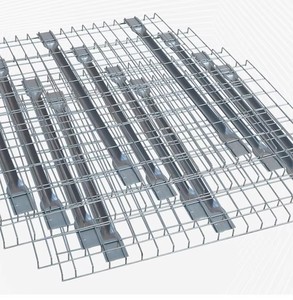

Rongbang Pallet Rack Wire Mesh Decking & Dividers
Heavy-duty wire mesh decking and vertical rack dividers engineered for sprinkler water penetration and superior pallet containment under extreme loading.
View Product
Direct Factory Inventory
Engineered Industrial Racking & High-Density Storage Portfolios
Precision-rolled cold-formed steel solutions certified to CE and ISO 9001:2015 specifications. Designed for optimal load distribution, forklift clearance, and strict seismic load resistance.
Safety Component
High Density

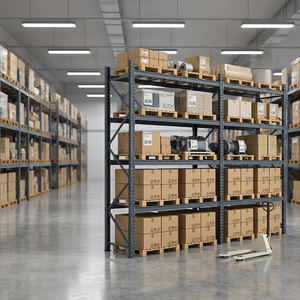

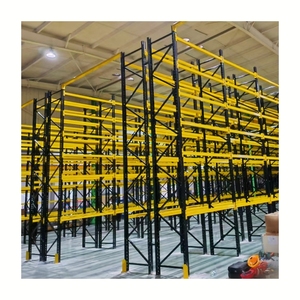

Custom High-Density Steel Warehouse Pallet Racking
Heavy-duty warehouse racking customizable in beam length and height profiles. Epoxy electro-powder coated for prolonged corrosion immunity.
View Product
Multi-Level
Multi-Level Boltless Industrial Storage Rack Systems
Versatile interlocking column-beam racking for multi-tier fulfillment warehouses, combining high static rigidity with flexible tier reconfigurations.
View Product
Long-Span
2M Long-Span Warehouse Shelving & Hand-Loaded Racks
Engineered for medium to light parts fulfillment. Features roll-formed step beams and drop-in steel or timber decking for rapid SKU accessibility.
View Product
Commercial
Commercial Shelving Units Heavy-Duty Warehouse Rack
Commercial grade warehouse storage rack built with rigid column stamping, ideal for large retail backrooms, distribution centers, and hardware depots.
View Product
Cold Chain / Auto
Double Deep Pallet Racking with Radio Shuttle Rail System
Engineered for cold store chambers and food-chain cold vaults, maximizing storage density while operating seamlessly with radio shuttle carriers.
View Product
Euro Standard

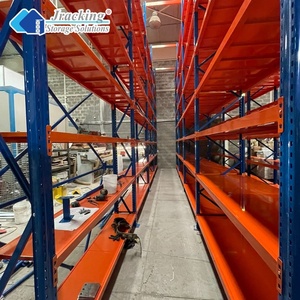

EURO-Standard Warehouse Heavy-Duty Pallet Racks
Compliant with European logistics metrics, built for standard 1200x800mm EUR pallets. Features safety pins and heavy anchor footplates.
View Product
Anti-Rust Epoxy

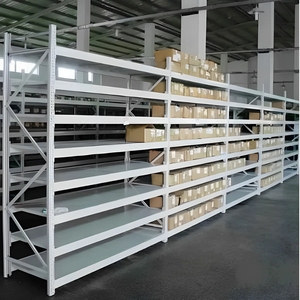

Adjustable Anti-Rust Heavy-Duty Pallet Storage Rack
Designed for harsh industrial environments prone to chemical vapors or coastal humidity. Advanced 8-stage pickling and phosphating pre-treatment.
View Product2001+
Established Year
120+
Countries Supplied
30,000t
Monthly Steel Output
CE / ISO
Certified Quality
Procurement Intelligence
Strategic Sourcing of Industrial Racking Systems: Engineering Standards & ROI Analysis
In contemporary warehouse design, steel storage racking is no longer treated merely as passive static shelving; it operates as an integral structural component of warehouse automation, inventory velocity, and operational safety. As supply chains adapt to surging e-commerce throughput, cold-chain logistics expansion, and localized distribution networks across the Middle East, Southeast Asia, Europe, and the Americas, warehouse managers require racking infrastructures engineered for cyclic load fatigue, dynamic seismic tolerances, and high volumetric storage coefficients.
Procuring directly from an established China wholesale racking storage solutions factory provides international contractors, EPC system integrators, and third-party logistics (3PL) operators with substantial capital cost savings while maintaining compliance with stringent international engineering codes, including EN 15512:2020 (European Racking Standard), RMI ANSI MH16.1 (American Specification), and AS 4084:2023 (Australian Steel Storage Racking code).
Critical Sourcing Factor: When comparing FOB/CIF pricing from China suppliers, enterprise buyers must audit the structural section modulus (Z-value) of upright profiles, cold-bending radius consistency, steel coil grade certification (Q235B vs. Q355B or ASTM A36 equivalents), and the chemical pre-treatment stages implemented prior to thermoset powder coating.
Future Procurement Trends in Industrial Storage Solutions
Global supply chain directors are shifting their procurement strategies from transactional, catalog-based hardware ordering to integrated structural and material flow partnerships. Over the next five to ten years, four macro trends are redefining warehouse racking procurement:
Trend 01
High-Density Shuttle & AS/RS Hybridization
Traditional wide-aisle selective racking is being progressively superseded by semi-automated Radio Shuttle racks and high-bay clad-rack automated storage and retrieval systems (AS/RS). These configurations maximize vertical envelope utilization up to 30+ meters, reducing footprint real estate costs by over 45%.
Trend 02
Cold-Chain Optimization for Harsh Climates
With massive cold-chain expansion across Gulf Cooperation Council (GCC) markets (UAE, Saudi Arabia, Qatar) and global pharma logistics, racks must withstand extreme thermal differentials. Cold storage racks require low-temperature notch toughness steels (preventing cryogenic steel embrittlement down to -30°C) coupled with non-cracking polyurethane-modified finishes.
Trend 03
Decarbonization & Certified Steel Traceability
International procurement frameworks increasingly mandate carbon-footprint verification and verifiable raw material origin. Tier-1 China factories are transitioning toward low-emission scrap-recycled EAF (Electric Arc Furnace) steel coils, standardized mil test certifications (MTC EN 10204 3.1), and zero-VOC heavy-metal-free thermosetting coatings.
Material Science & Structural Engineering Advancements
Structural reliability in modern racking begins with finite element method (FEM) computer analysis. Upright frames are subjected to axial compression, shear loads, and torsional buckling forces created when forklifts travel and deposit pallets at elevations exceeding 10 meters. Leading manufacturers incorporate patented teardrop or omega upright profiles with return flanges, creating multiple moment-resistant bends that enhance load-bearing capacity without arbitrarily adding deadweight steel tonnage.
Furthermore, beam connector connectors are designed with 3 to 5 welded heavy-duty claws that wedge tightly into upright slots under gravitational load, creating an intrinsically secure, self-locking connection complemented by spring-loaded safety locking pins that resist accidental forklift tine upward dislodgement.
Manufacturing Authority
Enterprise Advantages & Factory Capabilities
Direct from our 30,000 m² state-of-the-art production complex in Guangzhou. We bridge turnkey design engineering, robotic precision manufacturing, and direct shipping logistics to major global ports.
30,000 m² Factory Scale
Housing 300+ technical personnel and automated roll-forming lines delivering 30,000 metric tons per month capacity for rapid container turnaround.
Traceable Certifications
Accredited with CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and strict RoHS non-hazardous material compliance.
Free 2D/3D & CAD Design
In-house logistics architects deliver comprehensive layout simulations, aisle width optimizations, slab load assessments, and BIM files within 24-48 hours.
Harsh Environment Ready
Tailored anti-corrosion treatments engineered for high-humidity coastal ports (Dubai, Jeddah, Dammam, Doha, Kuwait) and deep-freeze logistics cold rooms.
Quality Control Protocol
Precision 10-Stage Racking Manufacturing Workflow
Total vertical manufacturing integration from prime hot-rolled coils to export shipping pallets guarantees structural consistency and zero dimensional deviation.
Phase 01
Coil Slitting & Inspection
Direct sourcing of Q235B/Q355B structural steel coils tested for tensile yield, elongation, and uniform thickness tolerances.
Phase 02
CNC Multi-Hole Punching
Continuous hydraulic stamping with 50mm/75mm hole pitches to guarantee sub-millimeter connector precision across 12-meter columns.
Phase 03
Cold Profile Roll-Forming
Multi-stand automated cold-rolling lines gradually form complex multi-bend omega uprights without inducing internal micro-fractures.
Phase 04
Robotic Seam Welding
Precision robotic MIG welding fixtures ensure 100% full-penetration welds on box beams, interlock tubes, and connector brackets.
Phase 05
8-Stage Chemical Cleaning
Industrial immersion pickling, degreasing, and phosphating removes all mill scale, securing superior chemical bonding for coatings.
Phase 06
Electrostatic Powder Line
Thermosetting epoxy-polyester powder applied under high voltage, cured at 180°C-200°C for durable 70-90µm dry film thickness.
Phase 07
Deflection & Load Testing
Destructive and proof-load sample testing ensuring deflection remains within L/200 structural parameters under max rated load.
Phase 08
Barcoded Piece Tagging
Every bundle is labeled to match CAD installation drawings, expediting customs clearance and on-site assembly for overseas teams.
Phase 09
Container Nesting Pack
Palletized bundles wrapped in air-bubble film with corner protectors and steel banding to eliminate transit friction in ocean containers.
Phase 10
Global Port Dispatch
Direct logistical coordination through Guangzhou/Shenzhen to global destinations including Jebel Ali, Dammam, Jeddah, Hamad, and Sohar.
Technical FAQ
Enterprise Storage Racking Procurement FAQ
Direct engineering responses to technical and commercial questions posed by global procurement managers, EPC contractors, and warehouse operators.
What parameters are required to calculate structural load capacity and issue a CAD layout? +
To provide an accurate 2D/3D layout and load calculation table, our engineering team requires:
1. Architectural drawing (DWG or PDF) indicating building clear height under joists, column grids, dock door locations, and floor slab load capacity (kN/m²).
2. Pallet specifications: Width, Depth, Height (including cargo overhang), and Maximum Gross Weight.
3. Forklift operational model: Reach truck, counterbalance, VNA turret truck, including minimum required aisle turning radius (AST) and maximum lift height.
4. Operating temperature profile (ambient warehouse vs. -30°C cold storage vault).
How does your factory ensure compliance with CE, ISO, and local Civil Defense regulations? +
Guangzhou Heda Shelves Co., Ltd. holds CE certification (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 accreditation (No. 18624Q00169R0M). Every project includes structural calculations stamped according to EN 15512 or FEM 10.2.02. For clients in the Middle East or Singapore submitting plans to Civil Defense or Building Authorities, our layouts detail exact egress paths, transverse and longitudinal flue spaces for ESFR in-rack fire sprinkler heads, and baseplate anchoring seismic compliance.
What steel grades and surface finishes do you supply for humid or coastal warehouse locations? +
We primarily roll structural uprights and beams from certified high-strength Q235B and Q355B structural steel. For high-humidity ports (e.g., Jebel Ali, Jeddah, Dammam) or chemical environments, parts undergo an 8-stage pickling and phosphating wash followed by an electrostatic thermosetting epoxy-polyester coating with a minimum dry film thickness of 70–90 microns. For outdoor cantilever applications or wet wash-down rooms, hot-dip galvanized finishes complying with ASTM A123 / EN ISO 1461 are provided.
Can you customize colors, beam punching pitch, and OEM/ODM private labeling? +
Yes. As a direct wholesale manufacturer, OEM/ODM production represents a substantial portion of our volume. We provide custom beam connection pitches (50mm, 75mm, 76.2mm / 3-inch imperial teardrop). Colors can be mixed to any standard RAL color code (e.g., RAL 5015 Blue, RAL 2004 Orange, RAL 7035 Grey). Brand name stamping on beam connectors, custom silkscreen logo badges, and buyer-specific part numbering on packaging bundles are fully supported.
What is the standard production lead time and export container packing protocol? +
Standard manufacturing lead times for 1 to 5 standard 40ft High Cube (40HQ) containers are typically 15 to 22 calendar days from final approval of CAD drawings. We use specialized container nesting packing methods: upright frames and beams are bundled with wood dunnage, corrugated edge board protectors, plastic wrapping, and high-tensile steel straps. Uprights and beams are systematically separated so local offloading teams can unload with standard fork trucks within 90 minutes per container.
Do you provide on-site installation supervision or remote engineering support? +
Every container shipment is accompanied by a detailed 3D exploded assembly guide, hardware schedule, and anchor bolt torque specification document. For large projects (such as multi-tier mezzanine floors or radio shuttle systems), we offer two tiers of installation support:
1. Comprehensive remote video supervision and step-by-step technical guidance for your contracted local riggers.
2. Dispatch of experienced factory installation supervisors to your job site to lead and verify mechanical erection and alignment.
Request an Engineered Warehouse Layout & Wholesale Factory Quotation
Collaborate directly with senior racking engineers. Send your architectural building layout, clear ceiling heights, and pallet configurations to receive a free 2D CAD floor plan, 3D render, and transparent factory-direct pricing within 24 hours.
