Light-Duty Selective
Eyda Adjustable Light Duty Steel Selective Pallet Rack with Corrosion Protection Coating
Electrostatic Coat
Modular Step Beam
Factory-Engineered Catalog
Featured Industrial Pallet Racking & Specialized Storage Solutions
Precision-machined roll-formed uprights, heavy-duty beam profiles, and anti-corrosive powder coatings manufactured for harsh warehouse operational cycles.
Cold Chain Racks
1000 kg Per Layer Heavy Duty Pallet Rack High Density Steel Storage for Cold Storage
Sub-Zero Steel
1000kg/Tier
Heavy-Duty Warehouse
Customized Heavy Duty Steel Warehouse Storage Shelf Rack Pallet Racking System
Teardrop Compatible
Custom Punch 2-inch
Rustproof Hardware

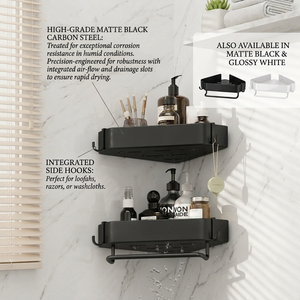

Space Saving Bathroom Corner Shower Caddy Bulk Set Triangle Storage Organizer
Precision Stamping
Anti-Oxidant Finish
Double Deep Storage
Customizable Boltless Steel Storage Stacking Racks Double Deep Selective Pallet Racking
High Density LIFO
Reach-Fork Ready
Adjustable Workshop
5/6 Layer Heavy Light Duty Steel Warehouse Rack Adjustable 400kg Workshop Shelf
Universal Slotting
Manual Pick Ready
Node Floor Type
Medium Duty Metal Storage Rack Fall-Free Design With Free 3D CAD Modeling
CAD Designed
Custom Punching
Multi-Tier Industrial
Customizable Storage Solution Multi-Tier Industrial Shelving Heavy Duty Pallet Racking
Mezzanine Capable
High Tonnage Beam
Technical Authority
Engineering Architecture: The Universal Standard for Selective Pallet Racking
Teardrop pallet racking remains the North American and global benchmark for selective storage thanks to its boltless inverted keyhole profile, enabling beam elevation adjustments on 2-inch vertical increments without proprietary structural hardware.
Universal Cross-Compatibility
The standard 2-inch teardrop punched pattern guarantees effortless intermixing with legacy systems across North America, the GCC, and Latin America. Our Guangzhou roll-forming lines operate to sub-millimeter tolerances, ensuring our frames seat precisely with Interlake, Ridg-U-Rak, and universal beam pin designs.
Automatic Gravity-Lock Pin Safety
Safety is integrated via spring-loaded or slide gravity locks that engage instantly when the beam rivet drops into the keyhole. Withstanding shear uplift loads well exceeding 1,000 lbs per beam-end, our systems guard against vertical forklift impacts during high-velocity pallet positioning.
Optimized Q235B / Q355B Steel
Fabricated strictly from cold-rolled prime structural coil, our uprights feature open-tube and closed-box column profiles engineered for ultimate torsional resistance. Finite Element Analysis (FEA) ensures safety factors compliant with RMI (Rack Manufacturers Institute) and European EN 15512 specifications.
| Structural Component | Standard Profile Range | Material Yield Strength | Load Rating Capacity | Standard Surface Finish |
|---|---|---|---|---|
| Upright Columns | 76.2mm × 76.2mm / 90mm × 70mm | Q235B to Q355B (≥ 235-355 MPa) | Up to 24,000 kg / Bay Frame | Pre-treatment + Electrostatic Epoxy (60-80μm) |
| Step Beams | 80mm to 160mm Height (1.5mm - 2.0mm) | High-Grade Cold Rolled Coil | 1,000 kg - 4,500 kg / Level Pair | Safety Orange (RAL 2004) High-Visibility |
| Bracing (Diag/Horiz) | C-Channel Cold-Bent 30mm × 50mm | Structural Carbon Steel | Dynamic Seismic Lateral Stiffness | Hot-Dip Galvanized / Powder Coated |
| Heavy Baseplates | 100 × 120 × 4.0mm to 150 × 150 × 6.0mm | Heavy Gauge S235JR Steel | Point Load Distribution to Slab | Dual Wedge Anchor Fastened |
Procurement Intelligence
Future Sourcing Trends in Pallet Racking Systems (2025–2030)
The global supply chain is navigating seismic transformations across nearshoring, automation synergy, climate adaptability, and raw material index transparency. Strategic buyers evaluate systems not just by spot price per kilogram, but by lifecycle operational economics.
AS/RS & Shuttle Synergies
Traditional static storage is rapidly interfacing with four-way radio shuttles and automated guided vehicles (AGVs). Procurement officers now require teardrop configurations to feature standardized laser-cut rail brackets capable of upgrading from manual forklift operations to semi-automated shuttle racking without frame structural retrofits.
Microclimate Corrosion Defense
With massive logistics hub expansions across Gulf regions (Saudi Vision 2030, UAE Jebel Ali free zones) and humid coastal zones worldwide, surface treatment criteria have shifted. Modern RFQs require advanced zinc-phosphate chemical pickling before electrostatic coating to resist 50°C heat, saline humidity, and corrosive cold chain thermal condensation.
Total Landed Cost vs. Steel Hedging
Volatile global freight indices and regional steel raw material spreads make transparent factory-direct supply models critical. Savvy distributors avoid multi-tier broker markups, leveraging long-term China OEM partnerships that utilize container-volume nesting methods, packing up to 26-28 metric tons cleanly into a 40HQ container.
Rigorous Traceable Compliance
Warehouse insurers and municipal civil protection bureaus demand audited load calculations, EN 15512 certifications, CE marks, and ISO 9001 quality audits. Sourcing managers increasingly reject undocumented non-certified workshops in favor of established, accredited facilities with verifiable physical laboratory testing.
Technological Evolution
Key Technological Shifts Driving Teardrop Racking Evolution
From structural cold-bending algorithms to integrated sensor meshes, the physical pallet rack is transforming from inert ironwork into a precision-machined, intelligent logistics platform.
High-Tensile Micro-Alloy Thin-Walling
By leveraging high-strength low-alloy (HSLA) steel coils (such as Q355B and specialized micro-alloy formulations), cold-roll-forming profiles achieve equal or greater moment capacity and section modulus with 8-12% lighter dead load. This directly cuts ocean shipping costs per pallet position while reducing seismic inertial stresses on the warehouse concrete slab.
BIM & Parametric Digital Twins
Every commercial distribution hub blueprint now mandates Autodesk Revit BIM (Building Information Modeling) objects. Modern manufacturers provide full IFC/BIM families detailing column grid clearances, internal flue spaces (longitudinal and transverse fire clearances), and NFPA sprinkler head positioning to ensure flawless municipal code approvals.
Integrated Smart Sensor Arrays
High-bay installations (over 12 meters) are increasingly fitted with wireless strain gauges, tilt telemetry, and structural overload beacons. In high-traffic distribution hubs, these telemetry nodes notify warehouse safety officers immediately if a forklift impact compromises upright vertical plumbness beyond the permissible 1/350 deflection limit.
Factory Heritage & Quality Systems
Guangzhou HEDA Shelves: Engineered Reliability Since 2001
Headquartered in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. operates a 30,000 m² state-of-the-art production base. Backed by 300+ seasoned fabrication engineers and technicians, we deliver end-to-end turnkey storage projects for EPC contractors, logistics integrators, and worldwide rack distributors.
Direct Factory Economics
By eliminating middle-tier trading houses and exporters, HEDA Shelves delivers direct tier-1 manufacturer pricing. Our massive 30,000-ton monthly raw coil volume affords immense steel buying power, securing unbeatable price protection and stable delivery terms for our worldwide project partners.
Rigorous International Certs
We maintain full audit compliance under CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Systems (No. 18624Q00169R0M, valid to 2027), and RoHS environmental standards. All structural calculations are cross-referenced with ANSI MH16.1 and EN standards.
Complimentary 2D CAD & 3D Modeling
Our 20+ member design engineering department provides complete warehouse floor layout optimization completely free of charge. We calculate clear working aisles based on your reach-truck and forklift fleet turning radii, providing high-resolution 3D renders and approval-ready engineering drawings within 24 to 48 hours.
Safe Export Bundling & Shipping
With thousands of containers shipped through Jebel Ali, Dammam, Los Angeles, Santos, and Rotterdam, our logistics teams bundle profiles with protective steel strappings, plastic corner guards, and color-coded labels mapped directly to your on-site assembly blueprints for rapid installation.
Comprehensive 10-Step Controlled Quality Production Workflow
01
Prime Raw Coil Inbound
Chemical assay and mechanical tensile verification of all certified Q235B/Q355B coils upon mill receipt.
02
CNC Slitting & Cutting
High-precision automated longitudinal slitting to exact section strip widths with zero edge burr.
03
Automated Upright Punching
Continuous multi-station high-speed press punching ensuring 2-inch teardrop spacing pitch tolerance ±0.1mm.
04
Multi-Pass Roll Forming
Progressive 16-24 stand roll-forming lines eliminating residual stress and guaranteeing straightness.
05
Beam Seam Welding
Continuous robotic high-frequency welding of step beams and end connectors with zero weld splatter.
06
Shot Blasting & Polishing
Complete surface scaling and mechanical deburring to achieve Sa 2.5 steel surface cleanliness profile.
07
Acid Pickling & Phosphating
Multi-stage chemical degreasing, clean water cascade rinse, and dense zinc-phosphate conversion coating.
08
Electrostatic Powder Coating
Automated Swiss Gema powder application guns applying durable thermoset polyester resin (60-90μm).
09
High-Temp Oven Curing
Uniform 200°C curing tunnel curing cross-linked polymer for scratch, UV, and impact resilience.
10
QC Load Test & Nest Packing
Cross-hatch adhesion check, beam deflection sampling, and timber-cushioned container loading.
Procurement Knowledge Base
Frequently Asked Questions for Teardrop Racking Procurement
Detailed technical answers to common queries raised by warehouse developers, supply chain directors, and import managers.
Are your teardrop pallet racks fully compatible with North American standard systems? +
Yes. Our teardrop punch tooling conforms precisely to the standard 2-inch center-to-center inverted teardrop keyhole pattern. This ensures complete dimensional and mechanical interchangeability with existing North American systems such as Interlake Mecalux, Ridg-U-Rak, Speedrack, and UNARCO. Beam pins lock cleanly with standard 3-pin and 4-pin end connectors with spring or gravity locks.
What structural data do you require to engineer an optimal layout design? +
To prepare a complimentary 2D CAD and 3D rendering within 24-48 hours, our structural engineers need: (1) Architectural CAD floor plans with column grids, ceiling clear heights to lowest roof obstruction/sprinklers, and door locations; (2) Pallet dimensions (W × D × H including pallet overhang and goods); (3) Maximum weight per pallet position; (4) Forklift specifications including aisle clearance needs and maximum lift reach; and (5) Operational ambient temperature ranges (e.g., standard ambient, air-conditioned, or -25°C cold chain).
How do you protect pallet racks against aggressive coastal or high-heat environments? +
Unlike budget suppliers who spray paint over bare mill steel, HEDA Shelves utilizes a 7-stage chemical pretreatment bath comprising acid pickling to eliminate rust, alkaline degreasing, and fine zinc phosphating. This forms an insoluble crystalline surface barrier before applying electrostatic epoxy-polyester powder coating. For open marine yards or sub-zero blast freezers, we provide optional full hot-dip galvanization to ASTM A123 standards.
What certifications and quality inspection reports do you supply with shipments? +
Every export shipment includes a traceable Factory Inspection Certificate (FIC), raw steel Mill Test Certificates (MTC) documenting chemical composition and yield stress, CE Declaration of Conformity (No. 2435-CPR-8605159), ISO 9001:2015 certification compliance records, and dry film thickness (DFT) paint adhesion testing logs. Third-party visual inspections via SGS, Bureau Veritas, or TÜV are welcomed and regularly coordinated.
How are structural components packed to avoid transit damage during ocean freight? +
Uprights and beams are bundled with high-tensile steel strapping cushioned with heavy-gauge corrugated edge protectors and plastic wrapping to stop metal-to-metal abrasion. Small accessories (baseplates, row spacers, shims, beam safety pins) are packed in reinforced wooden crates labeled by part number. We optimize bundle dimensions specifically for standard 40-foot High Cube (40HQ) container interiors, enabling local crews to unload efficiently via forklift forks without scratching surface coats.
What is your typical production lead time and minimum order quantity (MOQ)? +
Our standard manufacturing cycle is 15 to 25 business days from final CAD layout sign-off and deposit receipt. Our standard commercial order benchmark is one 20ft or 40ft shipping container; however, for established distributor partners or trial sample evaluations, we accommodate customized small-batch orders alongside recurring consolidation runs.
Ready to Optimize Your Warehouse Storage Density?
Get direct factory pricing, certified structural calculations, and a complete complimentary 3D CAD layout engineered specifically for your distribution facility. Our engineering team is standing by to review your project blueprint.
