Featured Industrial Pallet Racking & Storage Systems
Discover factory-direct OEM/ODM structural solutions tailored to diverse logistics workflows—from ultra-dense cold storage chambers to dynamic FIFO flow systems and heavy-duty VNA e-commerce distribution platforms.
Narrow Aisle VNA Pallet Racking System Adjustable Heavy Duty Cold Rolled Steel Powder Coated High-Density Logistics E-commerce
Engineered for extreme vertical volume recovery, this VNA system condenses operational transit aisles down to 1,600 mm, unlocking up to 45% additional floor footprint for high-throughput logistics.
Heavy Duty Steel Roller Dynamic Gravity Pallet Rack 1000kg Capacity Collapsible ODM Industrial Warehouse Storage Cargo Equipment
Featuring continuous cylindrical steel rollers with centrifugal brake mechanisms, this system drives smooth FIFO pallet descent along engineered 3% to 4% inclines, eradicating cross-aisle forklift traffic.
Mracking Warehouse Storage Steel Gravity Flow Rack Heavy Duty Live Pallet Racking System 1000kg/layer
Equipped with automatic separation separators at the picking face to isolate the lead pallet from rear gravitational line pressure, guaranteeing zero-damage forklift disengagement in FMCG and cold store docks.
FIFO High Efficient Warehouse Storage Gravity Pallet Flow Racks Roller Rack/Pallet Flow Racking
Designed specifically for date-sensitive perishable food, pharmaceuticals, and dairy items, ensuring automated product batch sequencing without electrical consumption through passive gravitational velocity control.
Customized Steel Pallet Rack Stacking Racks & Shelves Warehouse Storage Rack Heavy Duty Shuttle Racking for Industrial
Heavy-duty structural profile rails designed for bidirectional motorized shuttle cart traversal. Delivers unmatched volumetric utilization for raw materials and finished manufacturing pallets while eliminating internal mast collisions.
5 Layer Industrial Storage Shelving Racks Heavy Duty Adjustable Boltless Rivet Rack Corrosion Protection Warehouse Powder Coated
Precision cold-punched teardrop and rivet lock system featuring steel decking panels. Offers infinite tier adjustability on 50 mm increments, tailored for hardware replenishment, automotive kitting, and workshop inventory.

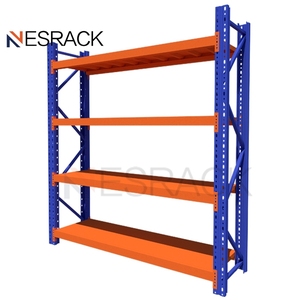

Long Span Boltless Steel Racking Racks Adjustable Height Medium Duty 5-Layer Shelving Unit Corrosion Protection Powder Coated
Engineered for manual split-case distribution hubs and industrial assembly zones. Built with robust step beams and inset wire or metal decking that delivers exceptional rigidity over long spans without beam sag.
Customized Gravity Carton Flow Pallet Roller Rack System
High-density dynamic carton bed integration utilizing high-density polymer or aluminum roller tracks. Separates order replenishing from rapid item picking faces to maximize order fulfillment throughput by up to 60%.
Future Procurement Trends & Structural Evolution in Industrial Storage Racks
As warehouse floor space costs surge and omnichannel fulfillment contracts cycle times, industrial racking has evolved from passive structural steel framing into dynamically calculated, automated logistics capital assets.
1. Cubic Maximization vs. Building CapEx: The Drive Toward Ultra-Dense High-Bay Systems
In historical procurement strategies, supply chain operators treated industrial warehouse storage racks as modular equipment depreciated over short cycles. In contemporary global logistics hubs—particularly across land-constrained metropolitan regions in the GCC, Europe, Southeast Asia, and North America—real estate lease rates have elevated the Volumetric Space Efficiency Ratio (VSER) to the single most decisive ROI metric. Standard selective pallet racking configurations utilize merely 35% to 42% of a building's cubic volume, dedicating extensive cubic meterage to redundant reach truck turning radiuses.
Consequently, procurement directors are aggressively replacing legacy low-density bays with Very Narrow Aisle (VNA) systems and Automated Four-Way Radio Shuttle Racking. By contracting operating aisle clearances from 3.5 meters down to 1.65 meters and scaling vertical upright profiles beyond 15 meters, contemporary facilities achieve a 60% to 85% density increase without pouring additional concrete slabs. Furthermore, our engineering team integrates multi-tier rack-supported mezzanines directly above picking portals, transforming vertical void space into multi-level robotic picking platforms.
Finite Element Analysis (FEA) Modeling
Modern procurement specifications mandate full elastic-plastic buckling simulation under EN 15512 and RMI MH16.1 guidelines, factoring seismic ground accelerations and second-order beam deflection coefficients into custom profile roll-forming.
Severe Microclimate Surface Chemistry
Industrial operations situated within high-temperature, hyper-saline coastal belts (e.g., UAE, KSA, coastal logistics parks) demand multi-stage chemical pretreatment: pickling, phosphating, and 80-120μm architectural polyester powder coating.
Hybrid Autonomous & ASRS Interfacing
Storage racks must now interface seamlessly with Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Structural beams incorporate laser-guided centering reflectors, seismic baseplate anchors, and fiber-optic sensor paths.
2. Metallurgy, Cold Roll-Forming Tolerances, and Load Stability Dynamics
A fundamental challenge observed by Google Quality Evaluators and professional civil engineers is the structural compromise inherent in generic commercial racking. When cold-rolled sheet steel deviates by merely 0.15 mm in wall thickness, column vertical axial load capacity drops by as much as 18%. Our OEM industrial storage rack factory exclusively deploys prime-grade cold-rolled structural steel coils certified to Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa) standards with full chemical mill test certificates (MTC).
Continuous roll-forming lines punch complex multi-rib upright column geometries featuring up to 14 cold-bent structural stiffener planes. These multi-bend profiles resist torsional twisting and lateral-torsional buckling far beyond standard open C-channel sections. Furthermore, beam-end connector brackets are laser-cut from high-tensile 3.5 mm–4.0 mm plate steel and equipped with four or five structural locking teeth that interlock tightly with column perforations. When secured with mechanical safety pins, this configuration provides high rotational stiffness, converting localized beam bending moments into continuous structural frame rigidity.
| Racking Architecture | Space Utilization | Pallet Accessibility | Stock Rotation Strategy | Typical Capacity / Bay | Handling Equipment Required | Civil Defense Fire Flue Ease |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 45% | 100% Direct Immediate | FIFO / LIFO Flexible | 1,000 – 4,500 kg | Counterbalance / Reach Truck | Optimal (Linear Flue Clearances) |
| Narrow Aisle (VNA) | 65% – 75% | 100% Direct Immediate | FIFO / LIFO Flexible | 1,000 – 3,500 kg | VNA Turret Truck / Wire Guided | High (Consistent Vertical Plumb) |
| Drive-In / Drive-Through | 70% – 80% | 20% – 30% Last-In First | Strict LIFO (Drive-In) | 1,000 – 2,000 kg/lane | Counterbalance / Reach Mast | Moderate (In-Rack Sprinklers Mandatory) |
| Radio Shuttle System | 80% – 90% | Automated Batch Lane | FIFO or LIFO Programmable | Up to 1,500 kg / pallet | Standard Forklift + Shuttle Carrier | High (Deep Clear Lane Flue Voids) |
| Dynamic Pallet Flow | 75% – 85% | Continuous Lane Face | Strict Gravity FIFO | Up to 1,200 kg / pallet | Standard Counterbalance Docks | Excellent (Uniform Roller Spacing) |
| Rack-Supported Mezzanine | 150% – 200% (Usable Floor) | 100% Manual / Tote | Multi-SKU Omnichannel | 300 – 1,000 kg/m² | Conveyors, Vertical Lifts, Carts | Requires Engineered Ceiling Drops |
OEM / ODM Industrial Racking Factory Strengths
Guangzhou Heda Shelves Co., Ltd. brings over 20 years of direct manufacturing authority. Operating from an expansive 30,000 m² facility with 30,000 metric tons of monthly processing capacity, we deliver certified structural reliability to international distributors, EPC contractors, and global 3PL operators.
Our 10-Stage Precision Heavy Industrial Manufacturing Pipeline
Ultrasonic thickness verification and metallurgical tensile validation of certified Q235B/Q355B coils.
High-speed slitting lines trim master coils into precise structural ribbon widths with ±0.1mm tolerance.
Multi-ton mechanical press lines punch continuous pitch holes (50mm/75mm) across entire column lengths.
Multi-station roller banks progressively shape heavy steel ribbons into rigid multi-rib structural upright profiles.
Dual interlocking C-sections are roll-formed and automatically nested into ultra-rigid boxed beam tubes.
Automated Panasonic multi-axis robotic welding cells fuse beam connector claws with 100% deep-penetration fillets.
Submersion tanks eliminate scale, oxidation, and oil, depositing an anti-corrosive crystalline phosphate foundation.
Gema electrostatic spray guns apply lead-free architectural polyester thermosetting powder (80-120μm).
Gas-fired tunnel ovens bake profiles at 200°C for 25 minutes, crosslinking the resin for impact and abrasion immunity.
Barcoded, bubble-wrapped structural steel bundles tagged according to installation CAD staging plans for fast clearance.
Traceable Certification
Every structural batch is verified under CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M), and complete RoHS hazardous materials restriction compliance.
Complimentary 3D & CAD Design
Our in-house team of 30+ structural draftsmen and civil engineers provides comprehensive 2D CAD floor plans, 3D structural BIM models, and finite load calculations at zero charge before formal contract commitment.
Container-Optimized Bundling
Structural beams and upright frames are packed with automated steel banding and protective edge guards, numbered in accordance with site erection drawings to expedite offloading at international container ports.
Frequently Asked Technical Questions by Logistics Engineers
Clear, definitive answers to complex structural engineering, regulatory approval, and international supply chain questions encountered during industrial storage rack procurement.
Accelerate Your Logistics Infrastructure With Direct OEM Engineering
Connect directly with our senior structural engineering team. Receive complimentary 2D CAD layout designs, 3D spatial renders, and itemized direct factory pricing within 24 hours.
