High-Performance Modular Storage Systems
Manufactured strictly according to EN 15512, FEM 10.2.02, and ANSI MH16.1 structural racking safety standards, our modular structural systems adapt precisely to high-bay automated hubs, heavy commercial facilities, and multi-tier logistics centers.
Stainless Steel Heavy Duty Commercial Storage Shelving Organizer
Sanitary grade SUS304/SUS201 stainless steel racking with antimicrobial passivation, tailored for high-humidity environments, food-grade storage, and cleanroom supply hubs.
Multi-Level Cost Effective Heavy-Duty Industrial Pallet Racking
Engineered cold-rolled Q235B steel upright frame configuration optimized for variable height distribution centers, palletized logistics, and bulk product staging.
Heavy Duty Industrial Interlocking Mezzanine Attic Storage System
Interlocking heavy-duty roll-formed steel deck system that doubles vertical cubic capacity, featuring modular integrated staircases, safety swing gates, and heavy floor loadings.

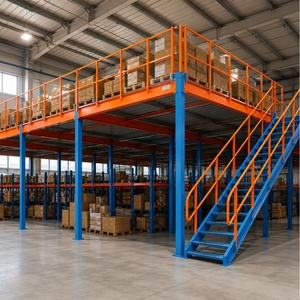

Rack-Supported Multi-Tier Warehouse Mezzanine Logistics Platform
Optimizes vertical volume by using heavy pallet rack columns as structural building supports for elevated picking walkways, conveyor lines, and assembly areas.
Heavy Duty Double Deep Pallet Racking (1000kg to 3000kg/Layer)
Designed for pantograph reach forklifts; stores pallets 2-deep per bay, boosting volumetric density by up to 35% compared to conventional single-selective systems.
Standard Selective Heavy-Duty Multi-Level Pallet Shelving
Provides 100% direct visual and mechanical selectivity across every storage location. Compatible with all standard counterbalance trucks, order pickers, and VNA fleets.
Drive-Through High Load Continuous Lane Steel Warehouse Rack
Eliminates access aisles by permitting forklifts to navigate directly inside continuous storage channels, offering optimal cold room density and FIFO/LIFO flexibility.
Structural H-Beam Q235B Heavy Upright Columns & Profiles (12m)
Hot-rolled structural steel H-beam sections for high-rise automated rack architectures, heavy cantilever setups, and deep seismic-resistant installations.
Structural Engineering Integrity in Custom Modular Pallet Racking
Modular pallet racking represents the foundational core of global distribution networks. Selecting a manufacturer demands deep technical evaluation beyond surface dimensional values. At Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves), our engineering methodologies focus on cold-formed thin-walled structural members, metallurgical uniformity, dynamic beam deflection limits, and finite element analysis (FEA).
1. High-Yield Raw Materials and Cold-Roll Forming Dynamics
Structural reliability begins with raw coil specification. We manufacture using certified prime structural steels—primarily Q235B and Q355B (conforming to GB/T 700 and GB/T 1591, equivalent to European S235JR and S355JR). The cold roll-forming process introduces controlled strain hardening, purposefully augmenting the post-forming yield strength of upright sections across crucial stress points.
Uprights are profiled through continuous 18-to-24-station automated roll-forming production lines. This process delivers tight cross-sectional tolerances, eliminating residual twist, camber, and localized stress concentration. Perforated column slots (diamond, teardrop, or 50mm/75mm metric pitch) are punched simultaneously via high-speed CNC indexing systems prior to roll-forming, preserving hole pitch precision to ±0.1mm along a continuous 12,000mm profile.
Deflection Safety Ratio: HEDA beams are designed according to the rigorous European FEM 10.2.02 standard, guaranteeing a maximum vertical deflection under full design load strictly bounded by δ ≤ L / 200, with safety factors exceeding 1.50 for ultimate yield load capacity.
2. Metallurgical Pretreatment & Harsh Climate Powder Coating
A primary failure mode of pallet racking in challenging regions—such as the Middle East (Jebel Ali, Dammam, Jeddah), Southeast Asia, and tropical export hubs—is micro-cracking and progressive galvanic corrosion triggered by high ambient salinity, dust, and continuous heat exceeding 45°C. Our in-house chemical processing line executes a comprehensive 10-step surface finishing sequence:
| Process Phase | Technical Method | Operational Standard & Impact |
|---|---|---|
| Pre-Degreasing & Degreasing | High-pressure immersion alkaline degreasing | Total elimination of rolling oils, graphite, and mill scale. |
| Acid Pickling (Descaling) | Inhibited hydrochloric acid solution bath | Chemically dissolves surface oxidation and rust films without hydrogen embrittlement. |
| Nanotech Phosphating / Passivation | Zinc-based chemical conversion bath | Forms a micro-crystalline hydrophobic conversion coat to ensure 1,000+ hour salt-spray endurance. |
| Electrostatic Powder Application | Automated reciprocator spray booths (60-90 μm) | Pure polyester/epoxy powders cured at 180°C–200°C, meeting RoHS and ISO 9001:2015 adhesion classes. |
3. Beam-to-Column Interlocking Connections and Rotational Stiffness
Beam connectors utilize heavy-gauge multi-tooth drop-forged or stamped claws designed to firmly grip the upright profile. Under service loading, the beam connector undergoes moment-rotation resistance (semi-rigid connection behavior), mathematically modeled via Portal Frame Analysis. Safety spring locks fabricated from tempered spring steel prevent beam dislodgement under accidental upward forklift fork impacts (minimum vertical dislodgement resistance rated at 5,000 N per connection according to EN 15512).
Engineered In-House: Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, HEDA Shelves operates a modern 30,000-square-meter facility with a monthly capacity exceeding 30,000 tons. We bridge the critical gap between conceptual warehouse engineering and industrial-scale OEM/ODM fabrication.
30,000 m² Integrated Facility
Full manufacturing independence encompassing raw steel slitting, continuous roll forming, automated robotic welding, 10-stage chemical pickling lines, and dual-line powder coating tunnels located in Guangzhou, China.
CE & ISO 9001 Certified Quality
Certified under CE (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and compliant with RoHS environmental directives, ensuring smooth vendor approvals by global inspection bodies and regional civil authorities.
Turnkey OEM/ODM Engineering
Dedicated team of 300+ professionals offering custom upright hole stamping, private-label branding, customized RAL powder shades, modular box beams, step beams, and structural platform integrations for world brands.
Complimentary 2D/3D & FEA Calculations
Prior to contractual commitment, our application engineers furnish full DWG CAD layout schemes, 3D photorealistic architectural models, and comprehensive static load distribution calculations for project consultants.
Optimized Export Packaging
Engineered bundle strapping, specialized corner edge protectors, labeled hardware boxes, and sea-worthy container stuffing models minimize freight volume, preventing in-transit marring across long-haul marine shipping routes.
Full Installation & Lifecycle Support
Comprehensive installation blueprints, labeled structural assemblies, high-resolution remote video commissioning support, and optional on-site engineering supervision for massive industrial projects globally.
Future Trends in Modular Pallet Racking & Procurement Architecture
The global intralogistics landscape is experiencing structural disruption. The convergence of SKU proliferation, urban warehouse real estate cost spikes, and the rapid adoption of Autonomous Mobile Robots (AMRs) has fundamentally shifted how procurement heads, supply chain directors, and EPC general contractors evaluate storage racking infrastructure.
1. Structural Evolution: Transition from Static Racking to Semi-Automated Hybrid Interfaces
Modular racking is no longer a purely passive steel skeleton. Modern manufacturing centers are increasingly requiring retrofit-ready modular racking capable of migrating seamlessly between three operational tiers:
- Tier 1: Standard Selective Configurations: Manual reach truck and counterbalance accessibility.
- Tier 2: Semi-Automated Radio Shuttle Lanes: Deep-lane pallet runners operating within cold storage and beverage hubs to boost volumetric utilization up to 80% while minimizing forklift rack impacts.
- Tier 3: Full ASRS Integration: Upright profiles manufactured to strict tolerances (±1.5mm vertical deviation across 15 meters) acting as guide corridors for Automated Storage and Retrieval System (ASRS) stacker cranes and dynamic shuttle bots.
2. Future Procurement Trends: TCO, Direct Factory Engineering, and Nearshore Alignment
Enterprise procurement departments are actively steering away from local catalog middlemen in favor of direct-to-OEM partnerships. The primary drivers include:
- Direct Metallurgical Traceability: Direct factory partnerships eliminate ambiguous third-party steel sourcing by providing certified mill test reports (MTR) demonstrating Q235B/Q355B physical yield parameters.
- Container-Optimized Modular Packing: Factory engineers design upright frames with modular splice joints, enabling 12-meter profiles to fit into standard 40ft High Cube containers. This drops international shipping expenditure by up to 28% per metric ton.
- Custom Interface Compatibility: As automation providers update handling machinery, OEM manufacturers can rapidly re-tool beam stamping dies, pallet rail profiles, and guide channel brackets without third-party licensing markups.
3. Regulatory and Life-Safety Codes (Civil Defense & NFPA Compliance)
Regional safety mandates increasingly scrutinize warehouse storage. In high-growth zones like the UAE (Civil Defense), Saudi Arabia (Vision 2030 industrial parks), and North America (IBC/RMI guidelines), racking installations must document exact structural flue spaces. Transverse and longitudinal flue spaces (typically 75mm to 150mm clear) allow early fire detection and unhindered penetration from In-Rack and ESFR sprinkler systems. Modular OEM racking must be manufactured with rigid back-to-back ties, pallet stops, and wire-mesh decks that maintain open airflow apertures exceeding 70%.
Frequently Asked Procurement & Engineering Questions (FAQ)
Critical engineering considerations, material selection guidelines, and operational specifications compiled by our senior structural engineering team.
What specific information is required to produce a complimentary 2D CAD layout and structural load design? +
How does HEDA ensure rack structural stability in seismic zones or harsh climatic regions? +
Can your structural racking designs meet local Civil Defense and fire authority approvals? +
What is the difference between welded structural steel racking and modular cold-formed racking? +
What certifications and third-party test reports do you hold? +
What is your production lead time, container stuffing policy, and minimum order quantity (MOQ)? +
Connect Directly with Our Structural Engineering Team
Planning an expansion, tender bid, or automated warehouse retrofit? Share your facility dimensions, pallet dimensions, and target deadlines. Our engineering group will furnish preliminary 2D CAD floor plans, load calculations, and turnkey factory-direct pricing within 24 hours.
