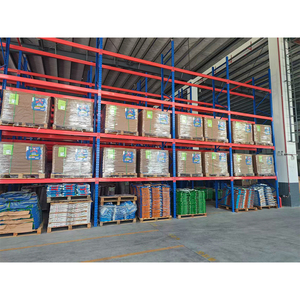

VNA Pallet Racking System Narrow Aisle High Bay Storage Solutions

VNA Pallet Racking System Narrow Aisle High Bay Storage Solutions

View Details

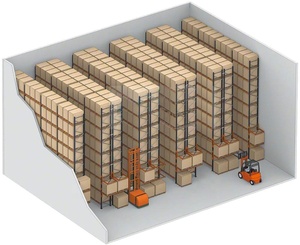

URGO Very Narrow Aisle Pallet Rack / VNA Racking System

URGO Very Narrow Aisle Pallet Rack / VNA Racking System

View Details

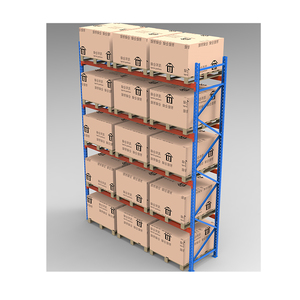

Wire Mesh Decking Pallet Rack Heavy Duty Steel Rack

Wire Mesh Decking Pallet Rack Heavy Duty Steel Rack Certificated Racking System

View Details
Narrow Aisle VNA Pallet Racking System Adjustable Heavy Duty

Narrow Aisle VNA Pallet Racking System Cold Rolled Steel Powder Coated

View Details
Strong Load Capacity Warehouse Industrial Narrow Aisle Racking

Strong Load Capacity Industrial Narrow Aisle Pallet Storage System

View Details
Heavy Duty Steel Shelving Units Adjustable Warehouse Racking

Heavy Duty Steel Shelving Units Adjustable Industrial Pallet Racking

View Details

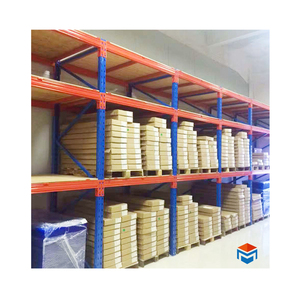

Warehouse Racking System Heavy Duty Metal Adjustable Double Deep

Double Deep Selective Pallet Storage Rack Heavy Duty Shelving Solution

View Details
Mracking Push Back Pallet Racking System Customizable

Push Back Pallet Racking High-Density System Back to Back Supplier

View Details
2001
Established Year
30,000 m²
Production Infrastructure
30,000 t
Monthly Cold-Formed Output
10,000+
Global Turnkey Projects

Engineering the Modern Distribution Center: The Narrow Aisle Strategic Imperative

In modern industrial logistics, commercial footprint acquisition costs, escalating urban land valuations, and high cold-chain utility overheads have reshaped warehousing metrics. Enterprise supply chain directors are progressively phasing out wide-aisle configurations (typically spanning 3.5 to 4.2 meters) in favor of precision-engineered Narrow Aisle (NA) and Very Narrow Aisle (VNA) systems, which condense operating corridors down to 1.6 to 1.9 meters.

As a leading Chinese custom OEM pallet racking manufacturer, HEDA Shelves (Guangzhou Heda Shelves Co., Ltd.) engineers storage platforms that maximize volumetric warehouse cubing without compromising 100% individual pallet selectivity. Integrating structural roll-formed upright profiles up to 15 meters in continuous height, specialized guide-rail interfaces, and sub-millimeter floor deflection compensation, our OEM configurations deliver up to a 50% volumetric capacity expansion over traditional selective racking.

"Narrow pallet racking bridges the gap between manual selective storage and multi-million dollar automated systems. It provides maximum volumetric density, 100% SKU selectivity, and immediate operational throughput scalability."

Material handling engineers understand that narrow aisle architecture is not merely about pushing upright frames closer together. Operating at extreme heights with specialized articulated or trilateral turret trucks introduces dynamic horizontal torsion, sway acceleration, and concentrated point-loading on the floor slab. Our OEM solutions deploy premium Q235B and Q355B certified steel grades, custom beam-to-column hook configurations, and high-precision seismic baseplates engineered specifically to handle both static dead loads and dynamic lateral shear forces.

Procurement Trends Shaping Industrial Narrow Racking Sourcing

Global procurement teams across North America, Europe, Australia, and the Middle East are transitioning from transactional, off-the-shelf component buying to engineering-led partnerships with custom OEM factories. Supply chain managers navigating the 2026–2030 cycle face distinct economic and technological transformations that govern how narrow pallet racking contracts are evaluated, specified, and executed.

AGV & AMR Floor Integration

Autonomous mobile robots and turret AGVs require tighter rack fabrication tolerances. Upright hole pitching, run-spacer dimensional variance, and guide-wire clearance tolerances are now contracted down to fractions of a millimeter to eliminate optical sensor false-trips.

BIM & Digital Twin Compliance

Procurement mandates now demand full Building Information Modeling (BIM) files prior to cutting steel. General contractors require IFC/Revit models of rack structures to simulate MEP clashing, overhead sprinkler cone penetration, and HVAC air diffusion corridors.

Total Lifecycle Anti-Corrosion

Cross-regional buyers exposed to high humidity, coastal salt-air, or cold-chain condensation (such as the Gulf GCC region or Southeast Asia) require 10-stage pre-treatment, pickling, and phosphating alongside automated electrostatic thermosetting powders exceeding 500-hour salt spray testing.

Technological & Structural Evolution in VNA Manufacturing

Historically, narrow aisle warehouses relied on heavy hot-rolled steel sections to control structural drift at elevations exceeding 10 meters. Today, progressive OEM factories leverage continuous advanced cold roll-forming lines capable of producing high-tensile, multi-flange profile sections that maximize strength-to-weight ratios.

Through finite element analysis (FEA) and full-scale European standard testing (EN 15512 / FEM 10.2.02 / ANSI MH16.1), column geometry has evolved. Modern uprights feature up to 13 distinct bends within a single open omega profile. These bends move material away from the neutral axis, dramatically elevating the radius of gyration, torsional rigidity, and resistance against local buckling under intense axial compression.

Precision Roll-Forming

Automated rolling stands with in-line CNC punching ensure column slot alignment across 15-meter single-piece frames, eliminating splice weak points.

Interlocking Connector Claws

Forged, 4-claw or 5-claw beam connectors provide semi-rigid moment resistance, transferring rotational energy evenly into columns without weld fatigue.

Optimized Guide Channels

Heavy mechanical floor rail guides (75×50×5mm to 100×50×6mm angles) and low-profile inductive wire guidance integration protect both uprights and turret trucks.

Seismic Baseplates & Shims

Micro-machined steel leveling shims and heavy-gauge baseplates distribute high point loads across concrete floors, compliant with DIN 18202 tolerances.

Why Partner with HEDA Shelves for Custom OEM/ODM Production?

Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has spent over two decades engineering, fabricating, and delivering industrial storage racking across 120+ countries. Backed by a verified 30,000 m² heavy-industrial manufacturing base, an automated production capacity exceeding 30,000 tons per month, and a dedicated team of 300+ technical personnel, we function as the direct backend OEM manufacturing powerhouse for major racking brands, system integrators, and industrial distributors worldwide.

Verified International Compliance

Traceable manufacturing verified under CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and strict RoHS chemical finish compliance.

Complete 10-Stage Production

Every process is retained 100% in-house: raw material spectroscopic verification, precision CNC cutting, automated column punching, cold-roll forming, robotic welding, pickling & phosphating, and electrostatic powder curing.

Bespoke OEM / ODM Engineering

Free custom 2D/3D CAD layout drafting, structural static calculation sheets, custom RAL powder finishes, bespoke gauge thickness, and OEM-stamped components delivered ready for branding.

Frequently Asked Questions: Narrow Pallet Racking Sourcing

Detailed technical, commercial, and operational answers to the most common engineering and procurement questions encountered by warehouse buyers.

What is the standard aisle width requirement for a Very Narrow Aisle (VNA) system? +
VNA operating aisles typically range between 1,600 mm and 1,900 mm clear width, depending strictly on the selected material handling equipment (such as man-up trilateral turret trucks or articulated forklifts) and the specific pallet load dimensions (e.g., standard 1200x1000mm or 1200x800mm). This reduces the aisle footprint by 40% to 50% compared to standard counterbalance forklift aisles (typically 3,500 mm to 4,200 mm), yielding tremendous volumetric space savings.
How do narrow aisle racking systems affect warehouse floor slab specifications? +
Because VNA racks often reach heights of 10 to 15 meters and aisle clearances are minimal, concrete floor flatness is critical. The slab must meet strict international surface regularity standards such as DIN 18202 Table 3, Group 4, or TR34 Superflat (DM1/DM2). Uneven floor slabs amplify mast tilt at extreme elevations, risking structural rack collision. Our engineers calculate point loads to design expanded baseplates and precision anchoring shims that compensate for permissible structural tolerances.
What guidance systems are recommended for narrow aisle racking operations? +
Two primary guidance mechanisms are deployed: Mechanical Steel Guide Rails and Inductive Wire Guidance. Mechanical rails utilize heavy structural steel angles (such as 100x50x6mm) anchored along the bottom of the rack run, physically steering truck guide rollers. Inductive wire guidance embeds a low-frequency charged wire flush within a continuous floor saw-cut, steering the vehicle electronically without mechanical friction. HEDA Shelves manufactures and pre-slots all frames to accept either guidance standard seamlessly.
What documentation and test reports does HEDA Shelves supply for local engineering approval? +
We provide full engineering dossiers required for municipal building permits, fire code reviews (Civil Defense / NFPA 13), and structural compliance. Deliverables include mill test certificates (MTC) proving steel tensile and yield strengths, third-party CE certifications, static calculation verification reports based on FEM / EN / ANSI standards, and stamped CAD layouts indicating beam capacities, frame loadings, and required flue spaces.
How are components packaged to prevent damage during multi-modal ocean transit? +
Every upright frame bundle and beam pack is bundled with heavy-duty PET strapping, separated by high-density polyethylene edge protectors, and wrapped in industrial multi-layer moisture-barrier stretch film. All hardware, baseplates, beam clips, and run spacers are crated in labeled steel-banded wooden or steel pallets matching the numbered erection drawings, guaranteeing rapid site sortation and zero transit distortion.
Can HEDA Shelves provide OEM fabrication matching our proprietary profile dimensions? +
Yes. As a pure OEM/ODM manufacturer, we regularly commission custom tooling, dedicated cold-roll forming dies, and customized punching patterns for long-term contract partners. If your brand utilizes a proprietary teardrop, diamond, or trapezoidal slot geometry with bespoke connector claw hook profiles, our in-house tool design team can replicate, test, and batch-produce your system at scale.
