Explore factory-direct pallet rack partitions and high-strength decking modules precision-welded for selective racks, push-back systems, cold storage, and retail supermarket displays.
In high-velocity fulfilment centers, automated logistics hubs, and distribution warehouses, racking optimization extends well beyond main structural upright frames and load beams. The integration of precision-engineered pallet rack dividers serves as a foundational engineering control for inventory segregation, load stability, pick-face efficiency, and fire safety compliance. When procuring rack dividers at scale, supply chain executives, industrial architects, and intralogistics procurement directors must evaluate mechanical properties, attachment kinematics, deflection limits, and metallurgical characteristics to prevent premature structural fatigue and catastrophic bay collapse.
OEM divider assemblies vary significantly across mechanical geometries and structural load paths. Depending on the racking profile and the nature of unitized goods stored, dividers fall into five standardized structural configurations:

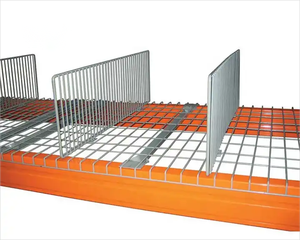

Engineered with upper contoured suspension hooks that grip the upper wire decking tier or beam rim, paired with lower stabilizing prongs. Constructed from drawn Q235B wire (Ø 4.5mm–6.0mm) welded on 50×50mm or 50×100mm grids. Allows complete vertical air and sprinkler fluid transfer while dividing bulky items, boxed apparel, and loose cartons.
Designed with precision laser-cut base tabs that lock into standard 1.5-inch or 2-inch wire mesh decking apertures without mechanical fasteners. These dividers provide high lateral rigidity against dynamic shifting loads during rapid manual case-picking and high-density carton storage applications.
Formed from cold-rolled steel coils (14 to 18 gauge) with hemmed safety edges and 90-degree stiffening flanges. Deployed in high-security warehouses, pharmaceutical quarantine bays, and aerosol/hazardous material isolation zones where complete physical and visual containment between SKUs is mandated.
Heavy structural steel vertical stops and dividers installed along back-to-back rack runs to preserve mandatory 3-inch or 6-inch longitudinal flue spaces. Prevents fork truck drivers from pushing pallets through into adjacent rack bays, mitigating NFPA fire code non-compliance and sprinkler head shearing.
Manufactured through high-pressure injection molding of virgin PVC or acrylic polymers with embedded high-flux neodymium magnetic base rails. Tailored for retail gondolas, high-turnover pharmacy shelves, and supermarket pick faces where instantaneous SKU reconfiguration is required without tools.
Modular wire mesh screens extending vertically from the load beam to the overhead frame tier, creating fully enclosed multi-tiered pigeonhole compartments. Ideal for small-parts storage, automotive assembly line replenishment, and high-value electronics distribution.
Engineering Tip: Selecting between hanging wire dividers and bottom-anchored drop-in dividers requires calculating the dynamic lateral side thrust ($F_L$) exerted when operators slide heavy boxes along the shelf face. Standard hanging wire dividers resist lateral loads of 150–250 N before yielding, whereas gusset-reinforced drop-in partitions withstand up to 750 N without permanent deformation.
At Guangzhou Heda Shelves Co., Ltd., raw material procurement follows rigid steel grading standards. For structural wire dividers and waterfall decking, we exclusively utilize low-carbon steel drawn coil complying with Q235B (yield strength $\ge 235 \text{ MPa}$, ultimate tensile strength $370\text{–}500 \text{ MPa}$). Chemical composition limits Carbon ($C \le 0.20\%$), Silicon ($Si \le 0.35\%$), Manganese ($Mn \le 1.40\%$), and Phosphorus/Sulfur impurities ($P, S \le 0.045\%$), ensuring optimal weld pool penetration without brittle joint embrittlement during high-speed resistance welding.
| Surface Finish Type | Coating Thickness | ASTM B117 Salt Spray | Operational Temperature | Primary Application Environment | Relative Cost Index |
|---|---|---|---|---|---|
| Electro-Galvanized (Zinc Plated) | 8 – 15 μm | 48 – 72 Hours | -10°C to +50°C | Indoor climate-controlled 3PL facilities, retail storage | Baseline (1.0x) |
| Thermoset Polyester Powder Coating | 60 – 90 μm | 250 – 500 Hours | -20°C to +80°C | Standard dry warehouses, color-coded SKU pick zones | Economical (1.1x) |
| Hot-Dip Galvanized (HDG) | 55 – 85 μm | 720 – 1,200+ Hours | -40°C to +65°C | Blast freezers, outdoor yards, coastal logistics hubs | Premium (1.45x) |
| Stainless Steel (AISI 304/316) | Passivated Substrate | 1,500+ Hours | -196°C to +400°C | Sterile pharmaceutical cleanrooms, food contact dairy | Ultra-Duty (3.2x) |
How wire mesh dividers maintain compliance with the National Fire Protection Association (NFPA) standards while solid sheet metal partitions trigger severe sprinkler system retrofits.
One of the most consequential yet overlooked compliance hazards in industrial warehouse engineering is the interaction between racking shelving accessories and overhead Early Suppression Fast Response (ESFR) sprinkler systems. Building code enforcement authorities and global underwriters (e.g., FM Global, AXA XL) routinely inspect rack arrays for flue space obstructions and horizontal deck opacity.
NFPA 13 stipulates that rack storage systems must maintain continuous vertical longitudinal flue spaces (minimum 3 inches between back-to-back rack rows) and transverse flue spaces (minimum 6 inches between pallet loads at rack uprights). Engineered rack dividers equipped with integrated positive stops mechanically prevent cartons from encroaching into these critical thermal updraft shafts.
Under ANSI MH26.2 standards, wire mesh decking and vertical wire dividers must maintain an open surface area ratio exceeding 70%. This open structural mesh allows fire suppression water to cascade uninterrupted down through multi-tiered rack tiers to extinguish bottom-level combustion, avoiding the mandatory installation of costly in-rack sprinkler piping.
OSHA standards mandate that storage of material shall not create a hazard. Bagged goods, cylindrical items, and cartons stored at heights above 12 feet present lethal dropped-object risks to pickers in the aisles. Rigid steel wire dividers prevent SKU creep, lateral pallet tipping, and spillage into active pedestrian forklift transit aisles.
Underwriter Advisory: Replacing solid plywood shelving with certified open-pattern wire decking and wire mesh dividers can reduce insurance premiums by up to 22% for high-piled combustible storage facilities, while eliminating the capital expenditure of adding in-rack sprinkler heads ($120–$280 per pallet position).
Strategic market shifts transforming the specification and manufacturing of pallet rack dividers across Fortune 500 logistics operations.
The global warehouse racking accessories sector is undergoing structural transformation driven by the proliferation of Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), micro-fulfilment centers, and strict carbon-accounting mandates. OEM suppliers can no longer rely on generic stamping; dividers must be built to tighter geometric tolerances and support digital integration.
Skyrocketing urban warehouse square-footage lease rates have forced retailers to compress pick faces. Modular, quick-adjust wire dividers allow operators to sub-divide a standard 96-inch pallet beam into 12 to 24 distinct SKU pick bins. This increases inventory SKU density by up to 340% within existing warehouse footprints without requiring structural building expansion.
Automated bin-picking arms and robotic reach trucks require stringent dimensional stability. Traditional hand-bent dividers exhibit tolerances of ±4.0mm, which can trigger robot LiDAR and computer vision obstruction alarms. Next-generation OEM automated production lines achieve tight tolerances within ±0.8mm, ensuring seamless end-effector robotic grasping.
Forward-thinking logistics facilities are ordering pallet rack dividers pre-fitted with extruded PVC label holding channels, magnetic data carriers, or mounting brackets for Pick-to-Light wireless sensors. This reduces warehouse onboarding setup times by 65% and guarantees zero operator error during barcode scanning cycles.
Multinational corporations adhering to Scope 3 emissions reporting now actively demand Environmental Product Declarations (EPDs). HEDA Shelves integrates up to 85% recycled electric arc furnace (EAF) scrap steel into wire rod feedstock, accompanied by heavy-metal-free, zero-VOC TGIC polyester powder coatings to support client LEED and ESG certifications.
Guangzhou Heda Shelves Co., Ltd. has delivered heavy-duty warehouse storage solutions since 2001. Our integrated manufacturing base controls every stage from cold drawing to international container loading.
Equipped with 14 automated continuous roll-forming lines, 6 automated multi-point wire mesh resistance welders, laser-cutting gantries, and robotic welding stations. We manufacture over 30,000 metric tons of certified racking steel monthly.
Our 30+ licensed in-house structural engineers evaluate your architectural CAD drawings, clear ceiling heights, and pallet load profiles, delivering optimized 2D layout drawings and 3D walkthrough renderings within 24 to 48 hours without engineering fee retainers.
Fully certified under European CE Standard (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and RoHS environmental safety. All batch test mill certificates are permanently archived for client auditing.
Whether you require tailored hanging hooks for structural box beams, step beam offsets, specific RAL polyester color matches, or custom wire diameters (Ø 3.0mm to 8.0mm), our tooling shop produces rapid custom prototypes within 5 business days.
With over two decades exporting to extreme climatic zones across the GCC (UAE, Saudi Arabia, Qatar, Kuwait), Southeast Asia, and Africa, our proprietary 9-stage pickling, phosphating, and electrostatic powder coating process guarantees blistering-free adhesion in 45°C heat and humid coastal salt air.
Components are packaged into nested, strapped metal pallets and wrapped with moisture-barrier film. Bundles are labelled with alphanumeric tagging keyed directly to erection assembly drawings, preventing jobsite sorting confusion and minimizing ocean freight container cubic waste.
Spectrographic testing of Q235B steel coils and high-tensile wire rods to ensure carbon/alloy limits.
Automated high-speed decoiling and precision shearing with laser tolerance monitoring to within ±0.5mm.
CNC multi-ton punching presses forming teardrop, keyhole, and proprietary divider locator slots.
Automated dipping tanks for acid pickling, degreasing, and zinc phosphating ensuring zero surface rust.
Swiss Gema automatic electrostatic spray guns curing at 200°C for high impact- and scratch-resistance.
Load-to-failure testing, coating thickness verification, and shockproof steel-strapped crating for ocean transit.
Avoid communication delays and engineering miscalculations by providing these essential structural variables when requesting high-volume divider bids.
| Engineering Variable | Standard Parameters / Typical Options | Why It Matters Structurally |
|---|---|---|
| Rack Upright Depth ($D_R$) | 36", 42", 48", 54", 60" (900mm, 1000mm, 1100mm, 1200mm) | Dictates divider overall length and cantilever overhang reach |
| Beam Profile Type | Standard Step Beam (1-5/8" step), Box Beam, Structural C-Channel | Determines attachment hook contour geometry and fastener requirements |
| Wire Diameter & Mesh Pattern | Ø 4.5mm, 5.0mm, 6.0mm | 50×50mm, 50×100mm, 25×50mm | Governs deflection under lateral SKU sliding and point-load resistance |
| Height Clearance ($H_C$) | 8", 12", 18", 24", 36", 48" or full beam-to-beam tier height | Establishes overturning moment resistance against top-heavy packages |
| Target Environment | Dry Ambient (+10°C to +35°C), Freezing (-28°C), Outdoor Yard | Mandates powder coating vs. zinc electroplate vs. hot-dip galvanization |
| Annual / Project Volume | Container lots (1×20GP, 1×40HQ) or project-specific pieces (500–50,000 pcs) | Determines production tooling allocation, robotic cell setup, and tiered price discounts |
Detailed, engineering-backed answers to the most common inquiries from commercial buyers, warehouse facility directors, and OEM distributors.
Consult directly with Guangzhou Heda Shelves' senior racking engineers. Send us your warehouse CAD drawings, beam dimensions, and SKU profile for a free 3D layout simulation and competitive factory-direct quote.
