Heavy-Duty Warehouse Storage & Frame Assemblies
Explore our custom OEM upright frames, modular cantilever solutions, automated high-bay systems, and structural mezzanines built for extreme seismic and dead-load specifications.
Space Saving Light Duty Steel Selective Pallet Rack
Precision 5-tier adjustable uprights featuring high-strength anti-corrosive powder finish, engineered for dense fast-picking SKU facilities.
Mobile Wide Span Tool & Material Storage Racks
Heavy-duty longspan mobile framework configured with cold-rolled columns, optimizing retail backrooms and maintenance tool cribs.
High-Density Industrial Drive-In Steel Racking System
Structural steel channel rail system eliminating wasted fork aisles, maximizing bulk cold storage and single-SKU pallet efficiency.
Stainless Steel Foldable Commercial Framework
Reinforced commercial tubing with high-durability strapping, ideal for dynamic hospitality staging and rapid parcel processing.

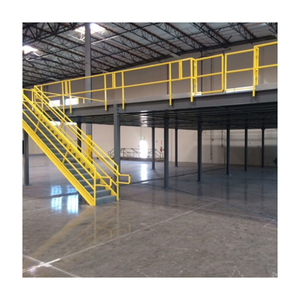

Customized Industrial Storage Pallet Racking Mezzanine
Multi-tier structural rack-supported platform utilizing upright post inertia to multiply clear-span footprint into two-level storage.
Heavy Duty High Bay Very Narrow Aisle (VNA) Uprights
Tightly engineered punch pitch tolerances with automated turret-truck track interfaces for extreme high-density ceiling clearances.
Industrial Selective Warehouse Pallet Storage Rack
Universal teardrop or diamond slot profiles featuring box-beam connectors, providing 100% direct-access pick flexibility.
Interlocking Floor Rack Attic Mezzanine Storage System
Heavy gauge cold-rolled profile uprights supporting perforated steel, bar grating, or B-deck mezzanine multi-level logistics centers.
Engineering Pallet Rack Upright Frames: Mechanics, Metallurgical Specs, and Load Dynamics
In contemporary intralogistics facility design, the pallet rack upright frame functions as the definitive load-bearing backbone of the warehouse infrastructure. An upright frame comprises two roll-formed columns mechanically joined via diagonal and horizontal structural bracing struts, fully integrated with cold-stamped seismic baseplates anchor-bolted directly into post-tensioned or reinforced concrete slabs. A failure in upright geometry, gauge consistency, or yield stress results in unmitigated structural cascading hazards.
As certified tier-1 OEM manufacturers and global exporters, HEDA Shelves addresses the foundational mechanics of upright design: axial compression capacity, frame torsional stiffness, flexural-torsional buckling resistance, and local perforation stress concentrations. Utilizing high-strength Q235B and Q355B micro-alloyed coil steel, our automated roll-forming lines progressively shape raw coils through up to 26 cold-bending roller stations, preventing residual micro-fractures in structural return flanges and securing peak structural integrity under dynamic forklift shock-loads.
Comprehensive Technical Specification Matrix
To assist system integrators, EPC warehouse contractors, and procurement engineers in project estimation, the structural profiles and load parameters below reflect our standardized OEM upright line configurations:
| Profile Dimension (mm) | Steel Gauge / Thickness | Material Grade | Standard Punch Pitch | Max Axial Frame Capacity (kg) | Target Application Class |
|---|---|---|---|---|---|
| Omega 80 × 60 | 1.5 mm – 1.8 mm | Q235B (Yield ≥ 235 MPa) | 50 mm / 75 mm / 76.2 mm | 6,000 – 9,500 kg | Light/Medium Duty, Longspan & E-commerce Pick Modules |
| Omega 90 × 70 | 1.8 mm – 2.0 mm | Q235B / Q355B | 50 mm / 76.2 mm (3-inch teardrop) | 10,000 – 14,000 kg | Standard Selective Industrial Pallet Racking |
| Omega 100 × 70 | 2.0 mm – 2.3 mm | Q355B (Yield ≥ 355 MPa) | 50 mm / 75 mm | 14,500 – 18,500 kg | Heavy-Duty Drive-In & Cold Storage Logistics |
| Omega 120 × 95 | 2.5 mm – 3.0 mm | Q355B Structural Grade | 50 mm / 75 mm / Custom OEM | 20,000 – 26,000+ kg | VNA High-Bay, Multi-Tier Mezzanines & AS/RS Racks |
Frame capacity is strictly dependent on the unbraced length (vertical distance between the warehouse floor and the first beam level, or between consecutive beam levels). Higher first-beam elevations reduce overall column buckling thresholds according to Euler's buckling formulation, requiring thicker column wall sections or heavy-duty structural bracing profiles.
Why Global Supply Chains Rely on HEDA Shelves
From raw coil sourcing through high-precision punching, forming, and export container staging, discover how our 25-year manufacturing pedigree protects your capital investments.
CE, ISO 9001 & RoHS Certified
Our manufacturing procedures strictly follow ISO 9001:2015 Quality Management standards (Cert No. 18624Q00169R0M) alongside CE declaration (No. 2435-CPR-8605159). Traceable material mill test certificates (MTC) back every batch.
30,000 m² In-House Factory
Operating direct out of Guangzhou with over 300 technical production experts and 30,000 tons of monthly capacity, we provide transparent factory-direct pricing without distributor markups, ensuring lead-time reliability.
Complimentary 2D CAD & 3D Design
Our engineering team translates architectural floor plans, floor slab bearing limits, and equipment turning radii into fully optimized 2D layout schematics and 3D walkthrough renderings before steel enters fabrication.
Pickling, Phosphating & Powder Coating
Before automated electrostatic powder coating, components undergo strict multi-stage acid pickling and chemical phosphating to strip rolling scale. This delivers superior film adhesion resistant to chipping, corrosion, and coastal humidity.
Tailored OEM/ODM Interlocking Profiles
We provide bespoke tool die production matching classic American teardrop patterns, European diamond/hexagonal punch standards, butterfly connectors, and customized boltless pitches suited for your established regional channel catalogs.
Sea-Freight Engineered Bundling
Upright frame columns and bracing trusses are packed in high-density nested bundles with edge angle-protectors and moisture barriers, tagged with alphanumeric mark IDs coordinating 1:1 with site erection blueprints.
Emerging Upright Frame Procurement Trends (2025–2030)
Global supply chain directors and distribution center developers are restructuring their steel racking procurement frameworks around these transformative shifts.
Automation-Ready Deflection Limits
The rapid integration of Autonomous Mobile Robots (AMRs) and AS/RS cranes requires upright columns to hold perpendicularity within 1/1000 tolerances. Standard manual forklift tolerances no longer satisfy automated high-bay facilities.
Shift Toward Q355B & Micro-Alloys
Procurement managers are transitioning away from heavy Q235B profiles toward cold-formed Q355B and high-yield steel coils. This engineering transition cuts dead weight by 12–18% while sustaining identical live payload thresholds, saving oceanic shipping costs.
Seismic Baseplates & Anchor Ductility
Regional logistics hubs across the Middle East, North America, and Southeast Asia now mandate site-specific spectral acceleration calculations. Universal generic baseplates are being replaced by multi-hole ductile plates engineered for epoxy or mechanical wedge anchoring.
Continuous Hot-Dip & Thermoset Hybrids
With cross-border pharmaceutical and cold-chain FMCG facilities expanding in coastal ports, procurement contracts specify pre-galvanized coils or multi-layer epoxy-polyester electrostatic finishes capable of surviving 500+ hours of ASTM B117 salt spray testing.
The Technological Evolution of Pallet Upright Frameworks
How progressive engineering design is transforming static warehouse steel into modular, resilient structural assemblies.
Integrated RFID & Stress Sensor Channels
Modern high-density uprights are increasingly roll-formed with recessed return channels designed to house fiber-optic strain gauges and RFID integrity tags, enabling continuous real-time impact monitoring from forklift collisions.
Modular Upright Splice Topologies
To clear shipping container height ceilings (maximum 11.8m in 40ft High Cube containers), precision laser-cut internal sleeve splices allow upright heights exceeding 18 meters without sacrificing structural column section modulus.
Reinforced Omega Form Profiles
Upright profiles are evolving from basic open-lip shapes to complex 12-to-16 bend Omega geometries. Every additional bend edge introduces stiffening work hardening along the profile perimeter, boosting localized torsional resistance.
Frequently Asked Technical & Procurement Questions
Answers to common structural engineering, custom fabrication, and international logistics questions submitted by warehouse procurement teams.
How do you determine the required steel gauge and column profile for an upright frame?
Can HEDA Shelves produce upright frames matching existing racking systems (Teardrop, Dexion, Redirack)?
What corrosion protection methods are applied for cold-storage or coastal facilities?
What documents are provided to support Civil Defense, municipal, and insurance sign-offs?
How are long upright frames packaged to prevent in-transit deformation during ocean shipping?
Engineer Your High-Yield Warehouse Storage Solution Today
Partner with an established OEM manufacturer with 25 years of engineering experience. Send us your warehouse CAD drawings, clear ceiling heights, and pallet load parameters to receive a custom structural analysis and factory-direct quotation within 24 hours.
