Custom OEM Shelf Pallet Rack Manufacturers & Suppliers

Precision-Engineered Industrial Storage Systems, Automated Roll-Forming Tolerances, and Direct Factory Supply for High-Throughput Warehouses Worldwide.

2001
Founded Year
30,000 m²
Factory Footprint
30,000 T
Monthly Capacity
120+
Countries Supplied
Direct OEM Portfolio

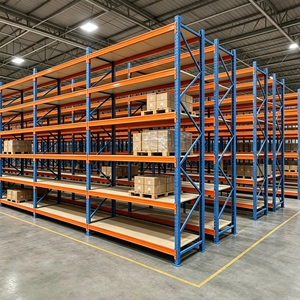

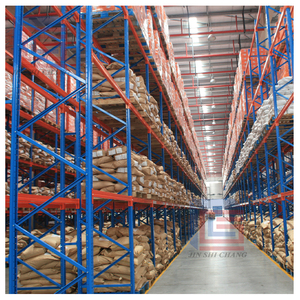

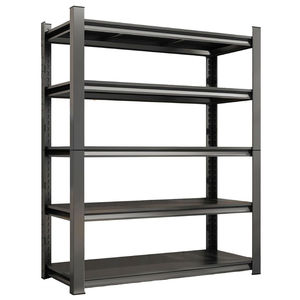

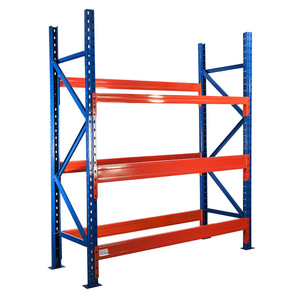

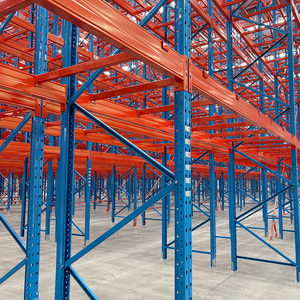

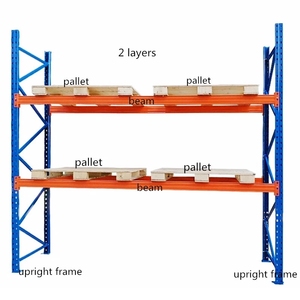

Engineered Industrial Pallet Racking Systems

Select from heavy-duty structural designs certified under CE and ISO 9001:2015 frameworks, built to withstand demanding logistics operations.

Engineering Whitepaper: Structural Tolerances in Custom OEM Pallet Racks

In high-density modern intralogistics, procuring a standard, off-the-shelf racking system often introduces spatial deficits and safety bottlenecks. As a premier custom OEM shelf pallet rack manufacturer, our engineering philosophy revolves around finite element analysis (FEA), metallurgical consistency, and cold-roll-formed profile optimization. Standard catalogue systems assume uniform pallet deflection and static environmental operating variables. In contrast, custom OEM manufacturing incorporates exact payload dimensions, non-standard unit load footprints, seismic accelerations, and building slab deflection limits into structural calculations.

Crucially, load distribution within a warehouse rack depends on beam-to-column connector rigidity. Our robotic punching lines utilize continuous pitch stamping with tolerances kept strictly under ±0.15 mm. This micron-level precision ensures zero torsional twisting across high-bay installations exceeding 12 meters, allowing seamless interfacing with Automated Storage and Retrieval Systems (ASRS) and Very Narrow Aisle (VNA) man-up turret trucks.

Future Procurement Strategies & Technological Evolution

Global supply chain managers are shifting from purely CAPEX-driven purchasing models to Total Cost of Ownership (TCO) assessments. Warehousing environments are undergoing unprecedented automation integration. Below is an architectural overview of how OEM pallet rack specifications are transforming:

ASRS & Shuttle-Ready Tolerances

Procurement teams increasingly require pallet frames engineered with minimal beam deflection (better than 1/200th span ratios) to eliminate shuttle jams and optical sensor faults in semi-automated 2D/4D radio shuttle lanes.

Advanced Chemical Pre-Treatment

Standard solvent dip is obsolete. Modern procurement demands complete 8-stage pickling and phosphating lines followed by electrostatic polyester powder application to resist coastal salinity, acid vapors, and thermal shocks in GCC cold storage.

Seismic & Impact Redundancy

Future setups incorporate heavy-gauge Omega profiles with specialized ductile baseplates. These anchor systems dissipate seismic shock waves without catastrophic buckling, meeting demanding FM Global and Eurocode EN 15512 safety protocols.

Direct Manufacturing Authority

Guangzhou HEDA Shelves: 25+ Years of Production Reliability

Operating a dedicated 30,000 square meter modern production facility with a dedicated staff of over 300 technical specialists, Guangzhou Heda Shelves Co., Ltd. controls the end-to-end industrial lifecycle of your storage system.

Unlike trading intermediaries, our factory integrates automated raw-steel slitting, continuous cold profile roll forming, robotic welding stations, in-house pickling, and automated curing tunnels. We guarantee certified material heat numbers, traceable mill test certificates, and full compatibility across replacement parts for decades.

  • 10-Step Controlled Quality Raw material spectroscopy to final export bundle strapping.
  • CE & ISO 9001:2015 Traceability Certificate No. 2435-CPR-8605159 and No. 18624Q00169R0M.
  • Free 2D CAD & 3D Modeling Complete floor plans, aisle clearances, and capacity load charts.
  • Export-Ready Container Packing Labeled, modular pallets matching CAD assembly diagrams.
HEDA Shelves 30,000 sqm warehouse racking manufacturing plant
Procurement Guide

Frequently Asked Questions on Custom OEM Pallet Racking

Direct technical answers addressing structural calculation, international standards, coatings, and cross-border installation.

What engineering data is required to design a custom OEM pallet rack system?
To prepare accurate 2D structural CAD layouts, 3D models, and beam load calculations, our engineering team requires: (1) Architectural floor drawings detailing internal column grid lines and clear building heights below structural haunches; (2) Pallet specifications including overall dimensions (W x D x H), total weight per pallet, and overhang factors; (3) Operational forklift type, turning radius (Aisle AST), and maximum mast lift reach; (4) Total SKU assortment and required retrieval methodology (FIFO vs. LIFO); (5) Ambient thermal conditions (standard ambient, chemical-exposure, or sub-zero cold room environments).
How does your OEM steel surface treatment protect against high humidity, coastal air, and thermal swings?
Every raw upright and horizontal cross-beam undergoes an extensive automated 8-stage pre-treatment process prior to powder application: degreasing, water rinsing, acid pickling to eliminate mill scale, surface neutralization, and dense zinc phosphating. Following pre-treatment, parts enter an automated electrostatic booth where high-grade thermoplastic epoxy-polyester resin powder is cured at 180°C–200°C. For severe external sites, marine coastal depots (such as Jebel Ali or Dammam), or deep freezing plants, hot-dip galvanizing (HDG) per ISO 1461 can be fabricated upon request.
Which seismic and structural loading certifications apply to your pallet racks?
Our products comply with European Standards (EN 15512:2009, EN 15620, EN 15629, and EN 15635), holding valid CE Factory Production Control Certification (CE No. 2435-CPR-8605159). Additionally, our facility operates under certified ISO 9001:2015 quality management systems (Certificate No. 18624Q00169R0M). Structural steel is sourced from audited tier-1 mills utilizing Q235B and Q355B structural steel grades with complete chemical and mechanical test mill sheets provided with every export container.
Can HEDA Shelves supply custom OEM components matching existing racking installations?
Yes. As a full-scale OEM & ODM manufacturer, we frequently engineer replacement upright columns, bespoke teardrop or diamond hole profiles, non-standard box beams, step beams, structural cantilever arms, and safety drop-in wire decking to integrate seamlessly into existing third-party installations. Our CNC tooling division can roll-form custom pitches (50mm, 75mm, 76.2mm, or 50.8mm imperial hole spacing) according to client engineering samples or physical blueprints.
What are standard factory production lead times and logistics arrangements?
Standard OEM production runs average 15 to 25 working days from technical drawing sign-off and deposit receipt, supported by our robust 30,000-ton monthly capacity. Shipments are professionally bundled with protective corrugated paper edging, stretch wrap, and steel strapping designed to fit securely into 40ft High Cube containers. Every package includes clear item identifiers matching project erection drawings for rapid unpacking and installation on site.
Do your layout designs satisfy international Civil Defense and fire sprinkler clearance codes?
Yes. Our layouts are designed with strict adherence to fire safety regulations. We incorporate required longitudinal flue spaces (typically 150mm between back-to-back racks) and transverse flue spaces to ensure vertical sprinkler penetration. All gangways, egress emergency walkways, and structural aisle clearances conform to local Civil Defense and fire authority compliance frameworks.

Transform Your Warehouse Efficiency with Custom OEM Racks

Connect directly with our senior structural engineering team. Get a comprehensive warehouse storage evaluation, free 2D/3D CAD design layouts, and competitive factory-direct pricing for your project.
