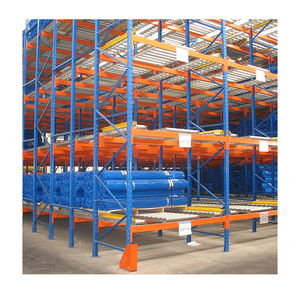

Industrial Logistics Transportation Gravity Roller Heavy Pallet Racking
Reinforced structural upright framing designed specifically for high-capacity FMCG and automated cross-dock distribution hubs.
Heavy-Duty Steel
NOVA Heavy Duty Warehouse Storage Steel Gravity Flow Rack
Multi-ton tier capacity featuring integrated pallet separators that eliminate line pressure at unloading access points.
Carton & Pallet

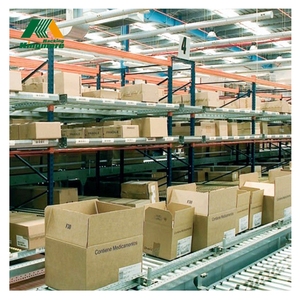

Customized Gravity Carton Flow Pallet Roller Rack System
Hybrid live storage configuration combining bottom pallet flow lanes with upper carton flow shelves for split-case order picking.
Maximum Density
FIFO High Density Warehouse Pallet Storage Gravity Roller Rack
Continuous multi-deep roller beds cutting travel aisles up to 60% compared to standard selective pallet racking layouts.
Modular Mobile
Collapsible Logistics Mobile Gravity Pallet Roller Steel Rack
Collapsible, redeployable gravity frame configuration ideal for seasonal surge logistics, staging zones, and temporary staging.
Standard Heavy Duty

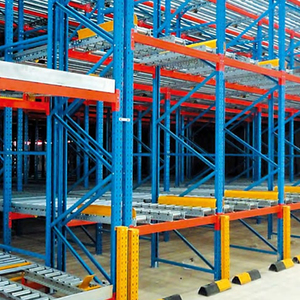

Gravity Pallet Rack Carbon Steel Powder Coated High Durability
High-tensile carbon steel channels pretreated through chemical pickling and phosphating for superior mechanical bonding.
2001
Year Established: Over two decades of international structural storage excellence.
30,000 m²
Fully Integrated Production Plant in Guangzhou with automated roll-forming lines.
30,000 t
Monthly Structural Steel Fabrication Capacity supporting global logistics projects.
120+
Export Nations Served across the Middle East (GCC), Europe, Americas, and SE Asia.
1. The Mechanical Physics of Gravity Pallet Flow: Engineering Integrity & Flow Dynamics
Gravity pallet flow racking (frequently referred to as dynamic live pallet racking) is a dedicated high-density storage methodology operating on a continuous gradient. Unlike powered automated shuttle systems or automated guided vehicle (AGV) high-bays that demand uninterrupted electrical power and complex programmable logic controllers (PLCs), gravity flow racking utilizes natural kinetic gravitational energy to guide pallets from an intake aisle to a picking face.
Achieving controlled, safe, and repeatable pallet movement across runs extending up to 20 or 30 pallets deep requires sophisticated dynamic physics calculations. As an established OEM/ODM exporter, Guangzhou Heda Shelves Co., Ltd. calibrates every component to balance kinetic force with controlled decelerating resistance.
Dynamic Equation of Gradient Sizing: The gravitational incline angle typically ranges between 2.5% and 4.0% (approximately 1.5° to 2.3°). An insufficient slope prevents pallets with sagging timber bottoms or uneven footprints from gliding, resulting in warehouse "hang-ups." Conversely, an excessive angle causes uncontrolled gravitational acceleration, increasing the hazard of destructive impact at the discharge terminal.
Essential Subsystems in Precision Gravity Pallet Racking
Centrifugal Brake Rollers
Internally geared centrifugal brake rollers operate without external power. As pallet velocity reaches approximately 0.25 to 0.3 m/s, internal counterweights generate progressive frictional resistance, holding linear velocity constant throughout extended multi-deep runs.
Mechanical Pallet Separators
In deep lanes, accumulated pallets exert huge aggregate hydraulic pressure against the forward-most unit. Our patented separator latch isolates the discharge pallet from the trailing queue, allowing forklift operators to extract the load cleanly without binding.
Engineered Entry Funnels & End Stops
Reinforced entry alignment guides center pallets upon insertion, ensuring bottom runners align squarely with the roller tracks. At the exit, structural hydraulic end stops absorb residual velocity safely.
Comparative Performance: Gravity Flow vs. Alternative High-Density Systems
To determine return-on-investment (ROI) for global warehouse logistics, distribution center planners evaluate storage density against pallet access velocity and total utility overhead. The engineering matrix below evaluates core functional differences:
| Storage Topology | Space Utilization | Inventory Rotation | Operating Energy Cost | Forklift Cycle Time | Maintenance Complexity |
|---|---|---|---|---|---|
| Gravity Pallet Flow (FIFO) | 80% – 85% (Very High) | Strict FIFO Guaranteed | Zero (Gravitational) | Ultra-Fast (Dedicated Aisles) | Low (Mechanical Rollers/Brakes) |
| Radio Shuttle Racking | 85% – 90% (Ultra High) | FIFO or LIFO | Moderate (Lithium Batteries) | Medium (Shuttle Wait Times) | High (Sensors, Motors, Batteries) |
| Drive-In Racking | 70% – 75% (High) | Strict LIFO Only | Zero | Slow (Deep Forklift Ingress) | High Structural Impact Risk |
| Push-Back Racking | 65% – 75% (Medium-High) | Strict LIFO Only | Zero | Medium (Push Resistance Force) | Low-Medium (Cart Wheels) |
| Selective Pallet Racking | 35% – 45% (Low) | 100% Selectivity | Zero | Fast (Wide Aisle Dependent) | Very Low |
2. Global Procurement Trends in Gravity Racking & Intralogistics (2025–2030)
As corporate real estate lease rates surge in major global distribution centers—from Jebel Ali in the UAE to Rotterdam, Los Angeles, and Singapore—supply chain directors are under acute pressure to maximize vertical volume without running up long-term automated hardware maintenance costs. The global gravity flow procurement market is being transformed by four macro developments:
A. Surge in Cold Chain Logistics & Perishable Goods Protection
In high-ambient climates such as Saudi Arabia, the UAE, and Southeast Asia, refrigerated and deep-freeze facilities (-18°C to -28°C) represent significant operational utility expenditures. Gravity flow racking delivers an exceptional volume utilization factor. By eliminating intermediary forklift travel aisles inside temperature-controlled chambers, businesses cut chilled cubic meters per pallet stored by up to 55%. Because food distribution, dairy, and pharmaceuticals mandate non-negotiable First-In First-Out compliance, gravity flow eliminates human error in batch code sequencing.
B. The Rise of "Passive Automation" in the Age of High Energy Tariffs
While automated storage and retrieval systems (AS/RS) provide impressive throughput, their capital expenditure, software licensing burdens, and sensitivity to utility disruptions deter many enterprise operators. Global procurement directors are leaning heavily toward "Passive Automation"—mechanically autonomous flow systems that execute high-density material rotation without grid electricity, wiring, or software licenses. Gravity pallet flow stands as the premier passive automation technology available today.
C. High Integration with Autonomous Mobile Robots (AMRs) & AGVs
Modern gravity flow installations are no longer isolated manual operations. Racking design is evolving to feature specialized front-end docking interfaces tailored for Automated Guided Vehicles (AGVs) and Autonomous Forklifts. Precision entry centering devices and laser-calibrated end stops enable optical sensors on automated guided vehicles to reliably retrieve and stage loads without human operators.
D. Demand for Modular, Boltless OEM/ODM Scalability
Global logistics contracts frequently fluctuate in product profile and pallet dimensions. International procurement teams prioritize manufacturers capable of engineering modular, boltless uprights with standardized 50mm or 75mm pitch punch patterns. This modularity allows operations to reconfigure lane depths, incline gradients, and roller spacings in-house as pallet weights shift across operating quarters.
3. Product Development Trends: Next-Gen Gravity Flow Innovations
The core structural profile of hot-rolled and cold-formed carbon steel remains standard, but component-level innovations within the gravity flow roller bed are advancing rapidly. Guangzhou Heda Shelves Co., Ltd. leads this shift through rigorous R&D across our manufacturing divisions:
Eddy-Current Non-Contact Brake Rollers
Traditional friction-based brake drums experience mechanical lining wear over time. Next-generation systems incorporate permanent magnetic eddy-current decelerators. As pallet speed increases, the induced magnetic field generates counter-torque without physical mechanical contact, virtually eliminating component wear across million-cycle lifespans.
Split-Roller & Polyurethane Composite Tracks
To accommodate low-grade or disposable export pallets with broken base runners, full-width steel rollers are being augmented by engineered dual-track split rollers and high-durometer polyurethane coatings. This hybrid configuration increases grip while insulating cold environments against roller deformation.
Pretreatment Nanotechnology & Anti-Corrosion Finishes
Modern powder-coating lines incorporate complex multi-stage chemical pretreatment: acid pickling, zinc phosphating, and nano-ceramic conversion. This ensures that dynamic flow racks operating in extreme humidity, coastal salt mist, or -30°C cold stores achieve over 1,000 hours of continuous salt-spray corrosion resistance without flaking.
4. Enterprise Strengths: Why Guangzhou Heda Shelves Co., Ltd. Leads the Industry
Selecting an OEM/ODM gravity pallet racking supplier requires verifying deep structural engineering expertise, audited manufacturing quality systems, and demonstrated export fulfillment reliability. Guangzhou Heda Shelves Co., Ltd. has served the global supply chain equipment market since 2001, providing high-performance industrial storage solutions with true factory-direct accountability.
30,000 m² Integrated Manufacturing Hub
Our centralized production complex in Guangzhou houses automated CNC precision coil slitters, continuous roll-forming lines, automated hydraulic punching presses, and fully enclosed electrostatic powder-coating paint lines. We eliminate intermediary markups, providing factory-direct pricing and verified material traceability.
Certified International Quality Credentials
Our structures and production workflows strictly comply with CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Systems (No. 18624Q00169R0M), and European design standards EN 15512, EN 15620, and RoHS. Safety factor tolerances are verified via finite element structural analysis.
Complimentary 2D CAD & 3D Layout Simulation
Our in-house design engineering department generates custom 2D warehouse structural CAD layouts, flue-space configurations, dynamic lane gradient calculations, and photorealistic 3D warehouse models within 24 to 48 hours, fully coordinated for local Civil Defense and fire authority compliance.
High-Temperature & Coastal Resilience
Specialized surface pretreatment—including immersion chemical pickling, micro-crystalline phosphating, and high-adhesion electrostatic thermosetting epoxy-polyester coatings—ensures our racking systems withstand high heat, extreme humidity, and abrasive sand/dust conditions across demanding regions like the Middle East.
Over 10,000+ Completed Installations Worldwide
From large 3PL logistics parks in the United Arab Emirates and Saudi Arabia to chemical facilities in Ghana, automotive fulfillment centers in Thailand, and pharmaceutical cold hubs in Europe, our systems handle continuous, heavy-cycle throughput day in and day out.
Container-Optimized Export Packing
To eliminate shipping damage and reduce port customs delays, every component bundle is steel-banded, foam-cushioned, shrink-wrapped, and tagged with color-coded barcodes corresponding directly to the structural installation manual, ensuring fast, trouble-free assembly on site.
5. Frequently Asked Questions: B2B Gravity Pallet Racking Procurement
Technical guidance and commercial parameters for project engineers, procurement managers, and logistics consultants specifying gravity pallet flow solutions.
How is the incline gradient calculated for varied pallet weights?
The gradient angle is calibrated according to pallet construction, total operational load range, and roller friction coefficients. Standard wooden Euro pallets (1200x800mm) or industrial GMA pallets (1200x1000mm) carrying 500kg to 1500kg generally require a 3.0% to 3.5% slope. Lighter loads or plastic pallets with stiffer runners may require 3.5% to 4.0%. During the engineering design stage, our technical lab performs dynamic roller testing with your actual pallet samples to prevent stalling or overspeeding.
How do you prevent excessive line pressure in deep-lane gravity flow systems?
In lanes exceeding 5 to 6 pallets deep, static line pressure against the lead pallet can make forklift extraction hazardous. We integrate mechanical load separators. When the front pallet reaches the discharge face, a floor latch locks the trailing pallets roughly 400mm upstream. Only after the forklift lifts and clears the lead pallet does the mechanism release, allowing the next unit to roll forward under controlled braking.
What types of pallets are compatible with gravity roller systems?
Standard wooden two-way or four-way entry pallets with bottom runners oriented parallel to the roller track run reliably. Pallets must have intact bottom boards free from protruding nails or split timber. Plastic pallets with cross-perimeter runners, metal steel skids, and wire-mesh containers are also compatible when equipped with specialized dual-wheel tracks or tailored roller spacings.
What are your factory lead times, container packing, and global shipping capabilities?
Standard manufacturing turnaround is typically 15 to 25 days depending on total project tonnage and coating specifications. We ship via major sea transport hubs directly from Guangzhou/Shenzhen to global destinations, including Dubai (Jebel Ali), Dammam, Jeddah, Singapore, Rotterdam, Hamburg, Los Angeles, and Santos. Every order includes marked bundles, CAD assembly drawings, and remote video technical installation support.
Can HEDA Shelves gravity racking support local Civil Defense & fire sprinkler reviews?
Yes. Our project drawings specify longitudinal and transverse flue spaces, in-rack fire sprinkler clearance brackets, structural floor load distribution plates, and stamped steel load capacities according to local regulatory standards (including NFPA 13 guidelines and local Civil Defense authorities across the GCC and Europe).
What surface coating technologies protect against extreme heat and coastal humidity?
Our multi-step finishing process includes high-pressure chemical wash degreasing, acid pickling to eliminate mill scale, and zinc phosphating to provide active anti-corrosive passivation. Components then pass through an automated electrostatic powder booth applying high-durability epoxy-polyester powder (60–100 microns thick) cured at 180°C–200°C. For harsh outdoor yards or marine locations, hot-dip galvanizing to ISO 1461 is available.
What is the maintenance routine for passive gravity flow roller systems?
Because gravity flow systems contain no motors, electrical sensors, or battery units, routine maintenance is straightforward. We recommend semi-annual visual inspections: verifying that rollers spin freely, removing dirt or stretch-film debris from the tracks, confirming that centrifugal brake rollers regulate speed consistently, and verifying anchor bolt torques along the discharge frames.
Do you accommodate custom OEM/ODM colors, sizing, and proprietary dealer branding?
Yes. As a direct manufacturer, Guangzhou Heda Shelves provides end-to-end OEM and ODM support for material handling dealers, systems integrators, and engineering contractors worldwide. We manufacture custom upright profile depths, non-standard column gauges, project-matched RAL powder colors, and provide OEM dealer labeling and customized container packing for private-label distribution.
