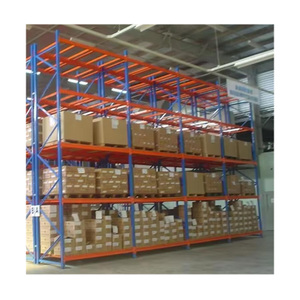

Featured High Bay Industrial Racking Systems
Precision-engineered cold-rolled steel racking configurations customized for high-bay logistics terminals, automated high-density distribution centers, and heavy industrial warehouses worldwide.
High Bay Racking System Design & Structural Metallurgical Integrity
A rigorous examination of load deflection parameters, cold-rolled carbon steel selections, seismic bracing coefficients, and high-tolerance vertical alignment criteria.
High bay racking systems—typically classified as industrial vertical rack structures extending from 8 meters up to 40 meters in clear height—represent the pinnacle of static and dynamic structural logistics engineering. Unlike standard floor-mounted selective pallet racks, high-bay environments exert massive concentrated down-aisle and cross-aisle forces on concrete foundation slabs, demanding exacting tensile tolerances, certified cold-rolled structural steel, and microscopic plumbness alignment to accommodate high-reach turret trucks and Automated Storage and Retrieval System (AS/RS) cranes.
At Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves), our structural calculations conform strictly to FEM 10.2.02 (European Federation of Materials Handling), EN 15512, and RMI (Rack Manufacturers Institute) MH16.1 specifications. Upright columns and load beams are roll-formed exclusively from certified high-yield Q235B and Q355B structural steel coils. These metallurgical grades provide the optimal equilibrium between yield strength (up to 355 MPa) and elongation ductility, preventing brittle failure under dynamic impact loading or seismic acceleration events.
| Engineering Attribute | Standard Pallet Racking (≤7m) | Very Narrow Aisle (VNA) High Bay (8m–16m) | AS/RS Clad-Rack High Bay (16m–40m) |
|---|---|---|---|
| Steel Substrate Grade | Q235B / Commercial Carbon Steel | Certified Q355B High-Yield Alloy | Heavy-Duty Q355B + Micro-Alloyed Profiles |
| Aisle Width Requirement | 2,800 mm – 3,500 mm | 1,500 mm – 1,850 mm | 1,350 mm – 1,600 mm (Dedicated Crane Channel) |
| Vertical Plumbness Tolerance | 1/500 total height | 1/750 total height (DIN 15185 compliant) | 1/1000 total height (Automated laser aligned) |
| Surface Pretreatment & Finish | Single-pass degrease + standard powder | Pickling, phosphating + epoxy-polyester coat | Continuous zinc electroplate / Dual-cure epoxy coat |
| Floor Slab Load Profile | Point loads: 25 to 55 kN | Point loads: 60 to 120 kN + guide rail anchoring | Point loads: 140 to 300+ kN (Deep piling integration) |
Full-Scope OEM & ODM High Bay Engineering Services
Transforming complex warehouse architectural constraints into optimized, high-density storage through bespoke section profiles, custom beam connections, and global specification adaptability.
Bespoke Upright & Beam Profiles
Custom section profiling with 8 to 14 cold-forming roll stations. We manufacture omega-shaped uprights from 90mm up to 140mm face dimensions, with steel gauges ranging from 1.5mm to 3.5mm thick. Slot pitches can be engineered in 50mm, 75mm, or 76.2mm (3-inch) European or American teardrop standards.
Seismic & Wind Load Engineering
For seismic-zone installations (such as Latin America, Southeast Asia, or Southern Europe) and external Rack-Clad high bay enclosures, our calculation team designs multi-tier horizontal top-tie trusses, X-bracing portals, and heavy baseplate grouting to dissipate shear wave resonance safely.
Turnkey OEM Surface Tailoring
Tailored surface finishes designed for extreme operating conditions. Choose between zinc electro-galvanization, hot-dip galvanization (conforming to ISO 1461 for corrosive or outdoor chemical yards), or our signature non-toxic, RoHS-compliant thermosetting electrostatic powder coating in RAL-matched shades.
Our Complete 10-Stage High-Bay Production Workflow
01Raw Material QA
Spectrometric tensile test on prime coil stock.
02Precision Slitting
High-tolerance CNC slitting with ±0.1mm accuracy.
03CNC Punching
Continuous hydraulic stamping of tear-drop/hex slots.
04Cold Roll Forming
Multi-roller forming line creates rigid omega uprights.
05Beam Profiling
Interlocking twin-C box beam roll profiling.
06De-burr & Polish
Edge radiusing to prevent stress cracking points.
07Robotic Welding
Continuous CO2 gas shielded beam end-connector welds.
08Acid Phosphating
Multi-tank degreasing and rust removal pretreatment.
09Powder Coating
Automated electrostatic spraying and 200°C baking oven.
10Export Packaging
Bundled steel strapped on skids for ocean transit.
Future Procurement Trends in High Bay Logistics (2025–2035)
Key intelligence for procurement directors, supply chain VPs, and EPC warehouse contractors navigating escalating land costs, robotics integration, and decarbonization mandates.
1. Vertical Floor-to-Cube Densification
With industrial real estate lease costs in prime logistics hubs (Dubai, Riyadh, Rotterdam, Chicago, Shanghai) increasing 35-60% over recent cycles, buyers are pivoting from horizontal floor expansion to vertical footprints. Racking clear heights once standardized at 7.5–9m are being replaced by 14–22m VNA or 30m+ automated high bays, dropping per-pallet footprint costs by up to 58%.
2. Rack-Clad Building Enclosures
Enterprise procurement managers are increasingly commissioning "Rack-Clad" (Rack-Supported) structural buildings. In this methodology, the high-bay racking frame itself forms the civil load-bearing structural skeleton supporting the roof trusses and insulated sandwich wall panels, eliminating redundant structural steel framing and speeding up time-to-commission by 4 to 6 months.
3. AMR & Shuttle-Ready Modularity
Static high-bay layouts are giving way to dual-interface hybrid designs. Procurement specifications now routinely require beam-level run tracks capable of housing autonomous 4-way pallet radio shuttles, AGV transfer points, and automated elevator hoists, safeguarding capital expenditure against future operational automation upgrades.
4. Low-Carbon Steel & Green Procurement
Global supply chain compliance, particularly across European and multinational corporate buyers, is driving strict ESG audits on steel origin and coating toxicity. HEDA Shelves addresses this through zero-lead, solvent-free electrostatic powder coatings and closed-loop phosphating effluent recovery, reducing Scope 3 embodied carbon.
Technological Trends Shaping High Bay Racking Systems
From digital twin modeling to real-time structural health monitoring sensors, discover the next generation of industrial high-bay storage intelligence.
BIM Integration & Digital Twin Design
All high-bay racking systems engineered by HEDA Shelves are developed via 3D BIM (Building Information Modeling) parametric software. This allows architects and logistics consultants to run collision simulations with sprinkler pipes, HVAC trunking, and crane mast profiles long before steel is rolled, eliminating on-site clash delays.
Dynamic IoT Structural Health Monitoring
Modern high bay racks are increasingly retrofitted with smart strain-gauge piezoelectric sensors and vibration monitors on critical baseplates and lower uprights. In the event of a high-speed forklift collision or ground settlement, automated telemetry warns facility directors instantly via SCADA/WMS networks.
Ultra-Low Temperature Cold Chain Alloys
High-bay cold storage facilities operating at -25°C to -35°C (for meat, vaccine, and frozen seafood hubs) introduce steel embrittlement risks. Advanced metallurgical batching utilizing low-carbon Q355ND grade steel combined with micro-alloyed manganese ensures high Charpy V-notch impact toughness under deep sub-zero conditions.
Verified Manufacturing Authority & International Standards
When investing in capital-intensive high bay rack infrastructure, technical verification and factory credentialing protect your capital expenditure. Guangzhou Heda Shelves Co., Ltd. operates with total quality transparency, verified by third-party international testing authorities.
-
CE Certification: Compliant with European standard EN 1090 / Construction Products Regulation (CPR No. 2435-CPR-8605159).
-
ISO 9001:2015 Quality Management: Valid through 2027 under Certificate Registration No. 18624Q00169R0M.
-
RoHS Certified Coatings: Heavy metal-free electrostatic powder chemistry tested safe for food, pharma, and infant product fulfillment.
-
Free 2D/3D Engineering Layout: Professional CAD engineering floor plan and 3D realistic rendering generated within 24 to 48 hours.
Frequently Asked Questions: High Bay Racking Procurement
Definitive answers addressing engineering specifications, foundation slab requirements, Civil Defense fire compliance, and international shipping logistics.
What warehouse slab specifications are required for high bay racking installations exceeding 12 meters?
High bay systems transfer tremendous concentrated point loads via upright baseplates, frequently ranging between 60 kN and 180 kN per footplate. For VNA operations, concrete slabs must conform to DIN 18202 Table 3 Group 4 or TR34 (Category Free Movement or Defined Movement DM2) to prevent reach truck tilt at extreme elevation. Compressive strength must typically exceed 28-day cure ratings of C30/37 or 4000 PSI, with minimum slab thickness between 200mm and 300mm depending on subgrade soil coefficients.
How does high bay racking accommodate in-rack fire sprinkler systems and Civil Defense codes?
Per NFPA 13 and regional Civil Defense fire safety codes (such as UAE Civil Defense, Saudi SASO, and European regulations), high bay pallet racking exceeding 7.6m (25 ft) storing Class I-IV commodities requires dedicated in-rack fire sprinkler arrays. Our CAD designs incorporate standardized 150mm vertical and horizontal flue spaces between back-to-back bays, with pre-notched pipe supports and bracket attachments engineered to carry internal water pipe loads without degrading beam weight capacity.
Can HEDA Shelves customize racking to match existing American Teardrop or European pallet rack footprints?
Yes. As an OEM/ODM factory with custom cold roll-forming capabilities, we produce upright sections compatible with the widely deployed American Teardrop (2-inch center punch) standard, as well as European 50mm and 75mm pitch slot systems. We can fabricate matching beams, column extenders, frame row-spacers, and heavy-duty wire mesh decking tailored to fit your existing facility components seamlessly.
How are oversized high-bay upright frames packaged to prevent damage during ocean container transport?
Upright frames exceeding 11.8 meters (the internal length of a standard 40ft High Cube ocean container) are engineered as precision modular spliced assemblies. Heavy-gauge inner-sleeve splice channels with pre-punched high-tensile Grade 8.8 structural bolt holes are utilized. Components are banded with high-tensile steel strapping on custom timber cradles, wrapped in multi-layer moisture-barrier plastic film, and labelled with barcode bundle markers corresponding to on-site assembly blueprints.
What is the typical production and lead time for a 5,000 to 20,000 pallet-position high bay installation?
Drawing on our 30,000 m² Guangzhou production facility and 30,000 metric ton monthly steel throughput, standard fabrication for projects ranging from 5,000 to 20,000 pallet locations is completed within 20 to 30 calendar days following engineering drawing sign-off. Ocean transit adds approximately 14 to 22 days to Middle East ports (Jebel Ali, Dammam, Jeddah) and 25 to 35 days to European/American base ports.
What documentation is supplied for customs clearance and regional architectural permitting?
Every export order is accompanied by a full technical dossier: stamped structural calculation sheets (including axial load, shear force, and seismic resistance models), 2D CAD layouts, 3D isometric assembly blueprints, mill test certificates (MTC) proving steel coil chemical and tensile properties, and copies of CE and ISO 9001:2015 accreditation.
