Engineering Whitepaper: Metallurgical Standards & Component Tolerances

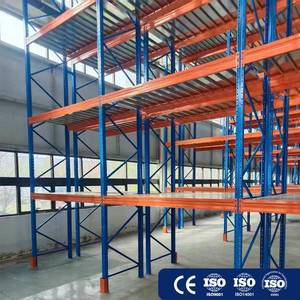

In heavy-duty warehouse infrastructure, structural longevity hinges on raw material composition and precision forming geometry. As an established OEM/ODM Industrial Shelving Components Factory & Exporter, Guangzhou Heda Shelves Co., Ltd. controls the total metallurgical lifecycle. We exclusively form upright posts and load beams from authenticated Q235B hot-rolled structural coil steel (yield strength ≥ 235 MPa, tensile strength up to 510 MPa), compliant with GB/T 700 and equivalent to ASTM A36 and EN 10025 S235JR standards.

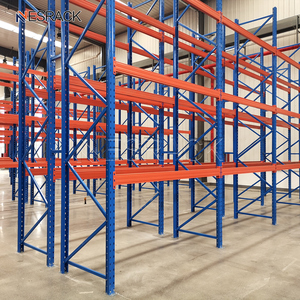

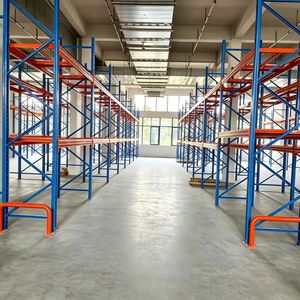

Cold roll-forming lines punch teardrop, diamond, or proprietary butterfly patterns on automatic CNC stations under sub-millimeter tolerances (±0.15mm pitch accuracy across continuous 12-meter upright lengths). This structural fidelity prevents column torsion, eliminates vertical eccentricity when carrying maximum payloads (up to 5,000 kg per upright frame), and maintains uniform contact across multi-hook connector lugs.
Industrial Shelving Component Engineering Matrix
| Component Group | Primary Material Grade | Forming Profile & Dimension | Surface Finish Technology | Tested Safety Factor |
|---|---|---|---|---|
| Upright Columns (Omega Profiles) | Q235B / SPCC Cold Rolled | 80×60, 90×70, 100×70, 120×95 (1.5–2.5mm t) | Pre-treatment + Epoxy Powder Coat (60–80μm) | 1.65 to 1.80 (FEM 10.2.02 / RMI) |
| Box & Step Beams | Twin C-Section Welded Interlock | 80×50 up to 160×50 (1.5–2.0mm thickness) | Automatic Submerged Arc / Robotic CO2 Weld | 1.50 against yield at full uniform distributed load |
| Diagonal & Horizontal Bracing | Structural Carbon Steel Pipe/C-channel | Ø32mm round tube or C25/C30 rolled profiles | Continuous Electrostatic Powder Enamel | Engineered Euler buckling prevention limit |
| Heavy Duty Wire Mesh Decking | Low-Carbon Drawn Steel Wire (Q195) | 50×50 / 50×100 grid with cold-formed channel ribs | Hot-Dip Galvanized (HDG) or Zinc Electroplate | NFPA 13 & 231 Fire Safety Water Penetration compliant |
| Heavy-Duty Baseplates & Shims | High-Grade Carbon Steel Plate | 4.0mm – 8.0mm structural stamped baseplates | Anti-corrosion mechanical zinc plating | Dual wedge-anchor ground tie (M10/M12 floor bolts) |
Double-Flanged Column Stability
Multi-bend cold roll profiles eliminate axial twist under maximum compressive load while integrating structural ribbing to absorb accidental forklift contact.
Phosphating Pre-Treatment
A rigorous 10-step immersion line cleans, pickles, and applies zinc-phosphating before powder adhesion, preventing sub-surface oxidation in coastal and high-humidity climates.
Zero-Weld Splice Engineering
Precision-machined internal frame splices maintain post alignment up to 16+ meters high, enabling multi-tier platforms without structural compromise.
