High-Throughput Heavy & Medium Duty Racking Systems
Direct-from-factory cold-rolled structural storage units engineered under strict FEM 10.2.02, EN 15512, and ANSI MH16.1 specifications for optimized volumetric density.

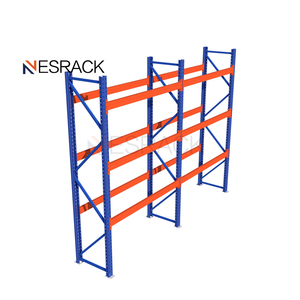

Customized Industrial Warehouse Pallet Rack Multi-Layer Adjustable Steel Shelves Units Metal Heavy Duty Selective Pallet Racking
Metal Racks System Warehouse Shelving Storage Equipment with Free Warehouse Storage Solution Design
Industrial Heavy Duty 5 Layer Storage Shelves System Multi-layer Stacking Units Metal Rack Warehouse Steel Pallet Shelf
Supermarket Warehouse Light-Duty 4 Tier Steel Storage Rack 5 Boltless CE Certified Corrosion Protection Pallet Rack Low Price
Heda Factory Metal Boltless Stacking Rack Industrial Warehouse Storage Racks Shelves for Racking System

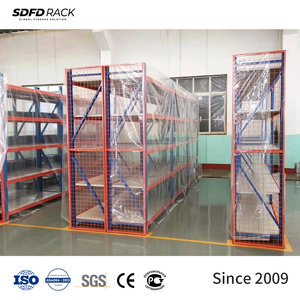

Wholesale Hot Selling 2400x600x2200 Medium Duty Longspan Warehouse Shelves 4 Layers/400kg Load Capacity Industrial Storage Racks
OEM / ODM Warehouse Storage Steel Practical Wire Shelves for Rack
Adjustable Movable Steel Selective Pallet Rack with 2 Layers ESd Protection Electric Mobile Racking System for Industrial Use
Engineering Architecture & Racking System Selection Guide
In modern industrial logistics, specifying an industrial storage system requires balancing SKU diversity, inventory turnaround frequency, floor slab load constraints, forklift mechanical envelopes, and local building safety codes. Racking is not merely steel shelving; it is a complex cold-formed space-frame structural mechanism governed by structural limit states, Euler buckling considerations, and beam-to-column connector moment rotation capacity.
At Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves), our structural design methodologies adhere stringently to European Standard EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design), American RMI ANSI MH16.1, and Australian AS 4084. Selecting the correct topology is foundational to avoiding warehouse bottlenecks and ensuring operational longevity.
Primary Industrial Racking Architectures: Comparative Structural Matrix
Below is an analytical overview comparing primary storage topologies fabricated in our 30,000 m² Guangzhou production facility, detailing spatial utility, operational dynamics, and mechanical performance limits:
| Storage Topology | Pallet Selectivity | Volumetric Space Efficiency | Inventory Stock Logic | Standard Beam Load (UDL) | Optimal Industrial Vertical |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | 40% – 50% | FIFO (First In, First Out) | Up to 4,500 kg / level | E-commerce, 3PL hubs, Retail Distribution, High-SKU Logistics |
| Drive-In / Drive-Through | Low (Lane-dependent) | 65% – 75% | LIFO or FIFO | Up to 1,800 kg / pallet | Cold Storage, Beverage & Bulk Chemicals, Low-SKU High-Volume |
| Radio Shuttle Cart Racking | Medium (Channel-level) | 75% – 85% | Configurable FIFO/LIFO | Up to 2,000 kg / pallet | Deep-Freeze Freezers, FMCG, Seasonal Stock, Food Manufacturing |
| Push-Back Carts / Rollers | Medium (2 to 6 pallets deep) | 60% – 70% | LIFO (Gravity Nested) | Up to 1,500 kg / position | Staging Areas, Cold Rooms, Fast-turning Medium SKU items |
| Heavy Duty Cantilever | 100% Unobstructed Front | Variable / Specialized | FIFO / Continuous | Up to 3,000 kg / arm | Steel Profiles, Timber, Rebar, Extrusions, Sheet Paneling |
| Rack-Supported Mezzanine | High (Multi-tier Manual) | Up to 200% Usable Area | Custom Manual / Carton Flow | 300 – 1,000 kg / m² deck | Automotive Spare Parts, Apparel Fulfilment, Small-Parts Kitting |
Structural Insight: When selecting between Q235B and Q355B steel grades, HEDA engineering calculates beam deflection under Uniformly Distributed Load (UDL) not to exceed L/200 for standard selective systems and L/300 for automated interfaces. High-bay columns exceeding 8 meters leverage multi-profile cold-bent uprights punched with precision rhombic slots to guarantee zero torsional slippage under cyclic dynamic forklift docking.
Critical Material Science: Cold-Rolled Q235B vs. Q355B Mechanical Properties
The structural stability of cold-formed steel racking depends heavily on the chemical purity and mechanical tensile thresholds of the base steel coils. HEDA Shelves sources premium continuous-cast hot-rolled and cold-rolled coils from certified state-owned steel mills:
• Q235B Grade (Yield Strength ≥ 235 MPa, Tensile Strength 375–500 MPa): The industry standard for medium-duty shelves, horizontal bracing, and standard selective pallet rack beams where static dead-weight and operational live-loads fall within standard deflection limits.
• Q355B Grade (Yield Strength ≥ 355 MPa, Tensile Strength 470–630 MPa): High-yield micro-alloyed structural steel mandatory for heavy-duty upright frames, deep drive-in cantilevers, and seismic-zone applications. The enhanced yield point delivers a 35% higher bending-moment resistance with identical cross-sectional thickness, dramatically reducing the rack's self-weight while meeting high safety factors (typically 1.5 to 1.65 per RMI specifications).
Future Industrial Procurement Trends (2025–2035 Analysis)
The global industrial storage and warehousing infrastructure sector is experiencing a paradigm shift. Supply chain disruptions, land cost inflation, and the rapid adoption of autonomous robotics are forcing procurement directors and EPC contractors to re-evaluate their capital expenditure strategies. Drawing from our global export footprint spanning over 120 countries, HEDA Shelves identifies four mega-trends reshaping procurement protocols:
1. High-Precision Automated AS/RS Integration
Pallet racking is shifting from passive static steel frames to micro-tolerance frameworks engineered to interface seamlessly with Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage and Retrieval Systems (AS/RS). Frame plumbness tolerances must remain within ±1.5 mm per 10 meters height, necessitating laser-guided automated punching and roll-forming.
2. Cold Chain Expansion & High-Density Footprints
Surging demand for temperature-controlled pharmaceuticals and fresh produce has made refrigerated cubic volume exceptionally expensive to operate. Procurement is shifting aggressively from wide-aisle selective racking toward Radio Shuttle, Drive-In, and Mobile Racks that cut refrigeration air volume waste by 40% while preserving structural ductility at -30°C.
3. Climatic Resilience & Anti-Corrosion Longevity
With the expansion of logistics nodes in extreme climates—such as the Middle East (Jebel Ali, Dammam, Jeddah), Southeast Asia, and coastal hubs—coatings must withstand continuous ambient temperatures above 45°C, high humidity, and airborne saline particulate. Modern procurement mandates zinc-phosphated 10-stage electro-powder coatings or continuous hot-dip galvanizing.
4. Modular Demountability & Circular Supply Models
Rapid lease cycles in 3PL industrial parks demand storage configurations that can be disassembled, extended, and re-engineered without structural fatigue. Boltless tear-drop and multi-hook connector beams provide rapid redeployment agility, reducing total lifecycle relocation costs by up to 60% compared to rigid welded systems.
Industrial Racking Production Technology: The 10-Step Precision Process
A high-performance warehouse rack is created on the manufacturing floor. Guangzhou Heda Shelves Co., Ltd. controls the complete vertical fabrication lifecycle across our 30,000 square meter intelligent manufacturing plant in Guangzhou, ensuring verified traceability from incoming raw structural steel coil down to export container dispatch.
Enterprise OEM/ODM Strengths: Why EPCs & Global Brands Partner with HEDA
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into a leading industrial warehouse racking manufacturer and engineering consultancy. Operating from Guangzhou, China, we bridge the gap between factory-direct cost efficiency and international engineering rigor.
25+ Years Industrial Authority
Quarter of a century dedicated strictly to industrial racking fabrication, executing over 10,000 turnkey projects across logistics, automotive, pharmaceutical, and manufacturing verticals.
30,000-Ton Monthly Capacity
Our 30,000 m² factory houses high-speed cold roll-forming lines, robotic welding stations, and an advanced automated eco-friendly powder coating line, guaranteeing rapid turnaround on massive multi-container orders.
Free 3D & 2D CAD Layouts
Our team of 300+ professionals includes dedicated warehouse structural engineers who provide complementary 2D layout planning, 3D BIM visualizations, and structural calculations within 24 to 48 hours of project briefing.
Certified International Quality
Completely certified under CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and RoHS environmental directives. Official documentation is readily supplied for municipality tender approvals.
Middle East & Global Trade Mastery
Established container shipping routes to major international hubs: Jebel Ali & Khalifa Port (UAE), Dammam & Jeddah (KSA), Hamad Port (Qatar), Sohar (Oman), Shuwaikh (Kuwait), Khalifa Bin Salman (Bahrain), and major European/American ports.
Tailored OEM/ODM Customization
Custom upright hole pitches, tailored beam cross-sections, custom powder-coat RAL matching for corporate brand consistency, custom embossed steel decking, and customized distributor branding tags.
Frequently Asked Questions: Global Industrial Racking Procurement
Essential technical, regulatory, and commercial insights for supply chain executives, warehouse developers, and procurement managers:
How do you engineer structural racking to comply with local seismic codes (IBC, Eurocode 8, GCC parameters)?
What fire protection, in-rack sprinkler clearance, and flue space rules must be maintained?
How does HEDA ensure rack durability in hot, humid, and corrosive environments?
What are the concrete floor slab specifications required for heavy-duty racking?
What dimensional tolerances are required for Radio Shuttle cart and automated AS/RS racking?
How does HEDA Shelves protect components against damage during long ocean transit?
What is the standard production lead time, and what installation support is available?
Engineer Your Facility with High-Performance Storage Racking
Send your warehouse architectural plans or pallet load parameters today. Our senior intralogistics engineering team will deliver a comprehensive 2D CAD floor plan, 3D BIM rendering, and factory-direct quotation within 24 hours.
