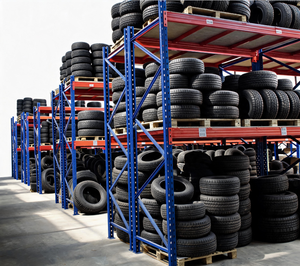

Yueyang Heavy Load Multi Layer Cold Rolled Steel Powder Coated Racking
Epoxy Coated
Multi-Layer
Heavy Duty
Certified Storage Architectures

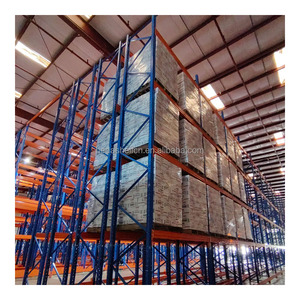

Heavy-Duty Racking & Automated Systems
Engineered beam configurations designed for selective pallet racking, high-density shuttle integration, drive-in systems, and heavy-duty industrial warehouse facilities worldwide.
Engineering Specifications
Structural Anatomy of Pallet Rack Beam Profiles
In industrial warehouse engineering, the horizontal load beam governs the structural integrity and moment-frame stability of the racking system. Understanding roll-formed and structural steel profiles is paramount for procurement accuracy and workplace safety.
A pallet rack beam is not merely a horizontal tie bar; it operates as an integral flexural member under bi-axial bending, shear stresses, and local torsional buckling. As an OEM/ODM manufacturing partner, Guangzhou HEDA Shelves engineers each beam cross-section based on exact structural yield equations, section modulus ($Z_x$), and moment of inertia ($I_x$), fully complying with international design standards including ANSI MH16.1 (RMI) and EN 15512.
Step Beams (Roll-Formed)
Featuring an indented 7/8" or 1-1/8" top step designed specifically for the drop-in integration of wire mesh decking, cross-bars, steel panels, and drop-in wood shelf boards without vertical clearance loss.
- Profile depths: 80mm to 160mm
- Optimal for: Hand-loaded picking & pallet hybrid setups
- Flush surface prevents pallet snagging during reach truck entry
- Thickness options: 1.5mm to 2.5mm cold-rolled coil
Double-C Box Beams
Fabricated by seam-welding two interlocking roll-formed C-channels face-to-face. This closed geometric profile delivers exceptional torsional rigidity and high flexural strength under concentrated loads.
- Superior resistance to lateral torsional buckling (LTB)
- Standard profiles: 80x50mm up to 160x50mm
- Load threshold: 1,000 kg up to 5,000 kg per beam pair
- Industry benchmark for heavy-duty selective rack bays
Structural C-Channel Beams
Hot-rolled structural steel profiles (American Standard C-Channels or European UPN) engineered with bolted end-plate connections for extreme industrial applications and hostile forklift operating environments.
- High-impact resistance against direct forklift collision
- Exceptional strength-to-dimension ratio in seismic zones
- Standard structural sizes: C3, C4, C5 structural channels
- Critical for freezers, outdoor yards, and heavy machinery parts
Tubular Beams (Continuous Tube)
Continuous hollow rectangular structural tubes (ERW) that eliminate the seam weld between two distinct C-sections. Delivers a clean aesthetic, uniform wall thickness, and superior hygienic performance.
- Ideal for cleanroom, pharmaceutical, and food logistics
- Smooth rounded corners prevent particulate accumulation
- Optimized for automated guided vehicles (AGV) laser guidance
- High torsion modulus in multi-tier mezzanine layouts
Open C & M-Profiles
Optimized light-to-medium duty single roll-formed profiles featuring engineered stiffening ribs. Frequently specified for carton-flow live storage rails and light industrial storage where cost-efficiency is vital.
- Cost-effective nesting for international ocean shipping
- Cold-formed ribbing maximizes section modulus ($Z_x$)
- Rated for 300 kg to 1,000 kg uniformly distributed loads
- Ideal for e-commerce shelving and parcel sorting mezzanines

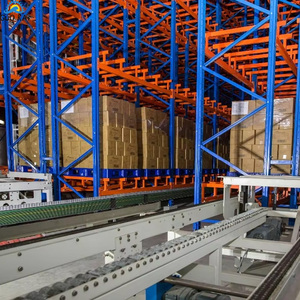

ASRS Custom Shuttle Track Beams
Integrated profile designs combining horizontal pallet load beams with cold-formed guide rail tracks for four-way automated shuttles and high-speed stacker cranes, requiring sub-millimeter tolerances.
- Integrated running ledge for shuttle wheels and power rails
- Deflection parameter governed by $L/400$ or $L/500$
- Precision CNC punched positioning holes for optical sensors
- Factory paired with automated mother-child crane tracks
Structural Mechanics
Beam Connector Dynamics & Deflection Calculations (L/200)
A pallet rack's capacity is governed as much by its beam end-connector connection stiffness as by the cross-sectional steel gauge.
Beam-to-Column Rotational Stiffness ($K_j$)
In rigid steel design, beam-to-column connections are often modeled as pinned or rigid. However, pallet racking uses semi-rigid connections. The mechanical interlock between the connector hooks (3, 4, or 5-pin claw connectors) and the teardrop or diamond upright perforations provides a rotational spring stiffness ($K_j$) that significantly reduces effective column buckling length.
Under the ANSI MH16.1 and EN 15512 codes, allowable vertical deflection of any pallet rack beam under design load must not exceed $L / 200$ (where $L$ is the clear span distance between uprights). For example, a 2700mm bay span allows a maximum elastic sag of only 13.5mm:
Deflection: δ = (5 * w * L^4) / (384 * E * I_x) ≤ L / 200
Where: w = uniformly distributed load (UDL); L = clear span; E = steel Young's modulus (2.05 × 105 N/mm²); I_x = vertical moment of inertia. When sizing OEM/ODM beam tooling, our structural engineers evaluate both ultimate strength limit states (LRFD) and serviceability deflection thresholds.
Engineering Selection Matrix: Beam Types vs Performance Metrics
| Beam Profile Type | Material Standard | Load Range (per pair) | Torsional Rigidity | Decking Integration | Impact Tolerance | Best Practical Application |
|---|---|---|---|---|---|---|
| Roll-Formed Step Beam | Q235B Cold-Rolled Steel | 800 kg – 3,200 kg | Moderate | Direct Flush (Step) | Standard | FMCG, Retail, Case Pick + Pallet Racks |
| Interlocking Box Beam | Q235B / Q355B Welded | 1,500 kg – 4,800 kg | High | Requires Flanged Wire Decking | High | Heavy Selective Pallet Racks, 3PL Warehouses |
| Structural C-Channel | ASTM A36 / Q235B Structural | 2,000 kg – 6,000+ kg | Maximum | Drop-over Structural Ties | Extreme (Forklift-Proof) | Cold Storage, Heavy Tooling, High-Traffic Hubs |
| Tubular ERW Beam | Q235B Seamless Profile | 1,000 kg – 3,000 kg | High | Requires Saddle Brackets | Standard | Food, Pharma, Cleanroom Mezzanines |
| ASRS Rail-Integrated Beam | Q355B High-Tensile Alloy | 1,200 kg – 2,500 kg | Engineered Strict | Custom Shuttle Track Ledges | Controlled Env | Automated Shuttles, Smart 4-Way ASRS |
Factory Capabilities
OEM/ODM Manufacturing Architecture & Metallurgy
With over two decades of heavy industrial fabrication, Guangzhou HEDA Shelves operates a fully integrated 30,000 m² smart factory turning 30,000 metric tons of prime steel coil monthly into certified racking components.
1. Certified Raw Coil Sourcing
We utilize primary-grade hot and cold-rolled steel coils exclusively from certified state-owned steel mills (Baosteel, Shougang). Every batch is tested for tensile yield ($f_y \ge 235 \text{ MPa}$ for Q235B, $f_y \ge 355 \text{ MPa}$ for Q355B) and Charpy impact toughness.
2. Continuous CNC Roll-Forming
Multi-stage 18-to-24 station roll-forming lines bend steel profiles gradually without inducing work-hardening micro-fractures along corners. In-line high-frequency seam induction locks double-C box profiles with continuous structural unity.
3. Robotic Dual-Pulse Welding
Beam connector ends are joined via 6-axis ABB robotic MIG welding stations. Continuous gas-shielded argon welds eliminate spatter, porosity, and heat-affected zone embrittlement, ensuring 100% moment transfer integrity.
4. Chemical Pretreatment (Pickling & Phosphating)
Unlike factories relying on cursory wipe-downs, all HEDA beams pass through an automated 9-tank degreasing, acid pickling, rust removal, and zinc phosphating immersion cycle to guarantee permanent powder coat adhesion.
5. Electrostatic Powder Curing
Electrostatic powder application utilizes premium lead-free thermosetting polyester resin, cured in a 200°C tunnel furnace. The resulting 60-80μm coating withstands 500 hours of continuous salt spray test (ASTM B117).
6. ODM Custom Profiles & Punching
We design custom extrusion and roll tools for private-label distributors: proprietary hole punch pitches (50mm, 75mm, 76.2mm / 3", teardrop, keyed, diamond), custom beam length variations, and private brand color matching.
2001
Year Established
30,000 m²
Factory Infrastructure
30,000 t
Monthly Steel Throughput
120+
Export Destinations
Market Foresight
Future Sourcing & Procurement Trends (2025–2030)
Supply chain directors, logistics developers, and EPC contractors are evolving past lowest-bidder commodity purchasing toward systems optimized for automated material handling and environmental life-cycle costs.
01. Transition to Ultra-Narrow Aisle & ASRS Compatibility
High land acquisition costs across global hubs (UAE, Saudi Arabia, Europe, Southeast Asia) are accelerating the shift from standard 3.5-meter counterbalanced forklift aisles to 1.7-meter VNA turret truck and automated shuttle systems. Pallet rack beams must meet tighter dimensional deflection constraints ($L/300$ to $L/500$) to prevent optical sensor interference on automated shuttle lifters. Sourcing teams now mandate sub-millimeter tolerances on connector alignment to prevent micro-twist under robotic operation.
02. Extreme-Climate Metallurgy & Cold Chain Growth
Driven by the pharmaceutical cold chain and rapid frozen food distribution across hot regions (GCC summer temperatures topping 48°C), pallet beams in blast freezers operate down to -30°C. Standard commercial steels risk brittle failure at low temperatures. Modern OEM procurement specifications dictate high-toughness steel chemistry with reduced sulfur/phosphorus content and specialized zinc-rich primers, combined with polyurethane-epoxy topcoats that maintain elastic elongation without cracking during thermal shock.
03. Digital Twin-Verified Procurement & BIM Models
Tier-1 engineering and procurement consultants now demand native Revit (BIM) files and certified Finite Element Analysis (FEA) reports before issuing purchase orders. Sourcing from OEM factories that offer in-house parametric structural engineering directly reduces project approval timelines with local civil defense, fire marshals, and property insurers (FM Global compliant flue spacing and NFPA 13 sprinkler clearance verification).
04. Circular Supply Chains & Modular Reconfigurability
Logistics tenants increasingly sign 3-to-5-year facility leases, demanding storage infrastructure that can be dismantled, re-spaced, or expanded into multi-tier mezzanines without welding or cutting. OEM beams configured with boltless adjustable hook brackets on standardized 50mm or 75mm pitches provide the asset liquidity needed for modern 3PL multi-client contract variations.
Why Source From Us
Direct Factory Strengths: Guangzhou HEDA Shelves Co., Ltd.
Eliminate middleman markups, inconsistent sub-tier contracting, and engineering misalignment by working directly with one of China's premier racking manufacturers.
Full Traceable Certifications
All HEDA beam profiles and structural systems hold validated international credentials: CE Certification (No. 2435-CPR-8605159) under EN 15512, ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and RoHS compliant coatings. All mill test certificates (MTC) ship with container manifests.
Complimentary 2D CAD & 3D Design
Before issuing formal quotes, our senior structural engineering team prepares comprehensive AutoCAD floor layouts, bay elevation schedules, and photorealistic 3D warehouse renderings based on your pallet metrics, slab capacity, and forklift turning radius (AST).
Direct Export to Major Global Ports
Specialized container-packing teams palletize beams in customized steel crates with corrugated corner protectors. Regular direct ocean freight dispatch to Jebel Ali, Khalifa Port, Dammam, Jeddah, Hamad, Sohar, Singapore, Rotterdam, Los Angeles, and worldwide ports.
Procurement Knowledge Base
Frequently Asked Questions by Industrial Sourcing Teams
Essential technical answers covering load limits, connection safety, seismic considerations, and international ordering logistics.
How do I determine whether my warehouse requires Step Beams or Box Beams?
The choice between roll-formed step beams and interlocking box beams is dictated by your horizontal decking and pallet handling requirements:
Step Beams: Best suited if you intend to install flush wire mesh decking, galvanized drop-in panels, or wooden boards. The recessed 7/8" or 1-1/8" interior ledge holds the decking flush with the top of the beam, providing a flat transfer surface that prevents snagging and allows dual-use for pallet storage and manual carton picking.
Box Beams: Best suited for pure palletized operations carrying heavy uniformly distributed loads (exceeding 2,500 kg per level). Box beams feature a completely flat top surface. Decking on box beams requires flared waterfall wire decks that wrap around the outside of the beam. Box beams deliver superior torsional stiffness under off-center forklift impacts.
What safety pin mechanism is used to prevent accidental beam dislodgement?
Every beam-to-upright connection point must be secured against accidental upward displacement caused by forklift operator error (such as a pallet being lifted before clearing the beam). Standard building codes (RMI MH16.1 and EN 15512) require the safety lock to resist an upward vertical force of at least 5,000 N (approximately 510 kg or 1,120 lbs) without failure.
HEDA Shelves supplies automatic snap-in spring-steel safety locks or bolted high-shear safety pins. As the beam connector drops into the column slots, the gravity lock snaps into the alignment hole, preventing disengagement. Bolted pins are also available for seismic zones or high-vibration rack configurations.
What is the difference between Q235B and Q355B steel in beam roll-forming?
In international racking manufacturing, the steel grade governs the allowable design stress, ultimate yield strength, and member gauge thickness:
Q235B Steel: Yield strength ($f_y$) is 235 MPa; tensile strength is 370–500 MPa. It is the global workhorse material for standard warehouse racking, offering excellent ductility, clean bend radiuses during cold roll-forming, and predictable weldability.
Q355B Steel (High-Strength Alloy): Yield strength ($f_y$) is 355 MPa (approx. 51,000 PSI, comparable to ASTM A572 Grade 50). By specifying Q355B, our engineers can reduce the steel wall thickness while maintaining equivalent structural bending moments, reducing dead-weight loads on concrete slabs and cutting international ocean freight shipping tonnage.
How do temperature fluctuations and coastal humidity affect powder-coated beams?
In regions such as the Gulf (Dubai, Jeddah, Dammam) or tropical industrial hubs, warehouse ambient temperatures exceed 45°C with relative humidity above 85% and airborne chlorides. Standard air-dried or single-dip coatings experience osmotic blistering, micro-cracking, and rapid rust spread along weld seams.
HEDA Shelves utilizes a 9-stage chemical pretreatment line featuring automated alkaline degreasing, multi-stage acid pickling, rinse baths, and iron/zinc phosphating. The phosphating crystal layer acts as a mechanical anchor and galvanic barrier. We then electrostatically apply exterior-grade thermoset polyester powder baked at 200°C for cross-linking, resulting in a durable 60–80 μm finish resistant to chipping and chemical corrosion.
Can your OEM/ODM factory manufacture beams matching existing rack brands (Interlake, Dexion, Stow, Mecalux)?
Yes. Guangzhou HEDA Shelves provides extensive OEM/ODM tooling customization. We can stamp connector hooks and punch column slots that integrate with legacy systems including Teardrop (compatible with standard American styles), Dexion 76.2mm pitch, European 50mm diamond patterns, and Australian 75mm slotted designs.
If you are extending an existing warehouse or sourcing replacement beams, our engineering team can fabricate exact match end-connectors, profile depths, and custom powder-coat RAL color matches to align with your existing installation.
What documentation is required to pass Civil Defense, Municipal, and Insurance approvals?
Most local authorities (such as UAE Civil Defense, Saudi Civil Defense, OSHA, and European municipal building offices) require structural verification before issuing building occupancy or operating licenses. HEDA Shelves provides a complete documentation package for every commercial project:
- Stamped structural calculation book confirming load capacities, L/200 deflection limits, and safety factors.
- Detailed 2D layout drawings indicating clear flue spaces (transverse and longitudinal), egress aisle clearances, and emergency egress routing.
- Certified load rating capacity plaques (load warning notices) to be affixed to each rack bay row.
- ISO 9001:2015 and CE EN 15512 certificates along with steel mill test certificates (MTC).
What is the standard production lead time and minimum order quantity (MOQ)?
For standard roll-formed step and box beam profiles, our standard production lead time is 15 to 20 working days for full container loads (20GP / 40HQ). Custom roll-tooling or non-standard connector development typically requires 25 to 30 days.
While our facility handles large-scale logistics hub orders of 200+ container loads, our standard entry MOQ for custom manufacturing is one 20ft container (approx. 12 to 15 tons of racking components), allowing clients to mix beams, upright frames, and wire decking in a single shipment.
How does HEDA Shelves support on-site installation for international projects?
Every shipment is packaged with installation efficiency in mind. Components are bundled into labeled packs that correspond to the provided assembly blueprint. We provide complete 3D exploded assembly diagrams, bolt torque specifications, and high-definition video walkthroughs.
For large-scale distribution centers, automated shuttle racks, and multi-tier mezzanine floors, we can deploy experienced installation supervisors to your job site to direct local assembly teams and conduct pre-commissioning alignment tests.
