Featured Industrial Pallet Racking & Heavy-Duty Systems
Direct from our 30,000 m² Guangzhou manufacturing base: precision-fabricated storage systems built with Q235B/Q355B structural steel, conforming to EN 15512, FEM 10.2.02, and RMI safety standards for worldwide logistics installations.
Push Back Racking System Heavy Duty Steel Screw Assembly
Engineered nested nesting-cart dynamic push-back platform. Eliminates multi-aisle footprint loss with 2-to-6 deep pallet positions, precision inclined guide tracks, and anti-slip safety brakes.

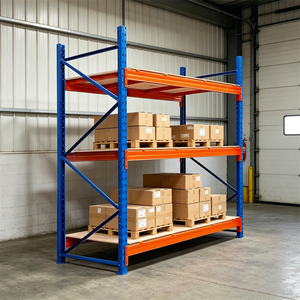

Powder Coated Heavy Duty Rack Industrial Warehouse Pallet Racking
Multi-tier adjustable beam racking incorporating 75mm or 50mm connection pitch. Features high-adhesion thermosetting epoxy powder coating tested against corrosion, abrasion, and cyclic load fatigue.
Aluminum Profile Marine Board Shelf With Wheels Mobile Shelving
Heavy-duty extruded aluminum framing combined with weather-resistant high-density marine board. Engineered with industrial polyurethane locking casters for lean warehouse picking and mobile staging.

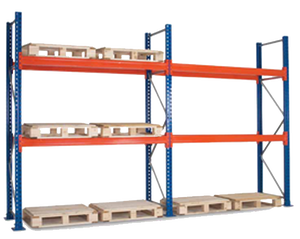

Conventional Pallet Racking Steel Storage Racks for Warehouses
Standard warehouse backbone configured for counterbalanced, reach, and turret forklifts. High-yield uprights paired with interlocked box beams ensure absolute load rigidity under high cycle distribution.

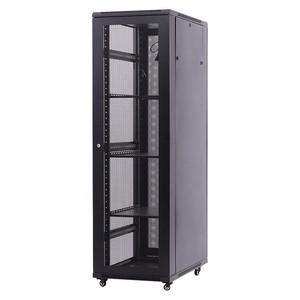

Customized 27U 19-Inch Server Rack Network Enclosure Cabinet
Cold-rolled SPCC steel telecommunications enclosure with IP30-rated sealing, reinforced tempered glass entry, multi-point locking mechanisms, and integrated heat ventilation for automated facility data hubs.

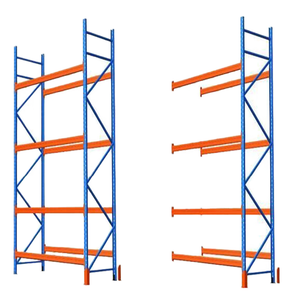

Adjustable Steel Selective Pallet Rack 5-Layer Corrosion Protected
Five-tier heavy industrial storage with continuous multi-bend omega upright profiles. Pre-treated through a 10-stage automated wash and phosphating line for maximum resilience against chemical exposure.
High Density Very Narrow Aisle (VNA) Pallet Racking System
Compresses working operating aisles down to 1.6m-1.8m, expanding overall storage volume by up to 45%. Fabricated with tight deflection tolerances to accommodate wire-guided or rail-guided turret trucks.
1000KG Heavy Duty Steel Pallet Rust-Proof Zinc Galvanized Stackable
Four-way forklift entry industrial steel pallet with corrugated deck channels. Eliminates fire hazards, wood splinter contamination, and splinter cracking in extreme sub-zero cold chain and outdoor applications.
Why Tier-1 EPC Contractors & Global Logistics Hubs Select HEDA
From geotechnical slab interface assessment to containerized sea packaging, our end-to-end OEM and ODM services mitigate structural risk, eliminate supply chain volatility, and accelerate return on capital expenditure.
Bespoke 3D Layout & Static Calculation
Every facility features unique column grids and clear heights. Our in-house structural engineers supply complete CAD floor plans, load distribution maps, deflection models (FEM 10.2.02), and 3D photorealistic renderings prior to production commitment.
Verified Structural Compliance
Factory production processes are governed under certified ISO 9001:2015 Quality Management Systems (Cert No. 18624Q00169R0M) alongside CE Markings (Cert No. 2435-CPR-8605159) and RoHS certifications to ensure immediate statutory and civil defense approvals.
Heavy-Climate Surface Metallurgy
Warehousing environments in Middle Eastern ports (Jebel Ali, Dammam, Jeddah) face high thermal stress and coastal salinity. Our continuous pickling and phosphating lines yield thermoset powder coatings that resist blister corrosion, humidity, and chemical abrasion.
Container-Optimized Logistics Bundling
Export cargo undergoes precision bundling with CNC steel bands, protective timber edge protectors, and waterproof plastic wrapping. Upright profiles and beams are nested to optimize shipping container cubic limits, slashing ocean freight costs per pallet location.
Automated 10-Step Manufacturing & Pre-Treatment Workflow
Quality control starts at certified raw steel coil inspection and carries through automated roll forming, robotic welding, and automated thermosetting powder curing.
Technological & Metallurgical Trends Transforming Warehouse Racking
Industrial logistics is shifting away from static, over-engineered steel racks toward dynamic, data-integrated storage ecosystems. As supply chain velocity increases, warehouse infrastructure must balance automated handling with extreme durability.
Convergence of Static Racks with Autonomous Mobile Robots (AMRs) and AS/RS
The era of isolated manual pallet racking is converging into hybrid automated logistics. Modern high-bay warehouses now demand racking structures designed with ultra-tight tolerances (per EN 15620) capable of receiving Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), and crane-based Automated Storage and Retrieval Systems (AS/RS).
OEM manufacturing has shifted toward laser-guided roll-forming to eliminate cumulative pitch deviations along 15-meter upright spans. Pallet deflection criteria are tightened from L/200 to L/300 or L/400 to prevent optical sensor tripping by automated shuttle carriers, ensuring continuous 24/7 dark-warehouse throughput.
Adoption of Micro-Alloyed High-Yield Steels (Q355B & S355MC)
Global steel price volatility and carbon reduction mandates are accelerating the shift toward thin-walled, multi-bend cold-formed profiles manufactured from high-strength micro-alloyed steels. By replacing traditional Q235B steel with Q355B or European standard S355MC, structural engineers achieve higher yield strengths (up to 355 MPa) with up to 15% lower steel mass.
This weight reduction substantially lowers ocean freight shipping costs while improving the rack's natural vibration frequency during seismic events. Advanced finite element modeling (FEM) validates performance under severe ground acceleration without localized buckling of column flanges.
Severe-Environment Surface Coatings: Nano-Ceramics and Hot-Dip Galvanizing
With the rapid expansion of cross-border e-commerce distribution centers and cold chain pharmaceuticals in coastal, high-humidity zones (such as Dubai, Jeddah, Singapore, and Rotterdam), standard paint systems prove inadequate. Accelerated salt spray exposure quickly causes rust creep along unsealed beam edges.
Procurement requirements increasingly specify advanced zirconium-based nano-ceramic conversion coatings before electrostatic polyester powder application, offering over 1,000 hours of continuous salt-spray resistance (ASTM B117). For sub-zero cold storage facilities down to -30°C, hot-dip galvanizing with a minimal 65µm zinc thickness completely eliminates flaking and hydrogen embrittlement.
Smart Racking Integration & Structural Health Monitoring (SHM)
Unreported forklift impacts represent the leading root cause of catastrophic progressive warehouse collapse. Future-proof pallet racking architectures now incorporate integrated structural telemetry. Embedded IoT strain gauges, shock sensors, and RFID impact sensors mounted inside lower upright column guards provide real-time alerts upon exceeding safe G-force thresholds.
Digital twin models synchronized with warehouse management systems (WMS) dynamically adjust maximum permissible pallet loads across compromised rack bays until certified structural maintenance inspections are completed.
| Racking Architecture | Space Utilization | Selectivity | Forklift Compatibility | Throughput Velocity | Structural TCO Impact |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% - 50% | 100% Direct | Counterbalance, Reach Trucks | Very High (Multi-Aisle) | Lowest Initial CapEx |
| Very Narrow Aisle (VNA) | 70% - 80% | 100% Direct | Wire/Rail Guided Turret Trucks | High (Specialized MHE) | Medium / High Storage Yield |
| Drive-In / Drive-Through | 75% - 85% | Low (LIFO / FIFO) | Counterbalance, Reach | Moderate (Batch Handling) | Low / Requires Upright Protectors |
| Push Back Racking (Carts) | 65% - 75% | Medium (2-6 Deep) | Standard Reach / Counterbalance | High (No Rack Entry) | Moderate / Low Maintenance |
| Semi-Automated Radio Shuttle | 80% - 90% | Controlled Batch | Standard Forklifts + Radio Cart | Exceptional (Automated Lane) | High ROI in Chilled / Cold Chain |
Global Procurement Shifts: Direct Manufacturer Sourcing & TCO Optimization
Supply chain leaders are re-evaluating distribution logistics. Procuring pallet racking systems requires shifting from regional trading markups to direct OEM factory engagement.
Direct Factory Sourcing vs. Local Intermediary Markups
Procuring structural warehouse equipment through local resellers frequently adds 30% to 55% in trading premiums without adding technical value. Direct partnership with established Chinese manufacturers like HEDA Shelves gives project developers direct access to factory structural engineers, mill-test material documentation, and customized hole pitches (50mm, 75mm, 76.2mm, teardrop) tailored to client fleets.
Furthermore, factory-direct purchasing eliminates split liability: the single manufacturing entity handles layout design, structural calculation, roll-forming, coating thickness warranties, and seaworthy container packing.
Ocean Freight Engineering: Cube Efficiency & Damage Prevention
Freight rate volatility makes ocean logistics planning essential to Total Cost of Ownership (TCO). Standard pallet racking uprights and long-span beams are awkward, oversized cargo prone to shipping container volume waste if packaged poorly.
Our logistics packaging protocols calculate nesting profiles that allow upright frames to interlock within open container footprints. Custom wooden Dunnage, high-tensile steel strapping, and moisture-absorbing desiccant bags maintain structural alignment and prevent friction scratches over 30-day ocean transit cycles, ensuring components arrive jobsite-ready.
Industrial Pallet Racking Procurement FAQ
Comprehensive technical, structural, and contractual answers for project managers, warehouse architects, and global procurement directors.
Connect Directly with HEDA Racking Structural Engineers
Plan your next logistics facility with verified engineering data. Submit your warehouse CAD drawings to receive a complimentary 2D layout, 3D structural rendering, and comprehensive factory-direct quotation within 24 hours.
- Zero-Cost CAD & 3D Modeling
- Static & Seismic Calculations
- CE & ISO 9001:2015 Traceability
- Guaranteed Sea-Freight Packing
