Engineered Warehouse Storage Racks & Logistics Units
Explore our precision-fabricated racking series, manufactured with certified Q235B/Q355B cold-formed steel and finished with high-adhesion electrostatic powder coating for optimal heavy-load performance.
Gravity Flow Rail Roller Track PE ABS Wheel 200KG Load Carton Flow Rack FIFO Storage Sliding Shelf for Warehouse
View Specifications
Custom Rackmount Storage Server Chassis 12 Bay LFF Hot Swap Drive Sheet Metal Enclosure OEM
View Specifications

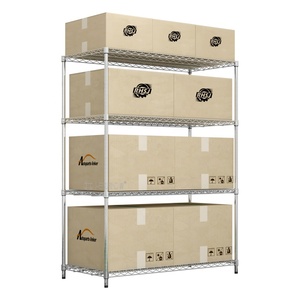

Versatility 4 Tiers NSF Approval Chrome Plated Racking Solid Steel Wire Shelving Storage System for Garage Warehouse
View Specifications

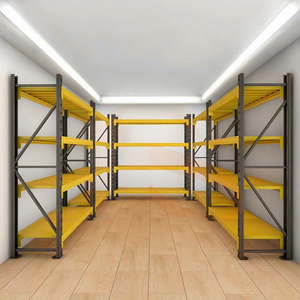

extra Layer 1200*D400 Warehouse Pallet System Warehouse Racking Pallet Rack Shelving Pallet Racking for Industrial Shelves
View Specifications
Factory Direct Multi-Level Steel Mobile Tire Transport Stacking Rack Pallet Tyre Rack from China Warehouse Demountable
View Specifications
Easily Assemble Garage Storage Racks 4 Layers Long Span Shelving Rack Set
View Specifications
71.3" Wide Heavy Duty Adjustable Expandable Garage Shelving Units 1100LBS Capacity Black Powder Coated Steel Shelves Free Rack
View Specifications
Medium Duty Metal Storage Rack Node Floor Type Fall-Free Design With Straw Free Cad/3D For Bathroom & Spice Storage Use
View SpecificationsWhy Global Supply Chains Trust Guangzhou Heda Shelves
Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered end-to-end industrial racking and automated warehouse storage architectures. Our in-house engineering and full-spectrum manufacturing guarantee precision tolerances and superior load safety.
Full-Chain In-House Fabrication
We operate 30,000 m² of smart facilities with 300+ technicians. We do not outsource key components: from steel slitting and continuous roll-forming to 9-stage surface treatment and automated robotic welding, all stages undergo rigorous statistical process controls.
- 24-station continuous roll-forming lines
- Strict deflection limits conforming to FEM 10.2.02
- Monthly steel throughput exceeding 30,000 metric tons
Custom OEM/ODM Engineering & 3D CAD
Every industrial warehouse demands tailored storage densities. Our engineering department provides complimentary structural calculation sheets, 2D AutoCAD equipment layouts, and photorealistic 3D spatial simulations to expedite Civil Defense and municipal approvals.
- Custom upright perforations (50mm / 75mm / 76.2mm pitch)
- Bespoke beam connectors with triple-claw safety lockpins
- Finite Element Analysis (FEA) dynamic seismic verification
International Compliance & Traceability
Exporting to over 120 countries requires unassailable certification. We maintain documented compliance including European CE conformity, ISO 9001:2015 quality verification, and RoHS environmental certifications, backed by complete mill test reports (MTR).
- CE Certification No. 2435-CPR-8605159
- ISO 9001:2015 Registered Certificate No. 18624Q00169R0M
- Complete raw material traceability matching EN 10204 3.1
CE Certified Conformity
Certified under CPR 2435 for European structural steel load safety.
ISO 9001:2015 System
Strict quality control in steel cold-bending, welding, and surface treatment.
RoHS & Green Chemistry
Heavy-metal-free electrostatic finishes safe for cold chain and food logistics.
10-Step High-Precision Production Architecture
From prime steel coils to custom knock-down export bundle packaging, every production phase operates under ISO 9001 verified quality parameters.
Raw Material QC
Precision Cutting
Column Punching
Cold Bending
Profile Roll Forming
Surface Polishing
Robotic Welding
Pickling & Phosphating
Powder Coating
QC & Container Packing
Key Procurement Trends Reshaping Industrial Racking
Modern warehousing investments focus on maximizing spatial yields while controlling lifecycle operational costs. Global procurement directors evaluate four strategic shifts when specifying new facilities.
1. Transition from Static to Semi-Automated High-Density
Rising industrial land costs make traditional selective racking insufficient for high-throughput hubs. Procurement teams are shifting capital expenditures toward four-way radio shuttle systems and dynamic pallet flow solutions that multiply storage capacity by up to 280% within existing floorplates.
2. Structural Resilience & Seismic Deflection Ratios
Global logistics facilities in high-risk seismic zones require calculated ductility. Major warehouse tenders now mandate compliance with EN 15512:2020 and RMI ANSI MH16.1, requiring dynamic seismic base isolators, heavy-duty floor anchoring, and rigorous FEA deflection testing.
3. Modular Pre-Engineered Mezzanines over Civil Expansion
Building physical expansions involves protracted zoning reviews and high construction costs. Rack-supported mezzanine floors and structural steel multi-tier platforms have become preferred capital investments, adding second and third floor tiers in under four weeks without pouring new concrete.
4. Extreme Climate Anti-Corrosion Formulations
Cold-storage blast freezers (-30°C) and hot, humid coastal distribution centers degrade basic paint within months. Specifiers are shifting to heavy-metal-free pre-treatments with 100-micron electrostatic polyester powder coatings or hot-dip galvanization (ISO 1461) to achieve 15-year maintenance-free durability.
| Racking Architecture | Space Utilization Ratio | Pallet Accessibility | Material Handling Fleet | Optimal Industry Application |
|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Direct Immediate Access | Standard Counterbalance / Reach Trucks | General 3PL, Multi-SKU Distribution, Retail Hubs |
| Radio Shuttle High-Density | 75% – 85% | FIFO or LIFO Lane Configurable | Standard Forklifts + Automated Shuttles | Cold Storage, Food & Beverage, High Volume Fast-Movers |
| Very Narrow Aisle (VNA) | 60% – 70% | 100% Direct Access (14m+ height) | Specialized Wire-Guided Turret Trucks | Pharmaceutical Hubs, High-Bay Logistics Centers |
| Rack-Supported Mezzanine | 180% – 250% | Multi-Level Manual & Pallet Access | Conveyors, Vertical Lifts, Order Pickers | E-Commerce Fulfillment, Fashion Apparel, Automotive Spares |
The Engineering Evolution of Warehouse Storage Infrastructure
The line between structural racking and automated materials handling is disappearing. Modern racking systems are transforming into intelligent, sensor-equipped backbones for fully automated supply chain networks.
Native AMR & AGV Floor Interfaces
Traditional racking design assumed manual counterbalanced forklifts with 3.5-meter aisles. Next-generation OEM racking integrates sub-millimeter level rail alignments, magnetic guide path underlays, and floor-level pick tunnels engineered specifically for Autonomous Mobile Robots (AMRs) and automated pallet shuttle carriers.
Structural Health Telemetry & IoT Monitoring
Warehouse racking uprights frequently suffer structural degradation from unnoticed forklift impacts. Emerging enterprise installations integrate MEMS-based wireless vibration and strain gauges directly into critical baseplates and lower upright sections. This telemetry feeds predictive alerts directly to warehouse management dashboards before critical structural buckling occurs.
Low-Carbon "Green Steel" Circularity
With corporate ESG commitments expanding, multinational procurement directors now require environmental product declarations (EPDs) for structural logistics steel. Standardized manufacturing pipelines are transitioning to electric arc furnace (EAF) low-carbon recycled scrap steel and zero-effluent powder coating loops.
Frequently Asked Questions for B2B Procurement Teams
Detailed answers addressing engineering parameters, steel grade selection, international regulatory approvals, and export logistics management.
Q1 Which steel grades and yield strengths are utilized in your racking profiles?
We source prime hot-rolled and cold-rolled steel coils conforming strictly to Q235B (yield strength ≥ 235 MPa, tensile strength 370–500 MPa) for standard beams, and Q355B (yield strength ≥ 355 MPa, tensile strength 470–630 MPa) for high-load upright columns and deep-bay structural mezzanines. Mill test certificates (MTRs) according to EN 10204 3.1 are provided with each production run.
Q2 How do you customize beam connectors and upright hole pitch for OEM orders?
We manufacture custom punch dies for all international pitch configurations, including 50mm, 75mm (Euro standard), and 76.2mm (3-inch American teardrop). Our CNC lines stamp custom teardrop, butterfly, diamond, or keyhole perforations. Connector brackets feature 3 to 5 multi-claw configurations with integral safety spring pins that resist dislodgement up to 5,000 N.
Q3 What calculations ensure structural compliance in active seismic zones?
Our structural team utilizes Finite Element Analysis (FEA) software to perform linear buckling and non-linear dynamic earthquake response simulations following FEM 10.2.02 and RMI MH16.1. We adjust baseplate surface areas, specify higher grade anchor bolts (M12 to M16 chemical/mechanical expansion anchors), and install diagonal top and back bracing networks based on local seismic hazard coordinates.
Q4 Can your layout designs support NFPA 13 fire sprinkler flue space requirements?
Yes. Our 2D and 3D CAD layout services account for longitudinal flue spaces (typically 6 inches / 150mm between back-to-back racks) and transverse flue spaces (between adjacent pallet positions). We supply pallet back-stops, wire mesh decking, and offset row spacers that prevent pallet intrusion into sprinkler paths, supporting rapid Civil Defense and insurer sign-offs.
Q5 How does your surface treatment perform against extreme heat, humidity, and cold?
All fabricated structural members undergo a 9-stage chemical pretreatment: hot-water degreasing, acid pickling, double water rinsing, iron phosphating, and deionized neutralization. Components then receive thermosetting epoxy-polyester powder applied at 180°C to 200°C, producing a resilient 70 to 100-micron dry film thickness that survives ASTM B117 salt spray tests up to 500 hours.
Q6 What are the standard deflection tolerances applied to beam calculations?
Under rated maximum uniform distributed loads (UDL), our beam designs maintain maximum deflection values under L/200 (where L equals clear span beam length), with high-precision automated systems designed down to L/300 or L/500 to protect automated storage and retrieval machines (ASRS). Structural safety factors strictly exceed 1.5 against yield failure under ultimate limit state conditions.
Q7 How are knock-down racking packages bundled to optimize ocean freight volume?
Uprights are nested horizontally using custom steel corrugated dunnage and protective corrugated edge guards, banded with heavy-duty tensioned steel strapping. Beams are stacked in interlocking wood-runner bundles labeled with color-coded pallet tier tags matching project engineering drawings. This knock-down packaging maximizes container cubic utilization up to 92% in 40ft HQ containers.
Q8 What technical documentation is supplied for customs clearance and vendor filing?
For each export shipment, we supply complete Bill of Materials (BOM), commercial invoices, certified packing lists with bundle dimensions, Mill Test Reports (MTR), CE Declarations of Conformity, and ISO 9001 certificates. Detailed CAD installation blueprints with load capacity warning plaques in your specified language are provided for rapid job-site erection.
Engineering Your Next High-Efficiency Warehouse
Whether you require custom OEM upright roll-forming for distribution networks, turnkey mezzanine systems, or complete ASRS high-bay configurations, our engineering team is ready to assist. Submit your architectural drawing or dimensional plan for a complimentary structural layout and certified load rating analysis.
