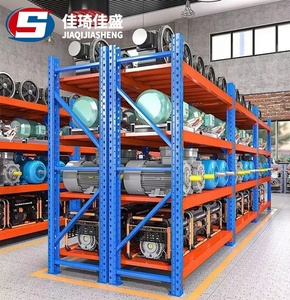

Precision-engineered selective pallet racks, multi-tier long-span shelving, and compact stacking frames tailored for rapid installation, micro-fulfillment centers, and high-SKU density.

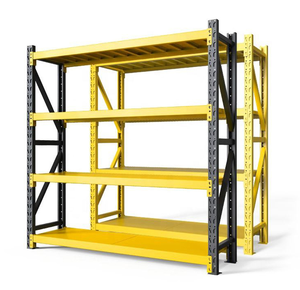

Multi-layer structural steel racking system designed for garage backrooms, sub-level basements, and compact parts depots needing reconfigurable verticality.

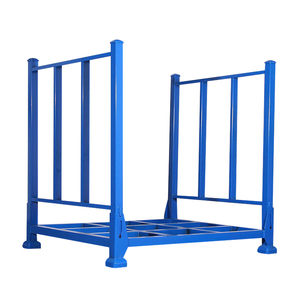

High-capacity post-and-cradle nesting pallets. Engineered for bulk product buffering in seasonal cross-docking warehouses without permanent aisle commitment.
Dual-purpose commercial shelving bridging cash-and-carry retail displays with backroom stock consolidation. Configurable with wire dividers and price label channels.

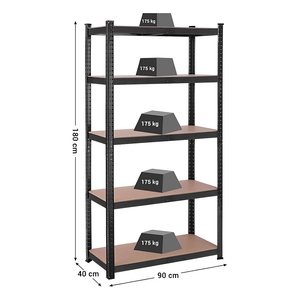

Interlocking rivet/butterfly-keyway industrial shelving. Enables rapid manual assembly within 10 minutes without hardware fasteners, ideal for manual fulfillment bins.

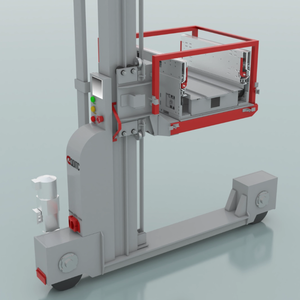

Ultra-compact micro-stacking pallet chassis engineered with cast iron locators and standardized tolerances for robotic AGV/AMR micro-shuttle integration.
Reduces aisle widths down to 1.6 meters, unlocking up to 45% additional storage cubic volume in low square-footage warehouses paired with articulated reach trucks.

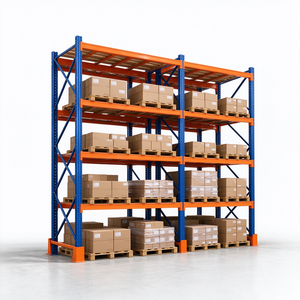

Universal roll-formed beam and upright configuration with 75mm/50mm pitch adjustment. The gold-standard backbone for dynamic SKU rotation and direct forklift picking.
Heavy-duty manual picking rack equipped with galvanized steel deck panels or wire decking. Engineered for cartons, intermediate bulk goods, and multi-tier catwalks.
How supply chain engineers overcome ceiling constraints, structural floor slab limitations, and tight turning radius physics in under-2,000m² facilities.
Small warehouses—spanning from 200 m² urban micro-depots to 2,000 m² secondary distribution hubs—present unique operational friction points distinct from mega-scale logistics campuses. In constrained facilities, square footage costs are historically 35% higher per square meter, making Cubic Volume Utilization ($V_{util}$) the pivotal key performance indicator. Standard selective racking layouts typically capture only 38% to 42% of actual building volume due to wide forklift aisles (3.6m to 4.2m). By engineering application-tailored, custom OEM/ODM racking topologies, small warehouse operators can elevate volumetric density past 78% without compromising SKU selectivity or life-safety egress requirements.
| Racking Topology | Aisle Width Req. | Volumetric Utilization | Selectivity Rate | Ideal Inventory Profile |
|---|---|---|---|---|
| Selective Pallet Racking | 3.2m - 3.8m | 40% - 45% | 100% Direct Access | High-variety SKUs, erratic turnover, general freight |
| Very Narrow Aisle (VNA) | 1.5m - 1.8m | 65% - 75% | 100% Direct Access | High-bay urban warehouses with turret truck fleets |
| Drive-In / Deep Stacking | N/A (Drive-through) | 75% - 85% | LIFO (Last-In, First-Out) | Homogeneous goods, cold chain, seasonal peaks |
| Multi-Tier Mezzanine Rack | 0.9m - 1.2m (Walkways) | 80% - 90% (Vertical) | 100% Hand-Pick | E-commerce fulfillment, spare parts, apparel cartons |
| Post-Stacking Moveable Racks | Dynamic Footprint | 70% - 80% | Batch Selectivity | Temporary staging, raw material buffer, bulk cargo |
In compact facilities, pallet racking uprights often absorb localized impacts from agile counterbalanced forklifts executing tight radius turns. Guangzhou Heda Shelves utilizes ultra-high-yield Q235B and Q355B structural cold-rolled steel profiles, precision roll-formed through 12 to 18 rolling stages to eliminate residual internal stresses. Under FEM 10.2.02 and ANSI MH16.1 specifications, our horizontal load-bearing beams adhere strictly to a maximum deflection limit of $L/200$ under rated load, ensuring that structural racking frameworks remain rigid and free from elastic failure, even when subjected to dynamic operational shocks.
Furthermore, column baseplates are specifically designed for secondary slab configurations. Where industrial concrete slabs may be limited to 150mm–200mm thickness, HEDA's structural engineering team expands baseplate surface footprints and applies dual-anchor chemical grouting schedules to mitigate floor punching shear stress, guaranteeing uniform point-load dispersion.
Strategic purchasing vectors transforming industrial storage: modular scalability, AMR hybrid workflows, and resilient supply chain localization.
With 1-hour e-commerce deliveries becoming dominant, procurement is shifting rapidly from regional distribution centers (RDCs) toward edge-of-city small hubs. Buyers prioritize lightweight, high-load boltless racking structures that can be assembled, reconfigured, or relocated across urban retail spaces within 48-hour turnarounds.
Autonomous Mobile Robots (AMRs) are no longer exclusive to Fortune 500 facilities. Small warehouse procurement specifications increasingly dictate racking footings with embedded optical guidance targets, clear lowest-shelf clearances of 250mm for robot underslung entry, and tighter manufacturing tolerances (±0.5mm) across racking guide channels.
B2B buyers are moving away from traditional solvent paints toward heavy electrostatic thermoset polyester powders compliant with RoHS and REACH standards. Buyers operating in extreme microclimates (coastal humidity, desert dust, or temperature-controlled cold boxes) mandate pickling-phosphating pretreatments with over 500 hours of ASTM B117 salt-spray resistance.
Eliminating intermediary markup while gaining finite structural engineering, CAD simulation, and customized bespoke fabrication directly from Guangzhou.
Procuring small warehouse racking through multi-tier distribution networks often introduces severe engineering compromises: standardized catalogues force clients to install ill-fitting racking rows that waste up to 25% of their available floor footprint. Sourcing directly from an established OEM/ODM manufacturer like Guangzhou Heda Shelves Co., Ltd. completely reverses this dynamic.
With an in-house engineering cadre numbering over 300 technical specialists, HEDA delivers end-to-end bespoke tailoring. Whether accommodating atypical building pillar grids, designing mezzanine floorings around overhead HVAC ductwork, or developing unique powder-coated corporate colorways for international 3PL branding, direct factory collaboration delivers uncompromised spatial fit and superior cost-per-pallet economics.
Over two decades of precision manufacturing excellence, backed by internationally verifiable certifications and rigorous quality assurance.
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has grown into an internationally acknowledged manufacturing authority in warehousing systems. Backed by a 30,000 square meter modernized manufacturing complex and over 30,000 metric tons of monthly processing capacity, HEDA combines cutting-edge production hardware with deep technical structural consulting.
Every small warehouse racking project begins with a comprehensive structural evaluation. Our engineering department develops free 2D CAD layouts and photorealistic 3D parametric simulations within 24–48 hours, accounting for building column coordinates, overhead sprinkler clearances, forklift turning corridors, and local building code load criteria.
Export shipments are bundled with labeled structural markers corresponding directly to our 3D installation blueprints, expediting assembly for local contractor teams.
Critical details on structural safety, design specifications, lead times, export logistics, and OEM customization.
Partner directly with an established OEM/ODM racking manufacturing factory. Receive custom 2D/3D layout engineering, factory-direct wholesale pricing, and full ISO/CE structural compliance documentation.
