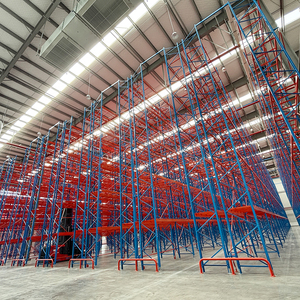

Jracking Euro Standard Selective Pallet Rack Heavy Duty
Full 100% selective unit accessibility engineered for Euro pallets (1200x800mm). Modular beam connectors with safety locking pins.
25+
Years Engineering (Est. 2001)
30,000 t
Monthly Structural Capacity
30,000 m²
Integrated Manufacturing Hub
10,000+
Global Installations in 120+ Countries
Direct Factory OEM/ODM Solutions
High-Efficiency Industrial Storage Rack Systems
Manufactured to FEM, EN 15512, and RMI standards. Designed for high-bay optimization, high payload ratings, and seamless compatibility with manual, semi-automated, and robotic handling fleets.
Selective Pallet Rack Q235B Steel Storage Shelving
Formed from certified high-tensile Q235B carbon steel. Features pitch adjustment steps (50mm/75mm) for evolving inventory SKU configurations.
Heavy-Duty Adjustable Bolt Structure Industrial Rack
Reinforced upright omega profiles engineered with dual-bolt frame connections, resisting heavy static stresses and horizontal warehouse seismic forces.
Pteris ASRS Shuttles Pallet Smart Racking System
Semi-automated radio shuttle platform with integrated laser sensors for high-density FIFO/LIFO channels. Cuts forklift travel distance by up to 60%.
Heavy Duty Pallet 5 Layers 3000KG Triple Support Rack
Heavy payload distribution tier featuring triple cross-beam reinforcements. Tested up to 3,000 kg per beam level under full uniform distributed load.
Custom Steel Selective Pallet Rack Storage System
Customizable height spans reaching past 12 meters. Compatible with wide, narrow, and VNA reach trucks to maximize cubic volume utilization.
Drive Through & Drive-In Heavy Duty Storage Rack
Continuous lane storage eliminating handling aisles. Maximizes storage density by up to 80% for cold storage, beverage, and bulk homogenous goods.
Galvanized Dynamic Roller Pallet Gravity Flow Rack
Snap-in heavy duty roller bed with integrated centrifugal speed controller brakes. Continuous FIFO gravity feed for high-turnover FMCG & pharma hubs.
Procurement Trends & Market Intelligence
The Evolution of Industrial Racking: 2026–2030 Procurement Forecast
Global supply chain volatility, escalating real estate square-meter lease costs, and robotic fleet adoption are changing how operations managers procure warehouse steel racks.
High-Density Semi-Automation over Fixed Aisles
Procurement teams are moving capital expenditure from wide-aisle selective racking to dense Pallet Shuttle and ASRS solutions. By replacing access aisles with motorized shuttles running deep storage channels, operations cut real estate footprints by 45% while decreasing forklift collision risks and reducing operational labor overhead.
Climatic Corrosion Pretreatment Specs
Standard solvent coatings deteriorate under harsh humidity, marine salt spray, and extreme temperature fluctuations common to Middle East, African, and Southeast Asian facilities. Procurement directives now demand an 8-stage phosphating chemical wash paired with thermoset polyester electrostatic powder coating to ensure rack lifespans exceed 15 years.
Dynamic Seismic & Deflection Engineering
Industrial racking is an engineered structural system, not static shelving. Tier-1 buyers require structural calculations validating maximum allowable deflection limits (L/200 under FEM 10.2.02 standards) along with localized site seismic risk analysis before releasing purchase orders, reducing downstream civil defense and warehouse insurance liabilities.
Technical Whitepaper: Mitigating Hidden TCO Risks in Industrial Steel Rack Sourcing
Procuring industrial racks solely on base steel metric tonnage pricing often leads to high total cost of ownership (TCO) through unplanned failures. When evaluating an OEM/ODM manufacturing partner, procurement directors must review three core structural manufacturing criteria:
- Yield Strength of Structural Steel: Ensuring all upright columns and box load beams are roll-formed from primary mill certified Q235B or Q355B cold-rolled steel, avoiding reclaimed scrap scrap steel which contains microscopic fissures that buckle under seismic load.
- Continuous Automatic Seam Roll-Forming: Precision multi-roller continuous shaping prevents micro-fracturing along the 90-degree fold bends of omega upright columns, maintaining uniform tensile yield values throughout column runs exceeding 12 meters.
- Robotic Submerged-Arc Beam End Connector Welding: Beam drop connections carry intense shearing force. Triple or four-claw connector hooks must be precision-welded with continuous automatic bead tracking to eliminate cold joints, pinholes, and uneven heat stress profiles.
HEDA Shelves incorporates structural verification at each production milestone, ensuring our structural framing supports dynamic warehouse operations without catastrophic racking collapses.
CE Certified (No. 2435-CPR-8605159)
ISO 9001:2015 Quality Management
RoHS Chemical Surface Compliant
FEM 10.2.02 & RMI Load Standard Design
Enterprise Manufacturing Authority
Why Tier-1 Industrial Projects Rely on HEDA Shelves
Combining heavy manufacturing capabilities with structural design engineering, HEDA Shelves delivers turnkey OEM/ODM services from CAD layouts to export crating.
30,000 m² In-House Production
Equipped with 10 automated cold roll-forming lines, computerized multi-station upright punching machines, and dual automatic powder-coating lines operating 24/7 in Guangzhou, China.
Free 2D CAD & 3D BIM Layouts
Our engineering department delivers comprehensive 2D CAD floor layouts, structural load matrices, and 3D realistic visualizations within 24 to 48 hours to streamline facility approval.
Comprehensive OEM/ODM Engineering
Complete customization across profile thicknesses, baseplate footprints, cross-beam profiles, wire-mesh decking gauges, and RAL electro-coating shades with branded labeling.
Seaworthy Container Packaging
Racking frames and beams are bundled with steel strapping, scratch-resistant corrugated liners, and tagged part-identification manifests for efficient site receiving and staging.
Procurement FAQ
Frequently Asked Questions on Industrial Racking Sourcing
Essential guidance covering technical engineering specifications, structural compliance, installation coordination, and containerized logistics.
What engineering variables are required to generate an accurate warehouse rack quote?
To provide precise structural calculations, certified load ratings, and bill of materials (BOM), please provide:
- Warehouse Architectural Layout: Clear internal ceiling height beneath obstacles/sprinklers, slab load-bearing capacity (kN/m²), column grids, and floor joint layouts.
- Pallet Profile: Dimensions (Width x Depth x Overall Height including load), maximum and average weight per pallet, pallet entry type (two-way or four-way entry).
- Material Handling Equipment (MHE): Forklift model, mast collapsed and extended height, turning radius (Aisle width requirements / AST), and guide wire/rail configurations.
- Operational Turnover: Number of unique SKUs, warehouse throughput requirements (FIFO vs. LIFO), and local seismic hazard zone designations.
How does HEDA ensure rack integrity against high corrosion, extreme heat, and ambient humidity?
Our fabrication follows an 8-stage surface treatment process before finishing. Steel components undergo alkaline degreasing, clean-water rinsing, sulfuric pickling to eliminate mill scale and rust, and zinc-iron phosphating to build an anti-oxidation barrier. Components are then cured with thermosetting polyester electrostatic powder at 180°C–200°C. For sub-zero cold storage, humid coastal locations, or outdoor yards, we offer hot-dip galvanized finishes complying with ISO 1461.
What structural steel grades and design calculation standards do your systems follow?
All primary structural components use verified Q235B or Q355B structural carbon steel from audited prime domestic steel mills. Structural load calculation, stress tests, and upright buckling calculations adhere strictly to the European FEM 10.2.02 and EN 15512 specifications, as well as the American RMI (Rack Manufacturers Institute) MH16.1 design code. All products carry audited CE declarations and ISO 9001:2015 certification.
Can HEDA Shelves coordinate with local consultants for Civil Defense and fire department approvals?
Yes. Our structural drawings feature explicit transverse and longitudinal flue spaces (typically 75mm to 150mm required for overhead in-rack fire suppression sprinkler penetration), clear emergency egress aisles, structural baseplate anchoring depths, and dynamic deflection limits. Our structural drawing packages are regularly accepted by GCC Civil Defense agencies, European safety bodies, and international industrial insurers.
What installation assistance and ongoing lifecycle support is provided for international shipments?
Every container shipment includes piece-marked components matching detailed 2D/3D assembly plans. We supply step-by-step installation manuals and step-by-step video instructions. For major distribution centers, high-density Radio Shuttle installations, or multi-tier rack-supported mezzanines, we can dispatch senior field engineers for on-site crew supervision, alignment checks, anchor torque verification, and load safety sign-off.
Ready to Engineer Your Optimal Storage Facility?
Connect directly with our structural engineering team to request free 2D CAD layouts, 3D renderings, and competitive direct factory OEM/ODM pricing for your upcoming warehouse project.
