VNA System

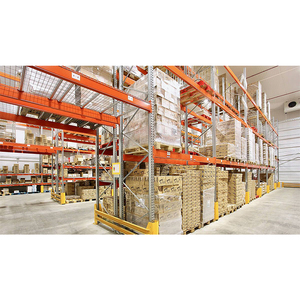

Very Narrow Aisle Storage System Reach Truck Warehouse Solution Space Saving VNA Rack
Aisle: 1.6–1.9m
Reach: Up to 15m
100% Selective
Engineered Portfolio
Flagship Narrow Aisle & Mezzanine Systems
Our precision roll-formed Q235B/Q355B structural systems deliver high-density storage, calibrated guide rail compatibility, and heavy floor loading across global supply networks.
Multi-Tier Attic
Customized Mezzanine Floor Racking Heavy-Duty Storage Shelving Platform
Load: 300-1000kg/m²
Dual Floor Decking
Modular Beam
Boltless Assembly
Heavy Duty Steel Warehouse Rack Anti-Rust Space-Saving Narrow Aisle Racking
Ensamblados Sin Tornillos
Galv/Powder Coat
Q235B High-Yield
Loft Platform
Attic Loft Mezzanine Outdoor & Indoor Platform Floor for Heavy Racking Shelves
Integrated Stairway
Perforated Flooring
Heavy Rigidity
Retail & Intralogistics
Double Sided Supermarket Rack Low Base Shelf for Narrow Aisle Gondola Layouts
1310*900*350mm
Slimline Upright
Commercial Display
Cold Chain Ready
Arkref Cold Storage Shelves Selective Narrow Aisle Shelf R744 Compatible
Sub-zero -30°C Steel
Hot-dip Galvanized
R744 Safety Rated
Tight Passage
Heavy Duty Adjustable Narrow Aisle Racks Stable Bearing Design for Tight Passages
Cold-Rolled Steel
Pitch: 50/75mm
Load: 1-4T/Level
Mobile Logistics
Aluminum Profile Marine Board Shelf With Wheels For Mobile Display Cabinets
Extruded Aluminum
Marine Plywood Core
Heavy-Duty Casters
2001
Founded & Pioneering
Over 23 years of specialized structural fabrication and intralogistics export.
30,000 m²
In-House Manufacturing Base
Guangzhou precision plant equipped with multi-roll cold forming and robotic lines.
30,000 Tons
Monthly Output Capacity
High-volume throughput ensuring uninterrupted supply for mega giga-projects.
120+
Global Export Territories
Fully compliant with Middle East GCC, European CE, and Americas structural codes.
Market Intelligence
Future Procurement Trends in Very Narrow Aisle Logistics (2025–2030)
As global industrial real estate lease prices climb and cold-chain/e-commerce fulfilment demands surge, B2B procurement leaders are pivoting toward high-cube volumetric efficiency.
Height Stratification & Cubic Optimization
Modern class-A logistics hubs are transitioning vertical reach from traditional 8–10 meters up to 15–18 meters continuous clear height. OEM racking specifications demand heavy cold-formed upright profiles exceeding 120mm cross-section with yield strength surpassing 355 MPa to negate vertical sway and torsional harmonic vibration during rapid man-up turret truck cycles.
Strict Floor Flatness Synergy (DIN 18202 / VDMA / TR34)
Procurement teams increasingly integrate racking engineering directly with civil slab contracting. Operating turret trucks at 15m elevation requires floor classifications conforming to TR34 DM1 or DIN 18202 Table 3 Line 4. OEM racking must incorporate micro-adjustable high-tensile shims and reinforced heavy base plates to preserve millimeter-accurate plumbness.
Harsh Environment & Sub-Zero Pretreatment
With massive supply chain capital flowing into the GCC, Middle East and extreme cold-chain logistics, standard paint finishes fail rapidly. Future RFQs require mandatory 10-stage pickling, phosphating, and 80–120μm electrostatic epoxy-polyester powder coats resistant to 45°C ambient warehouse heat, humidity, dust, and sub-zero -30°C thermal contraction.
| System Metric | Standard Selective Pallet Racking | OEM Very Narrow Aisle (VNA) | Double-Deep Pallet Racking | Automated Radio Shuttle Racking |
|---|---|---|---|---|
| Operating Aisle Width | 3.0m – 3.8m (Counterbalance) | 1.5m – 1.9m (Turret / AGV) | 2.8m – 3.2m (Pantograph Reach) | 2.0m – 2.4m (Transfer Bay) |
| Warehouse Space Utilization | 35% – 42% | 60% – 72% (+45–50% gain) | 50% – 58% | 70% – 82% (High-volume lanes) |
| Direct Pallet Selectivity | 100% (Immediate) | 100% (Immediate Access) | 50% (Requires shuffling) | LIFO / FIFO (Deep batch run) |
| Maximum Vertical Clear Reach | Up to 11.0m | Up to 16.5m (Ultra-High-Bay) | Up to 10.5m | Up to 24.0m (Clad-Rack AS/RS) |
| Guidance Infrastructure | Free-steered manual | Floor Steel Rails or Inductive Wire | Free-steered manual | Laser guided / Track rail |
| Typical Throughput Rate | 25–30 pallets / hour / truck | 38–50 pallets / hour / truck | 18–24 pallets / hour / truck | 40–60 pallets / hour / unit |
Engineering Evolution
Technological Development Trends in VNA Systems
How structural finite element analysis, automated guided vehicle (AGV) integration, and precision cold-roll manufacturing are defining the next era of high-density logistics.
Inductive Wire Guidance & Magnetic Tracks
Traditional structural guide rails (100×75×6mm steel angles anchored to concrete) are giving way to wire-guided and RFID sensor fields cut flush into floor joints. This eradicates ground-level tripping hazards, preserves lower rack level clear dimensions, and enables smooth transitional navigation for hybrid autonomous turret trucks.
FEA-Driven High-Stiffness Upright Profiles
Through 3D Finite Element Analysis (FEA), modern upright geometries feature continuously cold-bent omega multi-flange profiles with stiffening ribs. This maximizes second moment of area (Ix and Iy), achieving deflection thresholds under full payload exceeding L/200 on structural beams and H/300 on frame verticality under dynamic seismic stresses.
Smart Sensor Arrays & IoT Flue-Space Telemetry
Next-generation VNA installations incorporate integrated optical sensor reflectors, laser anti-collision rangefinders, and longitudinal backstop safety nets. Real-time ultrasonic sensors continuously monitor the mandatory 75–100mm longitudinal flue spaces, immediately notifying building management if misaligned pallets breach fire sprinkler clearance zones.
Enterprise Core Competence
Why Global Supply Chains Partner with HEDA Shelves
Operating from our 30,000 square meter facility in Guangzhou since 2001, we deliver complete turnkey OEM/ODM warehouse racking engineering across Europe, the Americas, Africa, and the Middle East GCC.
Certified Structural Integrity
Every beam, upright frame, and connector bracket is validated by CE (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management, and RoHS adherence. Structural design calculations fully adhere to FEM 10.2.02, EN 15512, and ANSI MH16.1 specifications.
Free 2D CAD & Full 3D Layout Simulation
Our 30+ engineering specialists generate precise CAD layout drawings, pallet clearance diagrams, and photorealistic 3D warehouse walk-throughs within 24 to 48 hours, fully coordinated for local civil defense, municipal building permit, and safety insurer approvals.
Ocean-Worthy Containerized Bundling
Every shipment is color-coded, steel-strapped, and moisture-sealed on custom wooden cradles with numbered bundle tags aligning directly with structural erection blueprints, speeding container deconsolidation and reducing on-site installation labour up to 35%.
01. Prime Q235B/Q355B Steel
Direct mill coils with verifiable chemical batch test certificates.
02. Continuous Precision CNC
Tolerances within ±0.1mm for seamless hook-in pitch alignment.
03. Deep Acid Pickling & Phosphating
100% surface descaling to guarantee epoxy-powder cross-link bonding.
04. Electrostatic Powder Curing
Continuous tunnel ovens baking durable coats at 180°C–200°C.
Knowledge Base & FAQ
Frequently Asked Questions on VNA Procurement
Clear, engineering-grounded answers addressing floor preparation, equipment tolerances, regional standards, and export logistics.
Q1
What is the minimum operating aisle width required for a VNA racking layout?
A standard Very Narrow Aisle system functions with clear operating aisles between 1,500mm and 1,900mm, depending on pallet dimensions (1200x800mm Euro or 1200x1000mm ISO industrial) and the exact mast envelope of your VNA turret truck (such as Jungheinrich, Linde, Crown, or Still). By contrast, conventional counterbalanced forklifts demand 3,200mm to 3,800mm aisle widths, enabling VNA layouts to reallocate up to 50% of wasted aisle square footage into dense pallet bays.
Q2
Which floor flatness specification is essential for VNA high-lift installations?
Because turret trucks lift loads up to 15m or higher, minimal floor undulations cause substantial dynamic mast tilt at top elevation. Floors must strictly comply with DIN 18202 (Table 3, Line 4) or The Concrete Society’s TR34 (Class DM1 or DM2). Our engineering deliverables provide precise slab loading diagrams (point loads up to 120 kN per upright baseplate) to facilitate coordinated diamond grinding or specialized laser screeding.
Q3
Should our warehouse implement bottom mechanical guide rails or wire guidance?
Mechanical guide rails (typically continuous L100x75x6mm or L125x75x8mm structural steel angles secured with chemical anchors) provide positive physical containment and safeguard lower pallet loads from truck mast impact. Wire guidance (an inductive floor wire emitting an AC frequency) offers a clean, barrier-free slab surface with lower floor-level maintenance. We manufacture custom steel guide rails with engineered lead-in flared horns for mechanical systems, while accommodating wire guidance pathways without frame interference.
Q4
How does HEDA Shelves assure corrosion protection for hot, humid, or desert environments?
For high-temperature, humid, or coastal desert regions such as Dubai (Jebel Ali), Dammam, or Jeddah, all steel members undergo a multi-bath chemical pretreatment (alkaline degreasing, acid pickling, rinsing, and phosphating). We subsequently apply an automated electrostatic epoxy-polyester hybrid powder coating baked at 200°C (film thickness 80–120 microns). Outdoor, coastal, or extreme cold-store yards (-30°C) can be engineered with EN ISO 1461 hot-dip galvanization.
Q5
What parameters must clients supply to receive an authoritative layout and quotation?
To produce an optimized CAD proposal within 24 hours, our engineering department requests:
(1) Building CAD DWG or dimensions with column grid locations and clear height under roof joists/sprinklers;
(2) Pallet specifications (width × depth × overall loaded height and maximum gross weight);
(3) Forklift model, mast maximum elevation, and turning radius;
(4) Seismic zone classification, ambient operating temperature, and expected daily pallet turnover.
Q6
Can your structural calculations support civil defense and local building permits?
Yes. Our calculation sheets include comprehensive dead, live, horizontal impact, wind (for rack-supported structures), and seismic load combinations evaluated per FEM 10.2.02 and EN 15512. We specify aisle egress travel distances, transverse/longitudinal sprinkler flue gaps (minimum 75mm to 100mm), and load capacity signage strictly compliant with regional civil protection codes and municipal guidelines across the GCC, EU, and Australasia.
Transform Your Warehouse Density with HEDA Engineering
Send us your building schematics or project specifications today. Our licensed structural design team will formulate a full 2D CAD floor plan, 3D visualization, and detailed itemized factory-direct BOM within 24 to 48 hours.
